| 最小注文数量 : | 1個 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | カートンのトレイ | 受渡し時間 : | 10日間 |
| 支払条件 : | T/T、D/P、D/A、L/C、Western Union、MoneyGram | 供給の能力 : | 10万個/日 |
| 起源の場所: | 中国の東guan | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD411Q117HWA1DP |
|
詳細情報 |
|||
| パフォーマンス: | 1000Mb | PoE: | PoE/PoE+/PoE++ |
|---|---|---|---|
| 電流定格: | 1.5 A （最高） @ 25° C | 定格電圧: | 150 VAC （最高） |
| コンポーネントタイプ: | PCBジャック | パフォーマンスカテゴリ: | CAT6 |
| PCBへ基づいていること: | はい | 包装形態: | トレイ |
| コアの数: | 8 | 接触ピンの金メッキ: | 6U |
| 動作温度: | -40°C〜+85°C | 保管温度: | -40°C〜+85°C |
| ハイライト: | RJ45 connector with POE power supply,gigabit RJ45 connector with shielding,33mm RJ45 connector with filter |
||
製品の説明

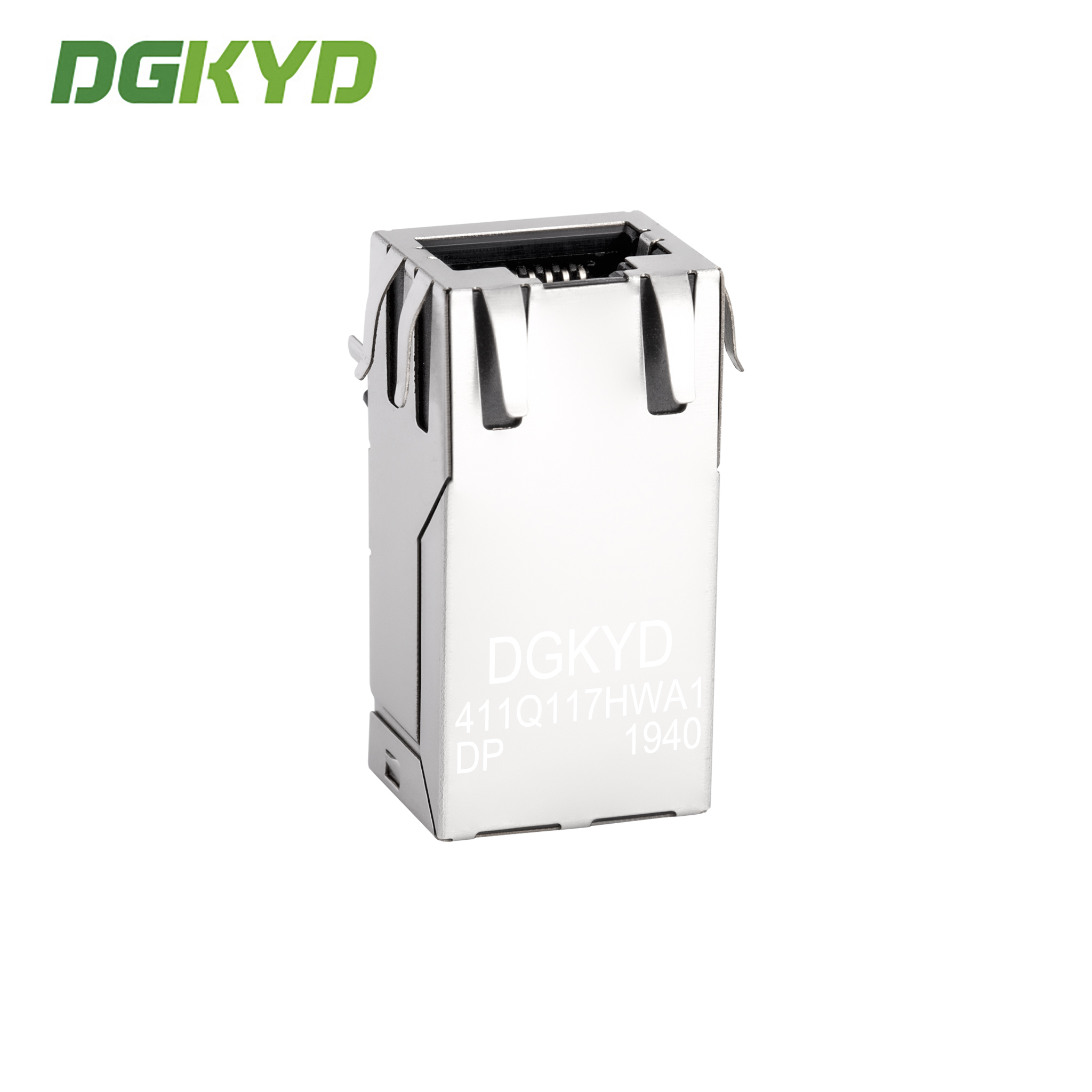

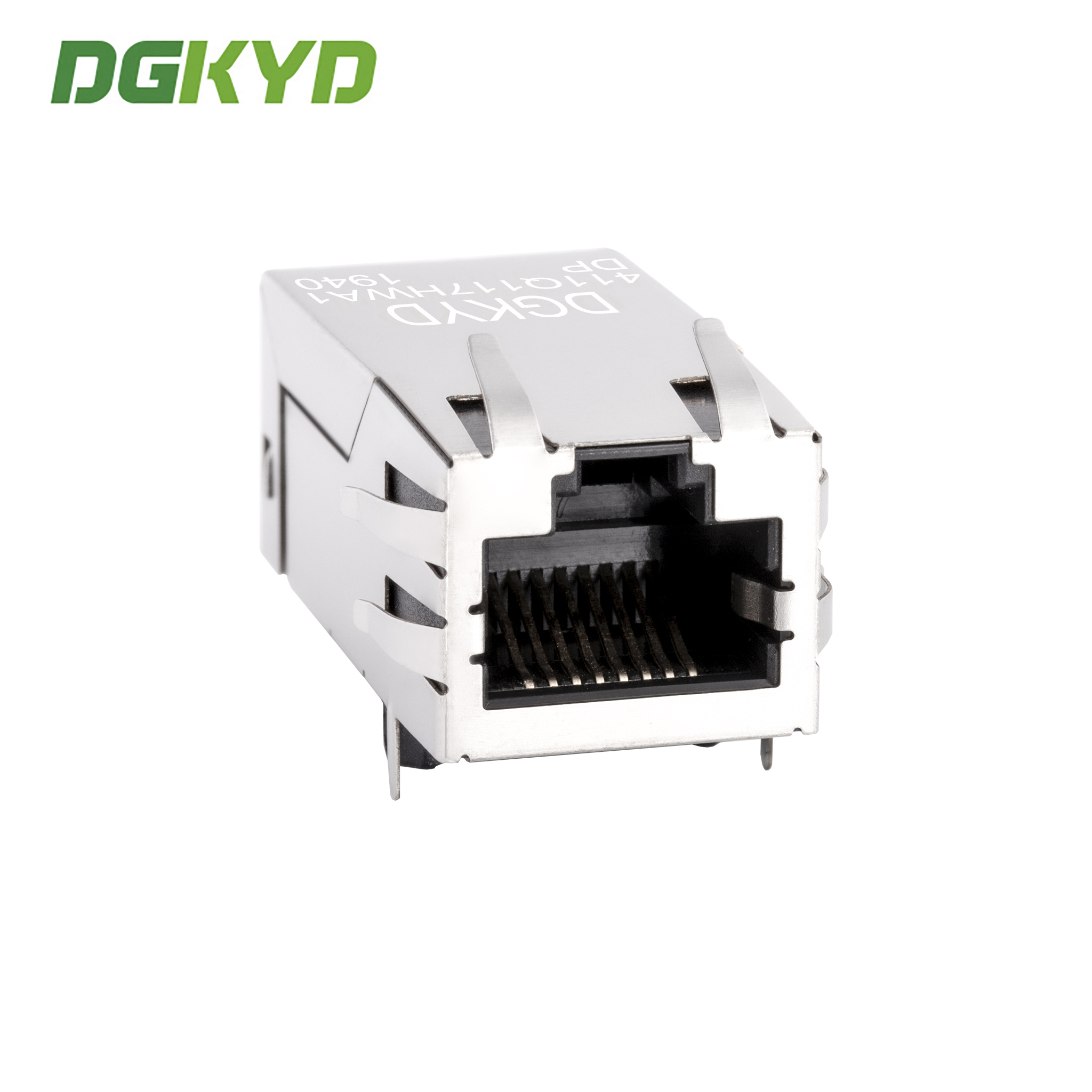

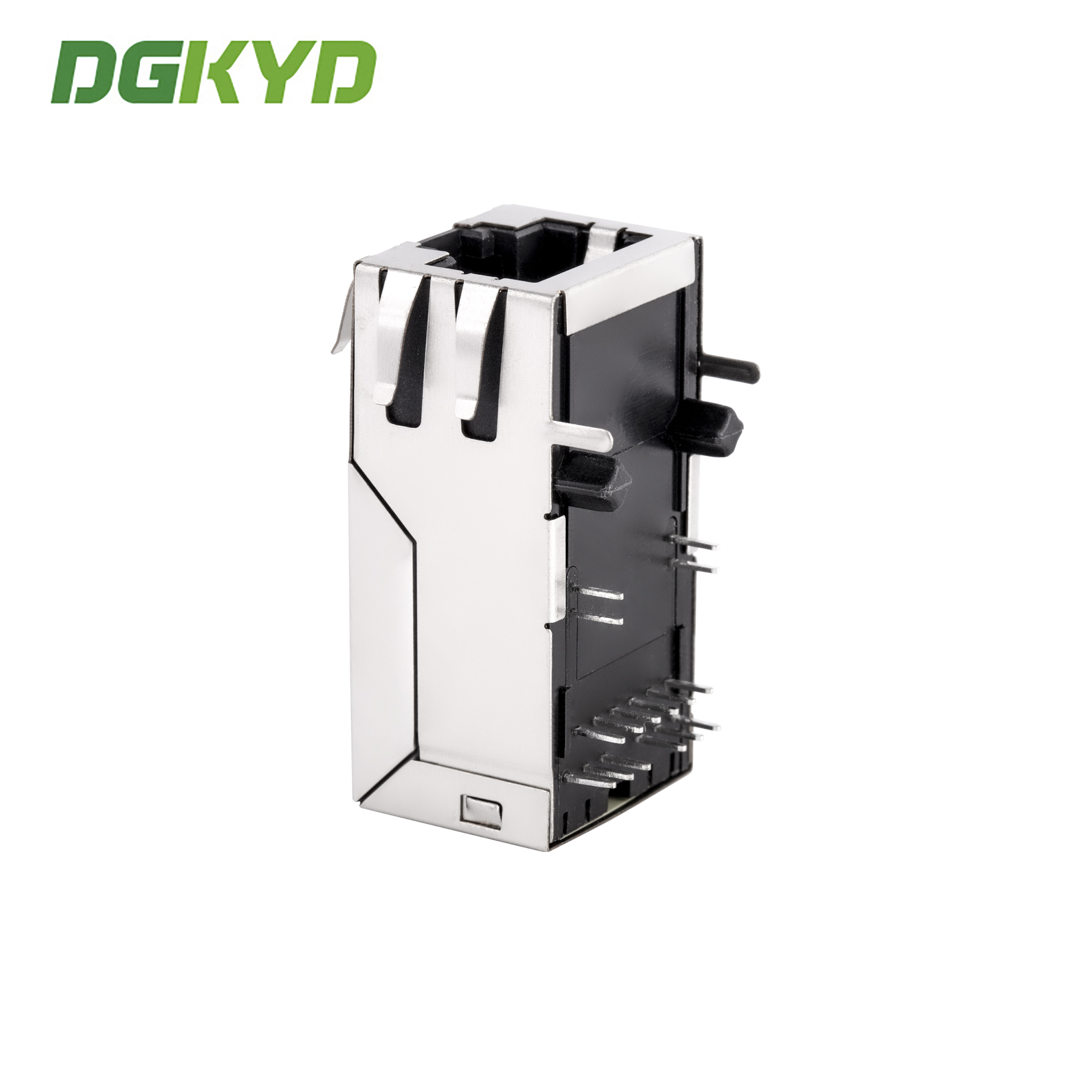

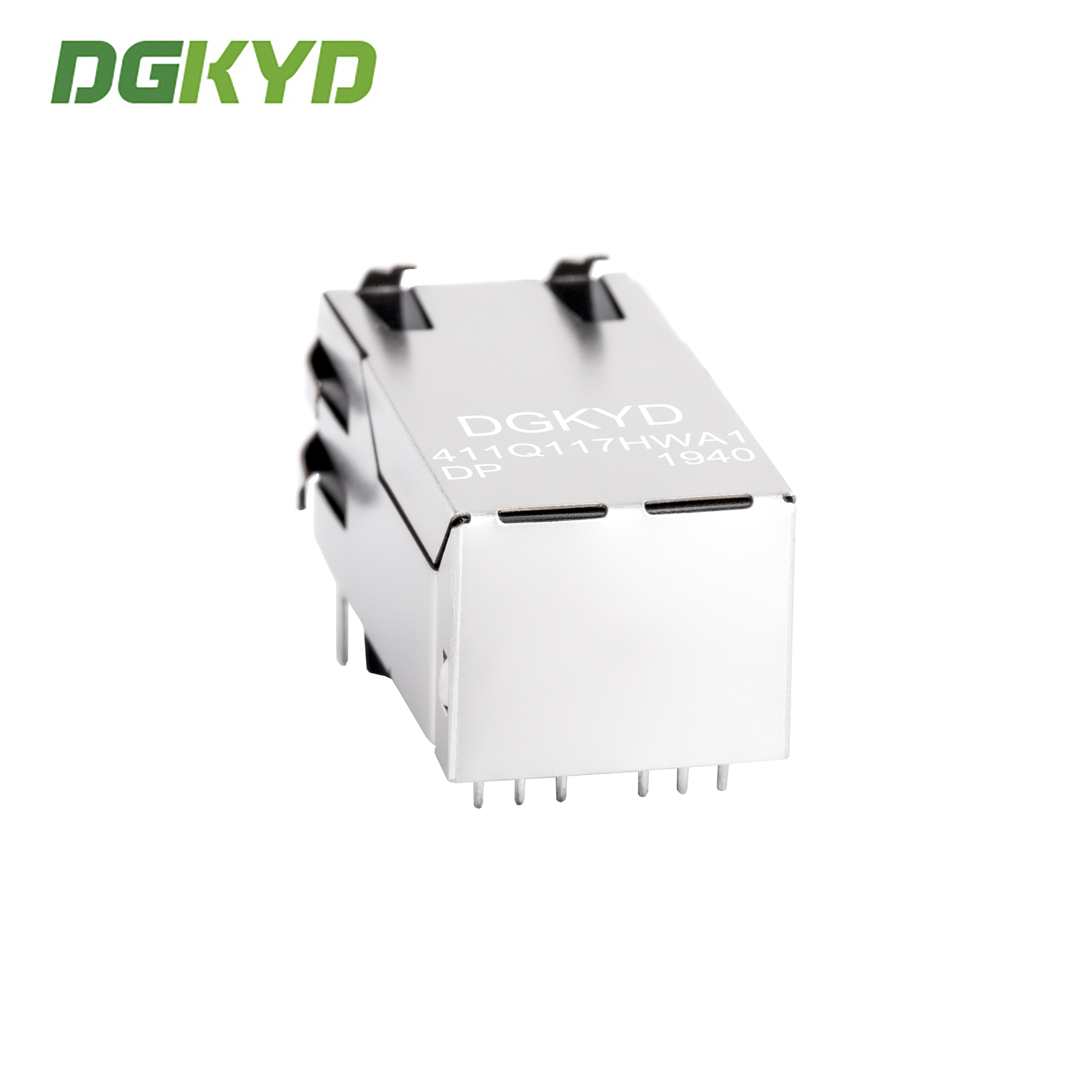

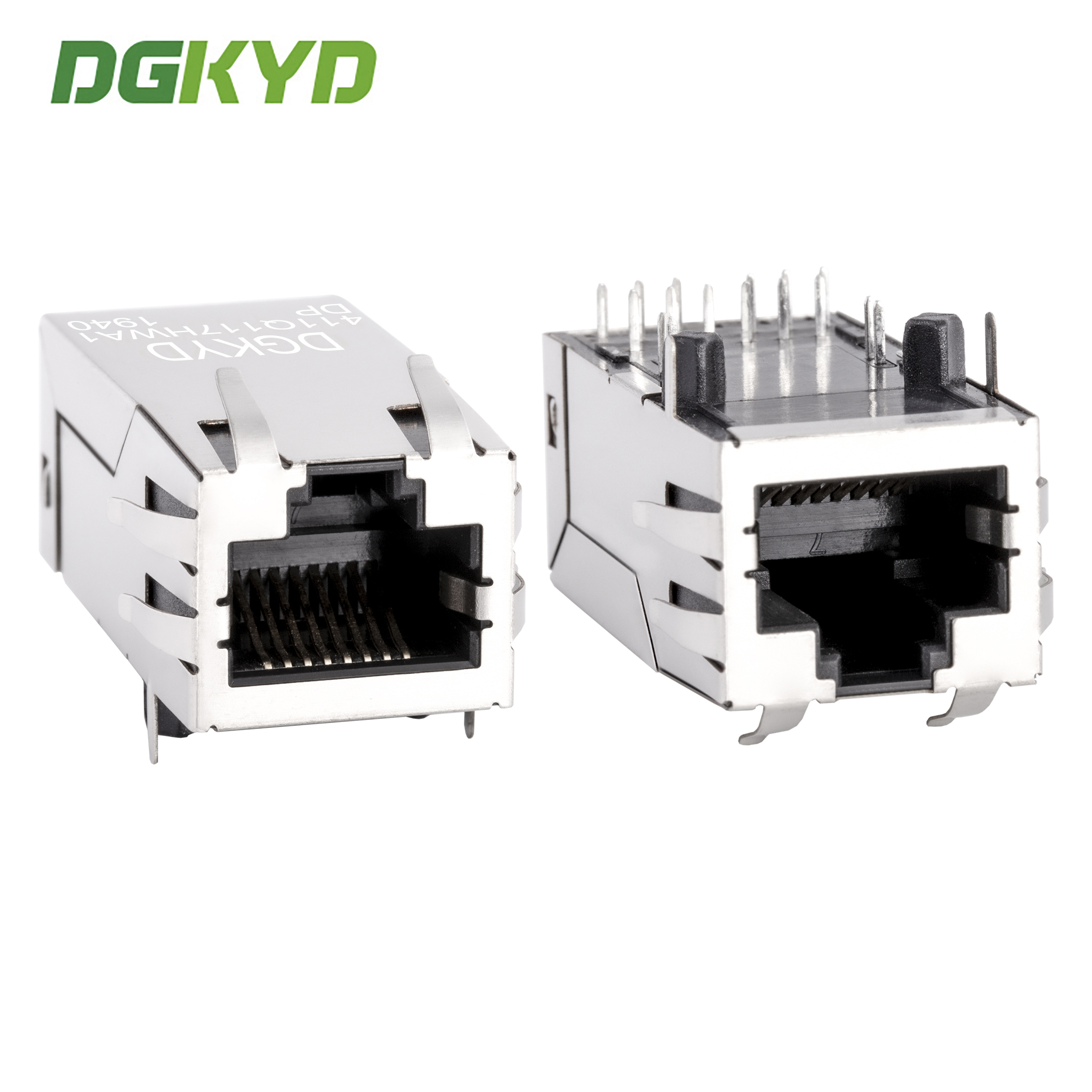

RJ45 Connector with POE Power Supply, Gigabit Integrated Filter with Shielding DGKYD411Q117HWA1DP
RJ45 connector with POE power supply, gigabit integrated filter with shielding DGKYD411Q117HWA1DP
Download Technical Specifications PDF
Technical Specifications
Part Number
DGKYD411Q117HWA1DP
Brand
DGKYD/OEM/ODM
Product Type
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type
Modular Jack
Latch Style
Standard
Latch
TAB-UP
Filter
With Filter
LED Option
Without LED
LED Color
No
Panel Stops
With Panel Stops
Shielded
With metal shield
Applies To
Printed Circuit Board
Port Configuration
Single Ports
Number of Positions
12
Jack Configuration
1X1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation
Side Entry (Right Angle)
Contact Mating Area Plating
Gold 6u
Contact Base Material
Phosphor Bronze
Solder Tail Contact Plating Material
Tin-Lead over Nickel
PCB Mounting Style
Through Hole
Termination Method to PC Board
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material
PBT Polyester
Housing Color
Black
Housing Material Temperature
Standard
UL Flammability Rating
UL 94V-0
Product Images
Manufacturer Information
Product Features
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
