| 最小注文数量 : | 1個 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | カートンのトレイ | 受渡し時間 : | 10日間 |
| 支払条件 : | T/T、D/P、D/A、L/C、Western Union、MoneyGram | 供給の能力 : | 100k PCS/日 |
| 起源の場所: | 中国の東guan | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD111Q070AB2A1D |
|
詳細情報 |
|||
| カテゴリ: | モジュラー ジャック | コンポーネントタイプ: | PCBジャック |
|---|---|---|---|
| タイプ: | RJ45 | 磁気: | なし |
| パフォーマンスカテゴリ: | 猫3 5 | Insetionのタイプ: | 側面の記入項目 |
| 台紙様式: | 浸漬 | OEM/ODM: | はい |
| 位置/連絡先の数: | 8P10C（RJ45、イーサネット） | 接触ピンの金メッキ: | 6U |
| 保管温度: | -40°C〜+85°C | 動作温度: | -40°C〜+85°C |
| ハイライト: | RJ45 connector 1000BASE Ethernet,TAB-DOWN network socket RJ45,21.3mm RJ45 interface connector |
||
製品の説明

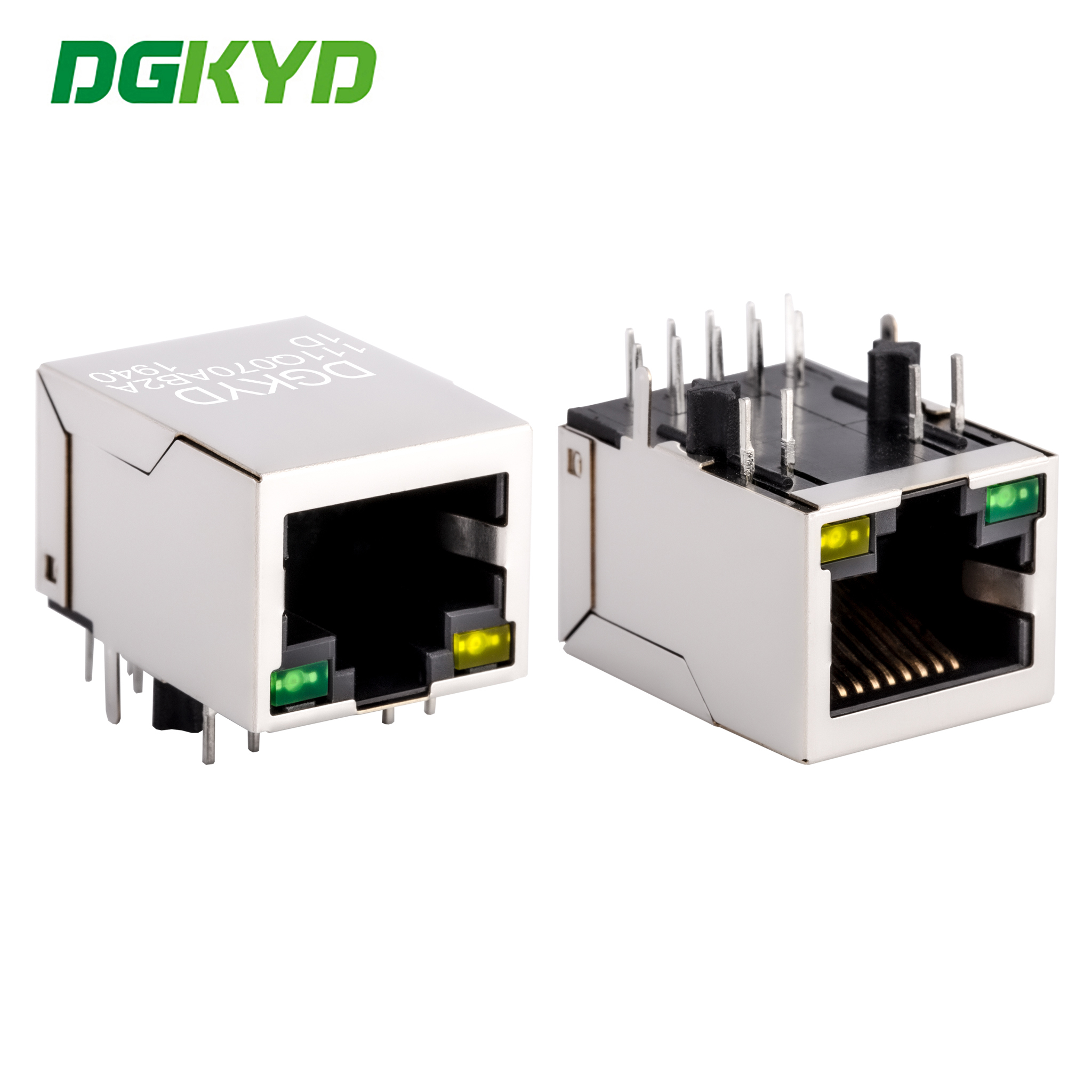

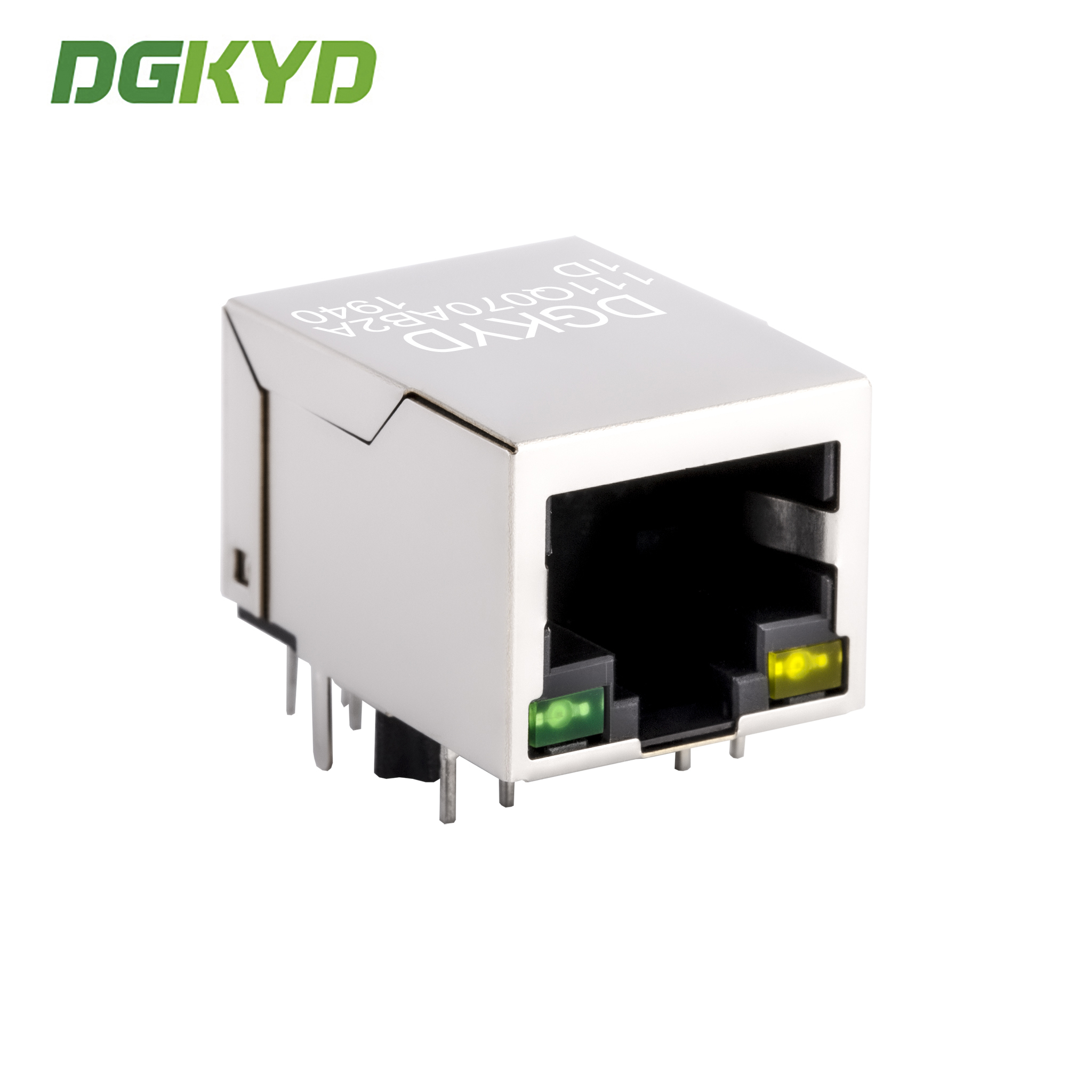

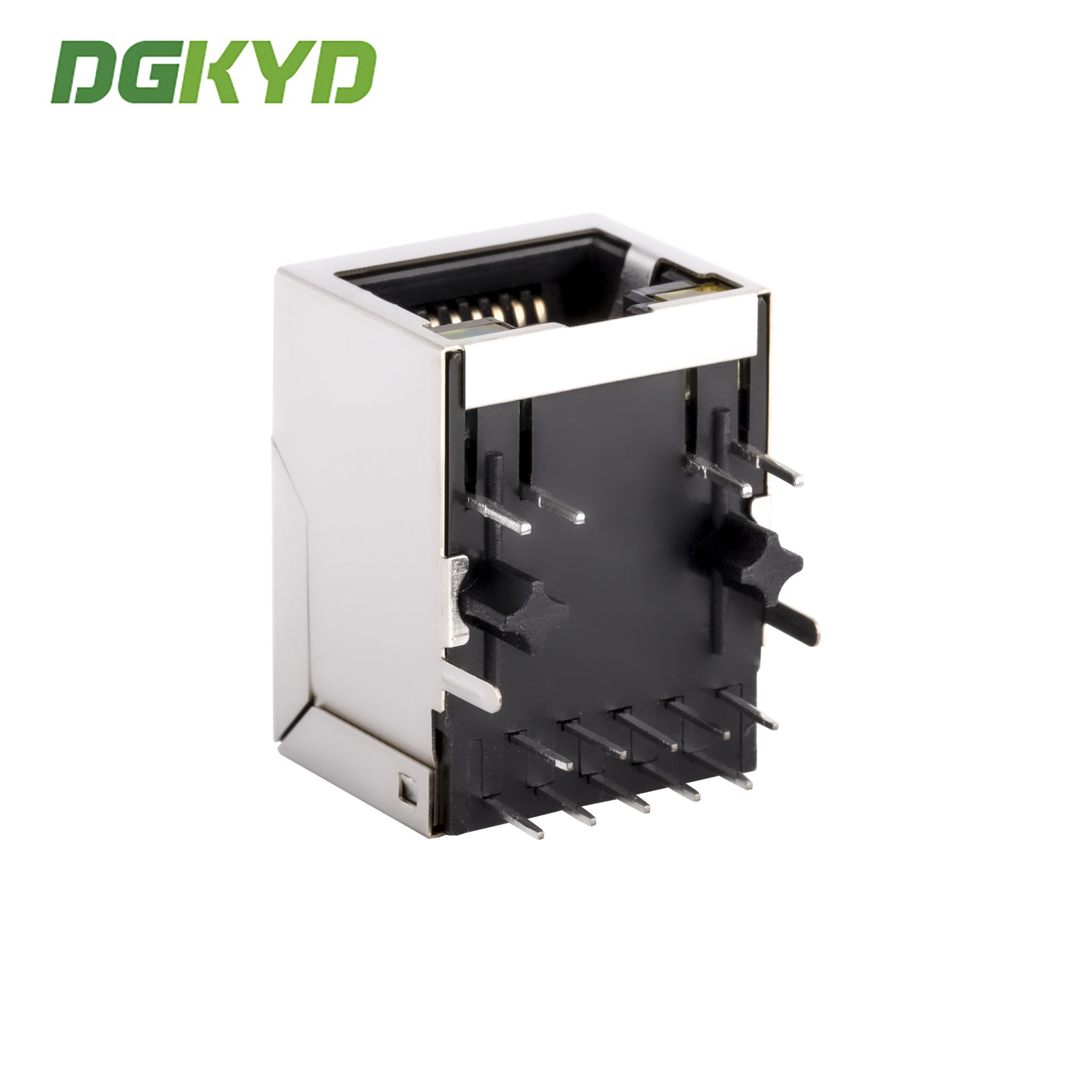

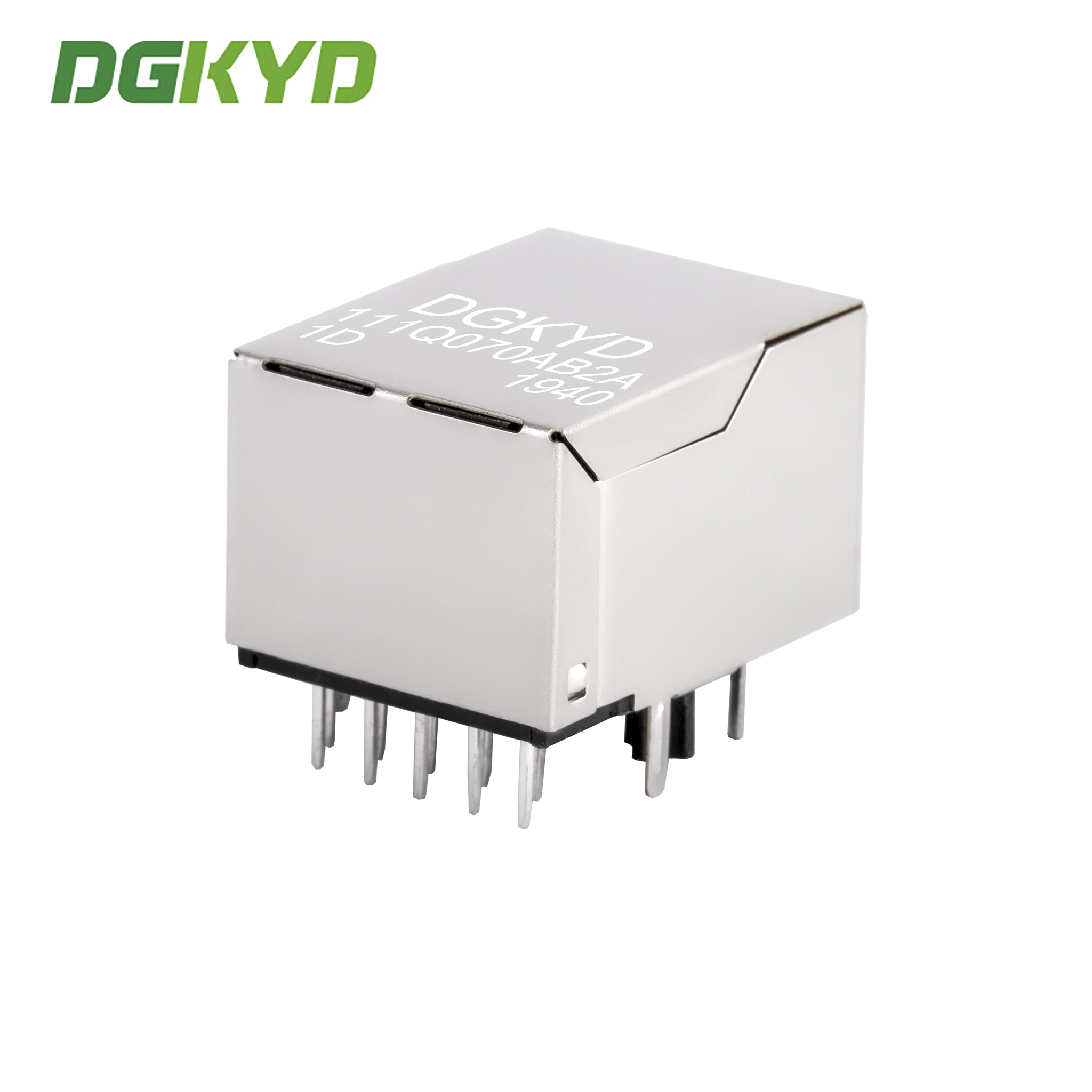

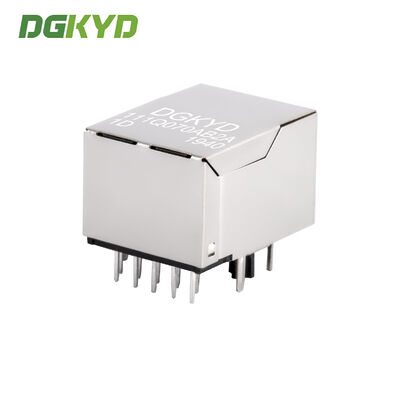

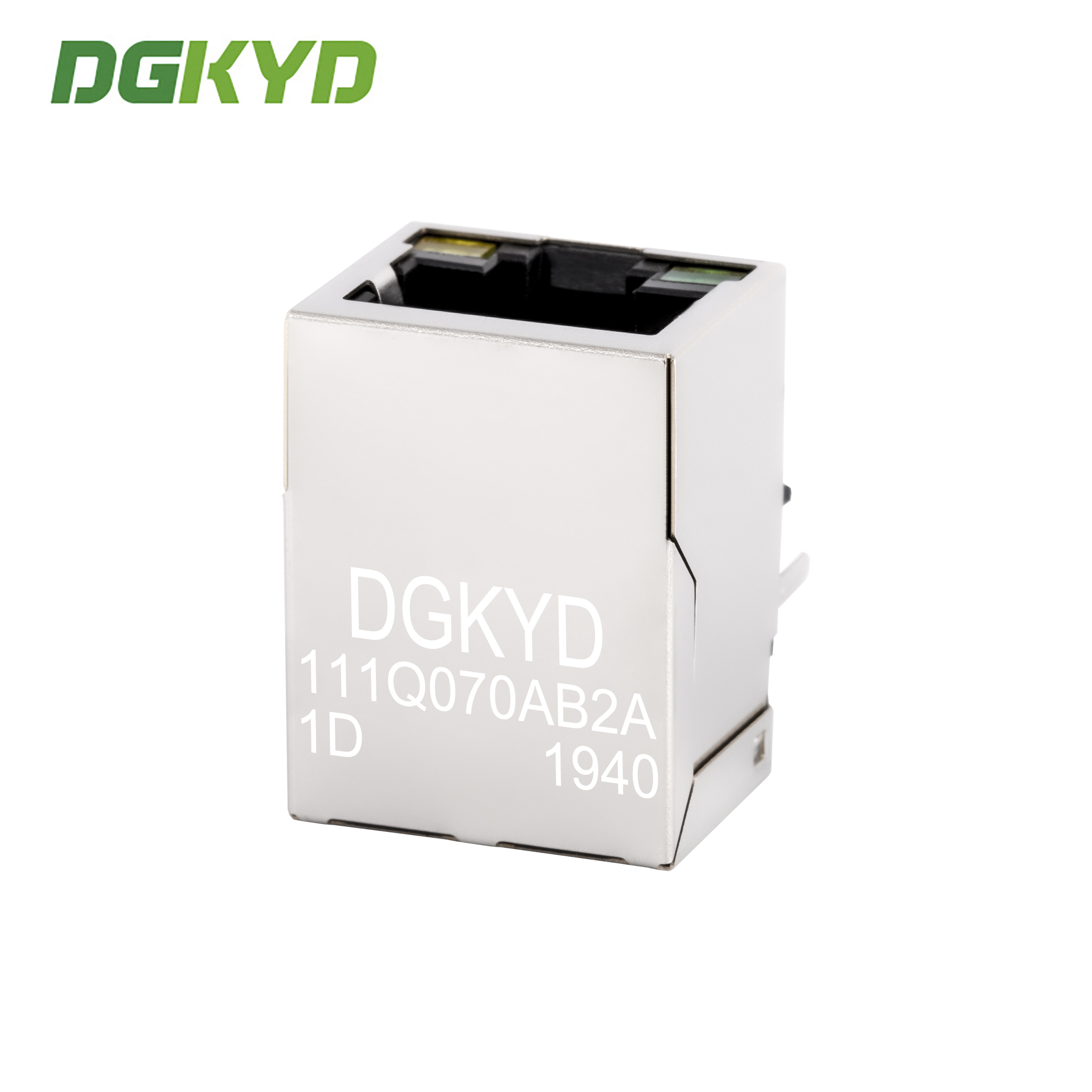

This RJ45 connector features a 1X1 configuration with TAB-DOWN latch design, built-in magnetics, and comprehensive filtering capabilities for reliable 10/100/1000BASE-T Ethernet connectivity.
Download Product Datasheet| Specification | Details |
|---|---|
| Part Number | DGKYD111Q070AB2A1D |
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-DOWN |
| Filter | With Filter |
| LED Option | With LED |
| LED Color | Green/Yellow |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 10 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
