| 最小注文数量 : | 1個 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | カートンのトレイ | 受渡し時間 : | 10日間 |
| 支払条件 : | T/T、D/P、D/A、L/C、Western Union、MoneyGram | 供給の能力 : | 10万個/日 |
| 起源の場所: | 中国の東guan | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD111B002BA2A4D |
|
詳細情報 |
|||
| ハウジング材質: | PBTの黒 | 接触合う区域のめっき: | 金6uの」/30u」/50u」任意のための」/15u |
|---|---|---|---|
| 金属の盾: | スズメッキをされた蛍光体BROZNE | LED オプション: | LED付き |
| ラッチ: | タブダウン | ポートの数: | 1 |
| コンタクト数: | 8 | PCBの台紙の角度: | 側面の記入項目 |
| 台紙様式: | 穴ですが | 変圧器の選択: | 変圧器を使って |
| ハイライト: | RJ45 Ethernet connector 100Mbps,RJ45 female socket horizontal,RJ45 connector TAB-DOWN 21.3mm |
||
製品の説明

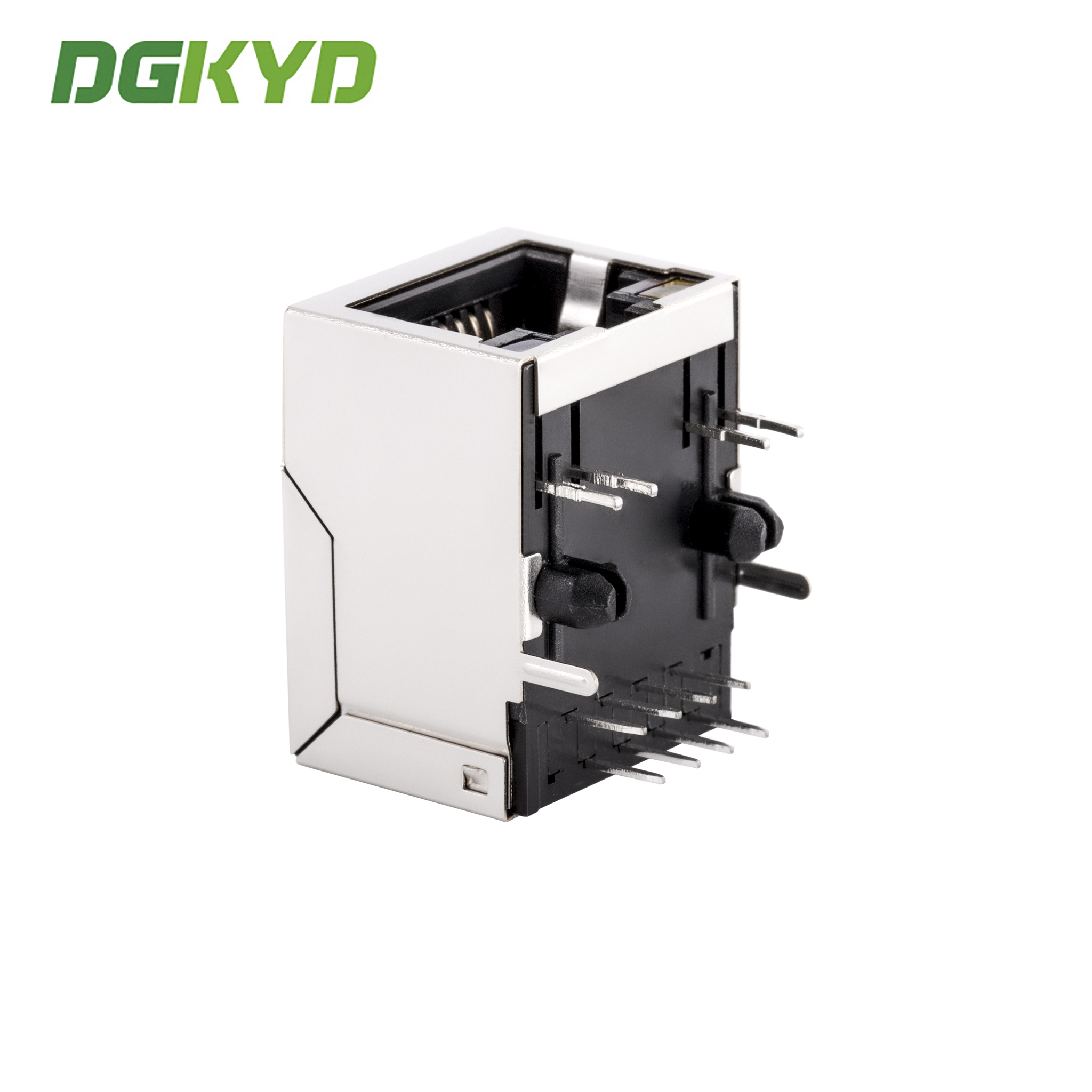

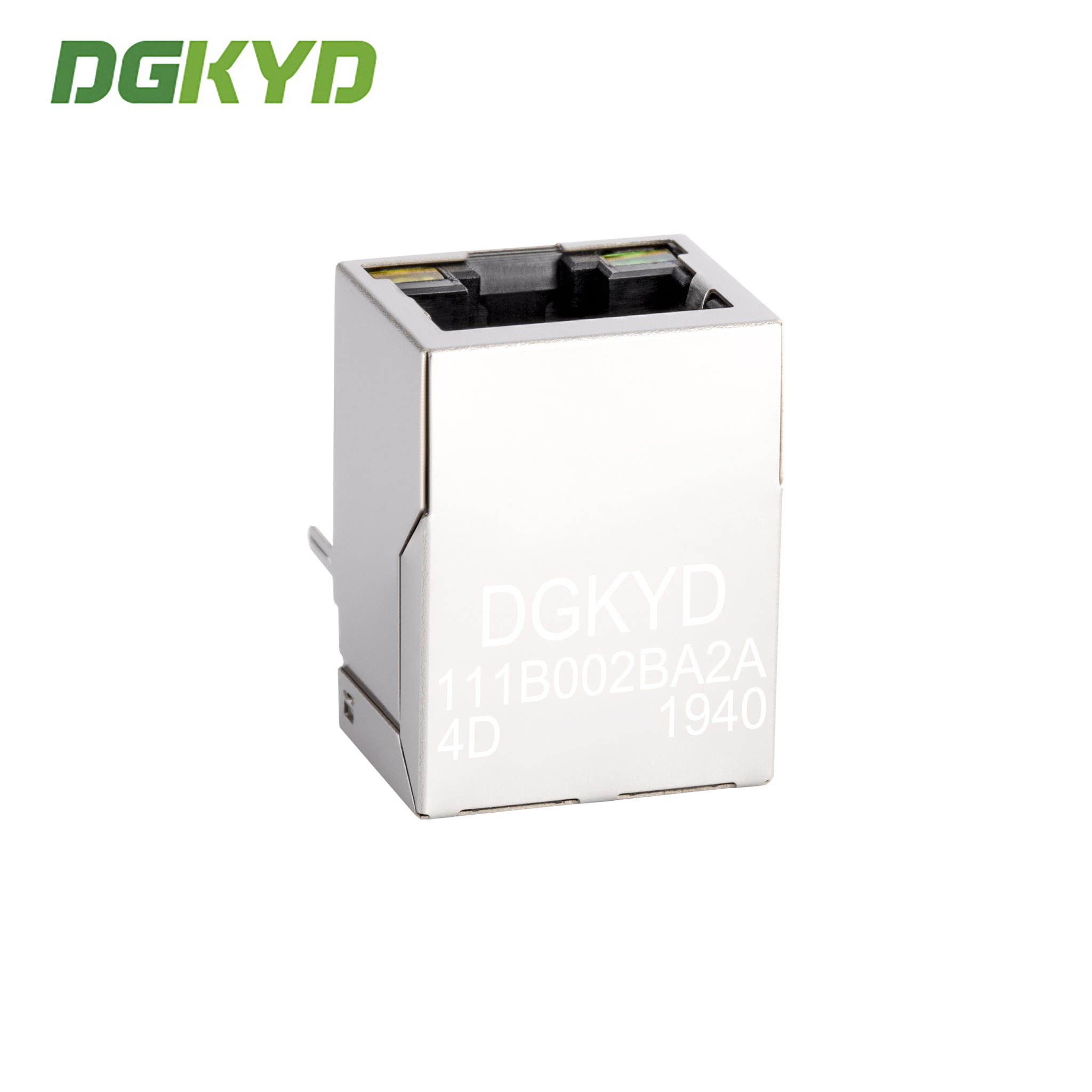

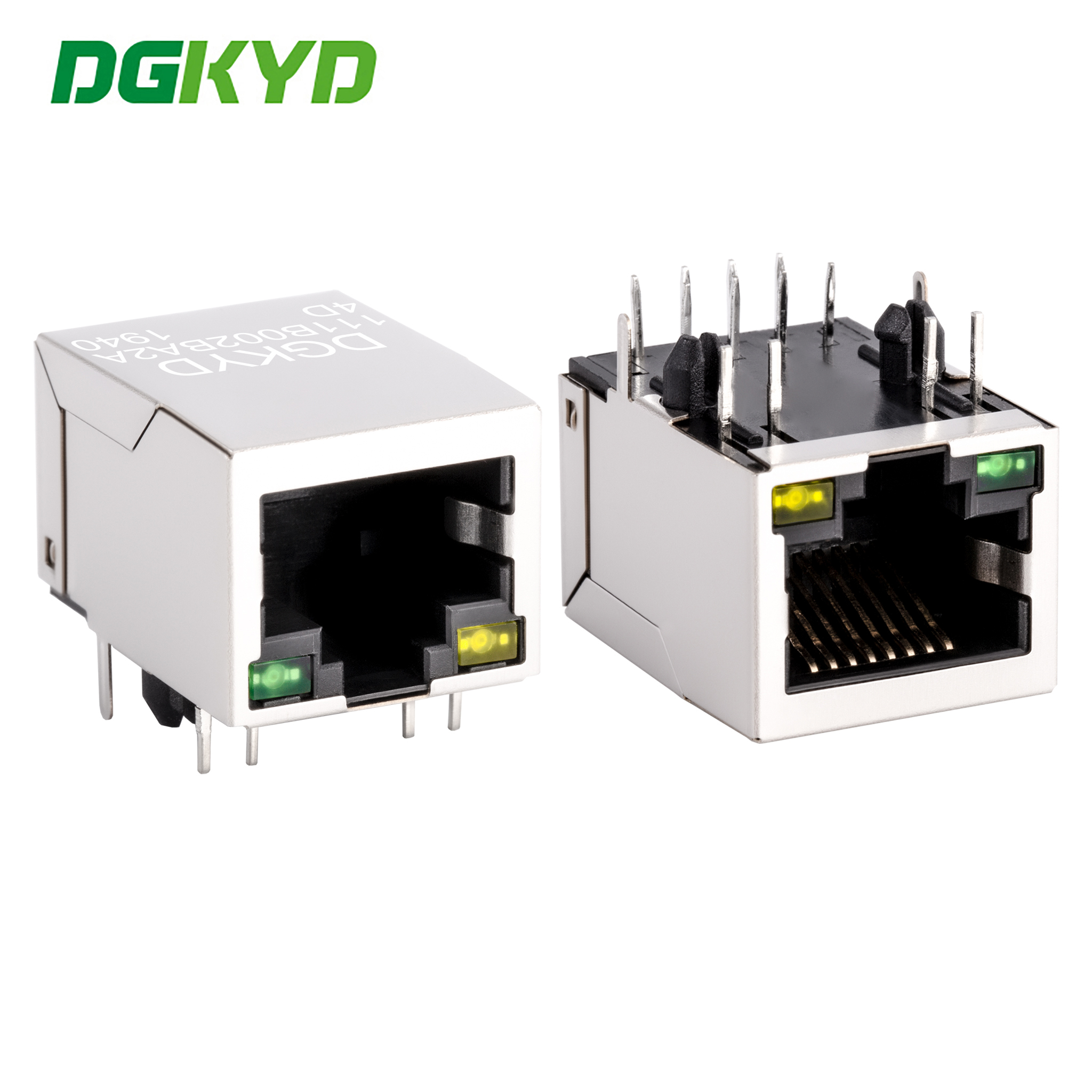

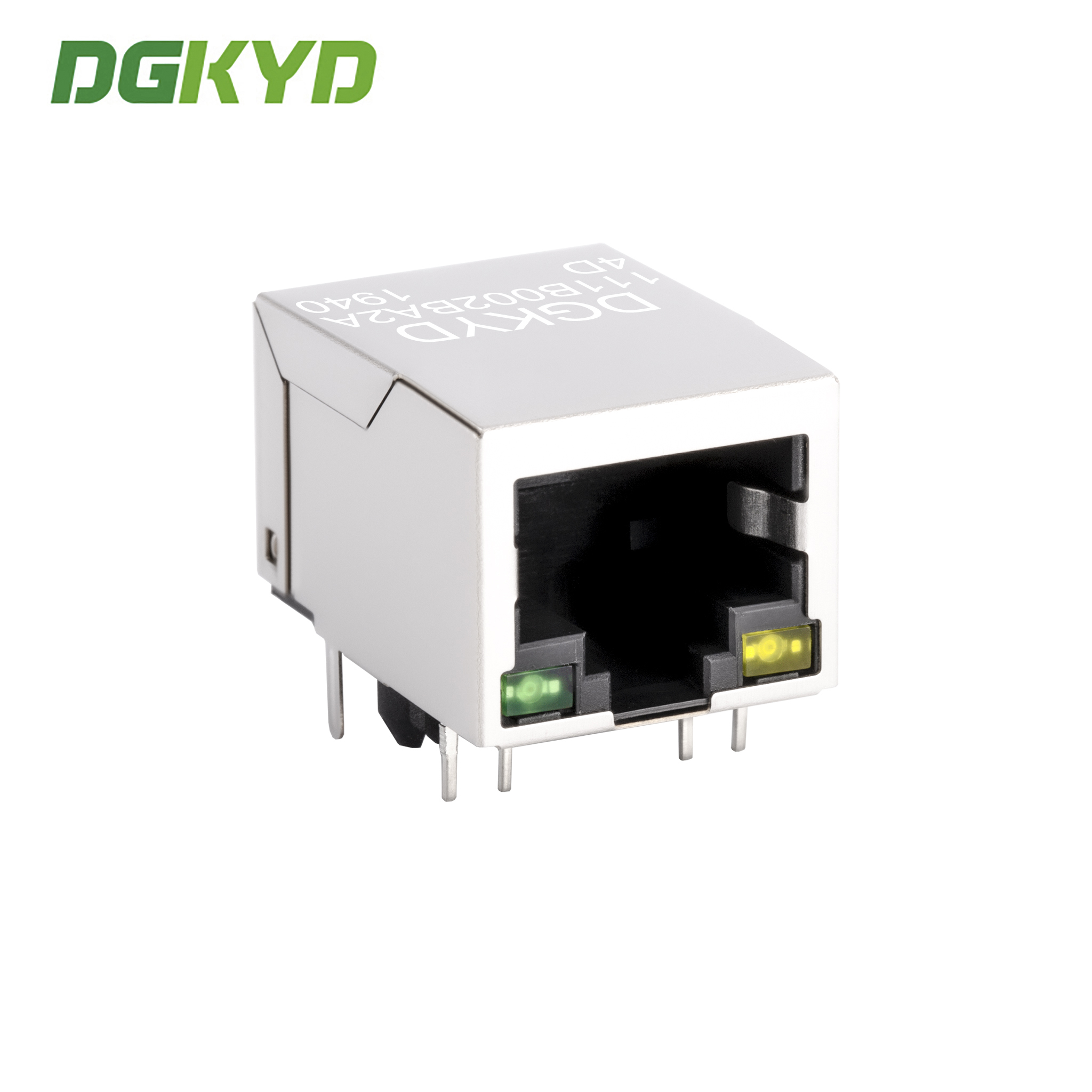

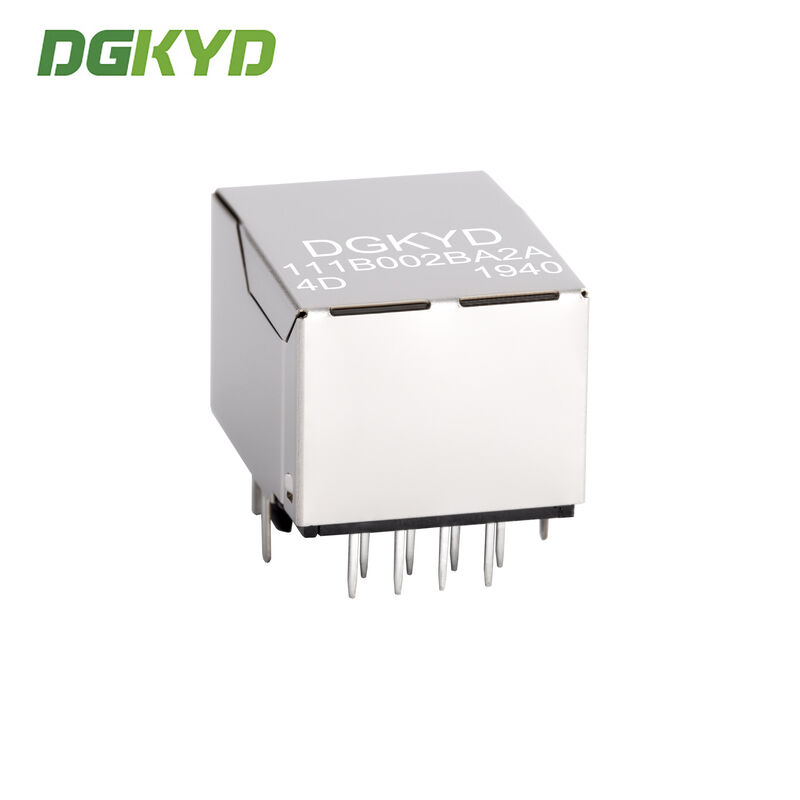

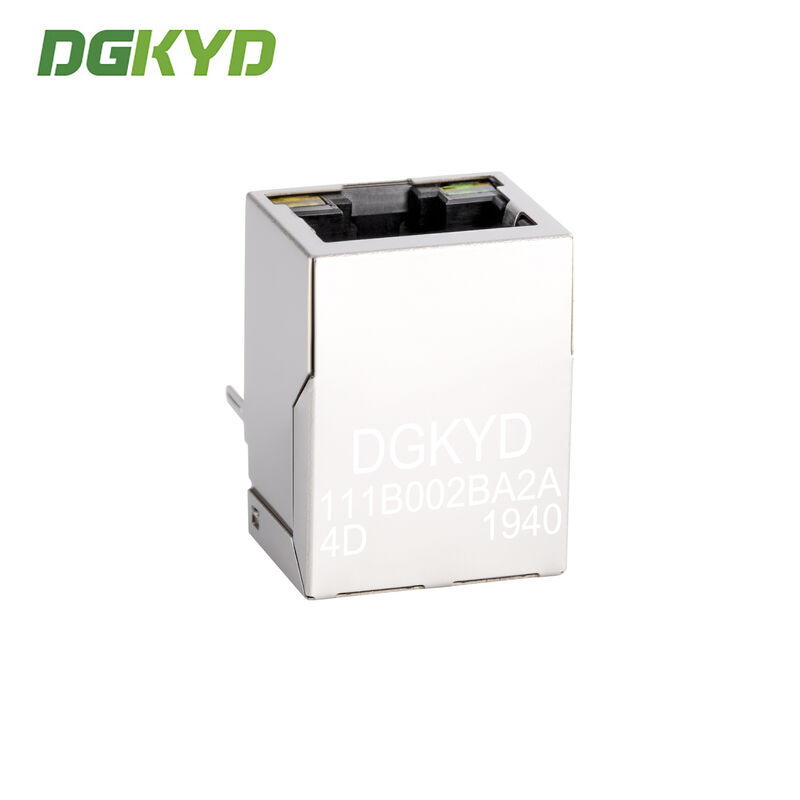

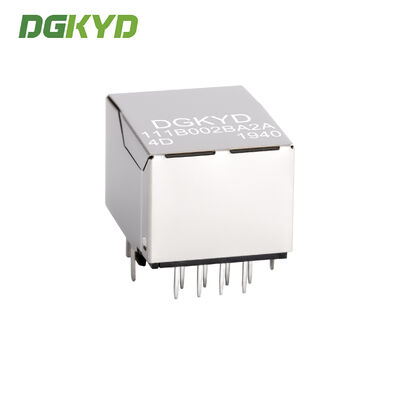

RJ45 Ethernet integrated 100Mbps connector horizontal female socket DGKYD111B002BA2A4D
Download Product Datasheet (PDF)| Part Number | DGKYD111B002BA2A4D |
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-DOWN |
| Filter | With Filter |
| LED Option | With LED |
| LED Color | Green/Yellow |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 8 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
