RJ45 Ethernet socket without spacer 2X3 connector Industrial Ethernet DGKYD59212388HWA1DY1AG062

最小注文数量 :	交渉	価格 :	Please contact us to get the latest price.
パッケージの詳細 :	カートンの750Tray	受渡し時間 :	10日間
支払条件 :	T/T、D/P、D/A、L/C、Western Union、MoneyGram	供給の能力 :	10万個/日

起源の場所:	中国の東guan	ブランド名:	DGKYD
証明:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	モデル番号:	DGKYD59212388HWA1DY1AG062

詳細情報
製品タイプ:	RJ45	カプセル化方法:	マルチポートインラインパッケージ
PCBマウントスタイル:	浸漬	形:	矩形
シールド:	真鍮	ピンの数:	8
コアの数:	8	寸法(mm):	45.21 * 28.35* 25.3
接触ピンの金メッキ:	G/Fu	動作温度:	-40℃〜85℃
保管温度:	-40℃〜85℃
ハイライト:	RJ45 Ethernet socket 2X3 connector , Industrial Ethernet socket 59 Series , RJ45 connector without spacer

製品の説明

RJ45 Ethernet Socket Without Spacer 2X3 Connector Industrial Ethernet DGKYD59212388HWA1DY1AG062

Product Overview

RJ45 Ethernet socket without spacer 2X3 connector Industrial Ethernet DGKYD59212388HWA1DY1AG062

Technical Specifications

Part Number	DGKYD59212388HWA1DY1AG062	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP/DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Suitable for welding type	Reflowsolding (Alternative)	Port Configuration	2X3 Ports
Number of Positions	8	Jack Configuration	2X3
Terminals per Port	8	Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)	Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze	Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole	Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock	Housing Material	PBT Polyester
Housing Color	Black	Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

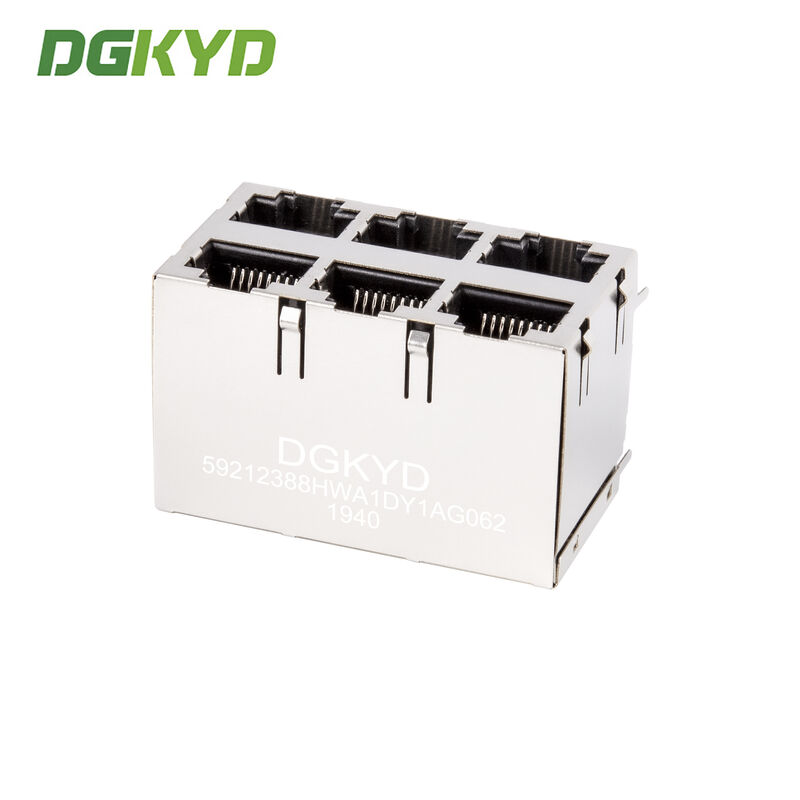

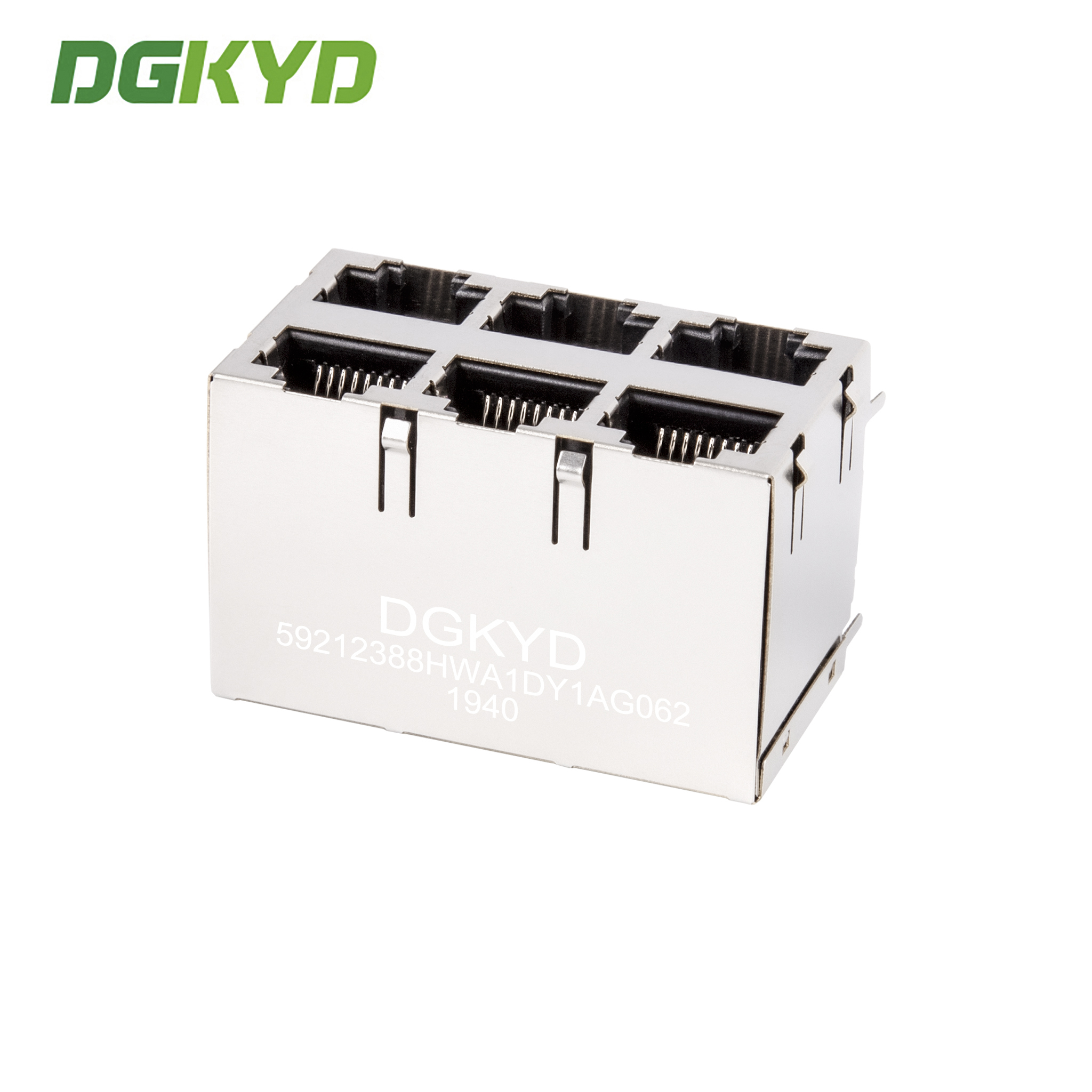

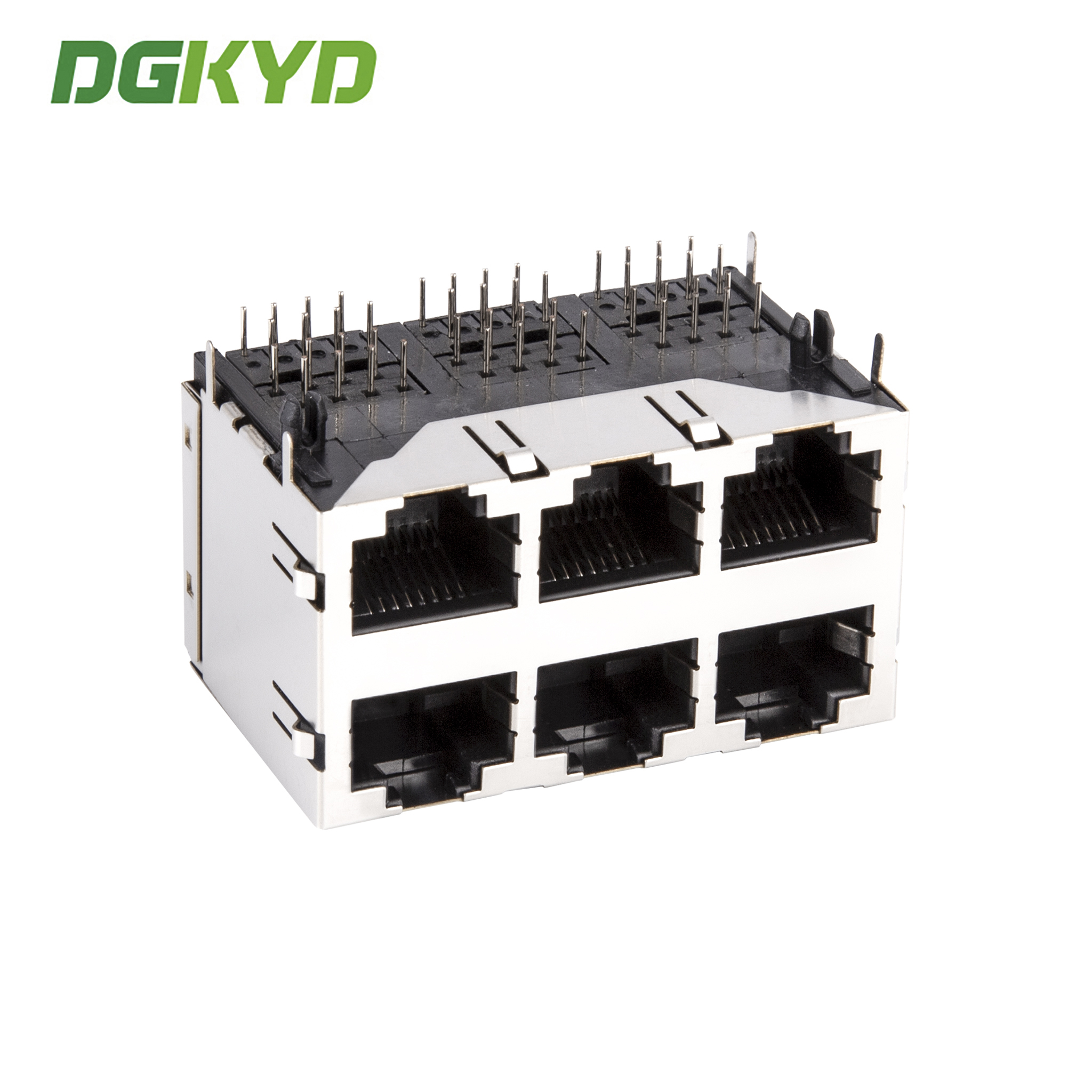

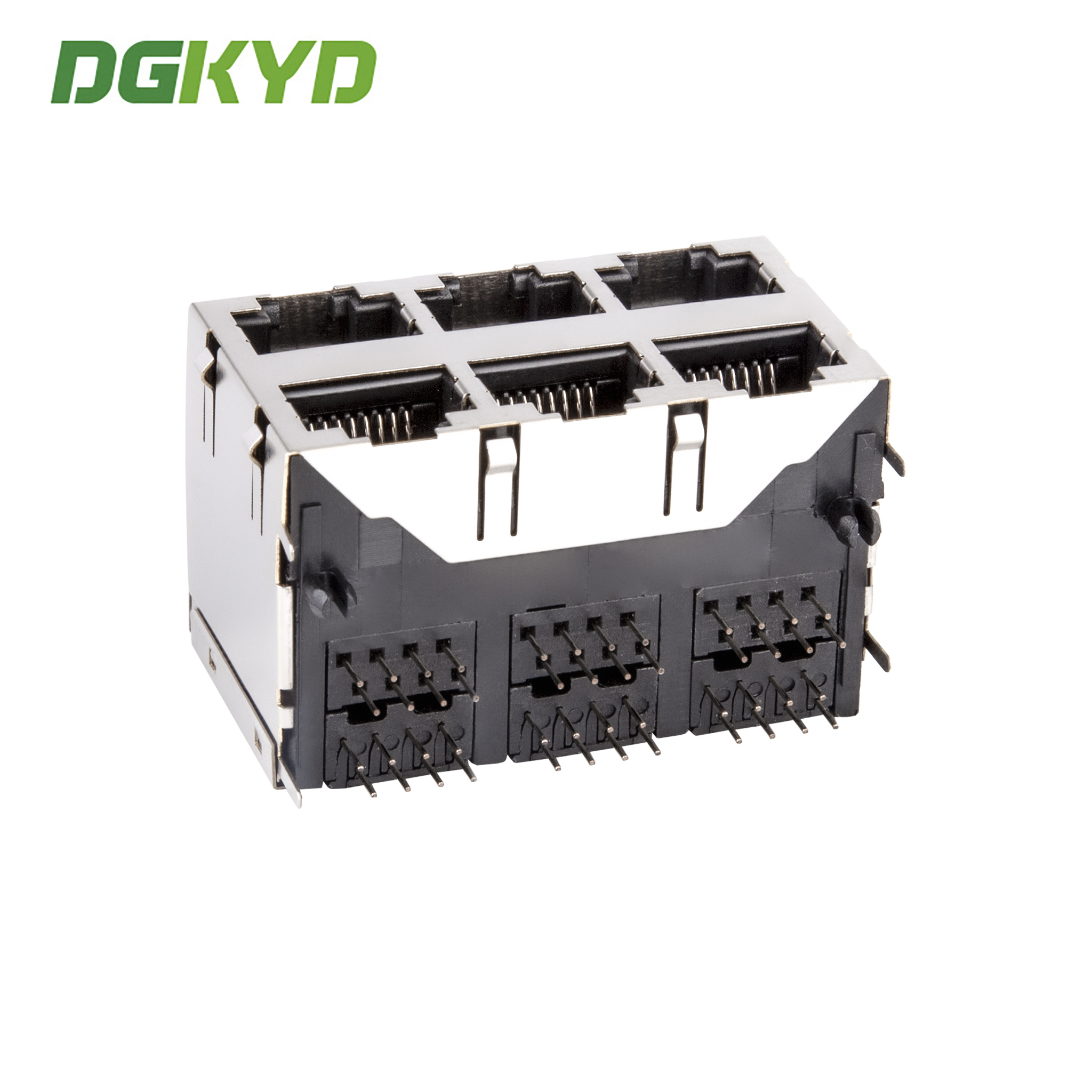

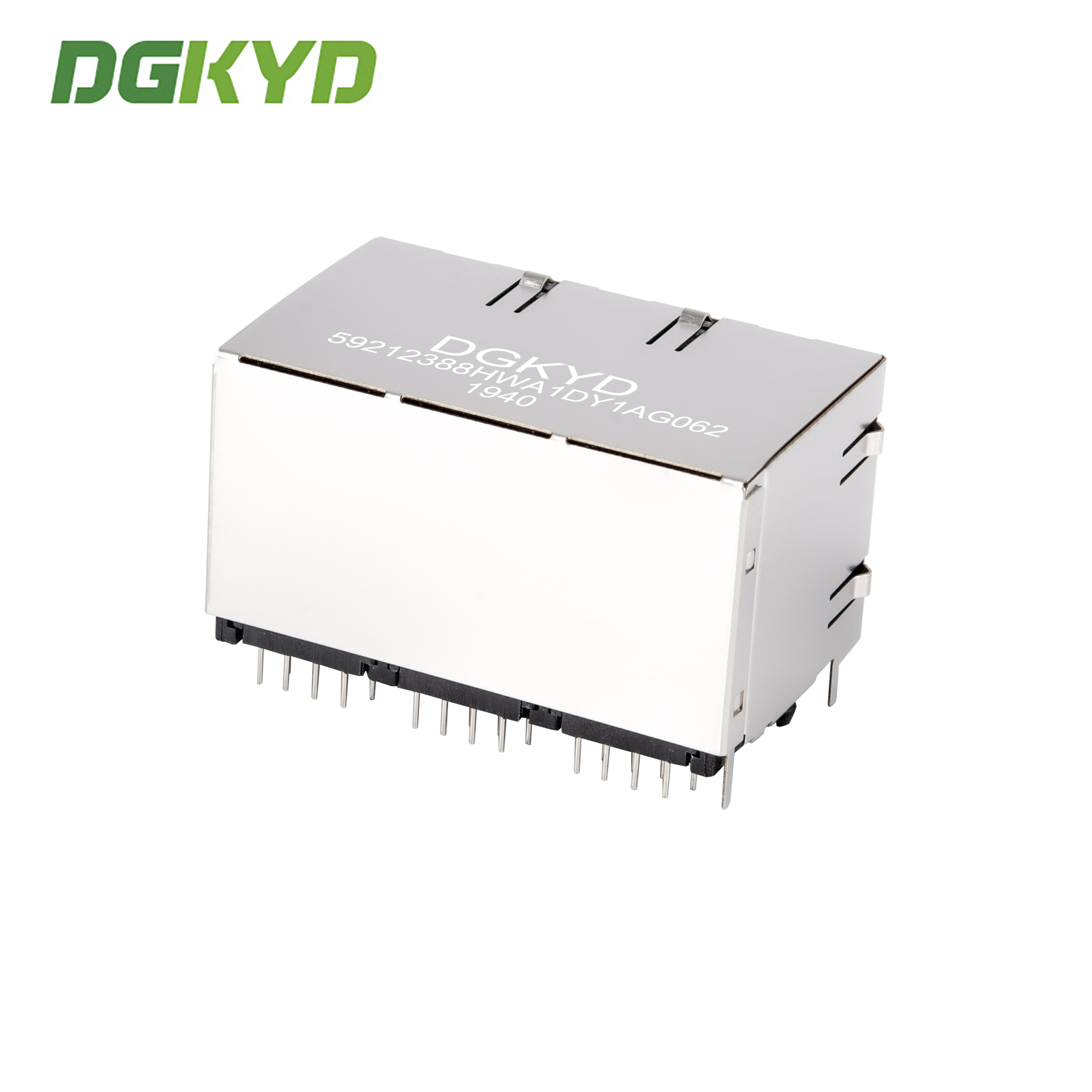

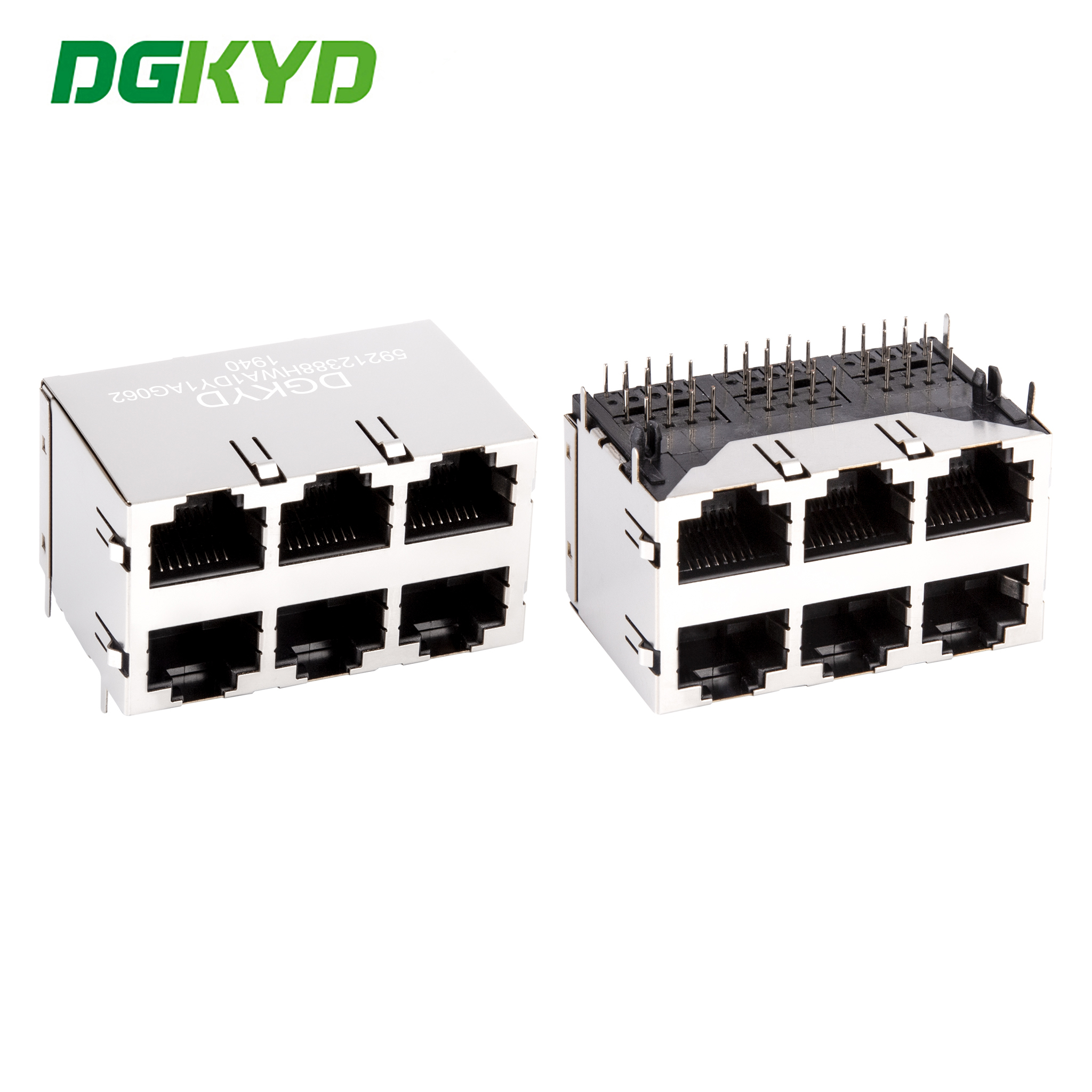

Product Images

Product Strengths

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED), Shield with EMI fingers or not, coil ratio of magnetic core, magnetics circuit diversification optional, contact gold plating (FU, 3U, 6U, 15u, 30U, 50U), plastic housing material (PBT, PA46, PA9T, LCP)
The electrical properties of the products meet industry standards, appearance and mechanical properties meet manufacturing standards, and environmental protection standards

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
