RJ45 connector industrial network port 2X3 socket with shielding DGKYD59212388AB1A1DY1F022

接触

RJ45 connector industrial network port 2X3 socket with shielding DGKYD59212388AB1A1DY1F022

最小注文数量 :	交渉	価格 :	Please contact us to get the latest price.
パッケージの詳細 :	カートンの750Tray	受渡し時間 :	10日間
支払条件 :	T/T、D/P、D/A、L/C、ウェスタンユニオン、マネーグラム	供給の能力 :	10万個/日

起源の場所:	中国の東guan	ブランド名:	DGKYD
証明:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	モデル番号:	DGKYD59212388AB1A1DY1F022
書類:	DGKYD59212388AB1A1DY1F022.pdf

詳細情報
製品タイプ:	RJ45	カプセル化方法:	マルチポートインラインパッケージ
PCBマウントスタイル:	浸漬	形:	矩形
シールド:	真鍮	ピン数:	8
コアの数:	8	寸法(mm):	45.21 * 28.35* 25.3
接触ピンの金メッキ:	G/Fu	動作温度:	-40℃〜85℃
保管温度:	-40℃〜85℃
ハイライト:	industrial RJ45 connector with shielding , 59 series network port socket , 2X3 RJ45 shielded connector

製品の説明

RJ45 Industrial Network Port Connector

RJ45 connector industrial network port 2X3 socket with shielding DGKYD59212388AB1A1DY1F022

Product Overview

RJ45 Ethernet socket without spacer 2X3 connector Industrial Ethernet DGKYD59212388AB1A1DY1F022

Technical Specifications

Part Number	DGKYD59212388AB1A1DY1F022
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP/DOWN
Filter	Without Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	With Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Suitable for welding type	Reflowsolding (Alternative)
Port Configuration	2X3 Ports
Number of Positions	8
Jack Configuration	2X3
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

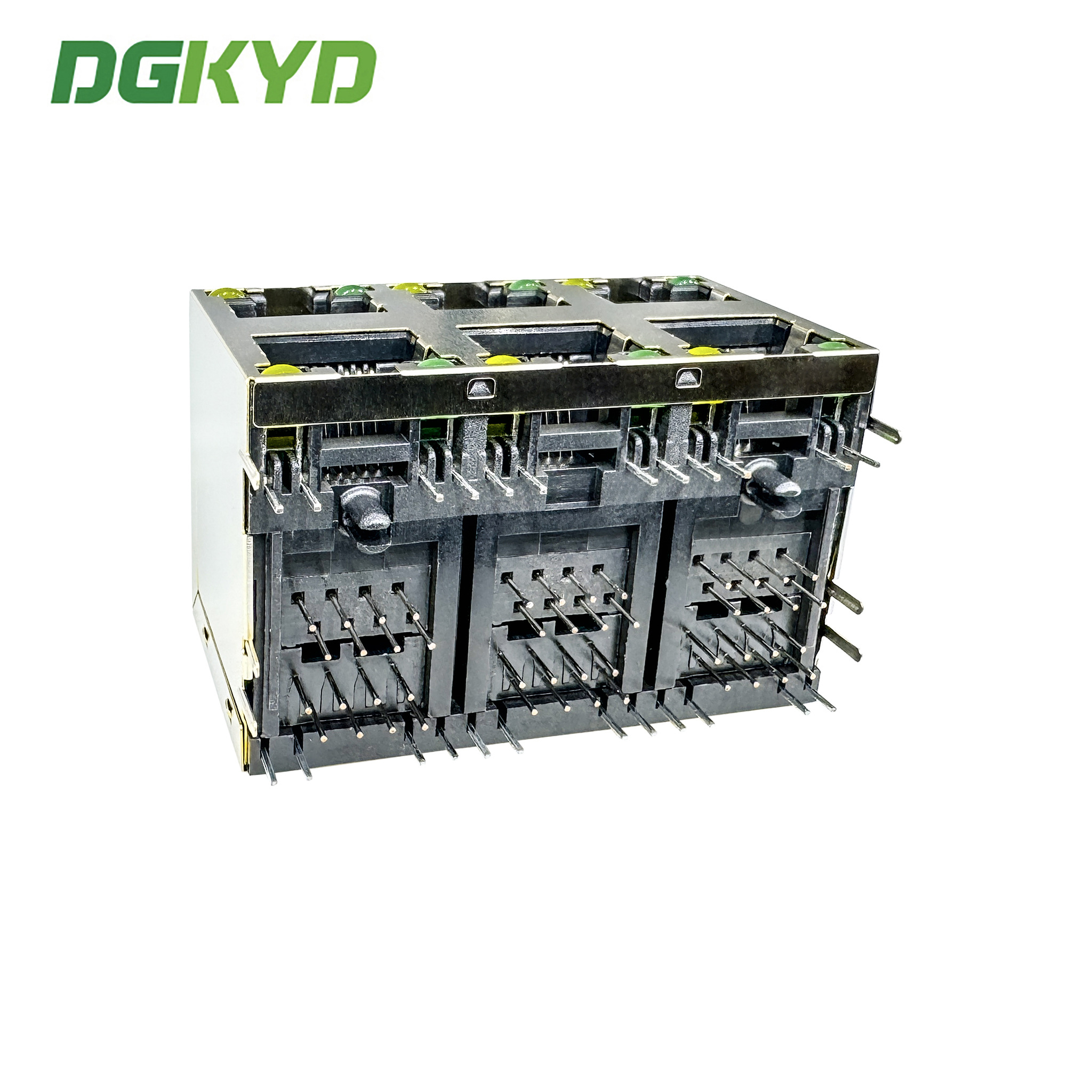

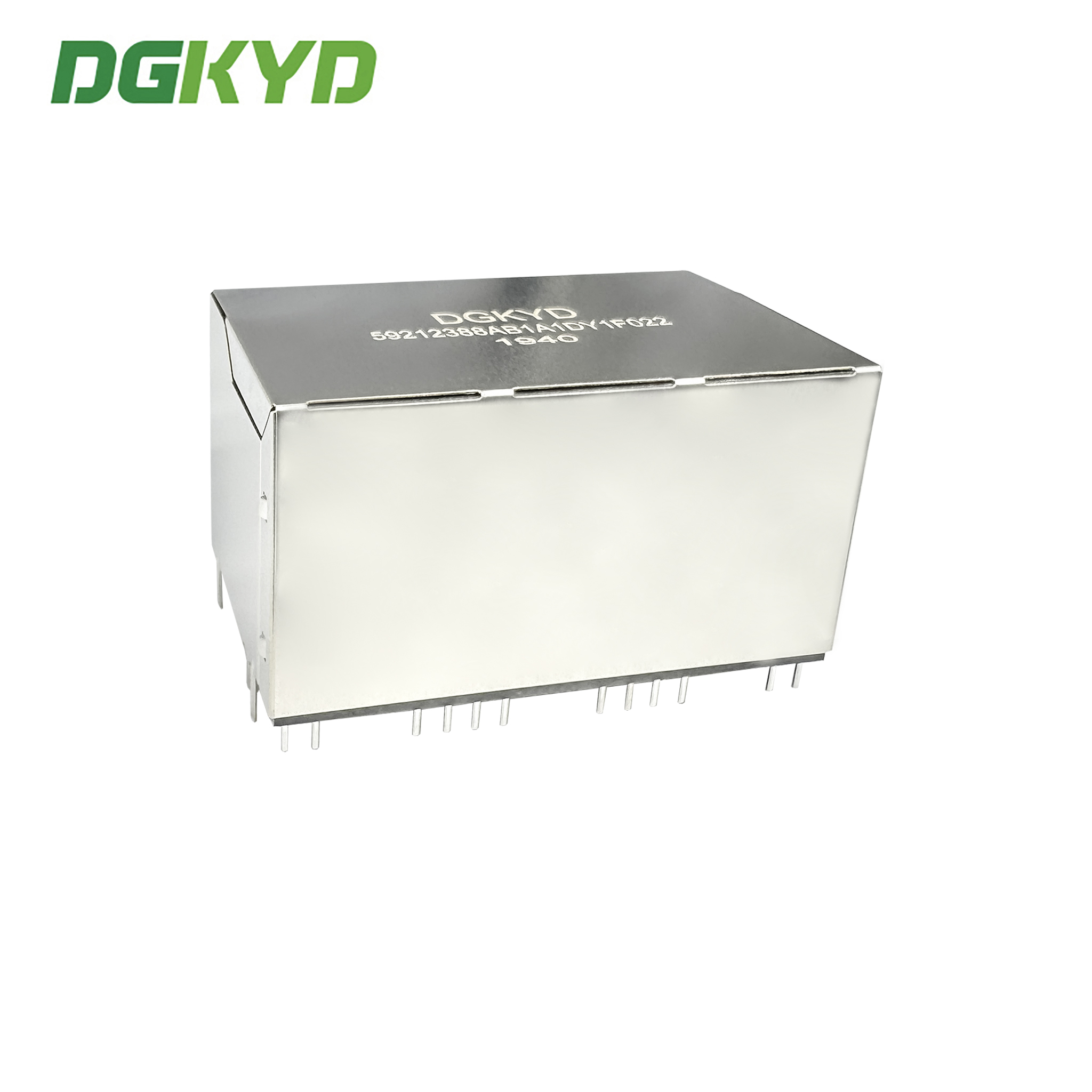

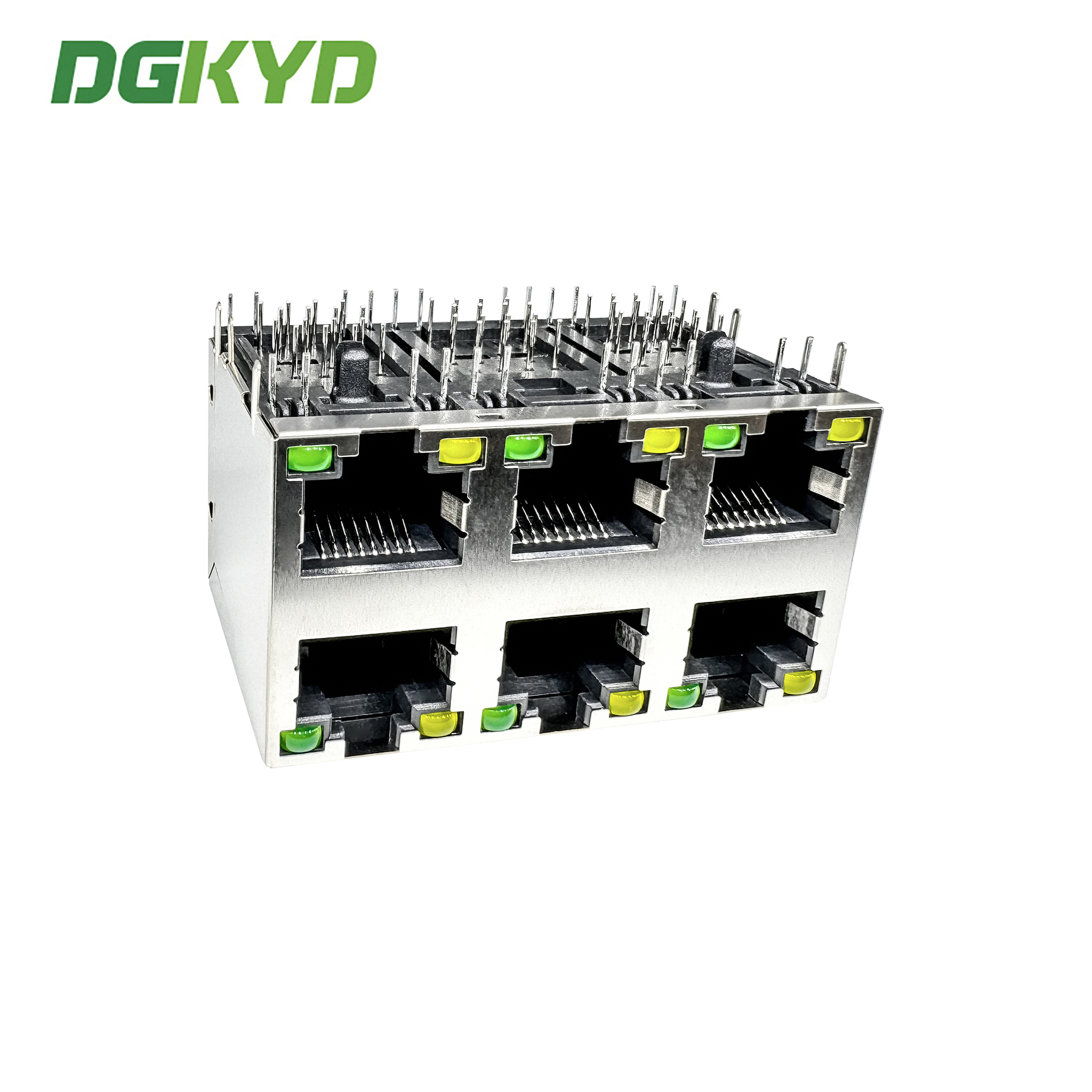

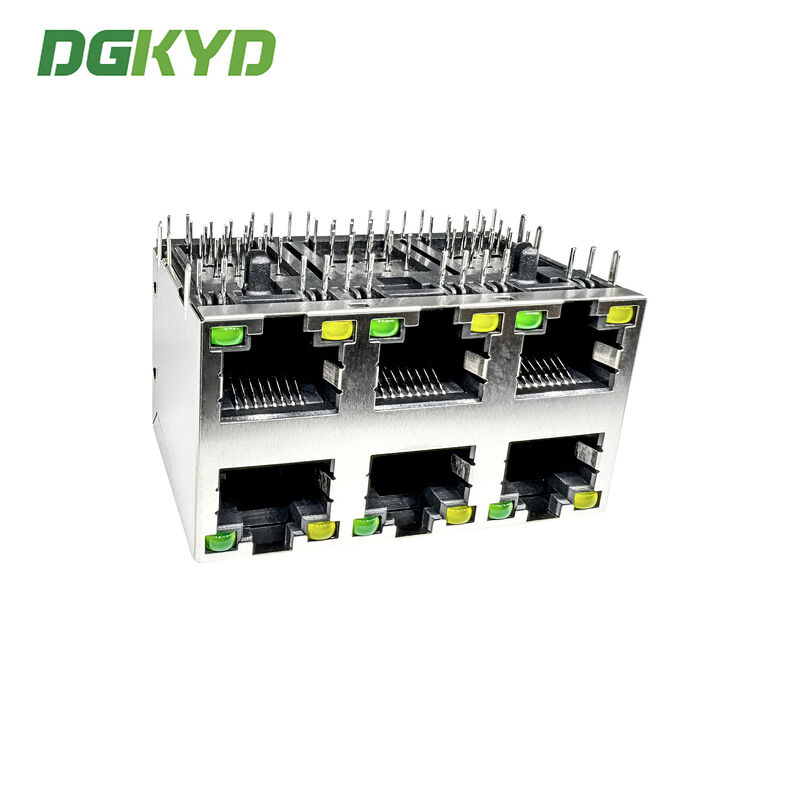

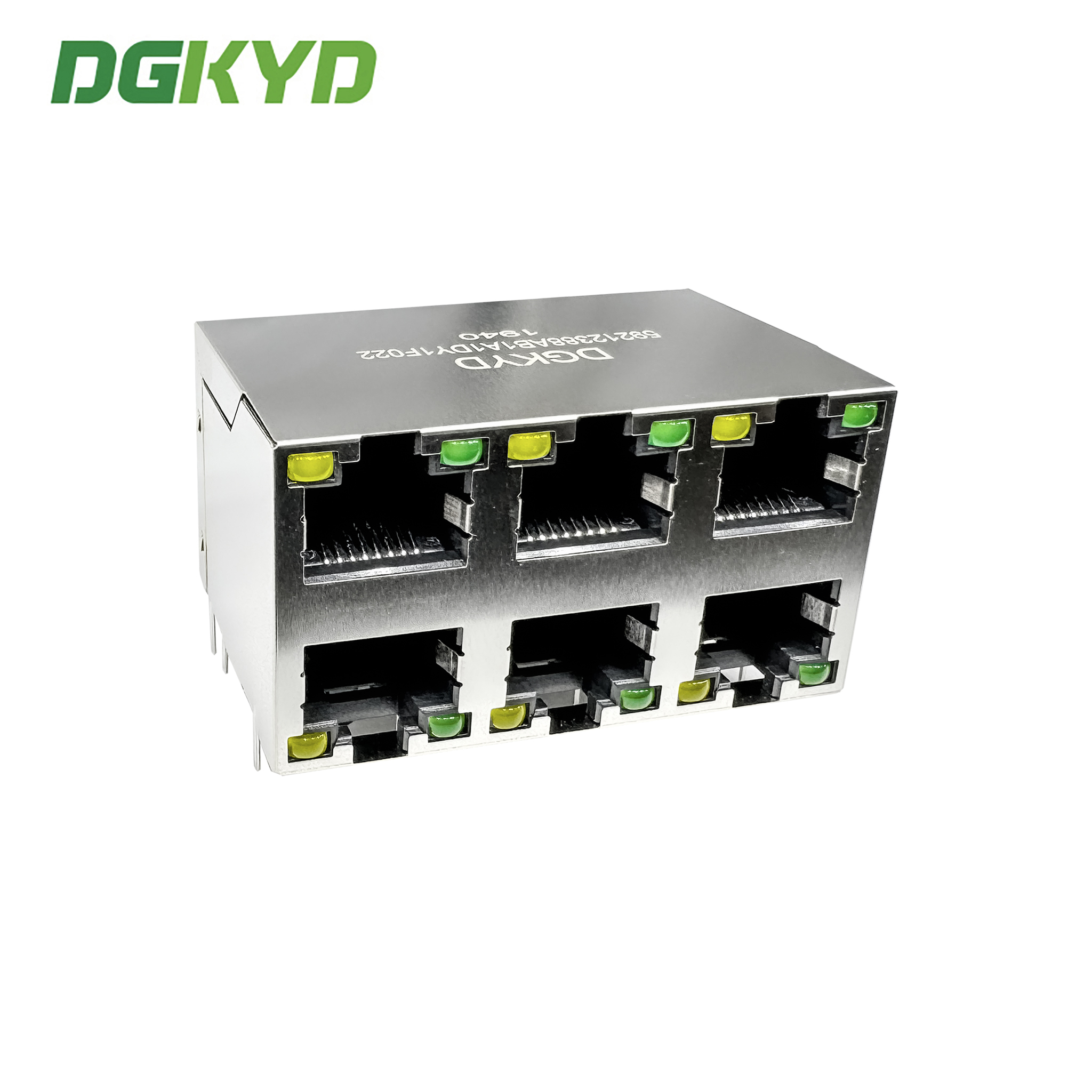

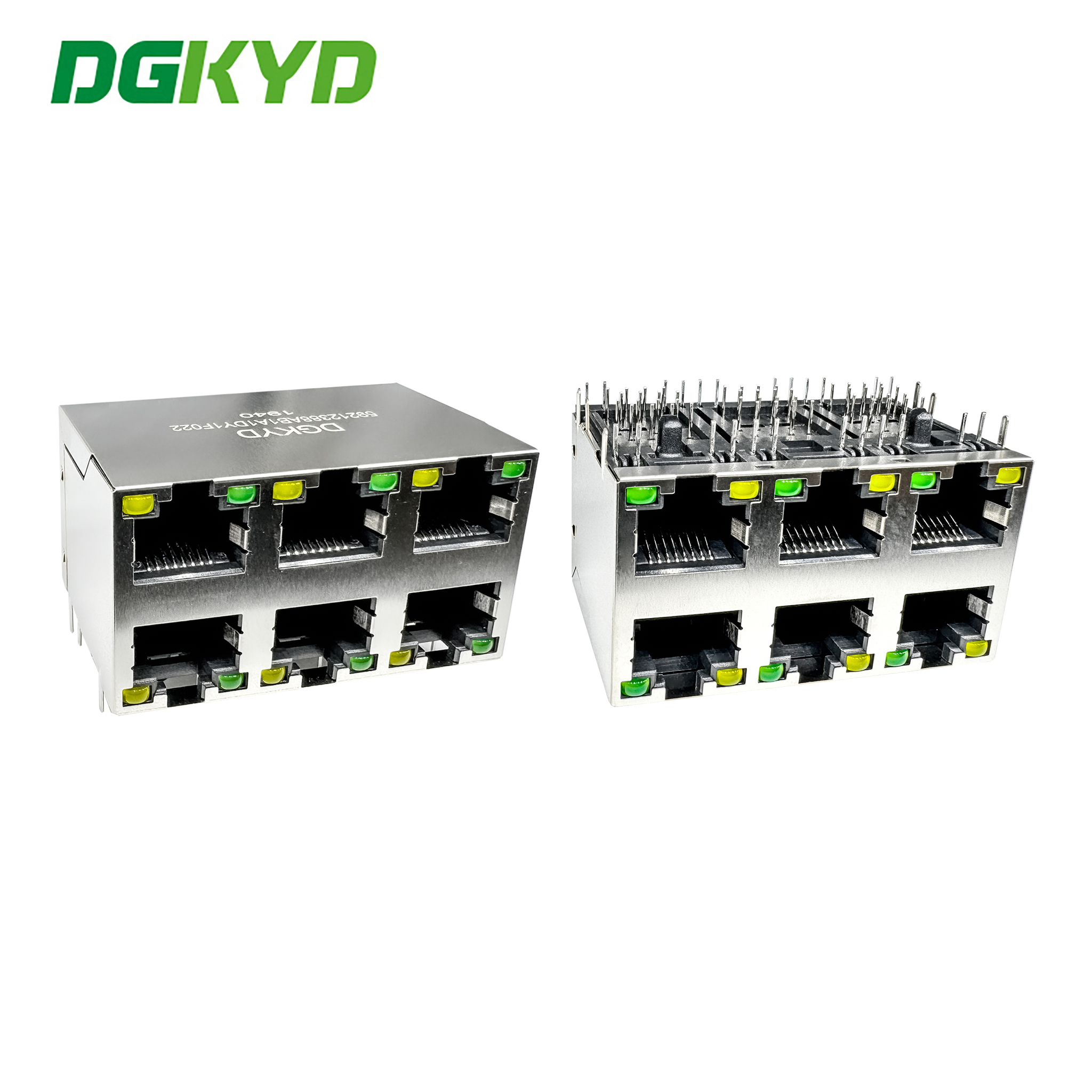

Product Images

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40°C to 85°C
Storage temperature: -40°C to 85°C
Lead free soldering: wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED), Shield with EMI fingers or not, coil ratio of magnetic core, magnetics circuit diversification optional, contact gold plating (FU, 3U, 6U, 15u, 30U, 50U), plastic housing material (PBT, PA46, PA9T, LCP)
The electrical properties of the products meet industry standards, appearance and mechanical properties meet manufacturing standards, and environmental protection standards

Frequently Asked Questions

Are you trading company or manufacture?

We are manufacture. Welcome to our factory.

What about your lead time?

For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Can you provide samples? Are they free?

Yes. Usually we can provide 2-3 samples of standard products free for testing.

Can I put my own logo on it?

Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
