| 最小注文数量 : | 交渉 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | 1080カートン入りトレイ | 受渡し時間 : | 10日間 |
| 支払条件 : | T/T、D/P、D/A、L/C、Western Union、MoneyGram | 供給の能力 : | 10万個/日 |
| 起源の場所: | 中国の東guan | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD211B014HWA4DZ |
|
詳細情報 |
|||
| 製品タイプ: | RJ45 | カプセル化方法: | 単一のインラインパッケージ |
|---|---|---|---|
| PCBマウントスタイル: | 浸漬 | 形: | 矩形 |
| シールド: | 真鍮 | ピンの数: | 8 |
| コアの数: | 8 | 寸法(mm): | 15.95*21.35*13.6 |
| 接触ピンの金メッキ: | 6U | 動作温度: | -40℃〜85℃ |
| 保管温度: | -40℃〜85℃ | ||

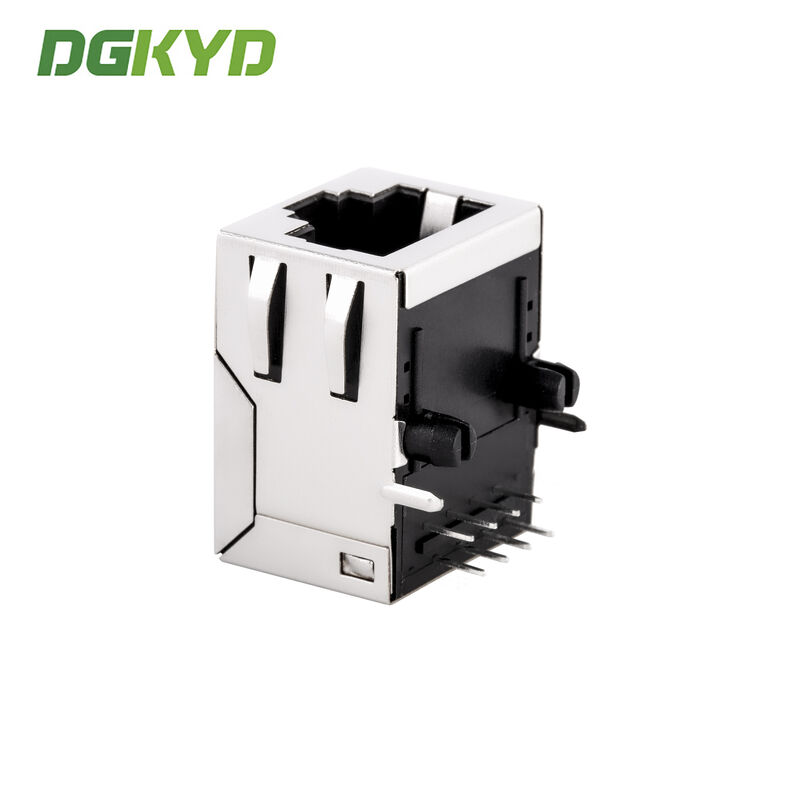

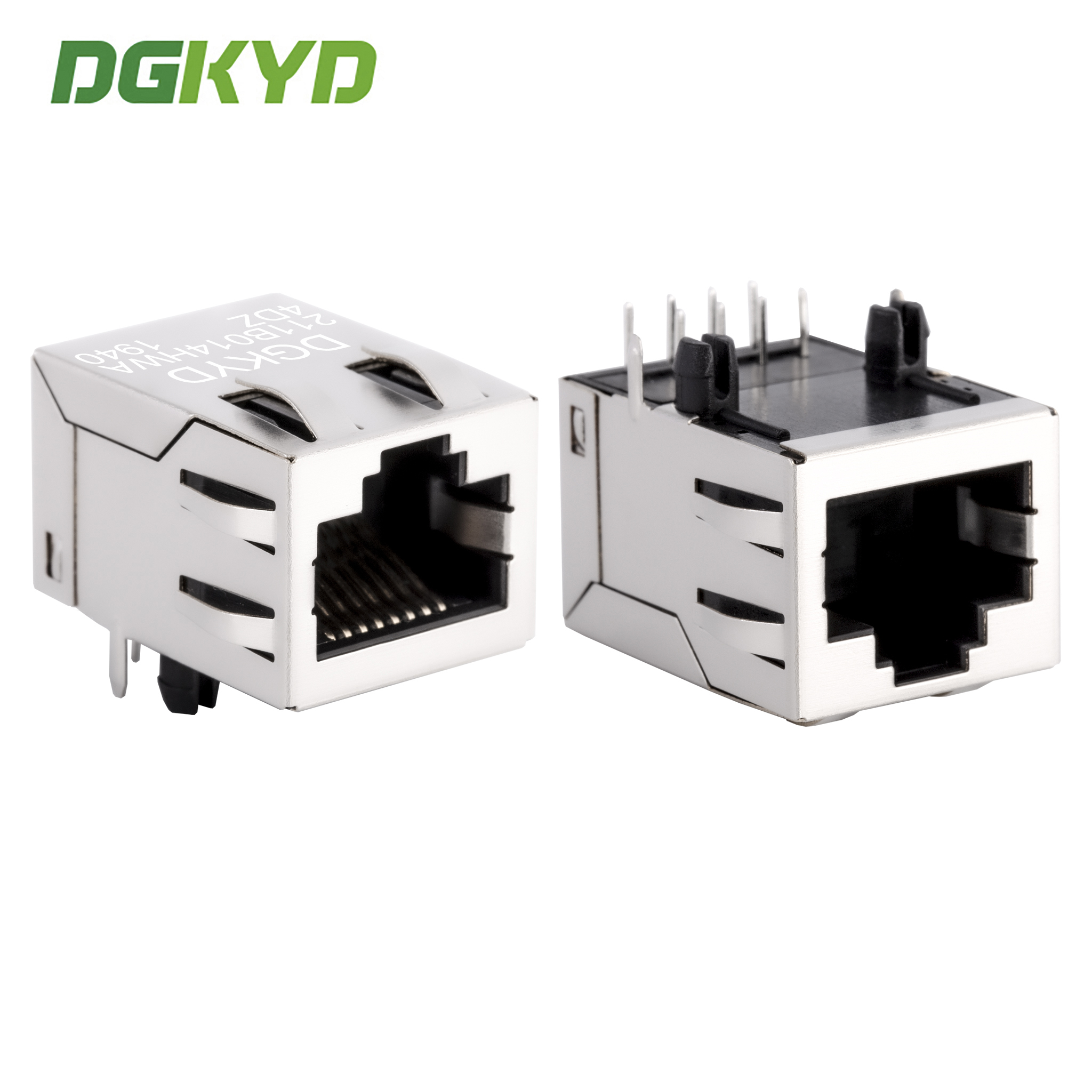

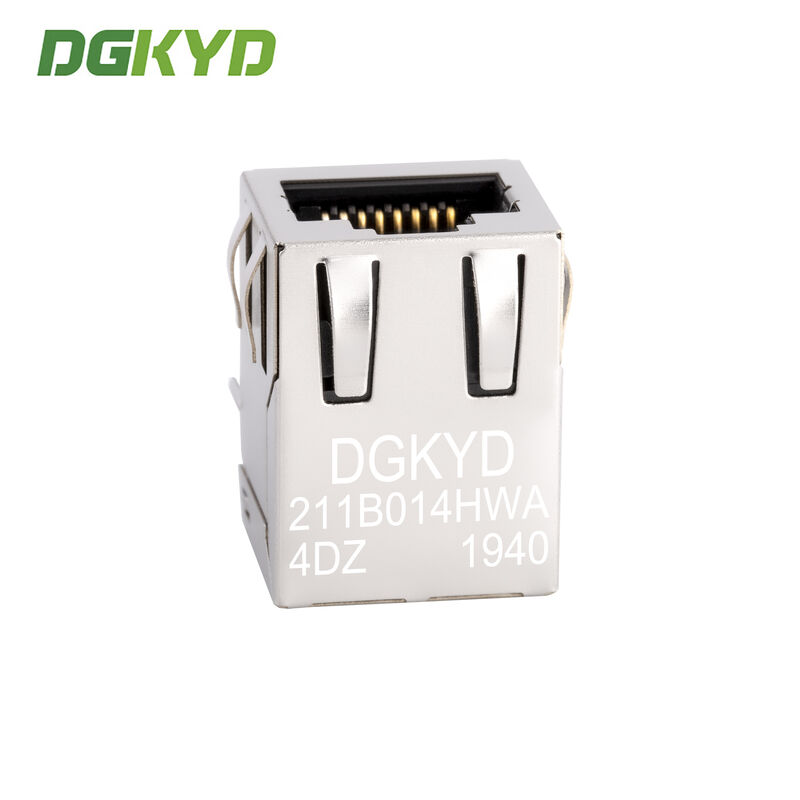

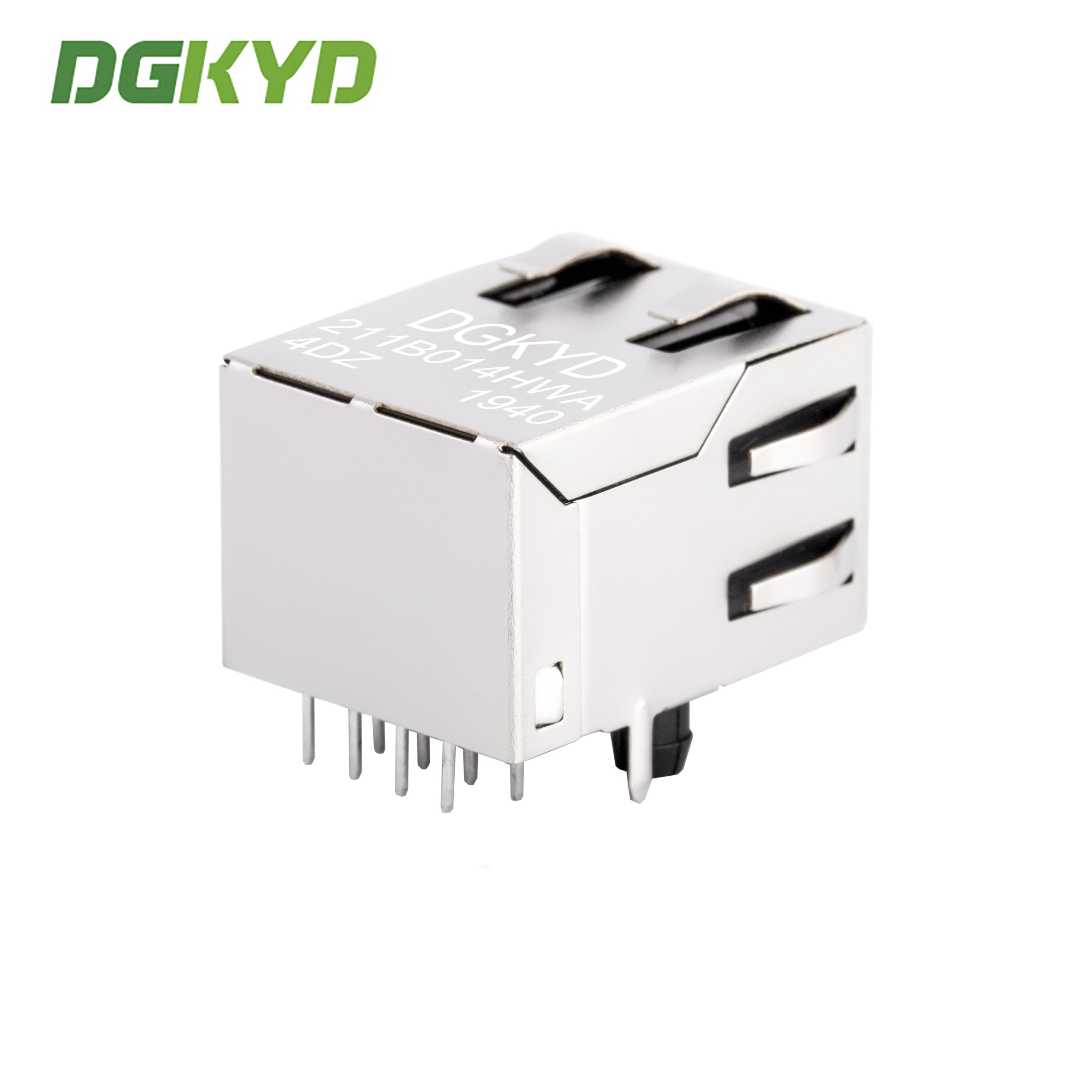

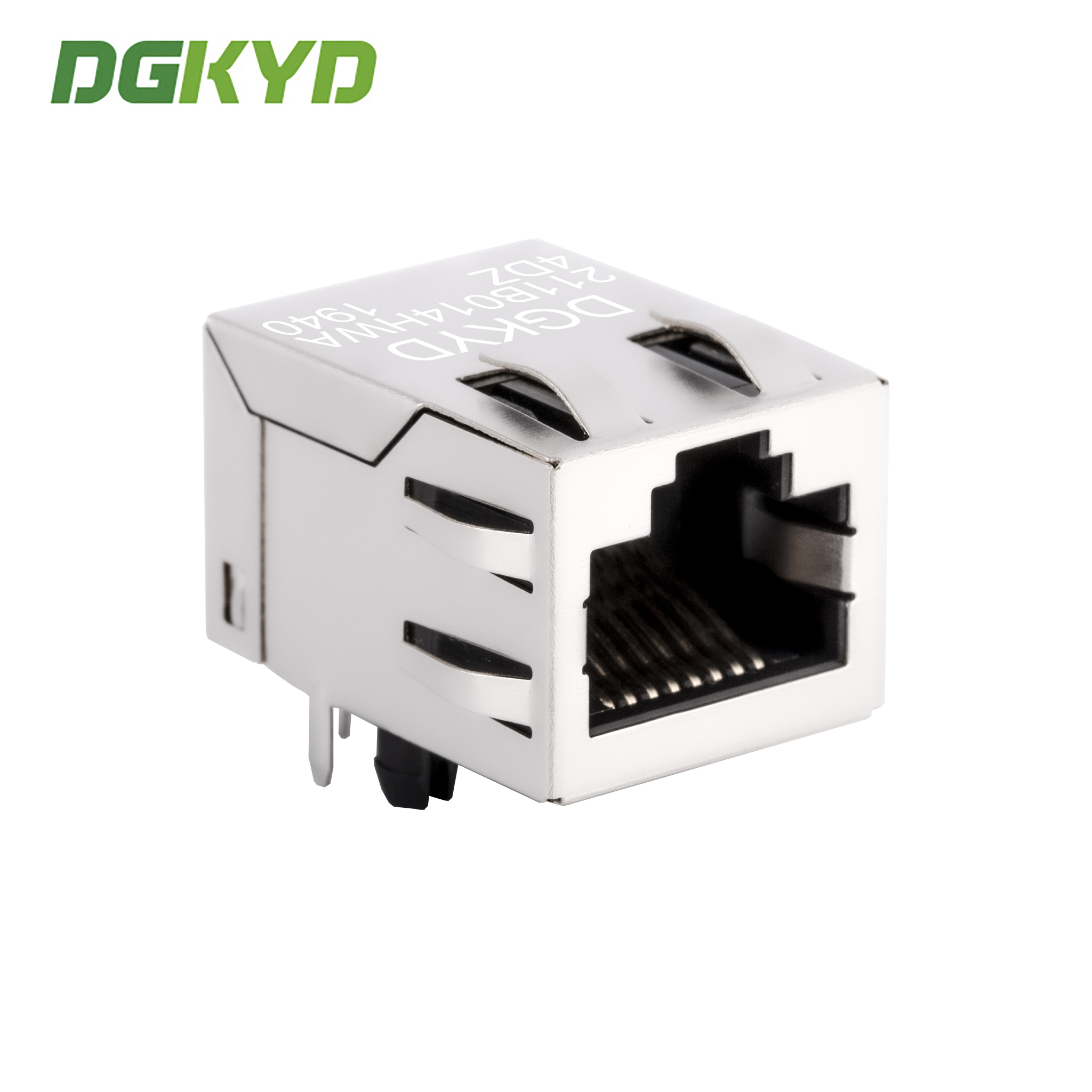

| ハイライト: | RJ45 network connector 100Mbps integrated transformer,RJ45 port connector without light and wing,RJ45 1X1 connector 21.3mm TAB-UP |
||
製品の説明
| Specification | Details |
|---|---|
| Part Number | DGKYD211B014HWA4DZ |
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | With Filter |
| LED Option | Without LED |
| LED Color | No |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 8 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply:
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
