RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D
RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D
接触

RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D

最小注文数量 : 1個 価格 : Please contact us to get the latest price.
パッケージの詳細 : カートンのトレイ 受渡し時間 : 10日
支払条件 : T/T、D/P、D/A、L/C、Western Union、MoneyGram 供給の能力 : 100k PCS/日
起源の場所: 中国の東guan ブランド名: DGKYD
証明: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 モデル番号: DGKYD111B113AA1A1D

詳細情報
パフォーマンス: 猫5 製品名: RJ45 PCBのコネクター
左舷オリエンテーション: 側面の記入項目 台紙様式: PCBマウント
シールド RJ45: はい タイプ: RJ45
導かれた: 黄色/緑 位置/連絡先の数: 8P8c （RJ45のイーサネット）
接触ピンの金メッキ: 6U 動作温度: -40°C〜+85°C
貯蔵 貯蔵温度: -40℃〜85℃
ハイライト:

RJ45 network port socket 100Mbps

,

RJ45 PCB connector horizontal mount

,

RJ45 filter network port with warranty

製品の説明

RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D
Download Product Specification Document
Product Specifications
Part Number DGKYD111B113AA1D Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option With LED
LED Color Yellow/Green Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration 1X1 Ports Number of Positions 8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
Product Images

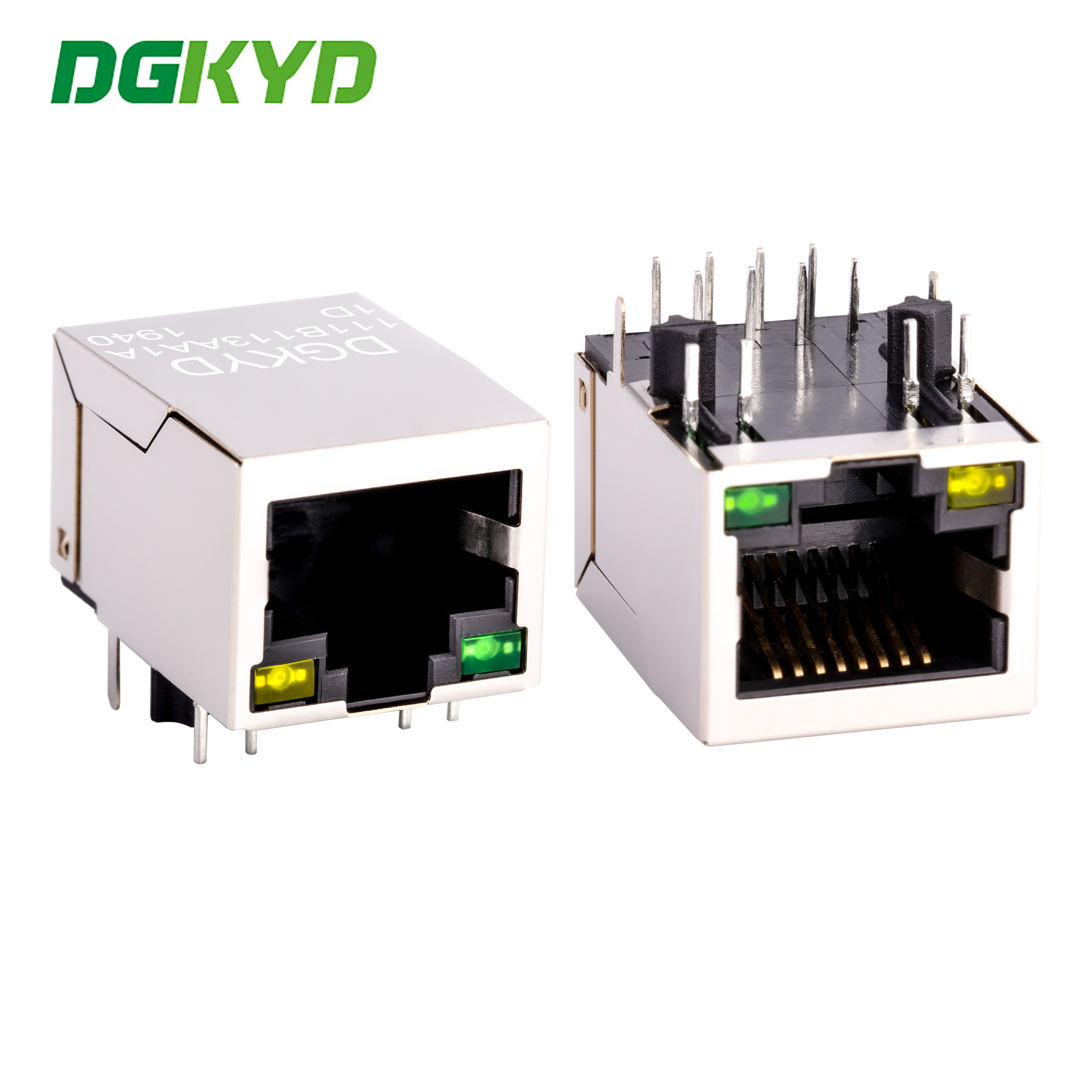

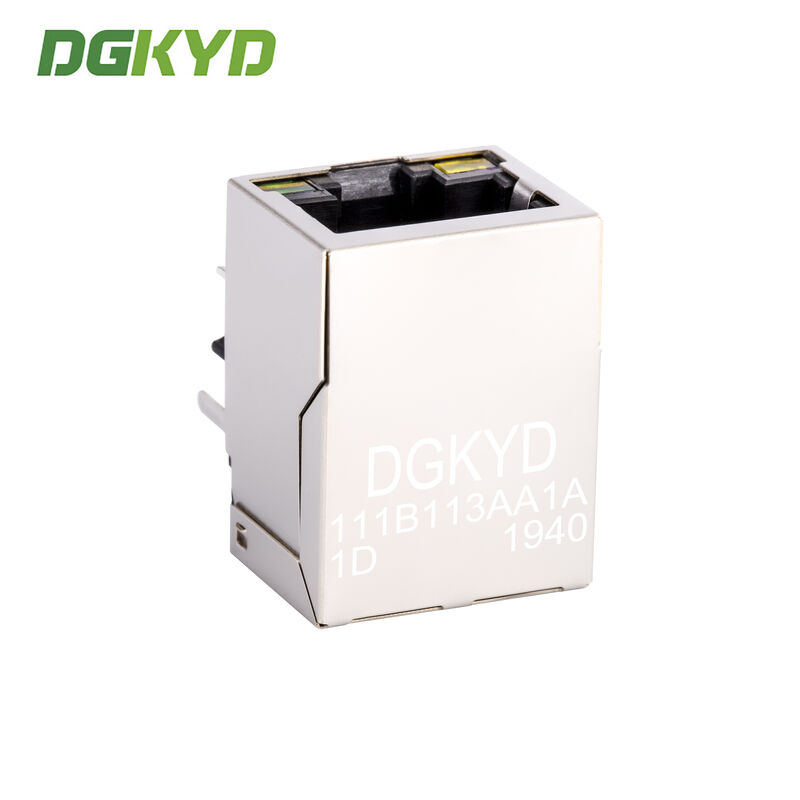

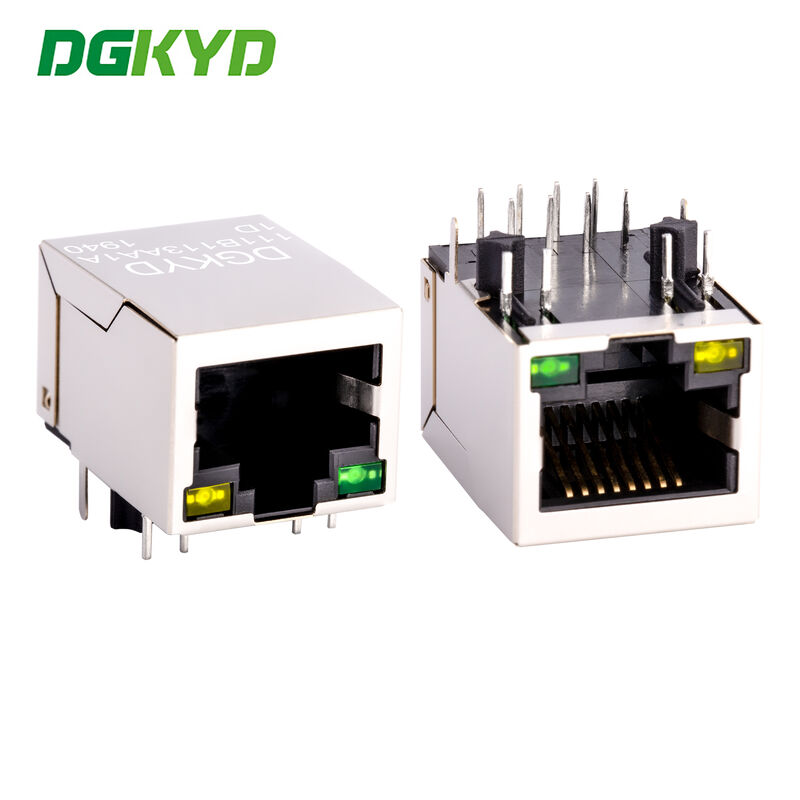

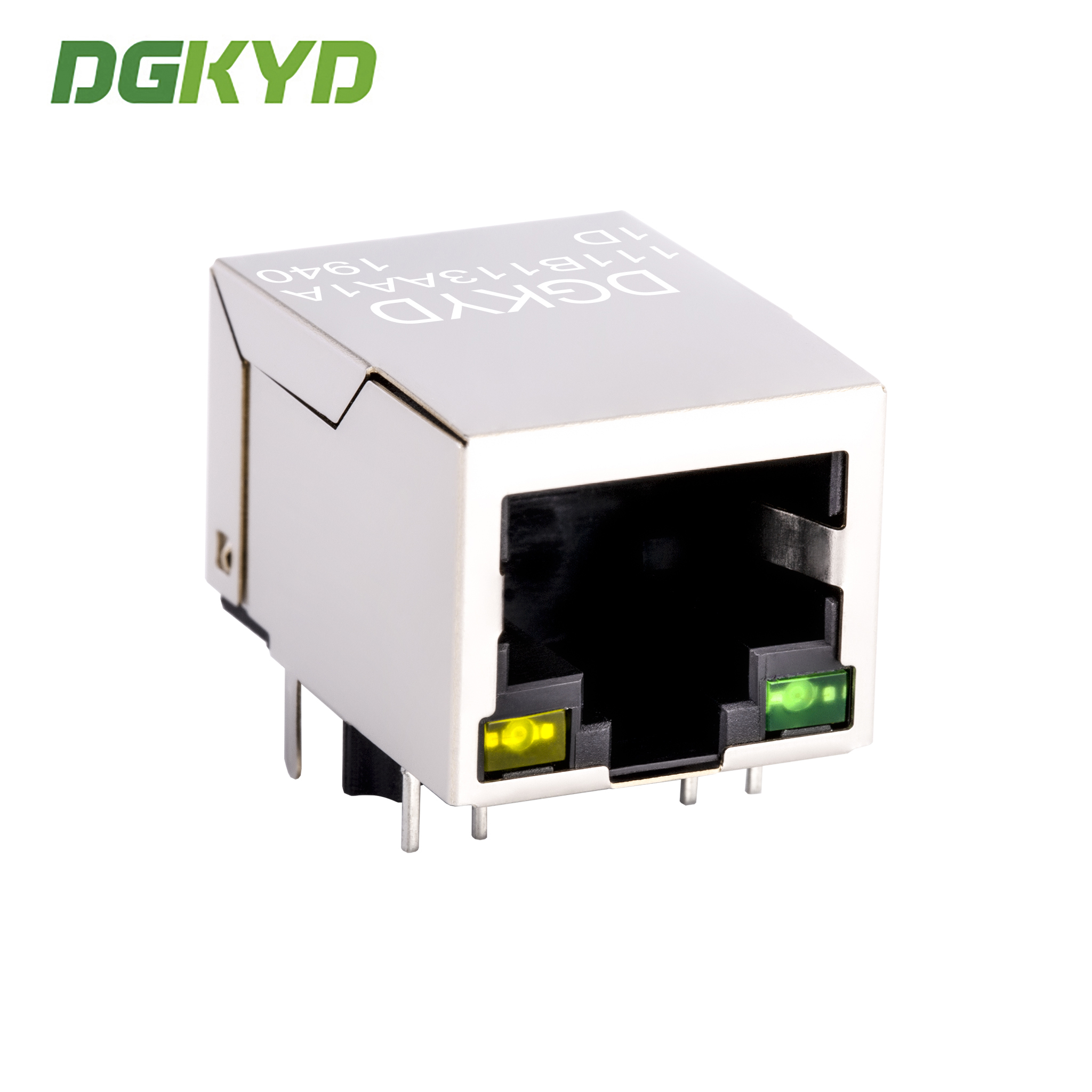

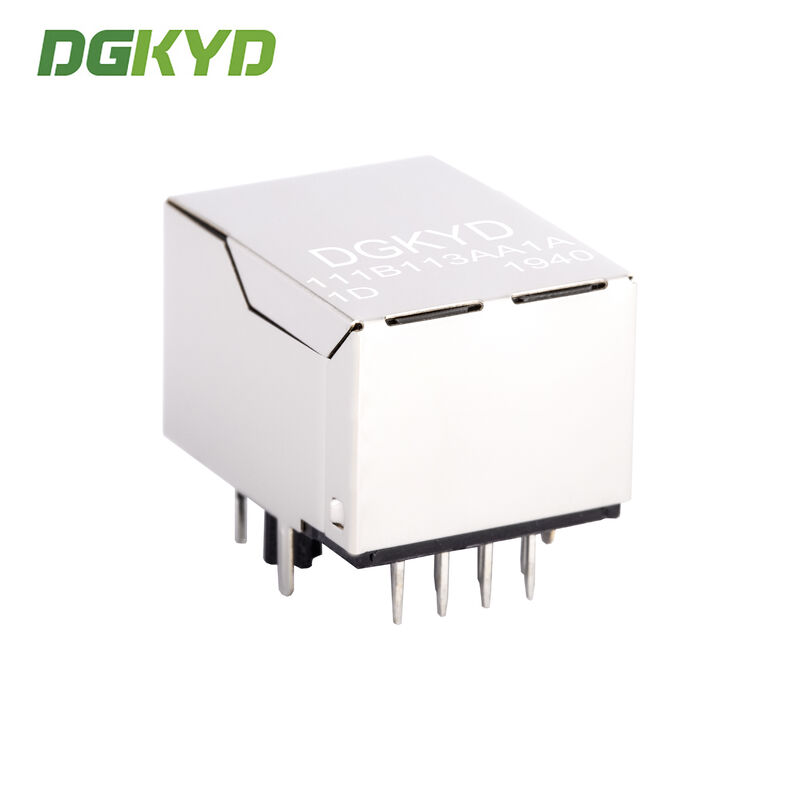

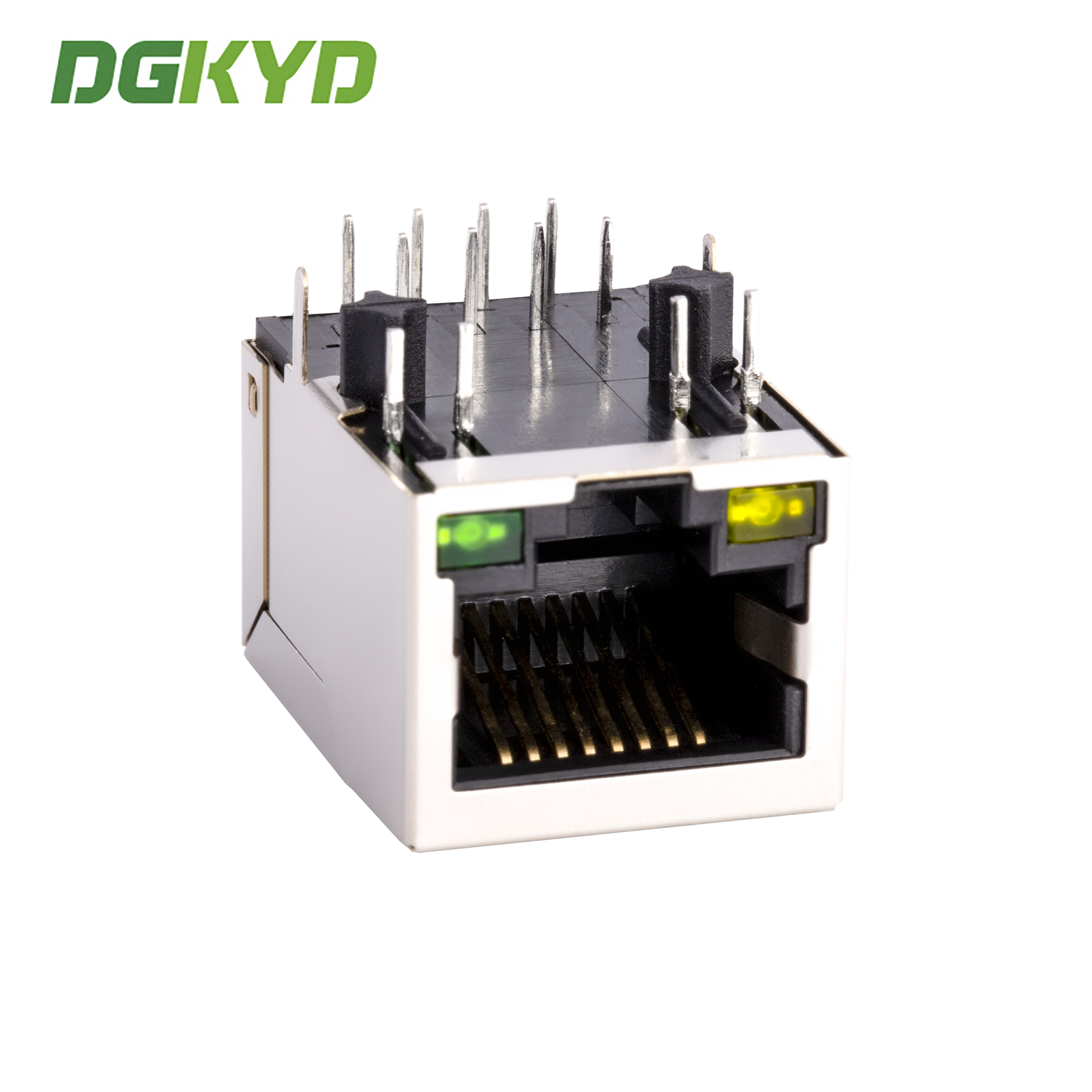

RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D 0
RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D 1
LED Specifications
Emitting color Dominant wavelength(nm) (min/max) Forward voltage (v) Forward current (A) Type
Green 570-575 1.8-2.4 20mA Squareness
Yellow 585-590 1.8-2.4 20mA Squareness
Product Features
  • Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃
Manufacturing Advantages
  • RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Customization options available for LED indicator lights, shielding, magnetic core ratios, contact plating, and housing materials
  • Products meet industry standards for electrical properties, mechanical properties, and environmental protection
Company Information
RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D 2 RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D 3 RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D 4 RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D 5 RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D 6 RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D 7 RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D 8 RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D 9
Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
