| 最小注文数量 : | 1個 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | カートンのトレイ | 受渡し時間 : | 10日間 |
| 支払条件 : | T/T、D/P、D/A、L/C、Western Union、MoneyGram | 供給の能力 : | 100k PCS/日 |
| 起源の場所: | 中国の東guan | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD511B015GWA8DP |
|
詳細情報 |
|||
| パフォーマンス: | 猫5 5e | 左舷オリエンテーション: | トップエントリ |
|---|---|---|---|
| 台紙様式: | 浸漬 | シールド: | はい |
| OEM/ODM: | はい | エアロ: | イーサネット上の電源 |
| 位置/連絡先の数: | 8P10C（RJ45、イーサネット） | 接触ピンの金メッキ: | 6U |
| 保管温度: | -40°C〜+85°C | 動作温度: | -40°C〜+85°C |
| ハイライト: | RJ45 PCB connector PoE compatible,vertical RJ45 modular jack,single port ethernet connector PCB mount |
||
製品の説明

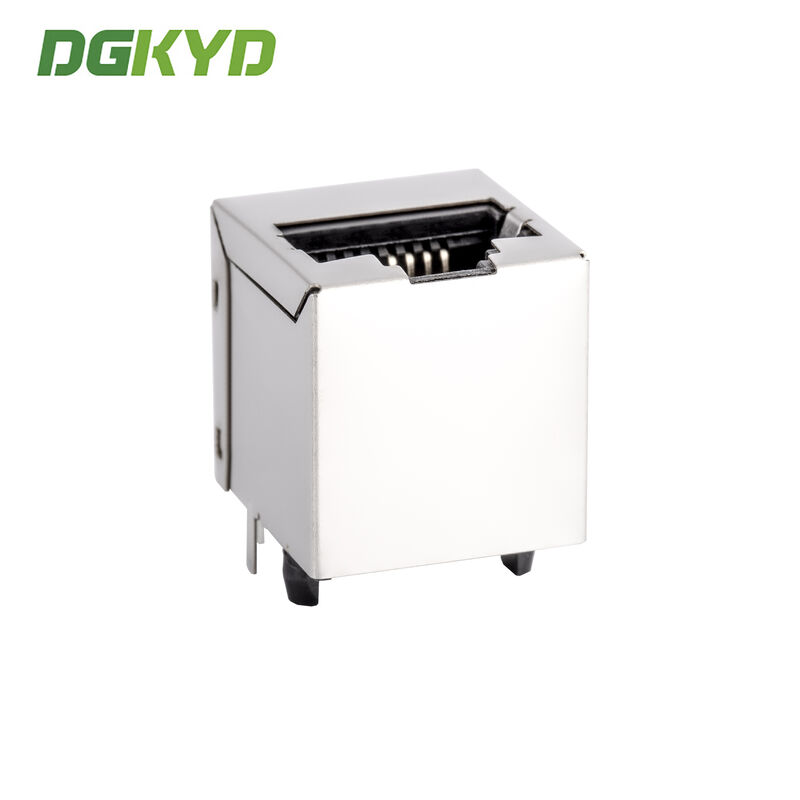

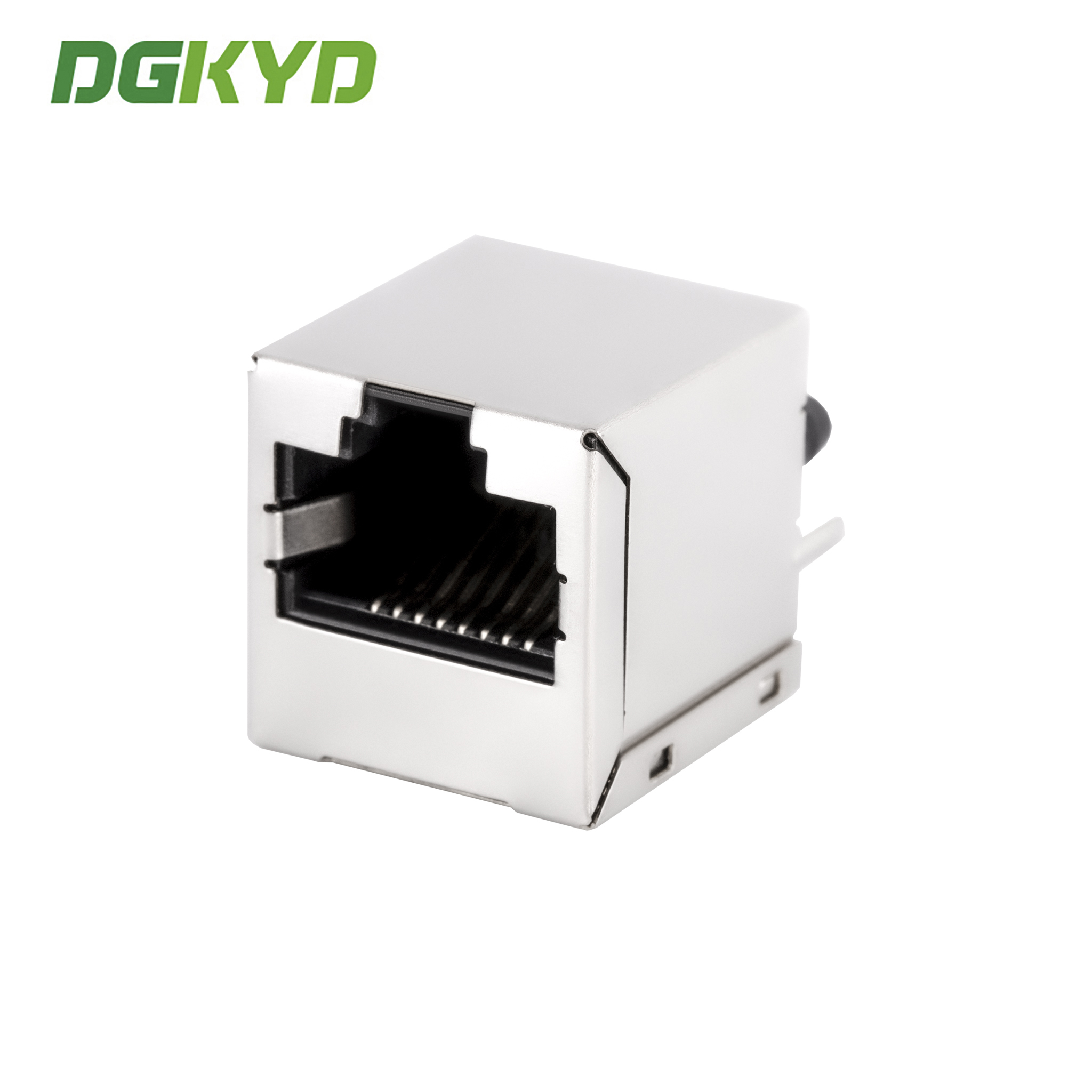

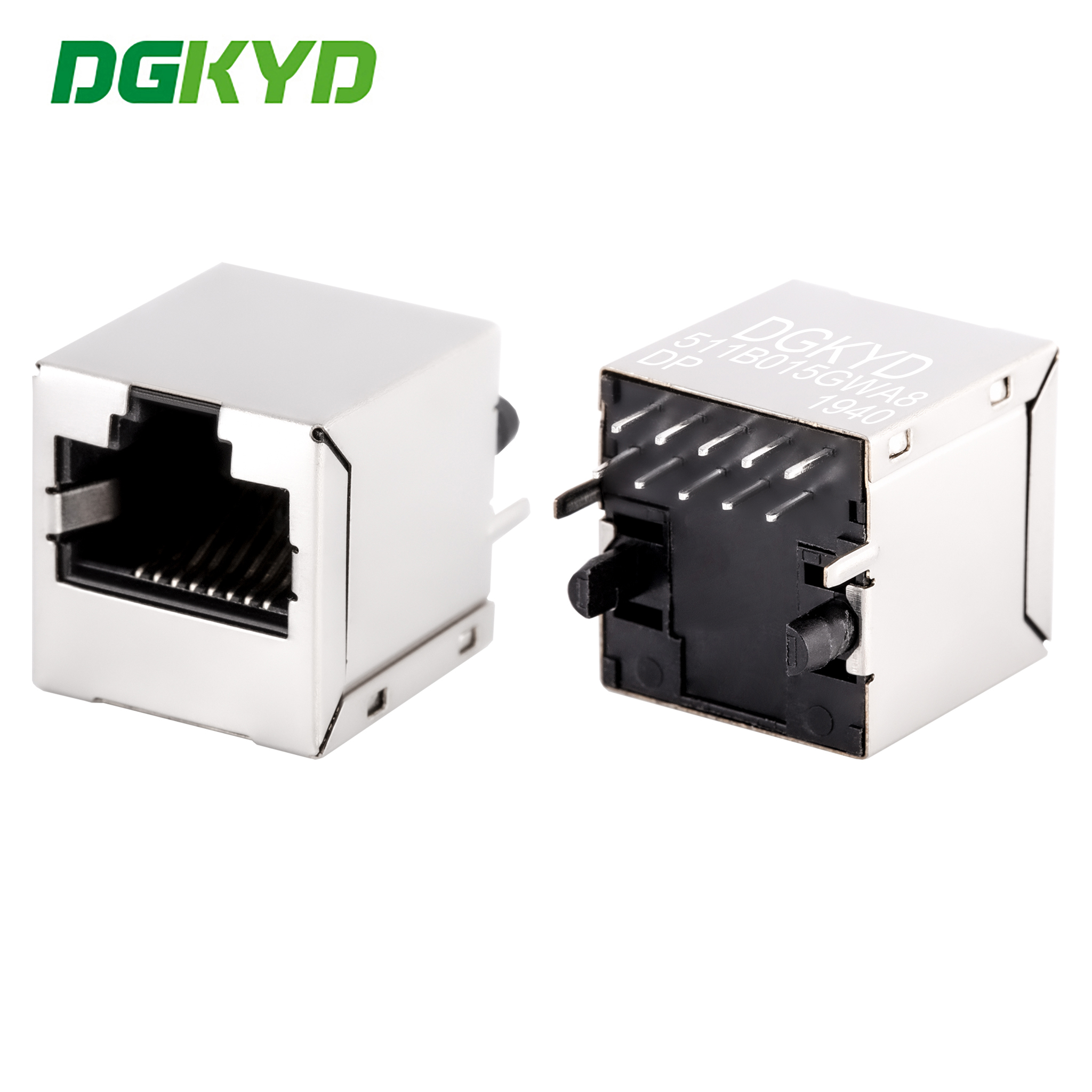

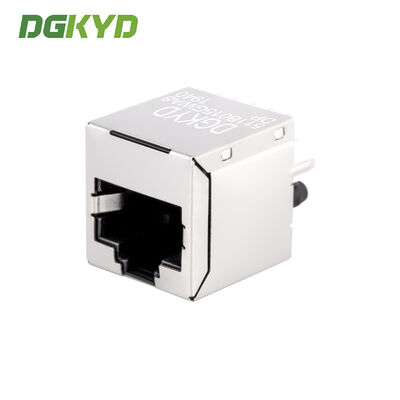

Customized single port vertical RJ45 modular jack with PCB mount and Power over Ethernet (PoE) capability. Part number: DGKYD511B015GWA8DP
Download Product Datasheet (PDF)| Part Number | DGKYD511B015GWA8DP |
|---|---|
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | With Filter |
| LED Option | Without LED |
| LED Color | No |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 10 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
