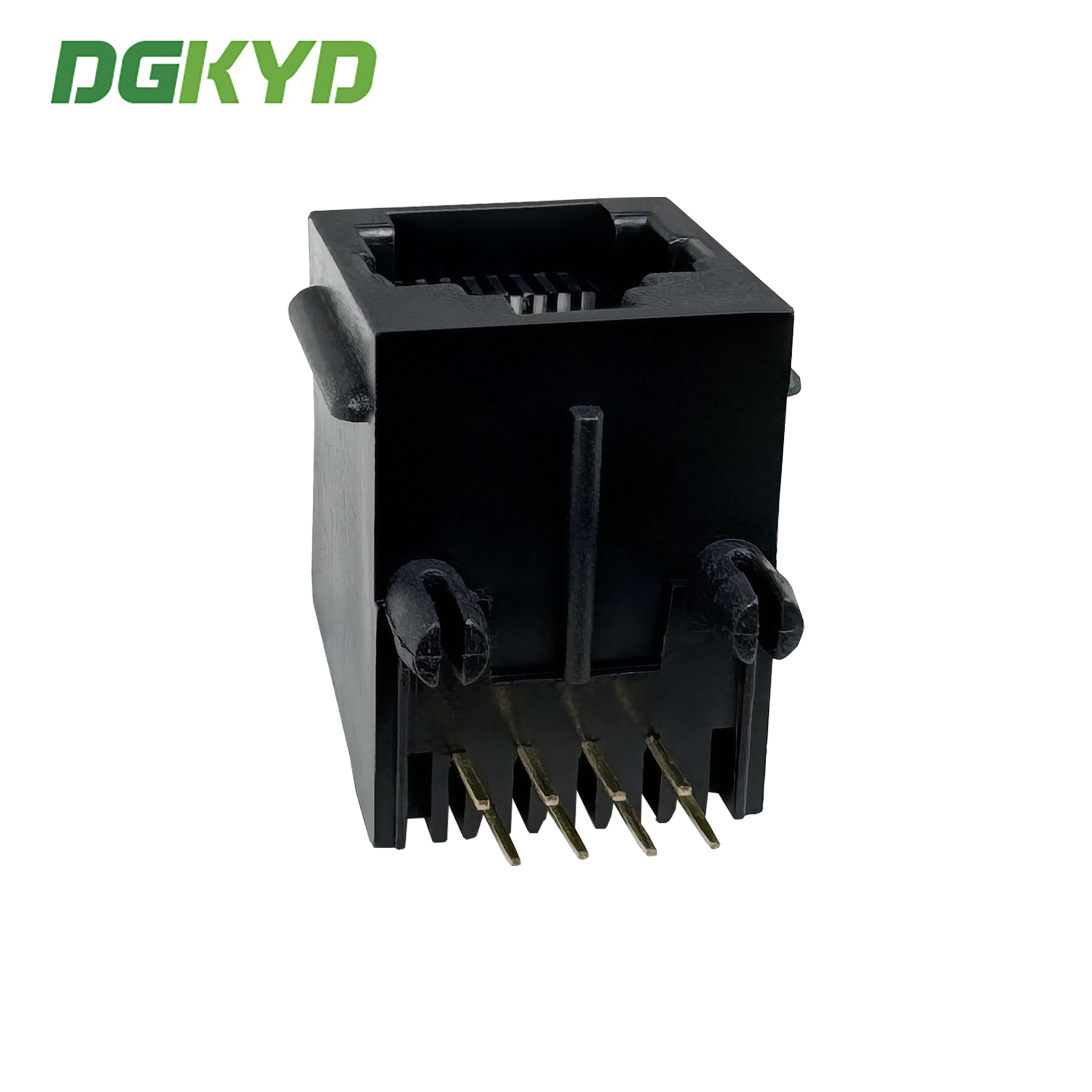

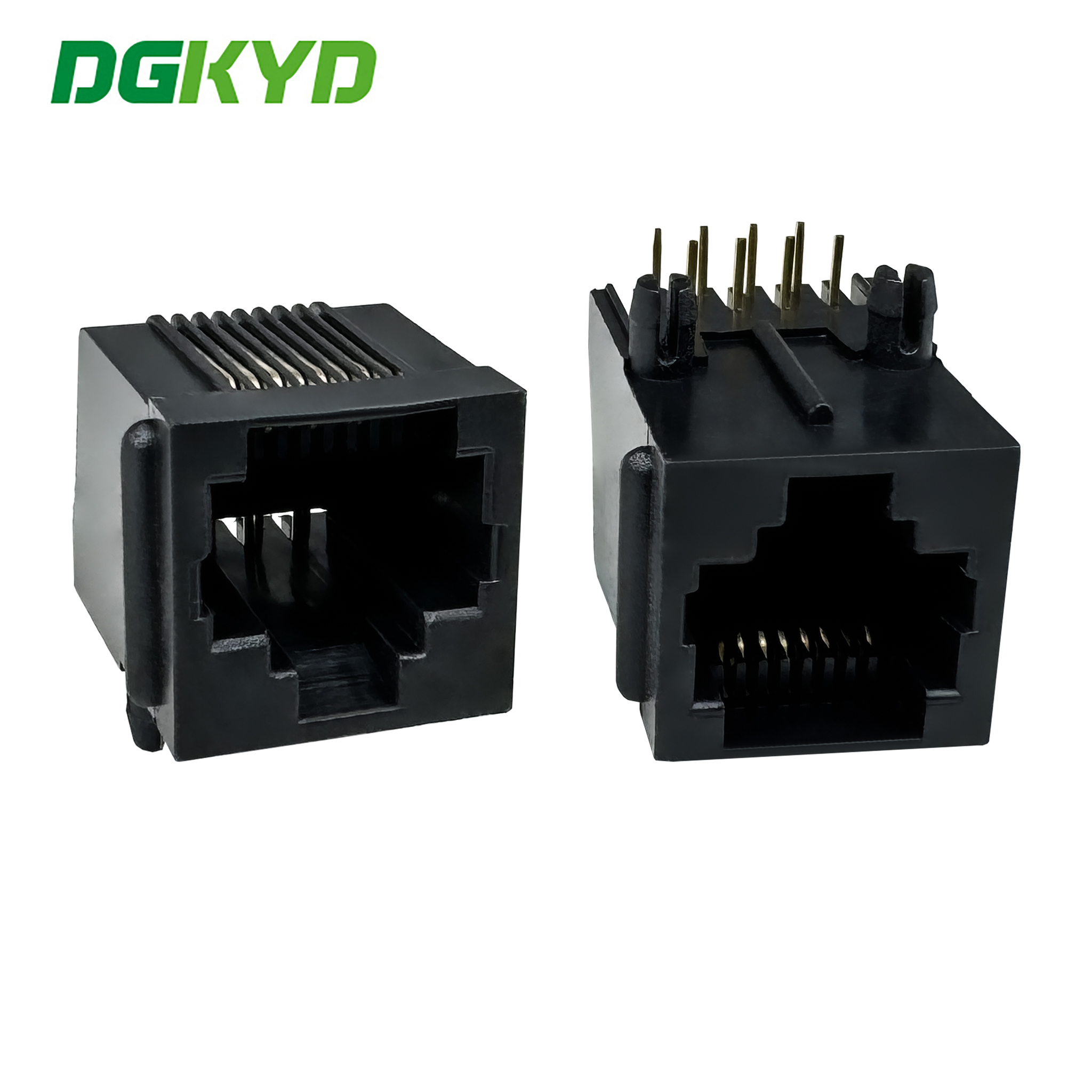

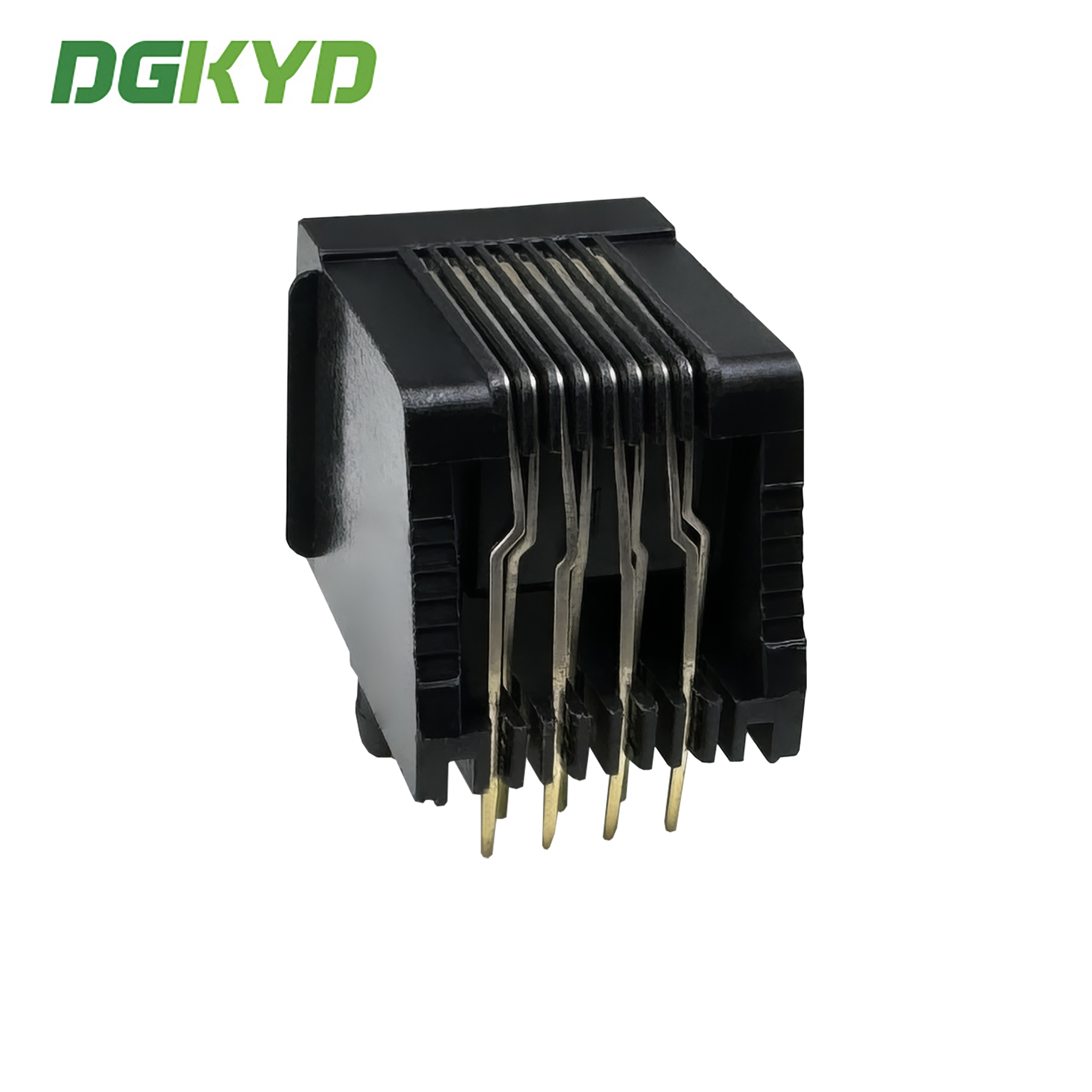

RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9
RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9
接触

RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9

最小注文数量 : 交渉可能 価格 : 交渉可能
パッケージの詳細 : カートンのトレイ 受渡し時間 : 7-14DAYS
支払条件 : L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム 供給の能力 : 日あたり6万個
起源の場所: 中国の東guan ブランド名: DGKYD
証明: RoHS/CE/FCC/CE/ISO9001/ISO14001 モデル番号: DGKYD5722E1188IWA1DB9

詳細情報
製品名: RJ45コネクター コネクタタイプ: ジャック
アプリケーション: PC,ルーター,USBハブネットワーク RJ45 など 性別: 女性
トランス: 変圧器のないRJ45 接触ピンの金メッキ: 1U
動作温度: -40°C〜+85°C 保管温度: -40°C〜+85°C
ステッチの数: 8p8c
ハイライト:

RJ45 Ethernet port connector with ears

,

all plastic black 8P8C socket

,

57 Series Ethernet port connector

製品の説明

RJ45 Ethernet Port Connector with Ears, All Plastic Black Socket 8P8C DGKYD5722E1188IWA1DB9
Product Description

RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9

Product Specification Document

DGKYD5722E1188IWA1DB9.pdf

Part Number DGKYD5722E1188IWA1DB9 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter Without Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded No Applies To Printed Circuit Board
Performance Speed 10/100/1000/BASE-T/TX Suitable for welding type Reflowsolding(Alternative)
Port Configuration single Ports Number of Positions 8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u/15u/30u/50u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material 1U Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 0
Technical Specifications
  • Interface type: crystal head application: 10/100/1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: 40℃ - 85℃
  • Storage temperature: -40℃ - 85℃
  • Lead free soldering: wave soldering height up to 265℃
Product Features
  • RJ45 full series of integrated circuit accessories
  • Manufacturer direct supply
  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Customizable options available (LED indicators, shielding, coil ratio, etc.)
  • Meets industry standards for electrical, mechanical, and environmental properties
Performance Parameters
  • Applied to Ethernet, coil ratio: 1CT: 1CT
  • Meet IEEE 802.3 & ANSI X 3.263 standard
  • Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
  • Wave soldering process of 265℃ Max meeting the requirements of EU ROHS standard
  • Withstand voltage: 2250VDC 1mA max, 60s
  • Impedance: 100 ohms
  • RJ45 interface meets FCC 68.5 standard
  • DC resistance: 1.5Ω
Company Information
RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 1 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 2 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 3 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 4 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 5 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 6 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 7 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 8
Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
