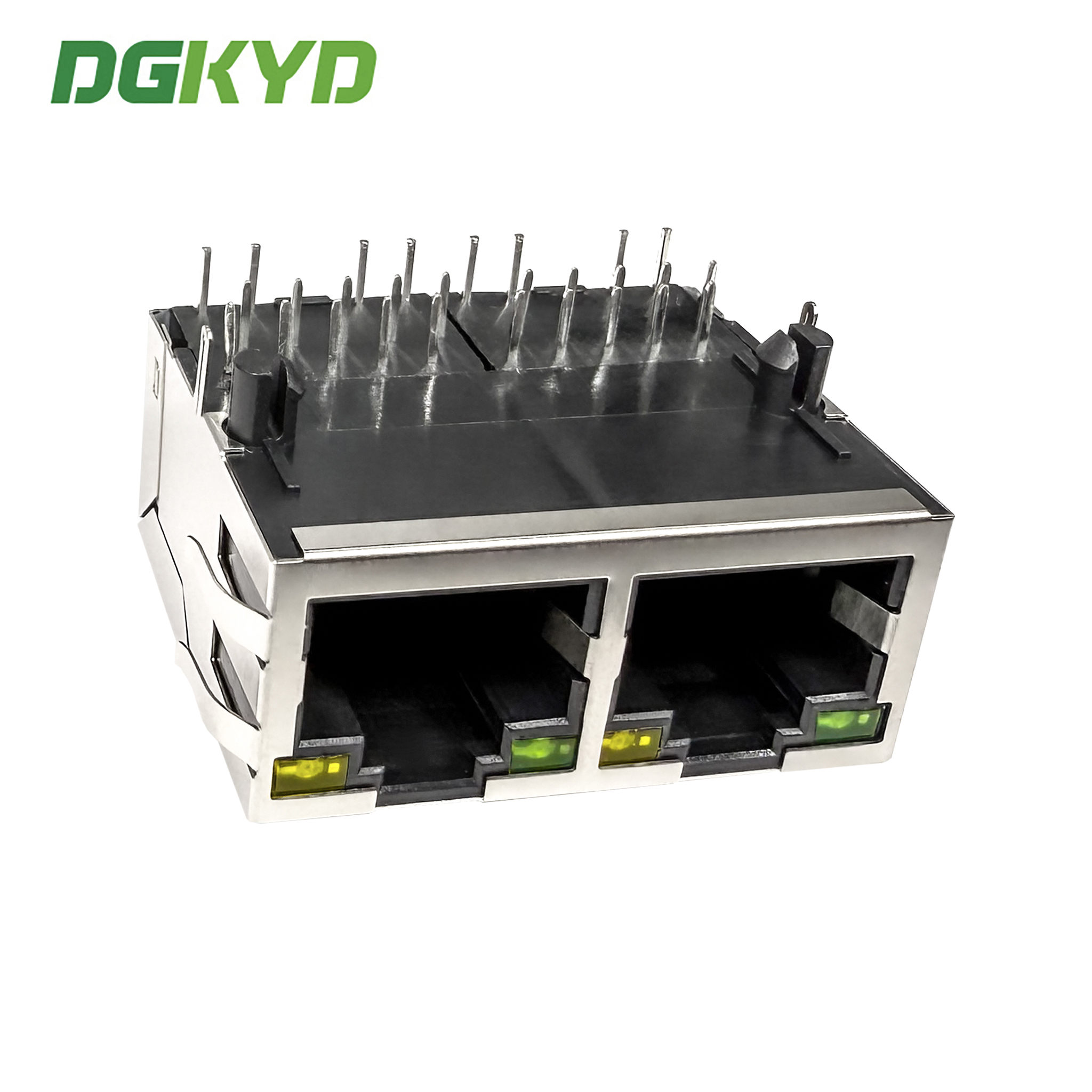

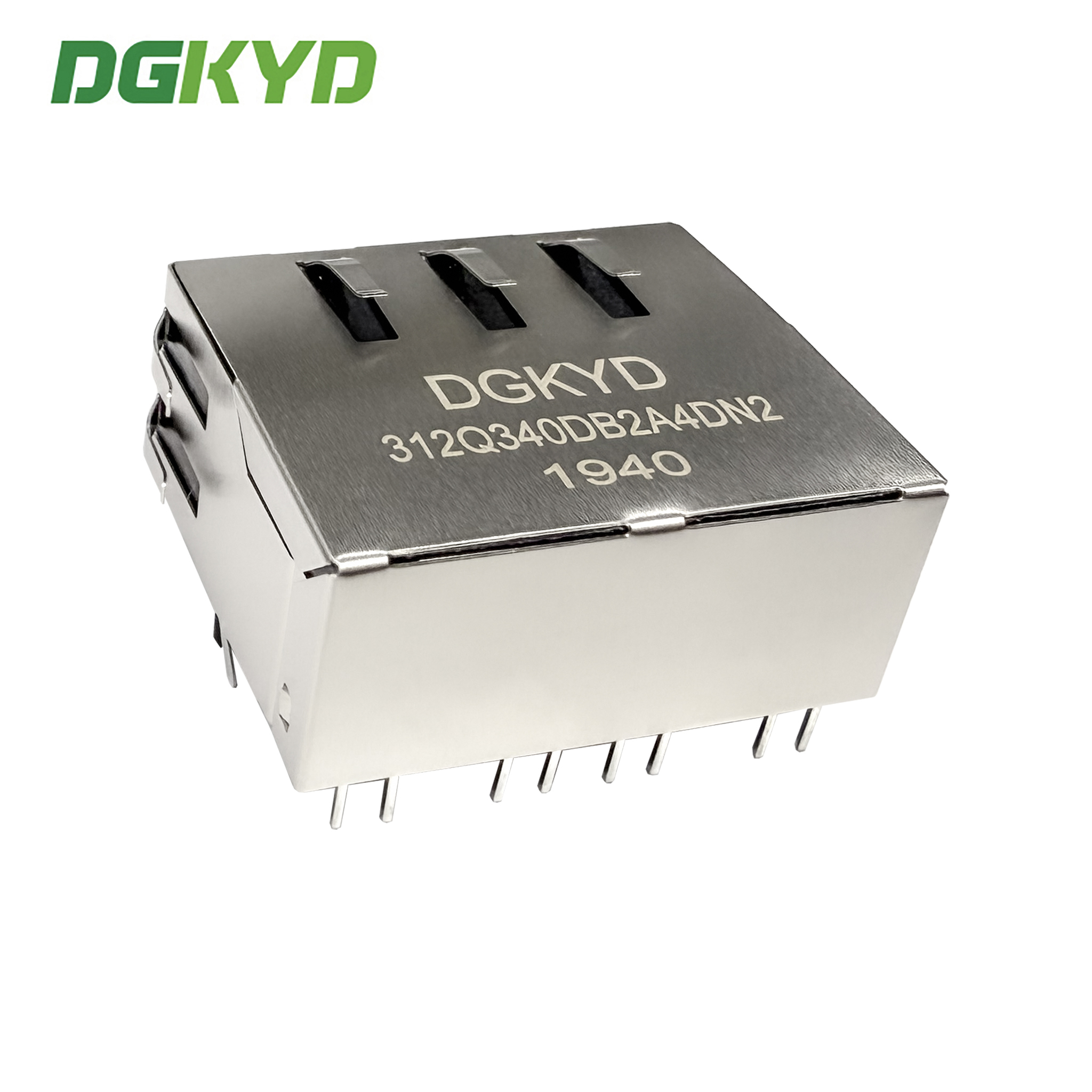

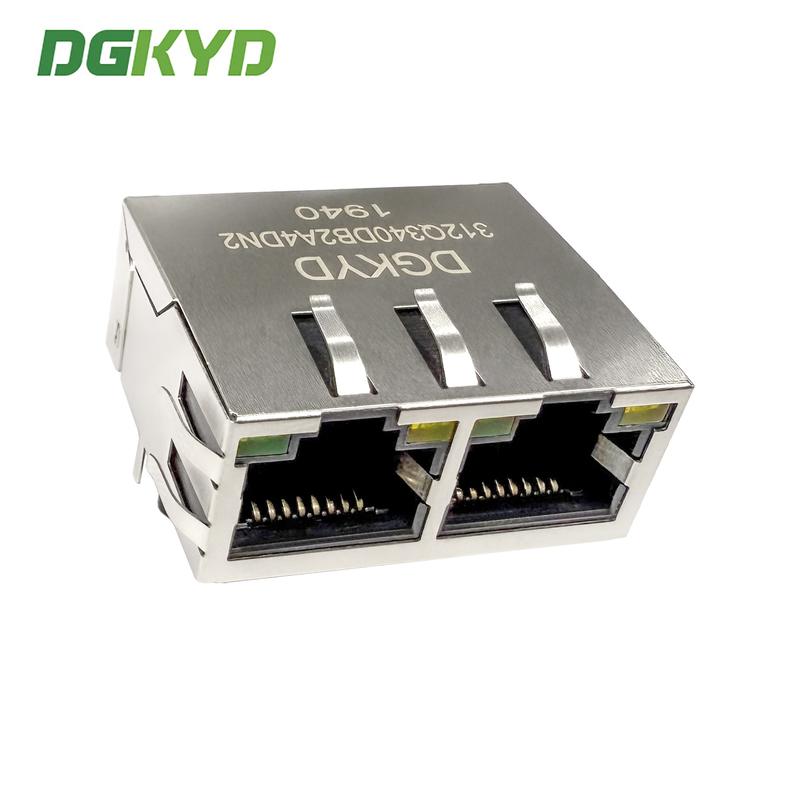

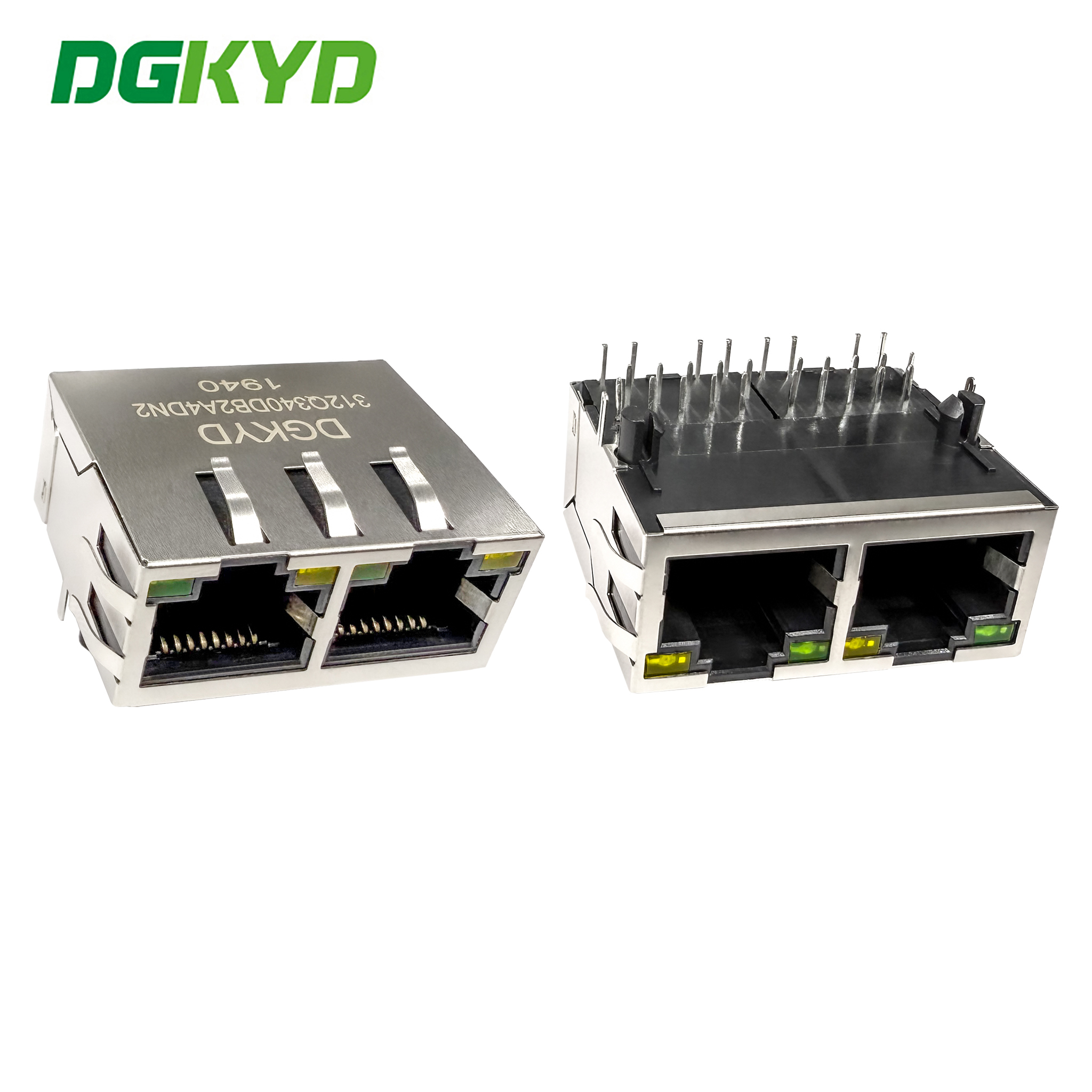

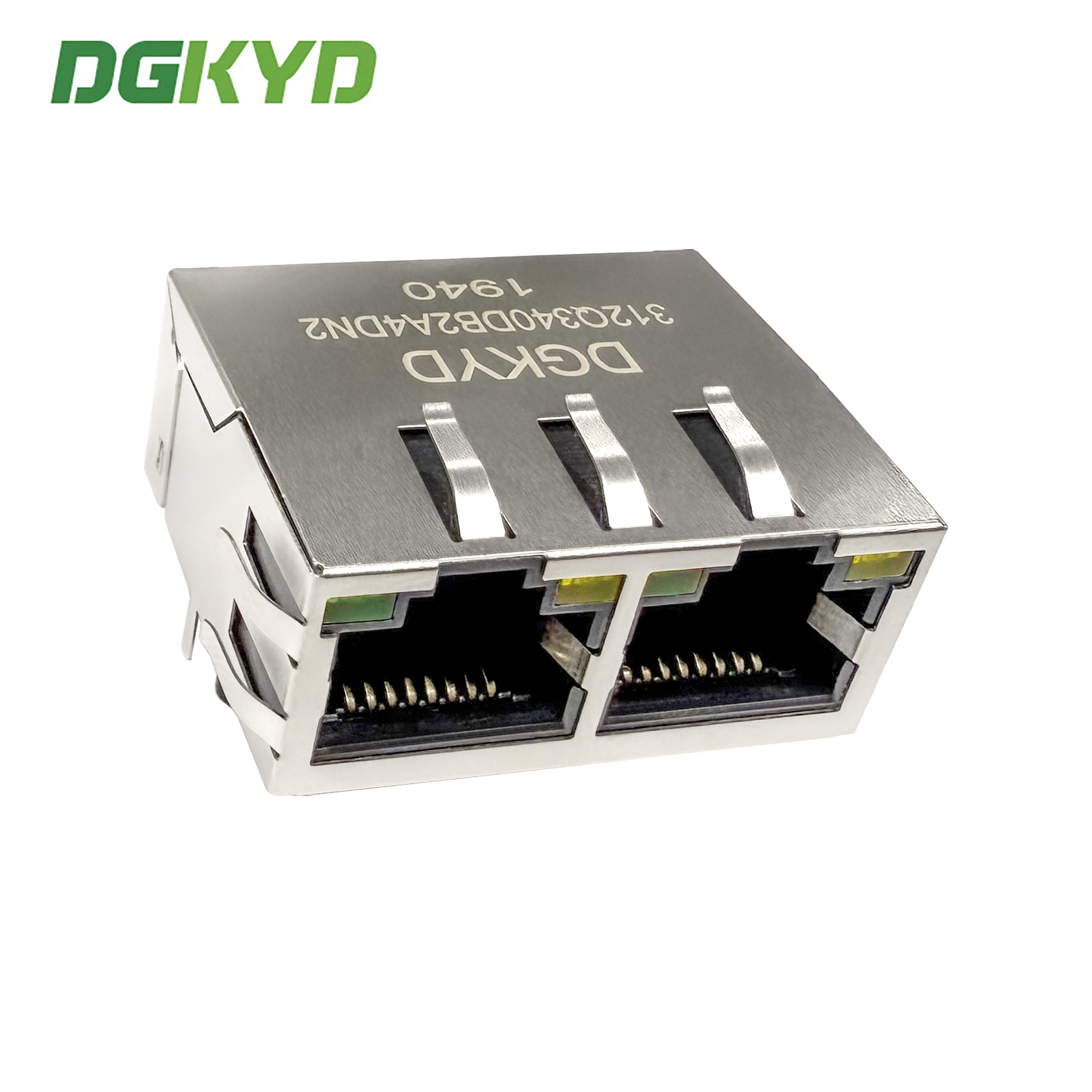

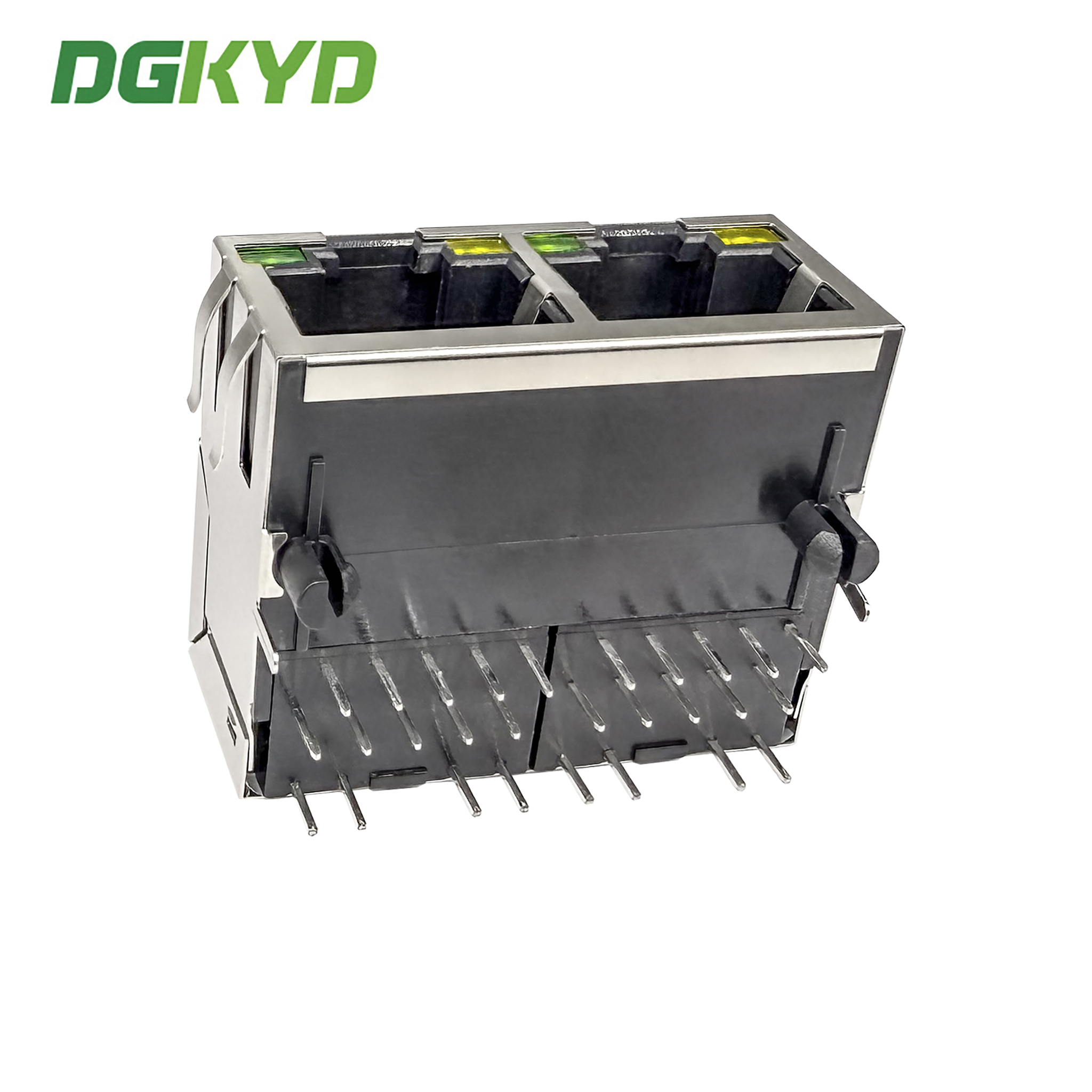

RJ45 network port connector with built-in 2.5G integrated transformer DGKYD312Q340DB2A4DN2

最小注文数量 :	1ピース	価格 :	Please contact us to get the latest price.
パッケージの詳細 :	カートンのトレイ	受渡し時間 :	10日
支払条件 :	T/T、D/P、D/A、L/C、Western Union、MoneyGram	供給の能力 :	100k PCS/日

起源の場所:	中国の東guan	ブランド名:	DGKYD
証明:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	モデル番号:	DGKYD312Q340DB2A4DN2

詳細情報
製品名:	RJ45モジュラージャック	性別:	RJ45レセプタクル
タイプ:	マルチピンrj45マグジャック	応用:	光ファイバー、IPカメラ、DVR、DSL、モデム、WiFiなど
特徴:	シールドされたRJ45ネットワークポート	OEM/ODM:	はい
接触ピンの金メッキ:	6U	動作温度:	-40°C〜+85°C
保管温度:	-40°C〜+85°C	位置/連絡先の数:	10P8C (RJ45,イーサネット)
シールド:	蛍光銅ニッケルメッキ
ハイライト:	RJ45 2.5G network port connector , RJ45 connector with integrated transformer , 2.5G RJ45 port with warranty

製品の説明

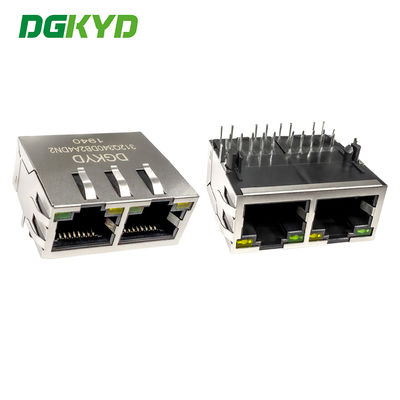

RJ45 Network Port Connector with Built-in 2.5G Integrated Transformer DGKYD312Q340DB2A4DN2

Product Description

RJ45 network port connector with built-in 2.5G integrated transformer DGKYD312Q340DB2A4DN2

Product Specification Document

Parameters

Part Number	DGKYD312Q340DB2A4DN2	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
