| 最小注文数量 : | 1ピース | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | カートンのトレイ | 受渡し時間 : | 10日 |
| 支払条件 : | T/T、D/P、D/A、L/C、Western Union、MoneyGram | 供給の能力 : | 100k PCS/日 |
| 起源の場所: | 中国の東guan | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD111Q594AB2A12DB1 |
|
詳細情報 |
|||
| モジュラージャック＆プラグインターフェイスタイプ: | トランス付きRJ45 | コネクタスタイル: | RJ45メスジャック |
|---|---|---|---|
| シールド: | 金属シールド | スピード: | CAT6 |
| ステータスインジケーター: | 導かれた | ラッチオリエンテーション: | トップエントリ |
| 位置/連絡先の数: | 8P10C（RJ45、イーサネット） | OEM/ODM: | はい |
| 接触ピンの金メッキ: | 30U | 保管温度: | -40°C〜+85°C |
| 動作温度: | -40°C〜+85°C | ||
| ハイライト: | RJ45 connector 10G with transformer,shielded RJ45 connector with light,10G RJ45 connector with warranty |
||
製品の説明

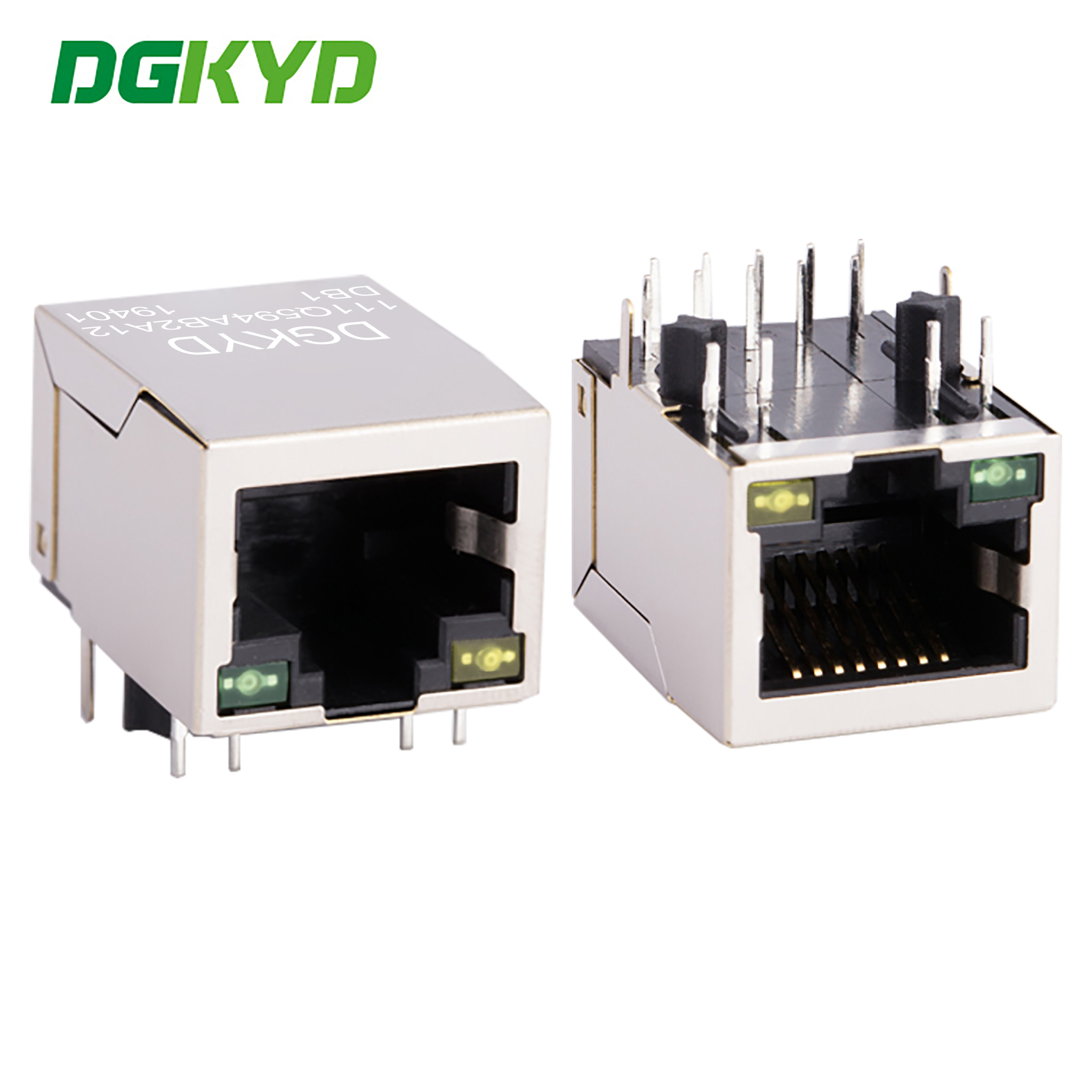

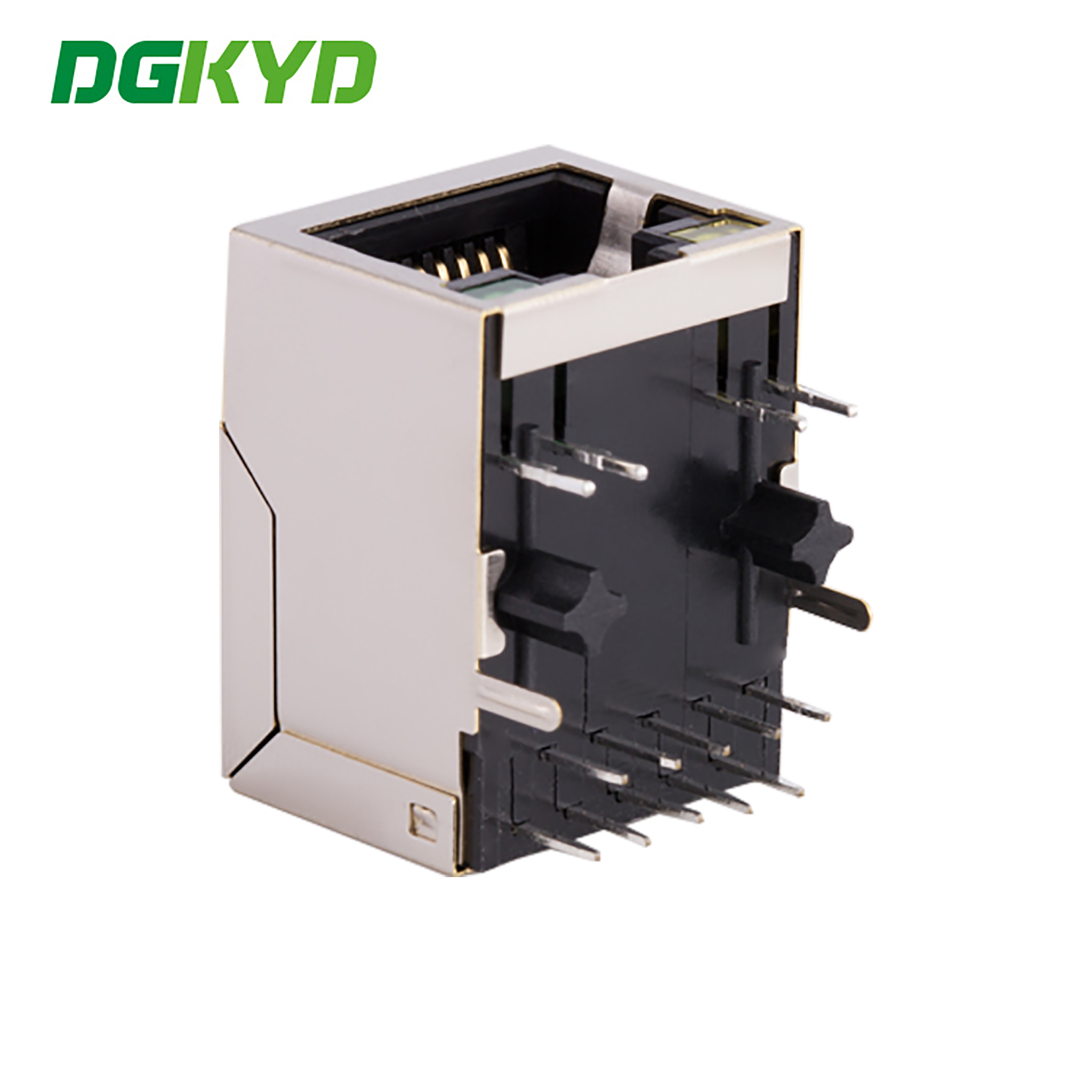

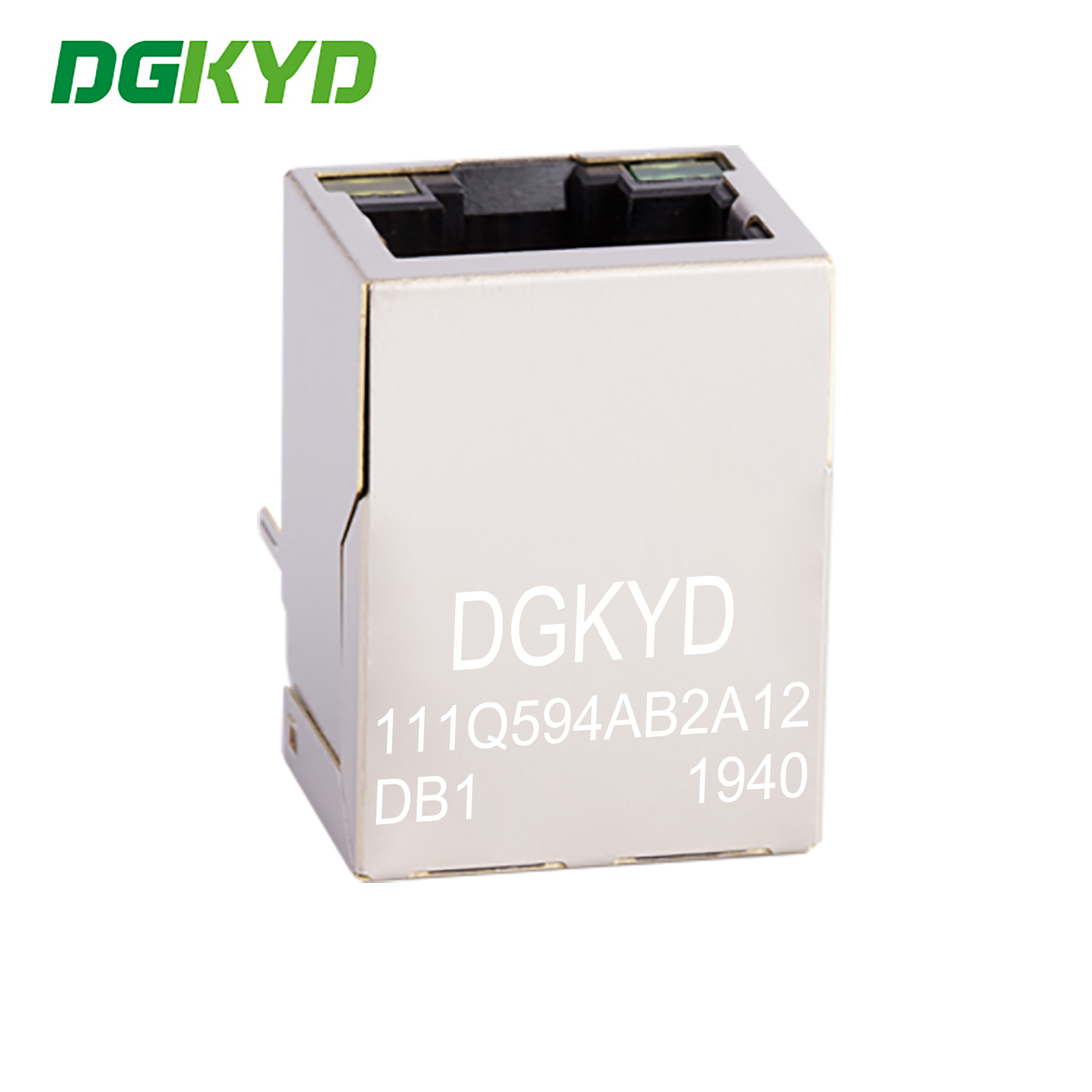

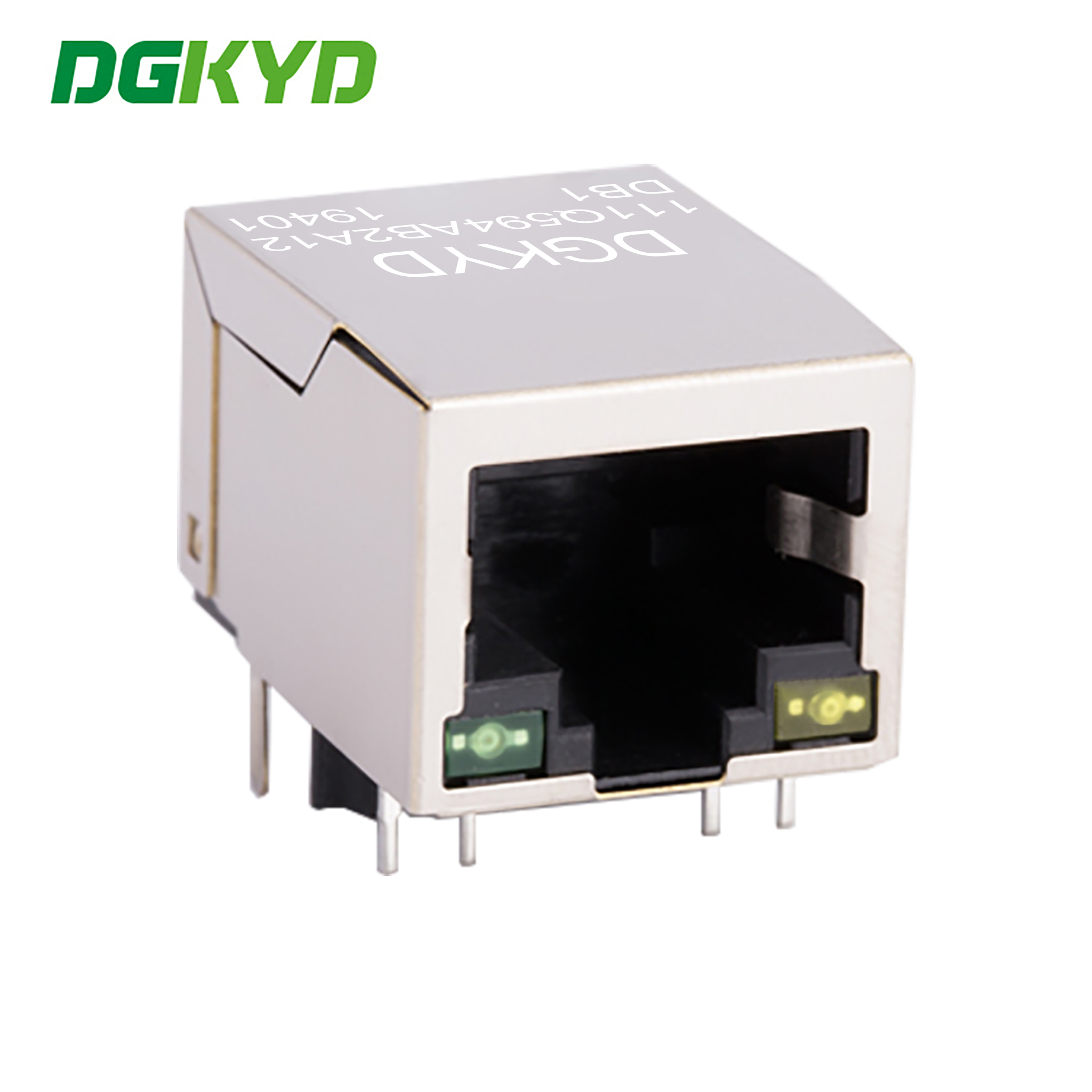

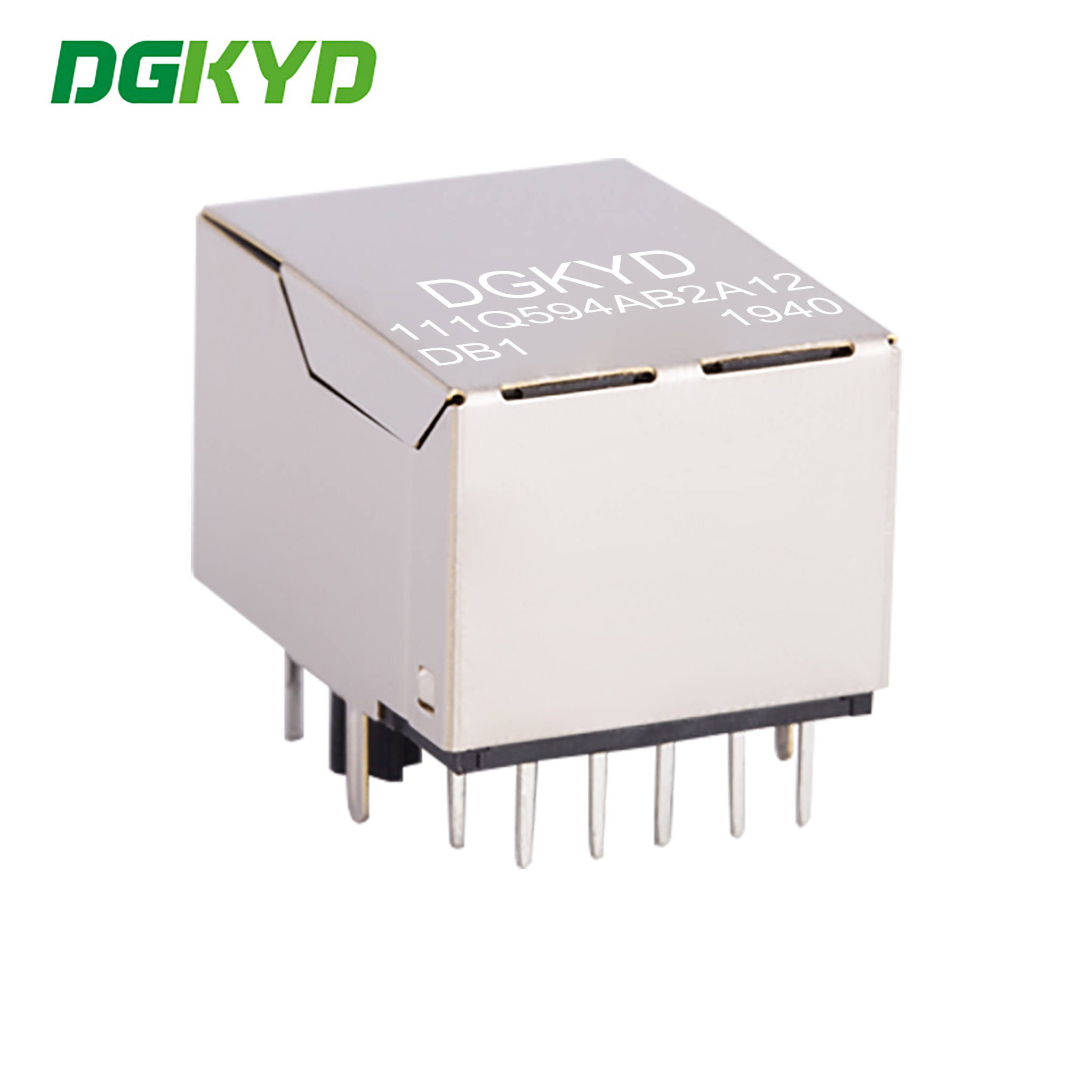

RJ45 connector with built-in 10G integrated transformer with light and shielding DGKYD111Q594AB2A12DB1
| Attribute | Value |
|---|---|
| Modular Jack & Plug Interface Type | RJ45 with transformer |
| Connector Style | RJ45 female Jack |
| Shielded | Metal Shielded |
| Speed | cat6 |
| Status Indicator | LED |
| Latch Orientation | Top Entry |
| Number of Positions/Contacts | 8p10c (RJ45, Ethernet) |
| OEM/ODM | Yes |
| Gold plating on contact pins | 30U |
| Storage temperature | -40°C~+85°C |
| Operating temperature | -40°C~+85°C |
Drawing: RJ45 connector with built-in 10G integrated transformer with light and shielding DGKYD111Q594AB2A12DB1
Product Specification Document: DGKYD111Q594AB2A12DB1(10G) .pdf
| Part Number | DGKYD111Q594AB2A12DB1 | Brand | DGKYD/OEM/ODM |
|---|---|---|---|
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | SIngle Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 30u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PA9T Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
