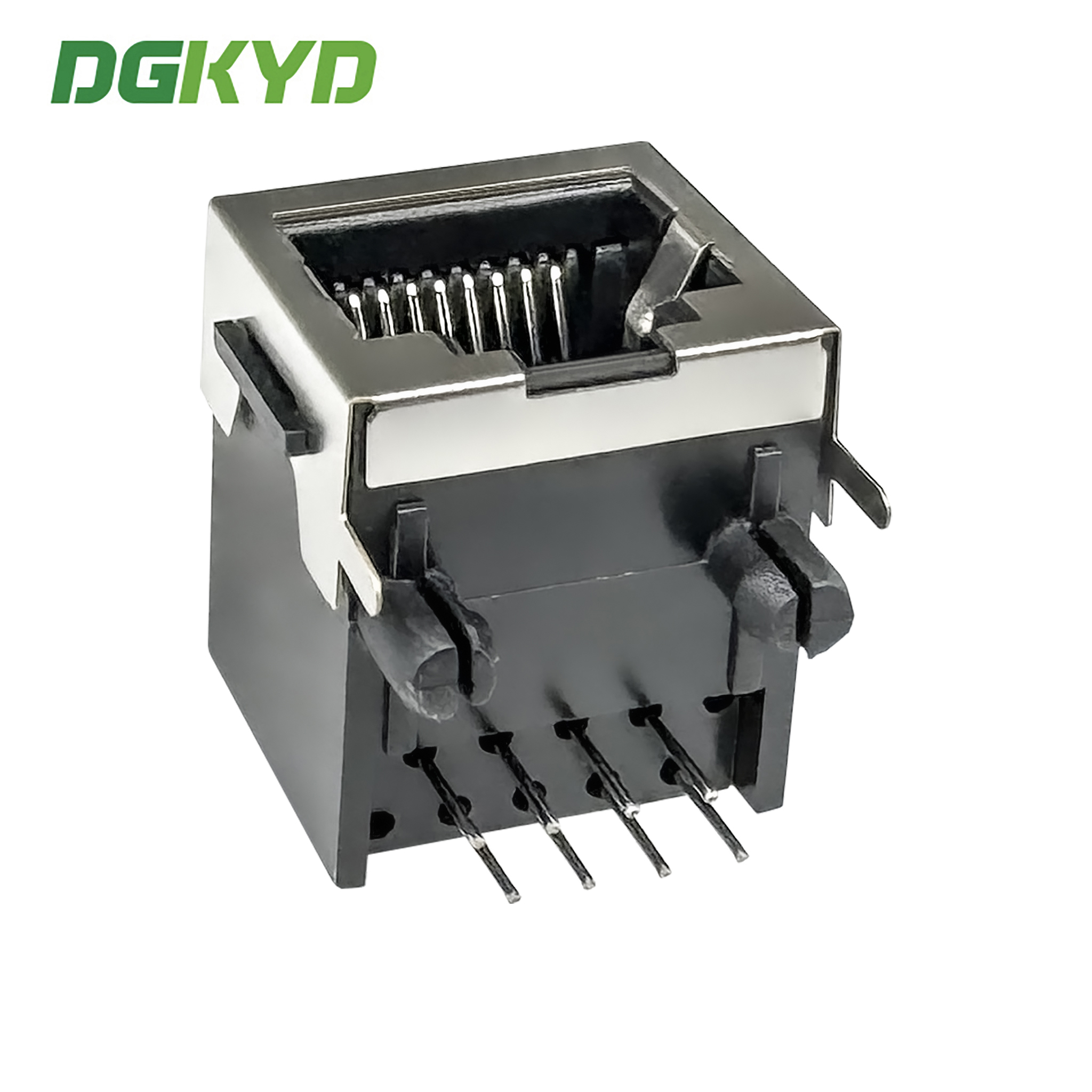

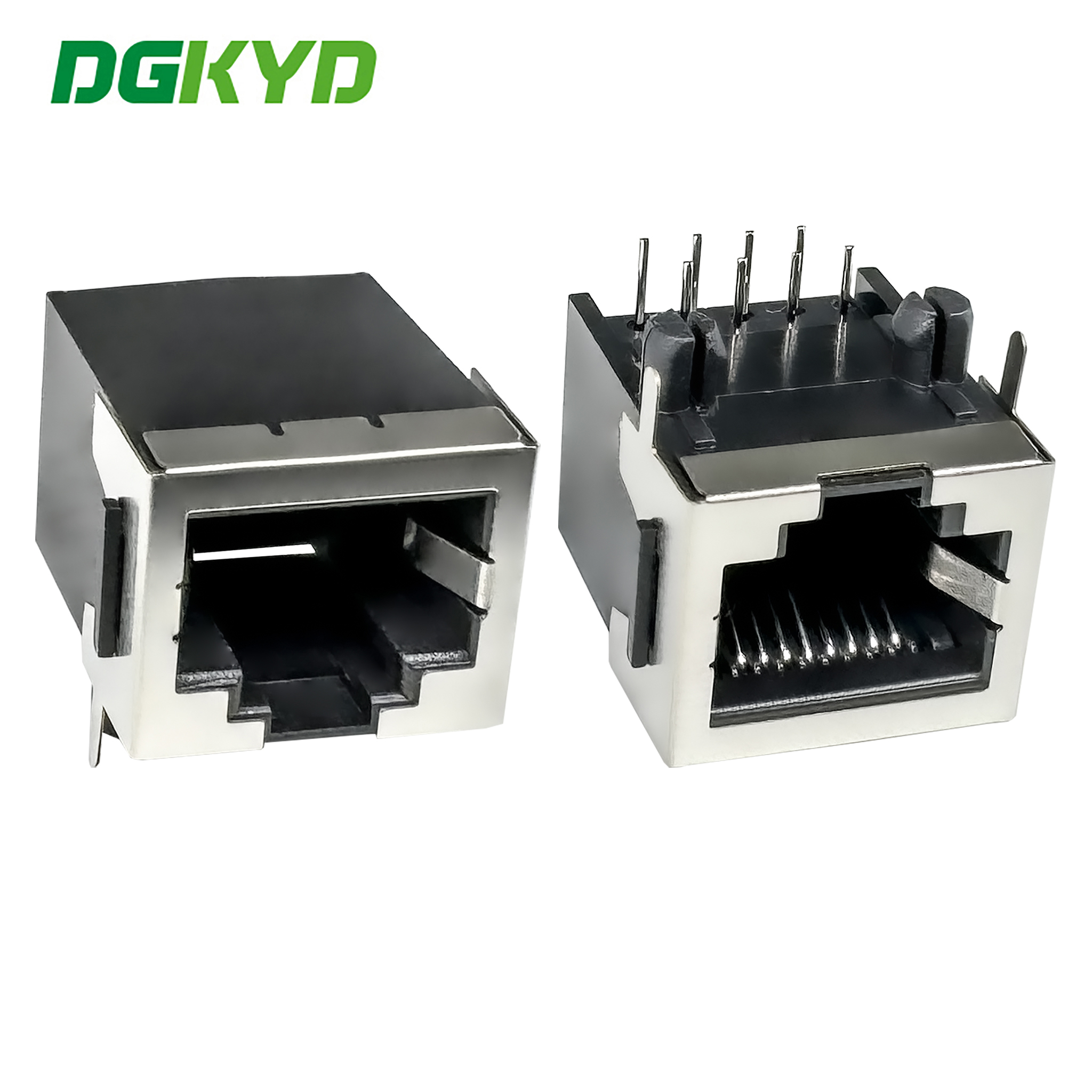

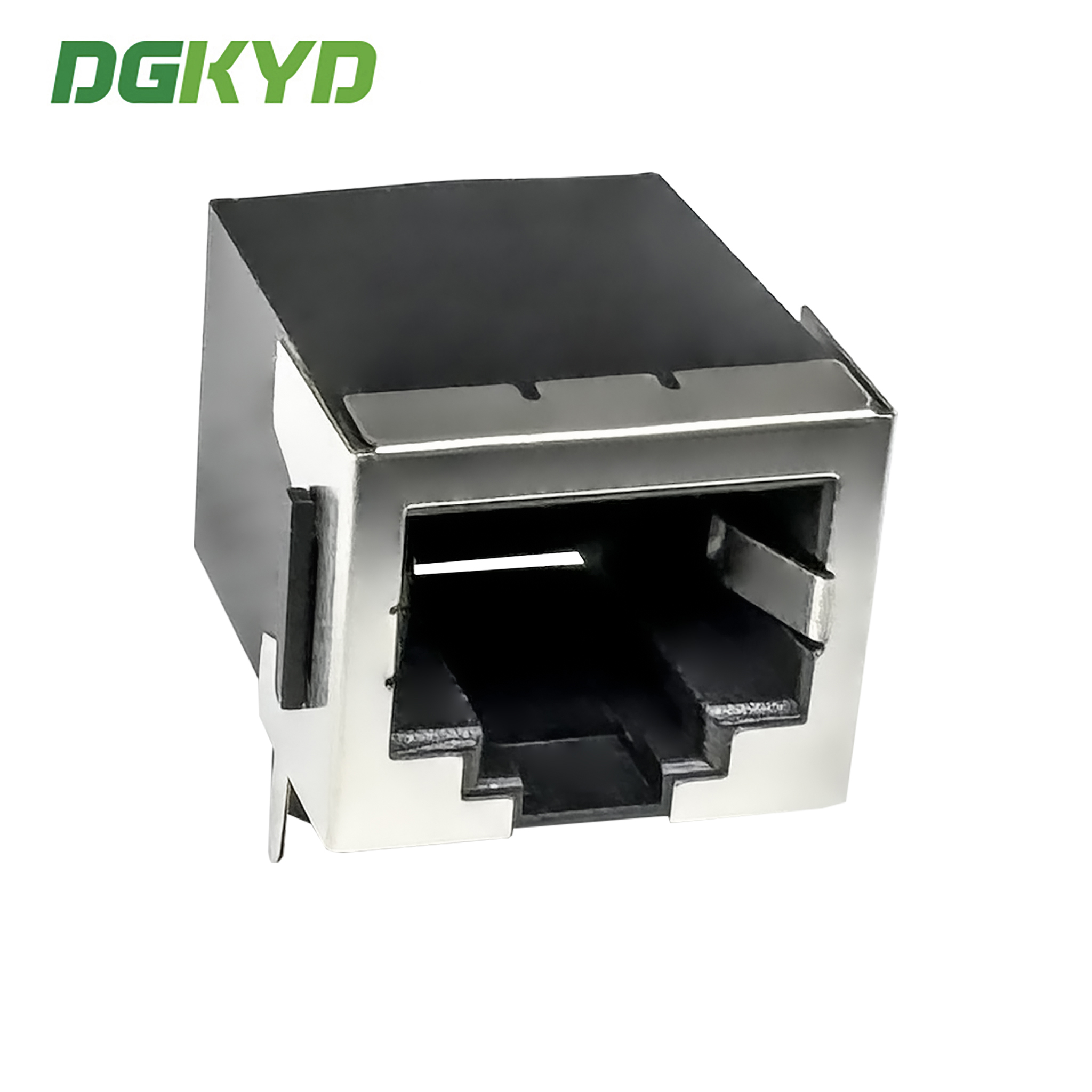

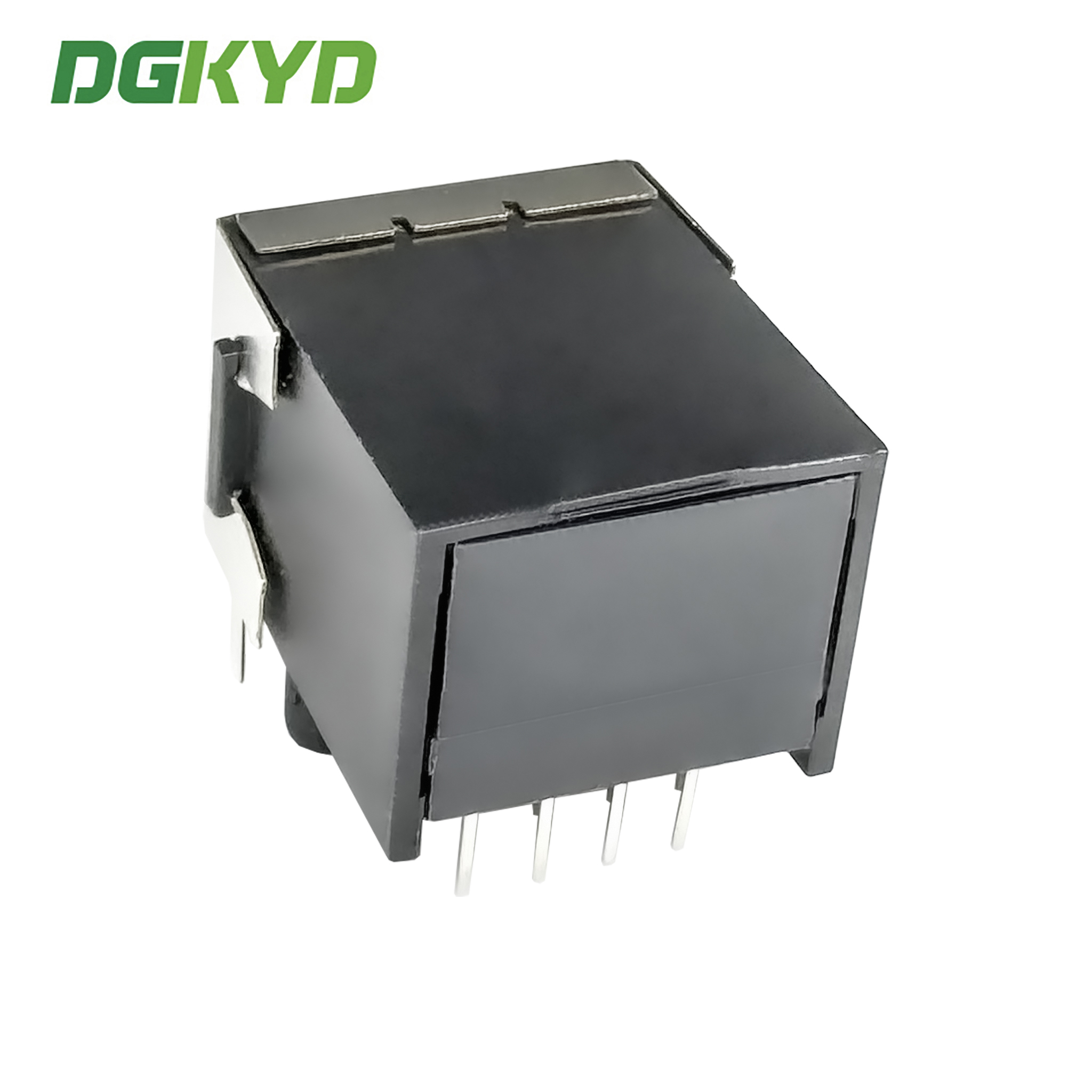

Half package network port 10P8C without light strip shielding shell interface RJ45 connector DGKYD5621E1118GWA1DY11B006

最小注文数量 :	1ピース	価格 :	Please contact us to get the latest price.
パッケージの詳細 :	カートンのトレイ	受渡し時間 :	10日
支払条件 :	T/T、D/P、D/A、L/C、Western Union、MoneyGram	供給の能力 :	100k PCS/日

起源の場所:	中国の東guan	ブランド名:	DGKYD
証明:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	モデル番号:	DGKYD5621E1118GWA1DY11B006

詳細情報
スピード:	CAT 3/5/6	ポート:	単一ポート
シールド:	はい	トランス:	変圧器なし
マウントタイプ:	PCBタイプ	ラッチ:	タブアップ
動作温度:	-40°C〜+85°C	終了:	浸漬
モジュラージャック＆プラグインターフェイスタイプ:	変圧器のないRJ45	カテゴリ:	携帯電話のジャック
色:	黒
ハイライト:	56 Series RJ45 connector , 10P8C network port connector , shielding shell RJ45 connector

製品の説明

Half package network port 10P8C without light strip shielding shell interface RJ45 connector DGKYD5621E1118GWA1DY11B006

Product Specification Document

Key Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Technical Parameters

Part Number	DGKYD5621E1118GWA1DY11B006	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative)
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	10
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Multiple customization options available for LED indicators, shielding, magnetic core ratio, contact plating, and housing materials
Products meet industry standards for electrical properties, mechanical properties, and environmental protection

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
