| 最小注文数量 : | 交渉可能 | 価格 : | 交渉可能 |
|---|---|---|---|
| パッケージの詳細 : | トレイ 紙箱 | 受渡し時間 : | 7~14日 |
| 支払条件 : | L/C,D/A,D/P,T/T,ウェスタンユニオン,マネーグラム | 供給の能力 : | 日あたり6万個 |
| 起源の場所: | 中国のドングアン | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYDCB421188AB1W6SB |
|
詳細情報 |
|||
| 製品名: | 盾を持つRJ45コネクター ジャック | コネクタタイプ: | ジャック |
|---|---|---|---|
| 適用する: | PC,ルーター,USBハブネットワーク RJ45 など | 性別: | 女性 |
| トランスフォーマー: | 変圧器のないRJ45 | 高さのプロフィール: | 余分控えめ |
| ハイライト: | Countersunk 4.2 SMT RJ45 Connector,RJ45 Connector Jack With Shield,Single RJ45 Connector Jack |
||
製品の説明
RJ45 connector single countersunk 4.2 SMD With shield With LED 8p8c
Paramters
| ATTRIBUTE | ATTRIBUTE VALUE |
| TEMPERATURE | -40 to +85℃ |
| GROUNDING OPTIONS | Panel Ground and PCB Ground |
| SHIELD PLATING MATERIAL | NICKEL |
| SHIELD EMI TABS | YES |
| SHIELD | METAL SHIELD |
| ROHS COMPLIANT | YES |
| PANEL STOP | NONE |
| PCB MOUNT ANGLE | SIDE ENTRY |
| PACKAGE | SMT |
| CONNECTOR & CONTACT TERMINAATES TO | Printed Circuit Board |
| NUMBER OF PORTS | 1X1 |
| NUMBER OF CONTACTS | 8 |
| LED OPTION | L-Yellow / R-Green |
| LATCH ORIENTATION | LATCH DOWN |
| HOUSING MATERIAL | LCP UL94V-0 |
| CONTACT MATING AREA PLATING | GOLD FLASH PLATING |
| CONNECTOR TYPE | RJ45 |
| CONNECTOR MATERIAL COLOR | BLACK |
Drawing

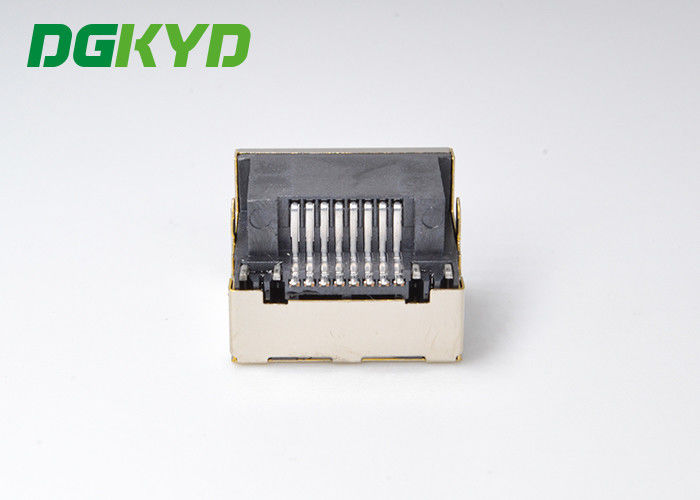

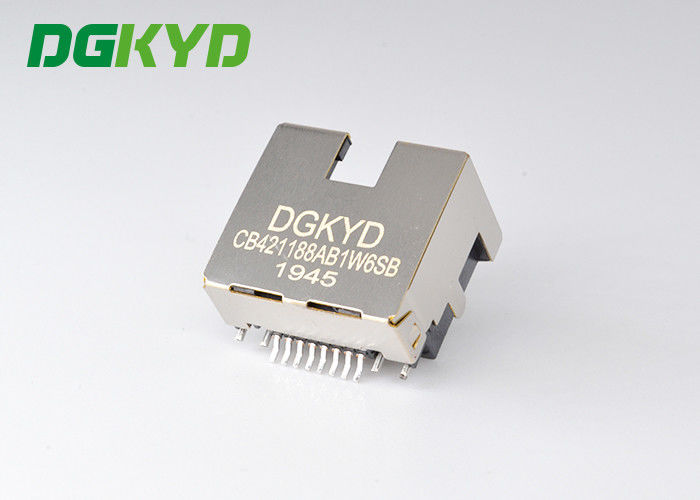

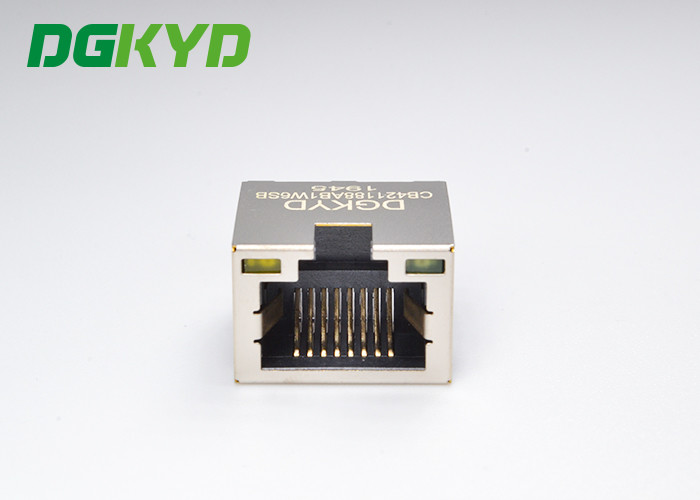

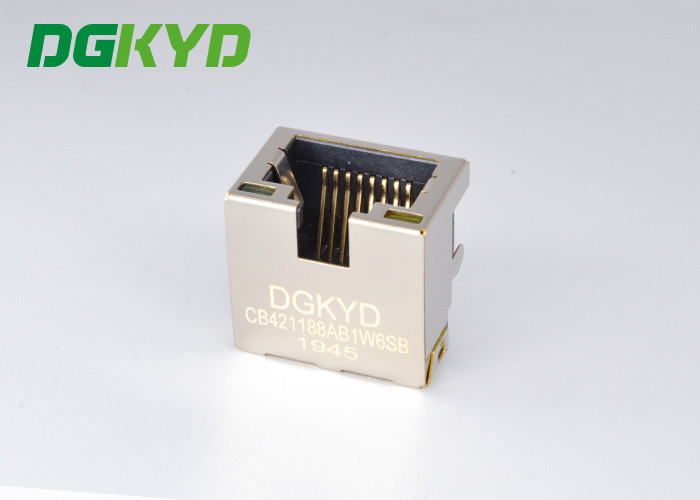

Pictures
Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
