| 最小注文数量 : | 交渉 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | 550カートン入りトレイ | 受渡し時間 : | 10日 |
| 支払条件 : | T/T、D/P、D/A、L/C、Western Union、MoneyGram | 供給の能力 : | 100k PCS/日 |
| 起源の場所: | 中国の東guan | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD211Q639DF5A7CBS1057 |
|
詳細情報 |
|||
| 製品タイプ: | RJ45 | カプセル化方法: | 表面台紙装置 |
|---|---|---|---|
| PCBマウントスタイル: | SMD | 形: | 矩形 |
| シールド: | 真鍮 | ピン数 12: | 10 |
| コア数: | 8 | 寸法（mm）: | 15.5*21.5*11.35 |
| 接触ピンの金メッキ: | 6U | 動作温度: | -40℃〜85℃ |
| 保管温度: | -40℃〜85℃ | ||
| ハイライト: | 10G Ethernet RJ45 connector,SMT surface mount RJ45 socket,RJ45 female socket with transformer |
||
製品の説明

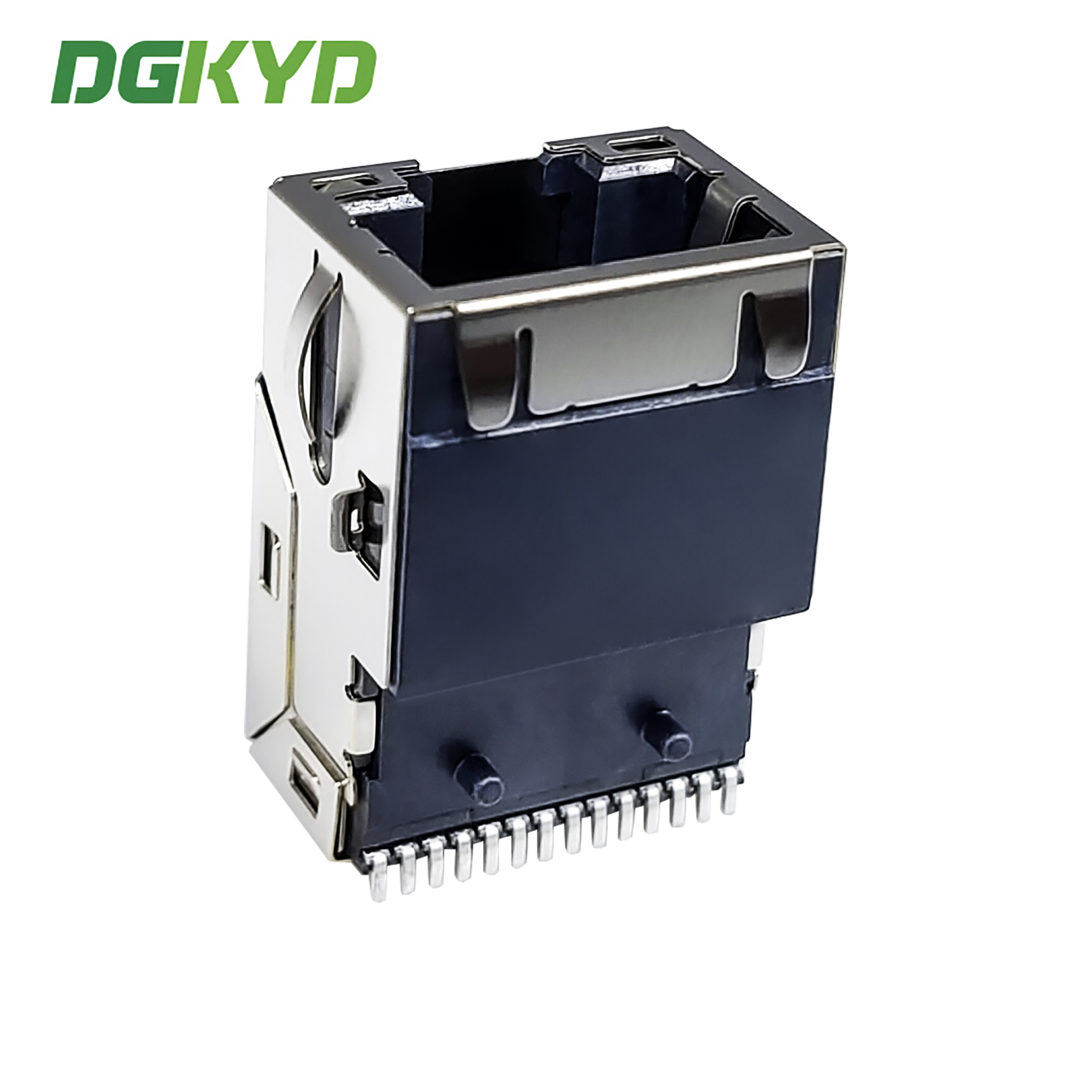

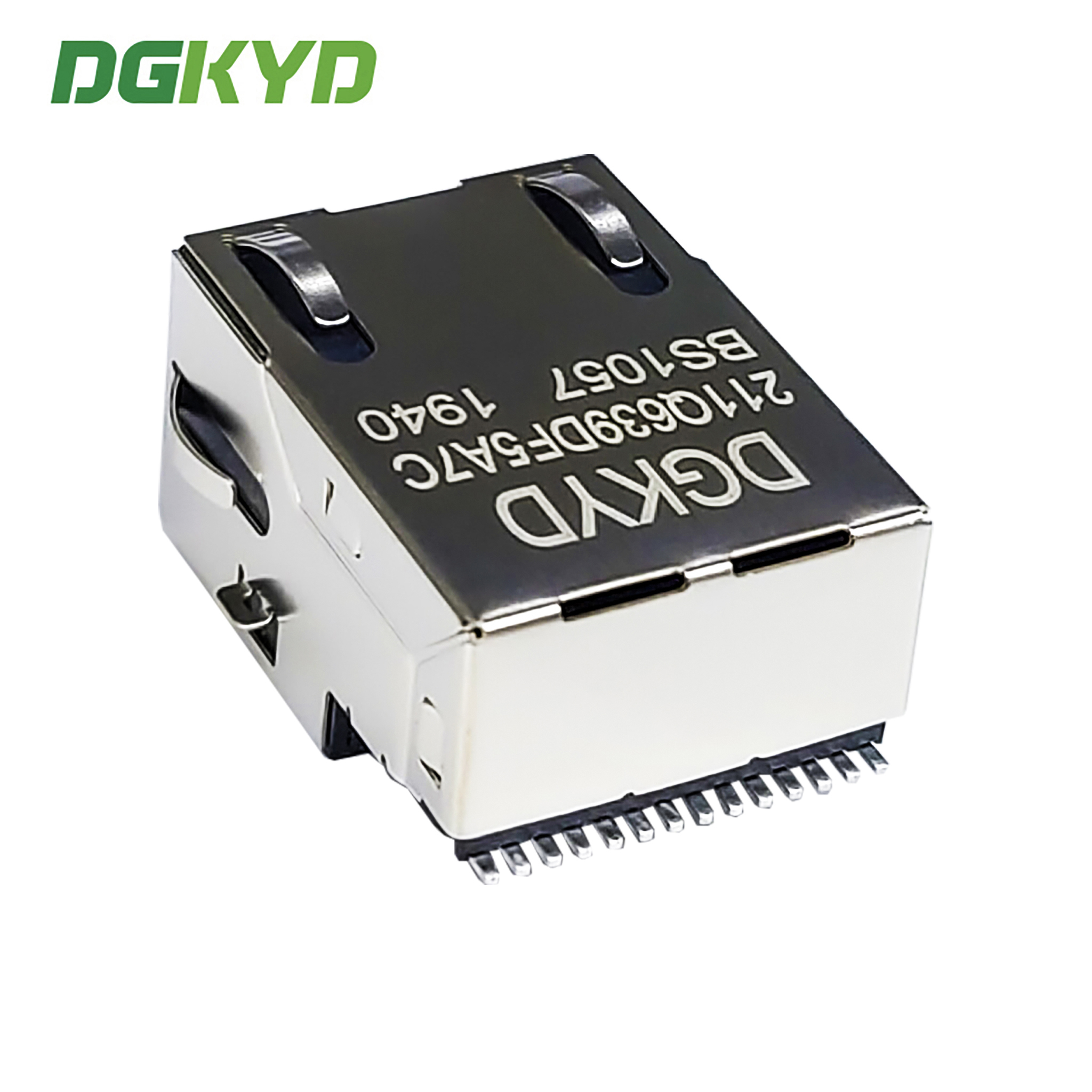

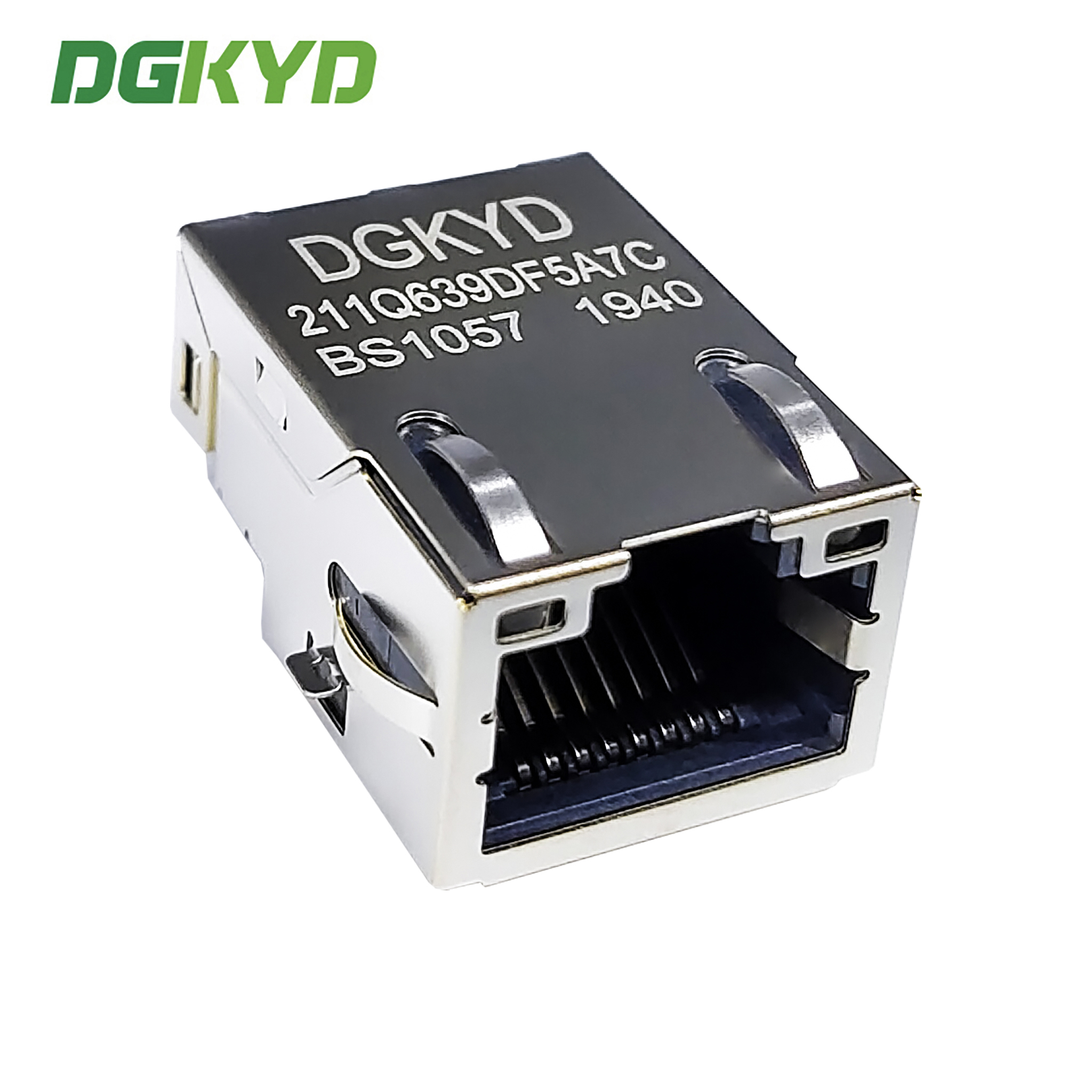

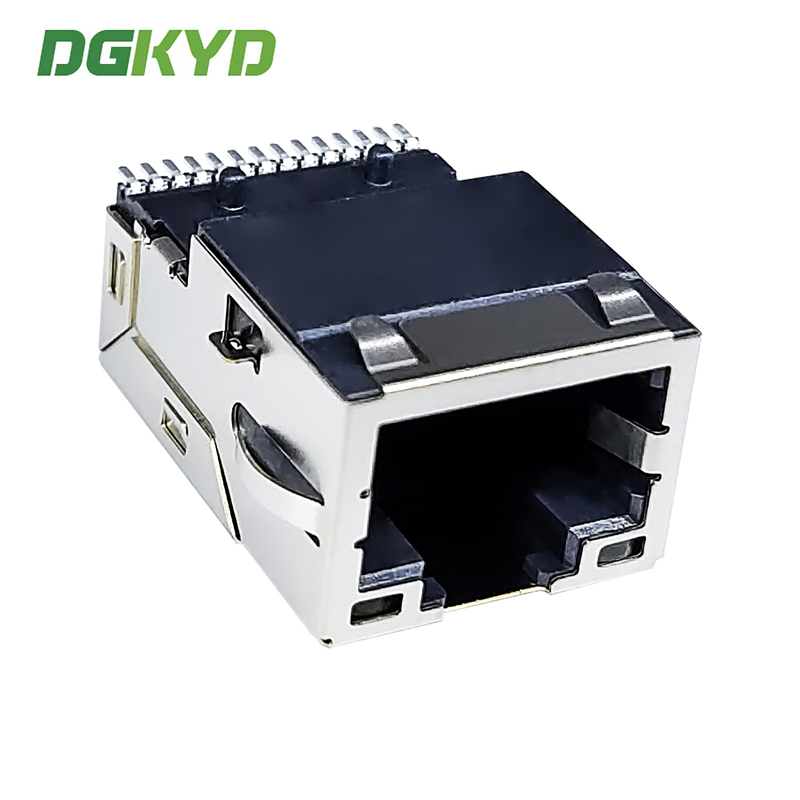

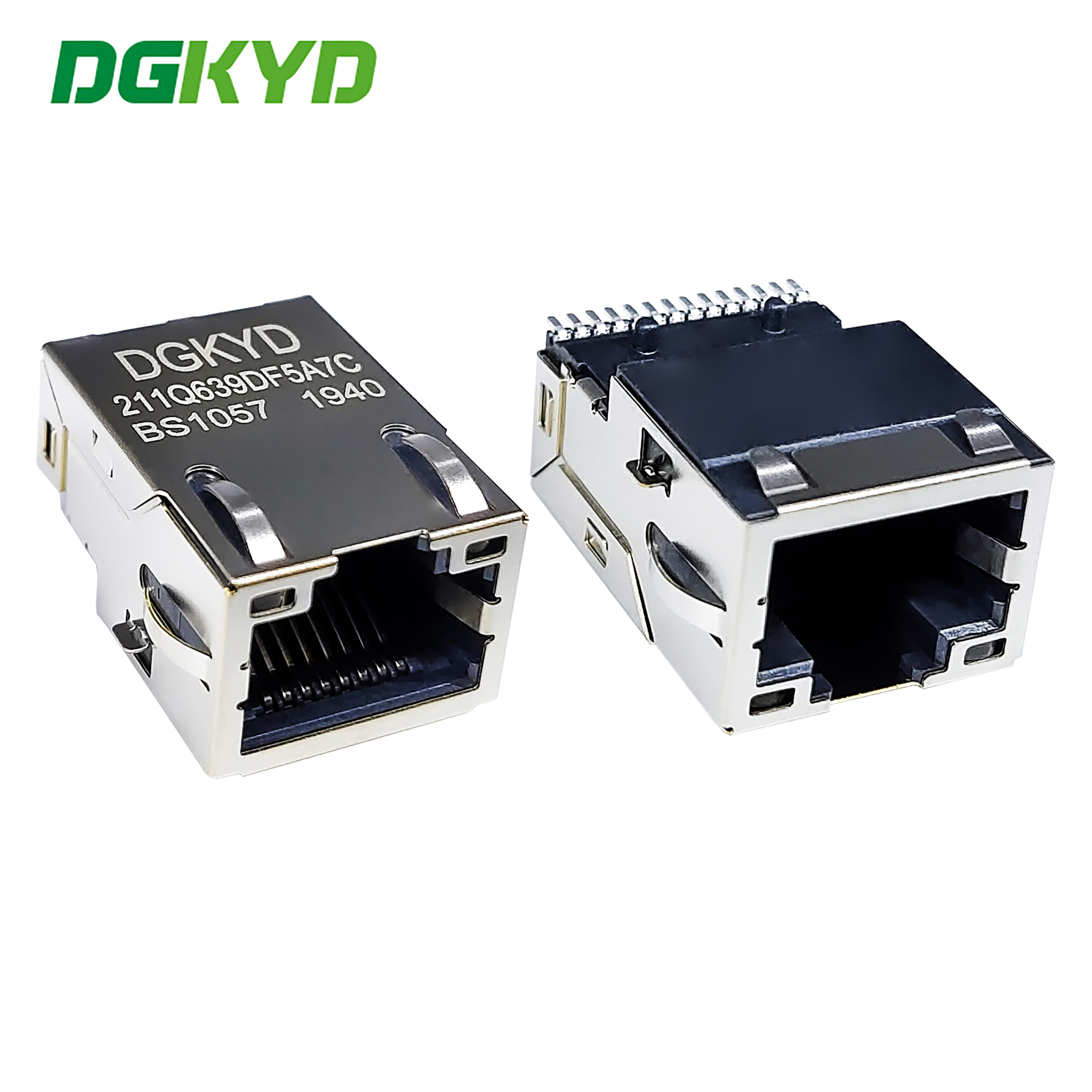

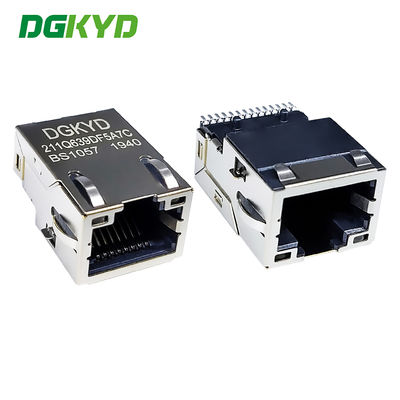

RJ45 connector 10G Ethernet filter SMT sinking board surface mount Ethernet port socket RJ45 female socket DGKYD211Q639DF5A7CBS1057
DGKYD211Q639DF5A7CBS1057(10G).pdf
| Part Number | DGKYD211Q639DF5A7CBS1057 | Brand | DGKYD/OEM/ODM |
|---|---|---|---|
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Orange-Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | Single Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
A: We are manufacture. Welcome to our factory.
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
