| 最小注文数量 : | 1本 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | トレイ 紙箱 | 受渡し時間 : | 10日 |
| 支払条件 : | T/T,D/P,D/A,L/C,ウェスタンユニオン,マネーグラム | 供給の能力 : | 100万個/日 |
| 起源の場所: | 中国のドングアン | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD114B002DB2A1D3 |
|
詳細情報 |
|||
| シールド RJ45: | そうだ | 番号 港: | 4 ポート |
|---|---|---|---|
| 製品名: | RJ45 トランスフォーマー | タイプ: | RJ45女性 |
| 住宅: | フェノール、PBTの黒（UL94V-0） | プラスチック中心: | ガラス繊維の注入口PBTの黒（UL94V-0）、ROHS |
| 貯蔵温度: | -40°C~+85°C | ステッチの数: | 8P8C |
| 動作温度: | -40 °C~+85 °C | LED: | 緑/黄色 |
| ハイライト: | RJ45 connector With Shielding Shell,100Mbps RJ45 connector,Four In One RJ45 Connector |
||
製品の説明

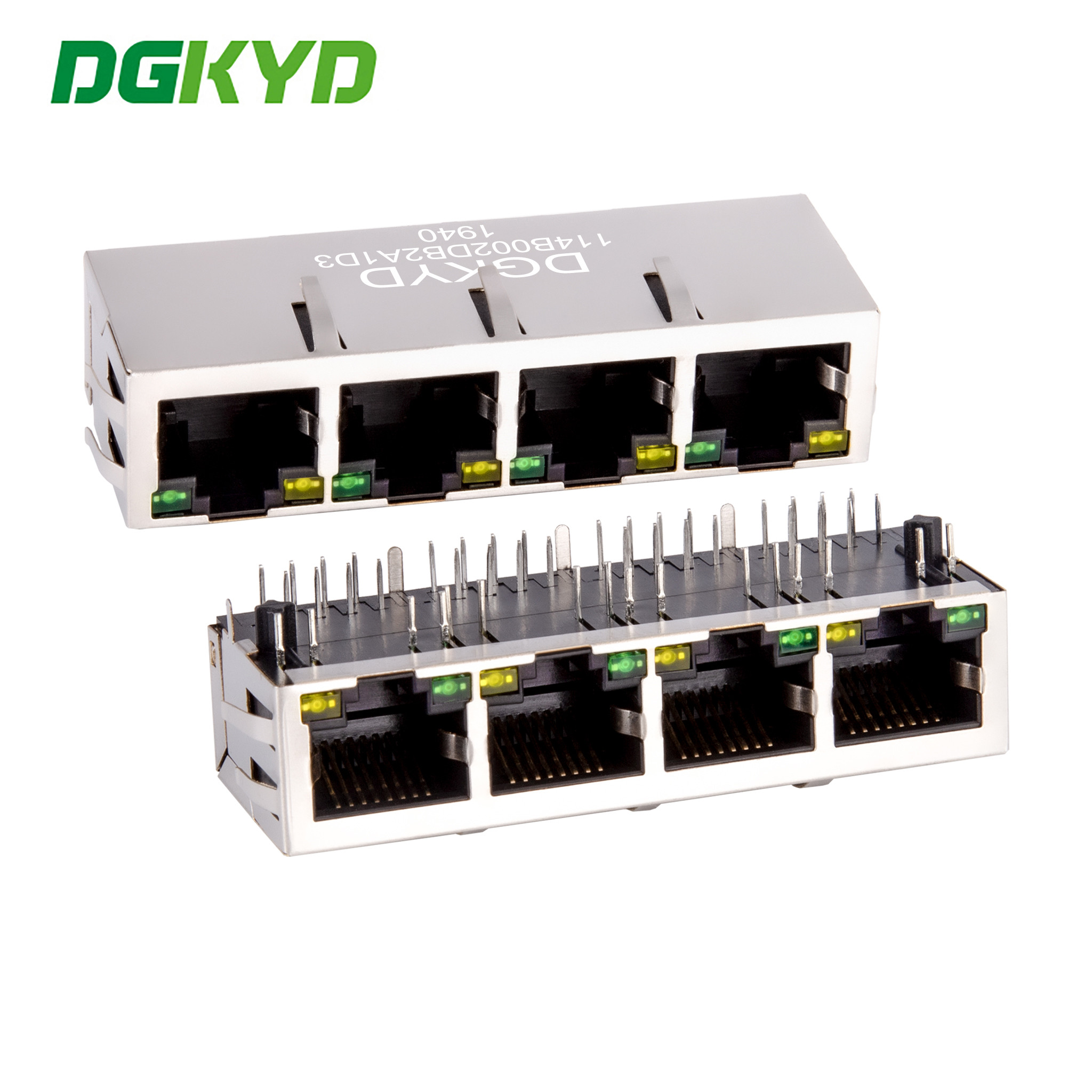

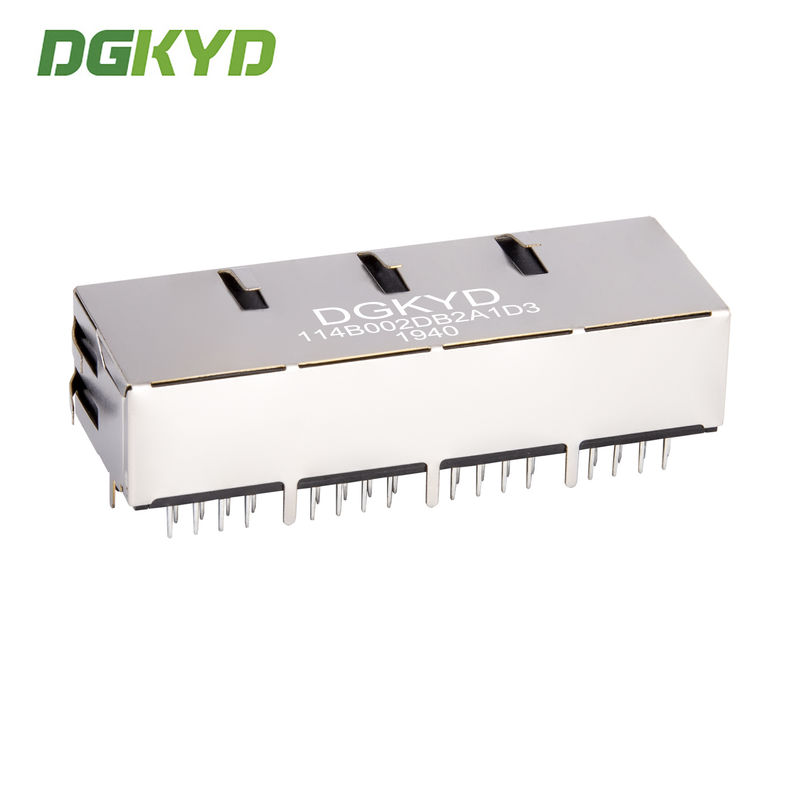

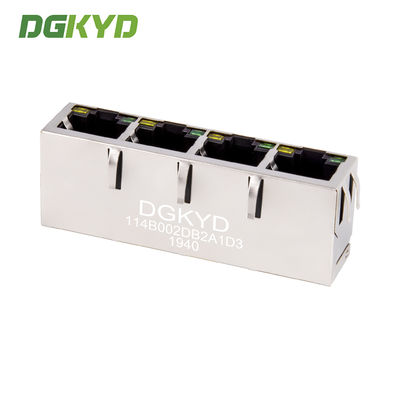

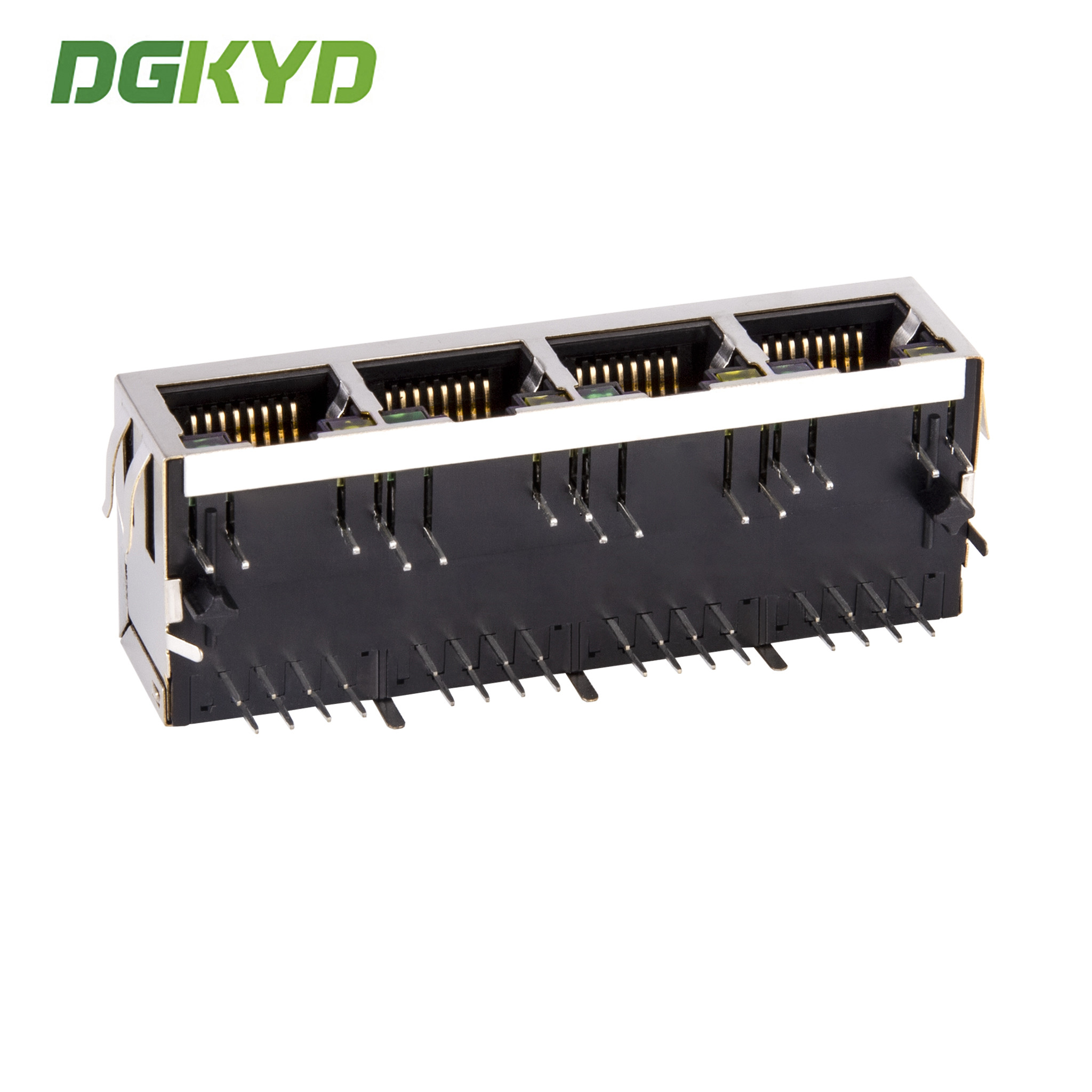

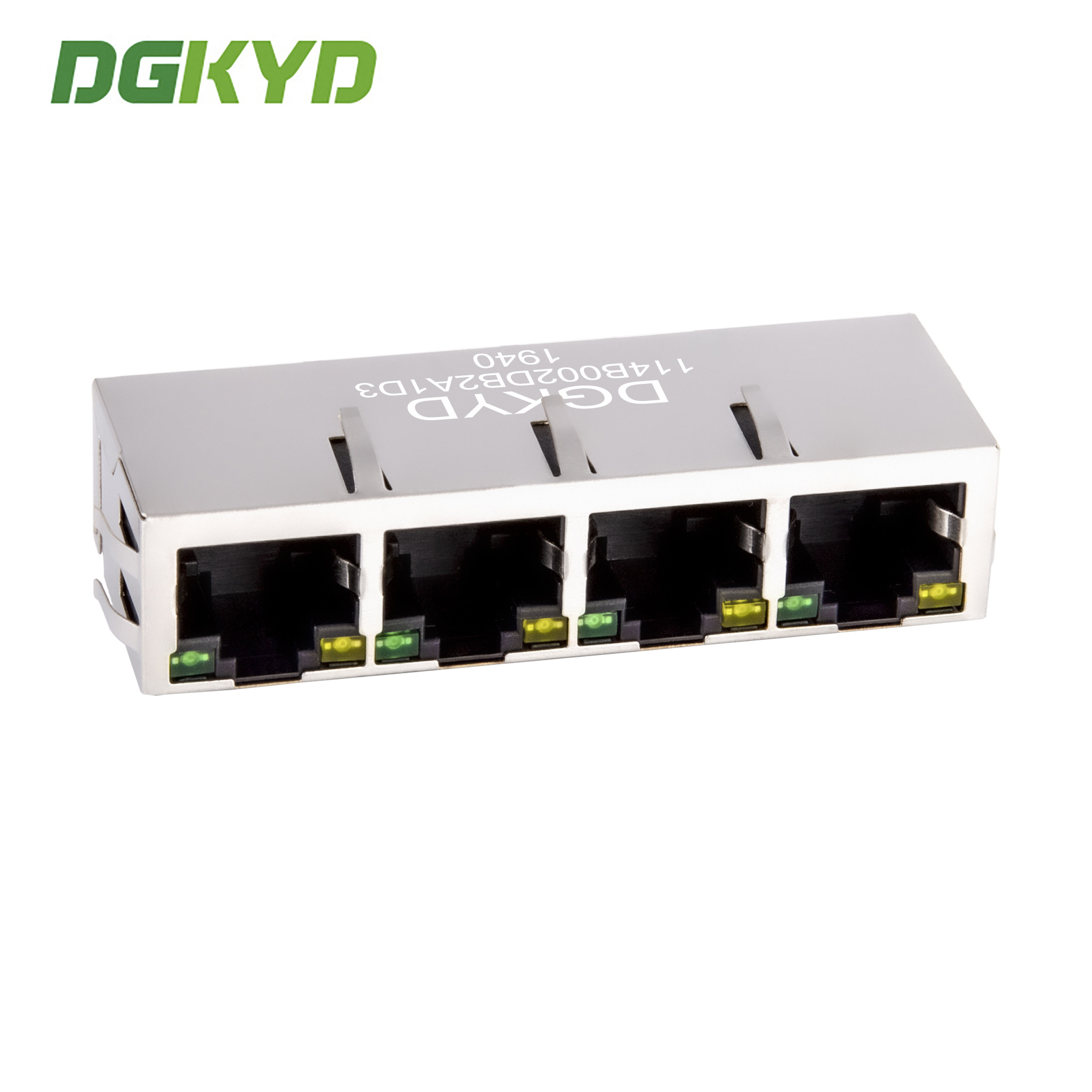

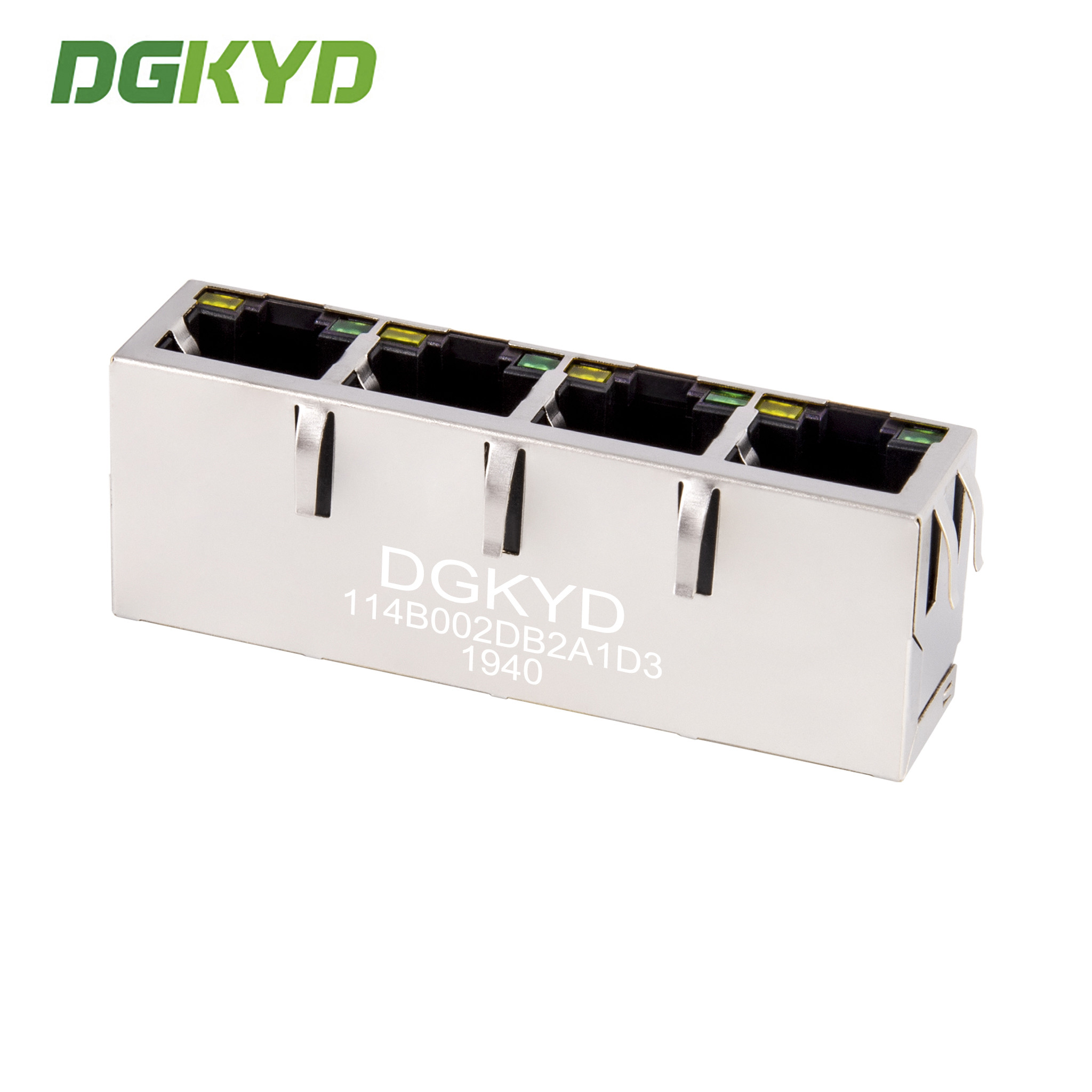

Four in one RJ45 connector, 100Mbps integrated filter with light strip and shielding shell DGKYD114B002DB2A1D3
Product Specification Document
| Part Number | DGKYD114B002DB2A1D3 | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | 1X4 Ports | Number of Positions | 8 |
| Jack Configuration | 1X4 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
