| 最小注文数量 : | 1本 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | カートンの皿 | 受渡し時間 : | 10日 |
| 支払条件 : | T/T,D/P,D/A,L/C,ウェスタンユニオン,マネーグラム | 供給の能力 : | 10万個/日 |
| 起源の場所: | 中国のドングアン | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD5521E1188IWA1DY1017 |
|
詳細情報 |
|||
| カテゴリー: | 電話ジャック | 構成のタイプ: | PCBジャック |
|---|---|---|---|
| タイプ: | RJ45 | 磁気: | ない |
| 性能の部門: | 猫5 | Insetionのタイプ: | 側面の記入項目 |
| 色: | ブラック | 定位電流 (アンプ): | 1.5A |
| 材料: | PBT | 終了: | DIP |
| モデル番号: | 5521 | 操作温度: | -40°C~+85°C |
| ハイライト: | RJ45 8P8C communication interface,RJ45 ear mesh port connector,all plastic RJ45 connector |
||
製品の説明

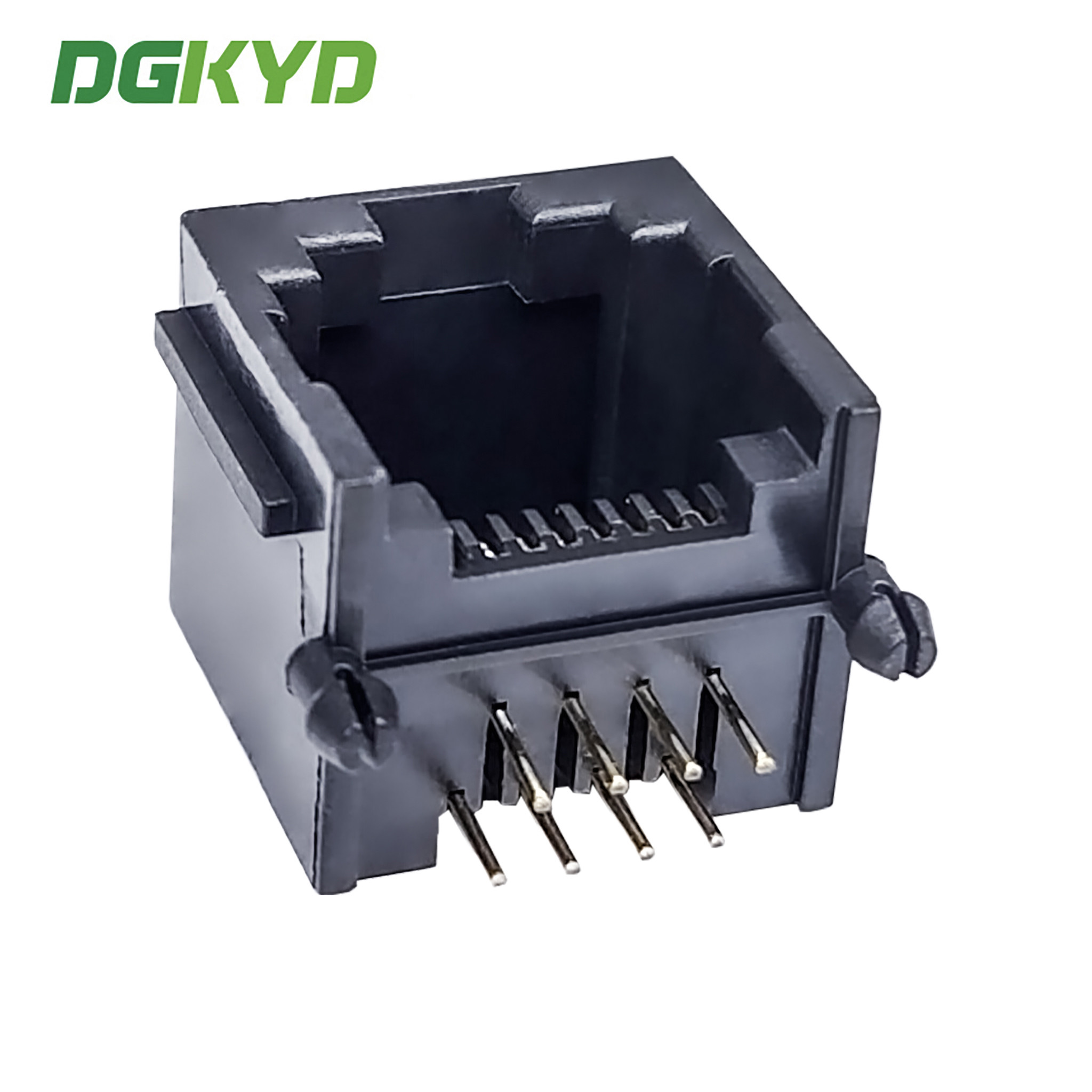

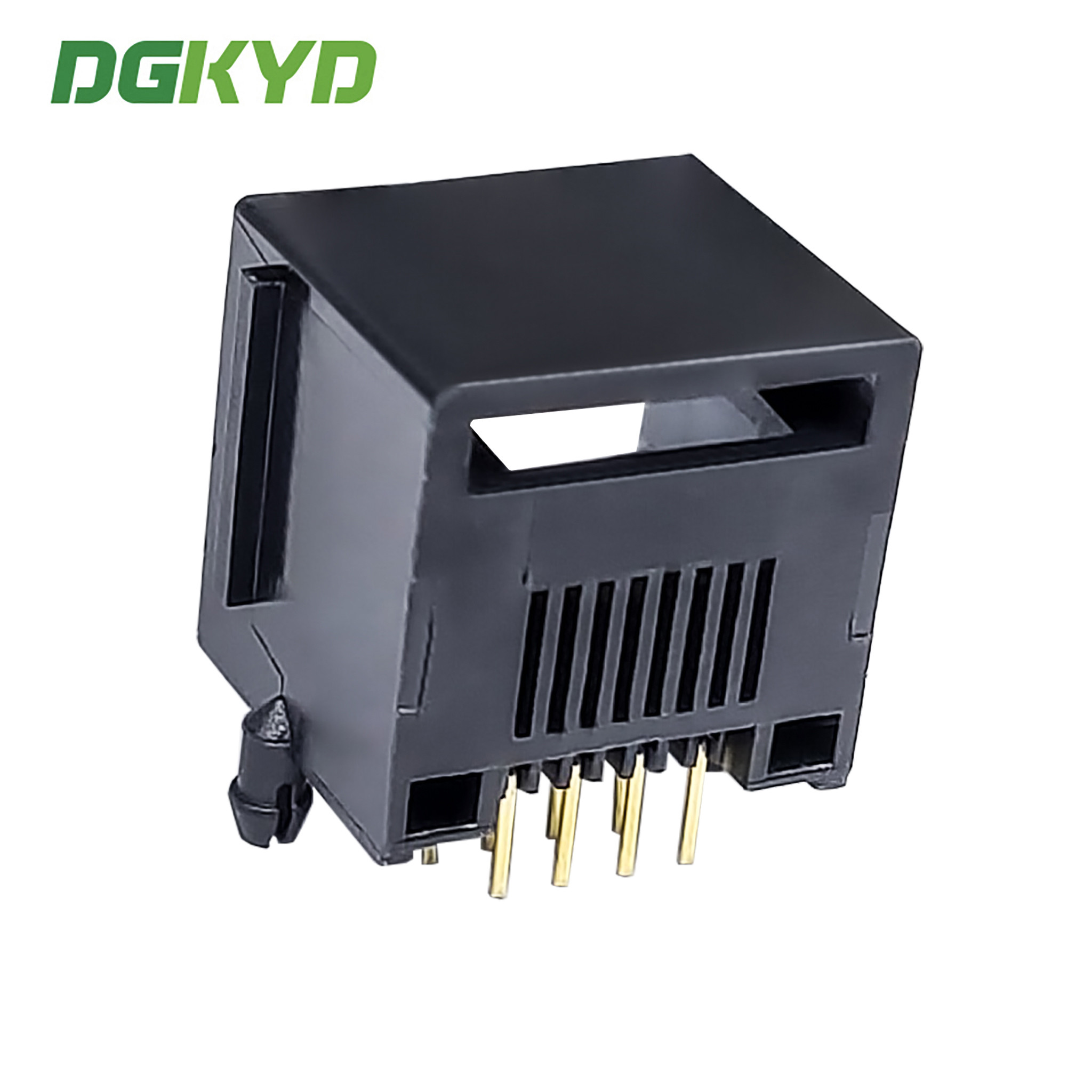

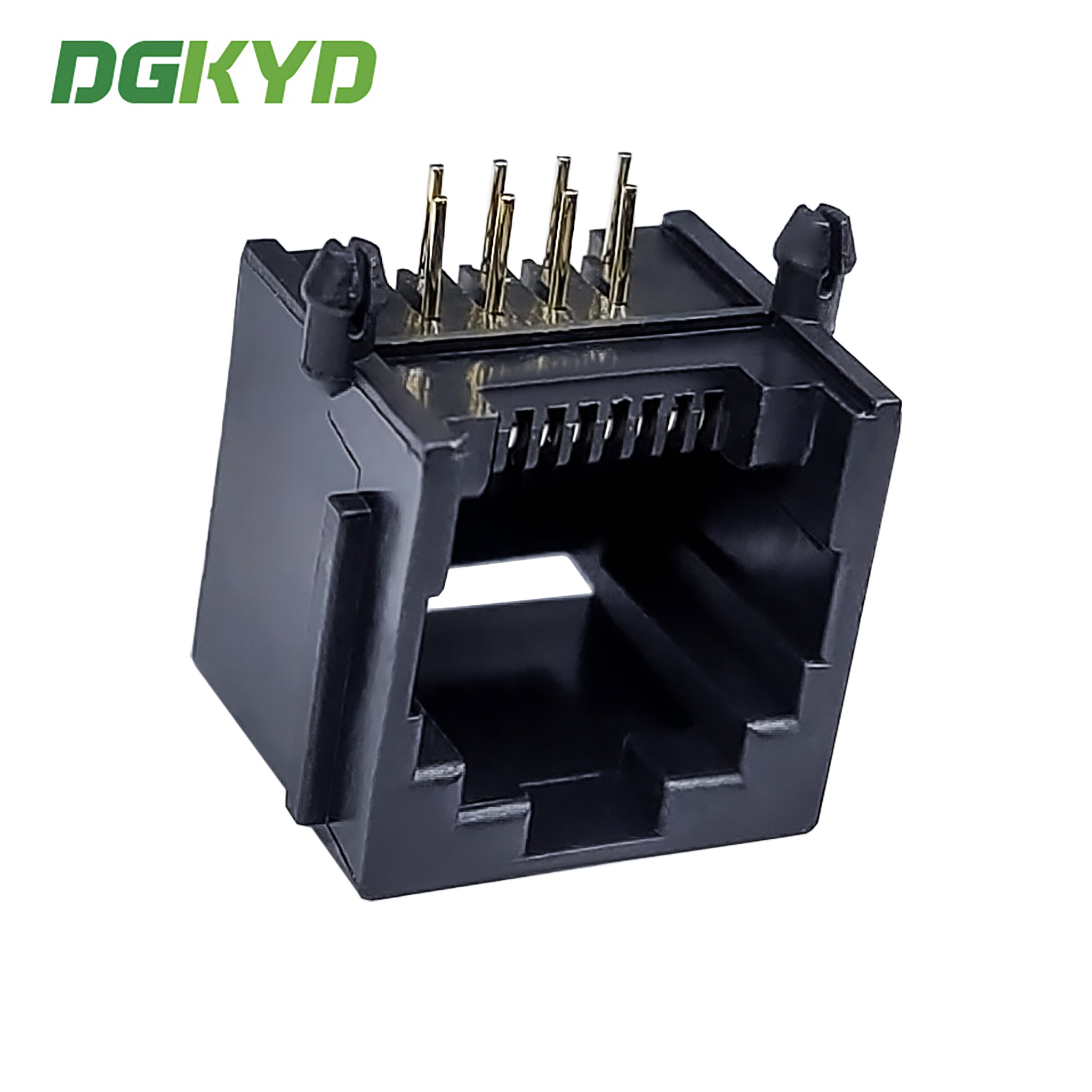

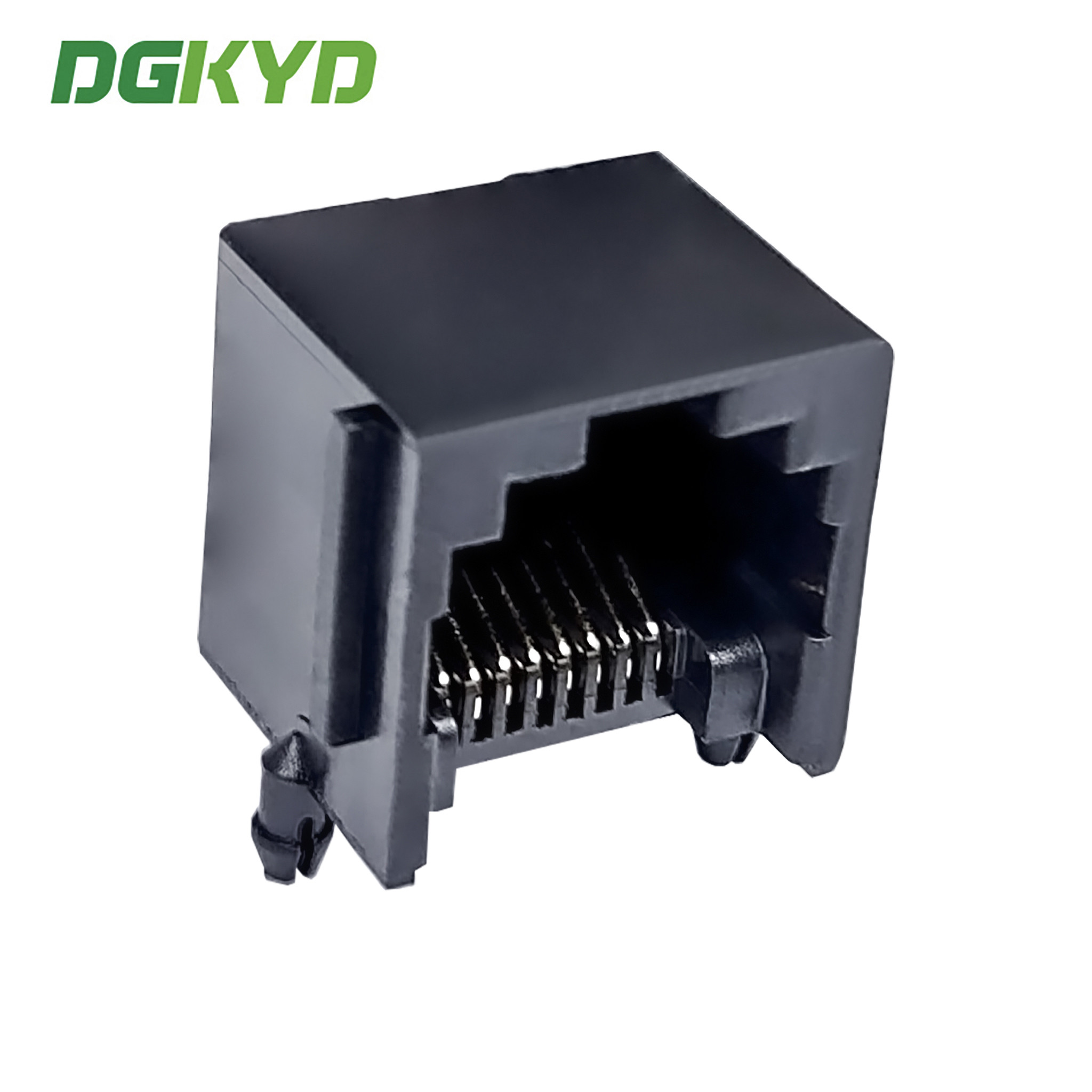

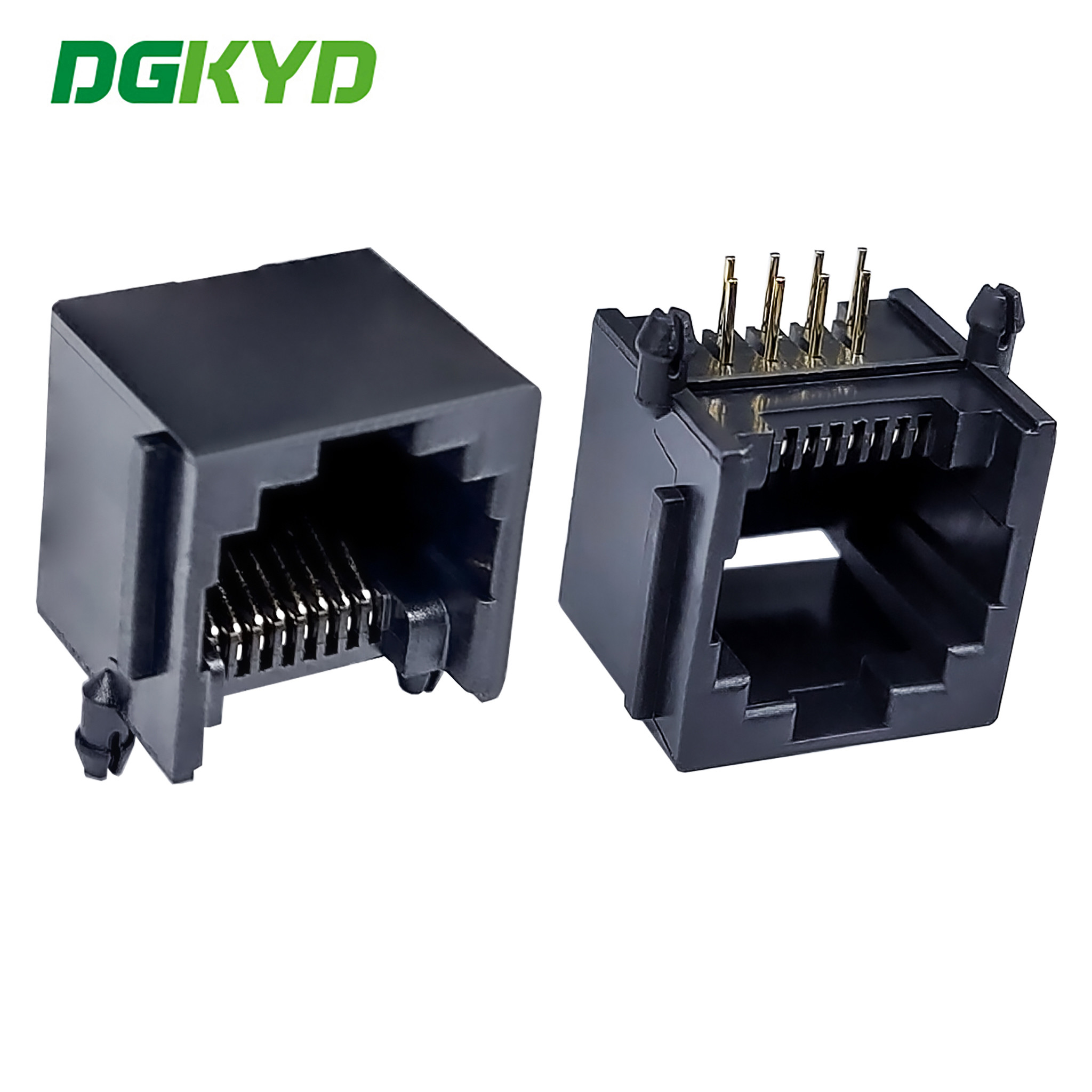

RJ45 all plastic ear mesh port connector 8P8C communication interface DGKYD5521E1188IWA1DY1017
Product Specification Document
Parameters
| Part Number | DGKYD5521E1188IWA1DY1017 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | No | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 0.6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
