| 最小注文数量 : | 1個 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | カートンのトレイ | 受渡し時間 : | 10日間 |
| 支払条件 : | T/T、D/P、D/A、L/C、ウェスタンユニオン、マネーグラム | 供給の能力 : | 10万個/日 |
| 起源の場所: | 中国の東guan | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | KRJ-SH105GYLENL |
| 書類: | KRJ-SH105GYLENL.pdf |
|
詳細情報 |
|||
| モジュール式ジャックタイプ: | 統合された磁気学のRJ45 | スピード: | 猫5 |
|---|---|---|---|
| ラッチ: | 上 | マウントスタイル: | 穴を通して |
| OEM/ODM: | はい | タイプ: | マルチピンrj45マグジャック |
| 性別: | RJ45レセプタクル | 製品名: | RJ45モジュラージャック |
| 納期: | -40℃～+85℃ | 保管温度: | -40℃～+85℃ |
| LED オプション: | 緑/黄色 | ||
製品の説明

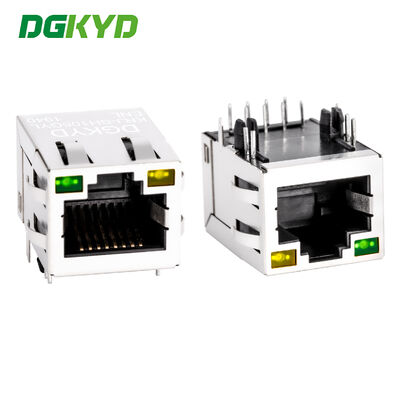

10/100 BASE Ethernet Cable Connection Female Jack 8P8C RJ45 With Transformer KRJ-SH105GYLENL
10/100 BASE Ethernet Cable Connection Female Jack 8P8C RJ45 With Transformer KRJ-SH105GYLENL
Part Number: KRJ-SH105GYLENL
Product Documentation
KRJ-SH105GYLENL.pdf
Technical Parameters
Part Number
KRJ-SH105GYLENL
Brand
DGKYD/OEM/ODM
Product Type
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type
Modular Jack
Latch Style
Standard
Latch
TAB-UP
Filter
With Filter
LED Option
With LED
LED Color
Green/Yellow
Panel Stops
With Panel Stops
Shielded
With metal shield
Applies To
Printed Circuit Board
Port Configuration
Single Port
Number of Positions
8
Jack Configuration
1X1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation
Side Entry (Right Angle)
Contact Mating Area Plating
Gold 6u
Contact Base Material
Phosphor Bronze
Solder Tail Contact Plating Material
Tin-Lead over Nickel
PCB Mounting Style
Through Hole
Termination Method to PC Board
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material
PBT Polyester
Housing Color
Black
Housing Material Temperature
Standard
UL Flammability Rating
UL 94V-0

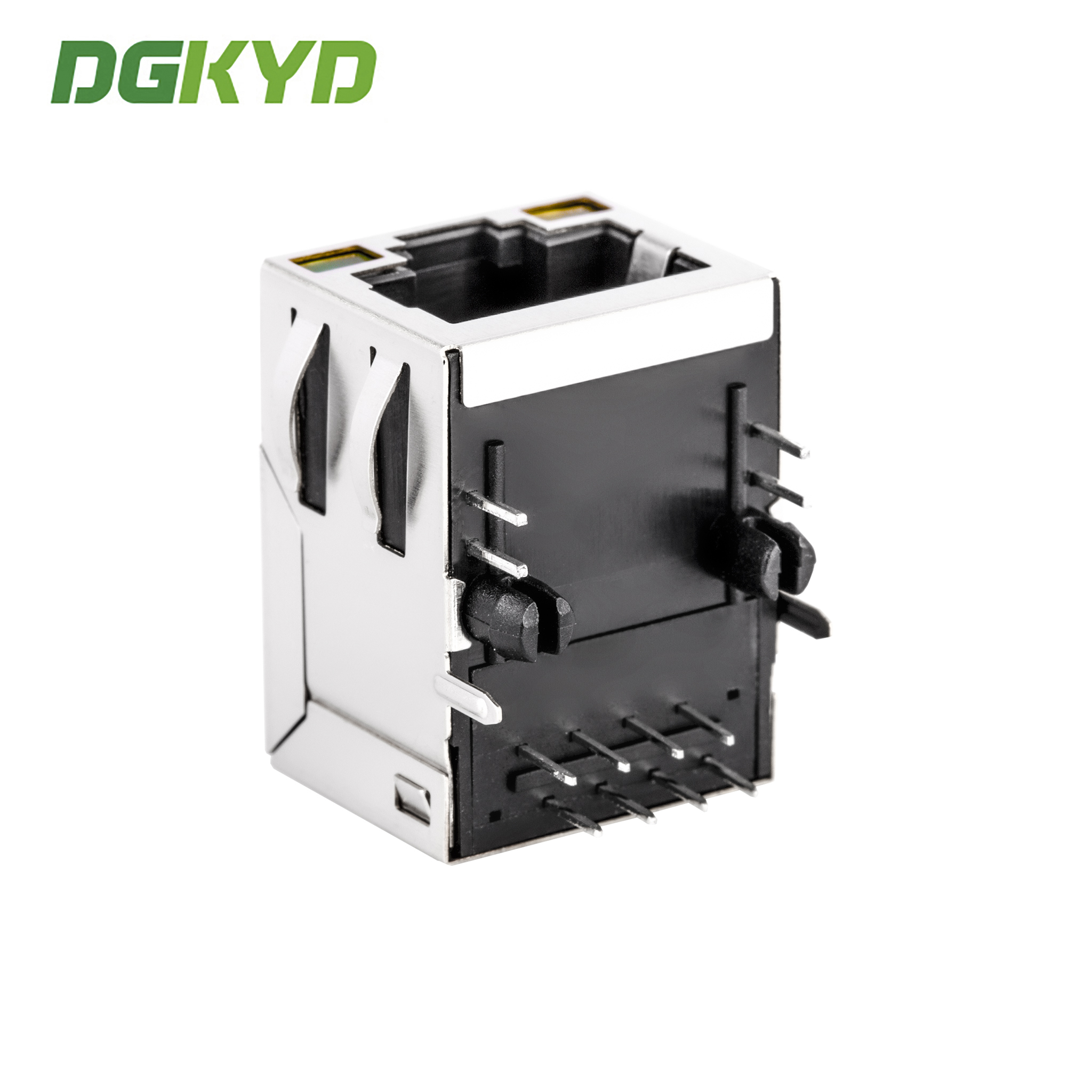

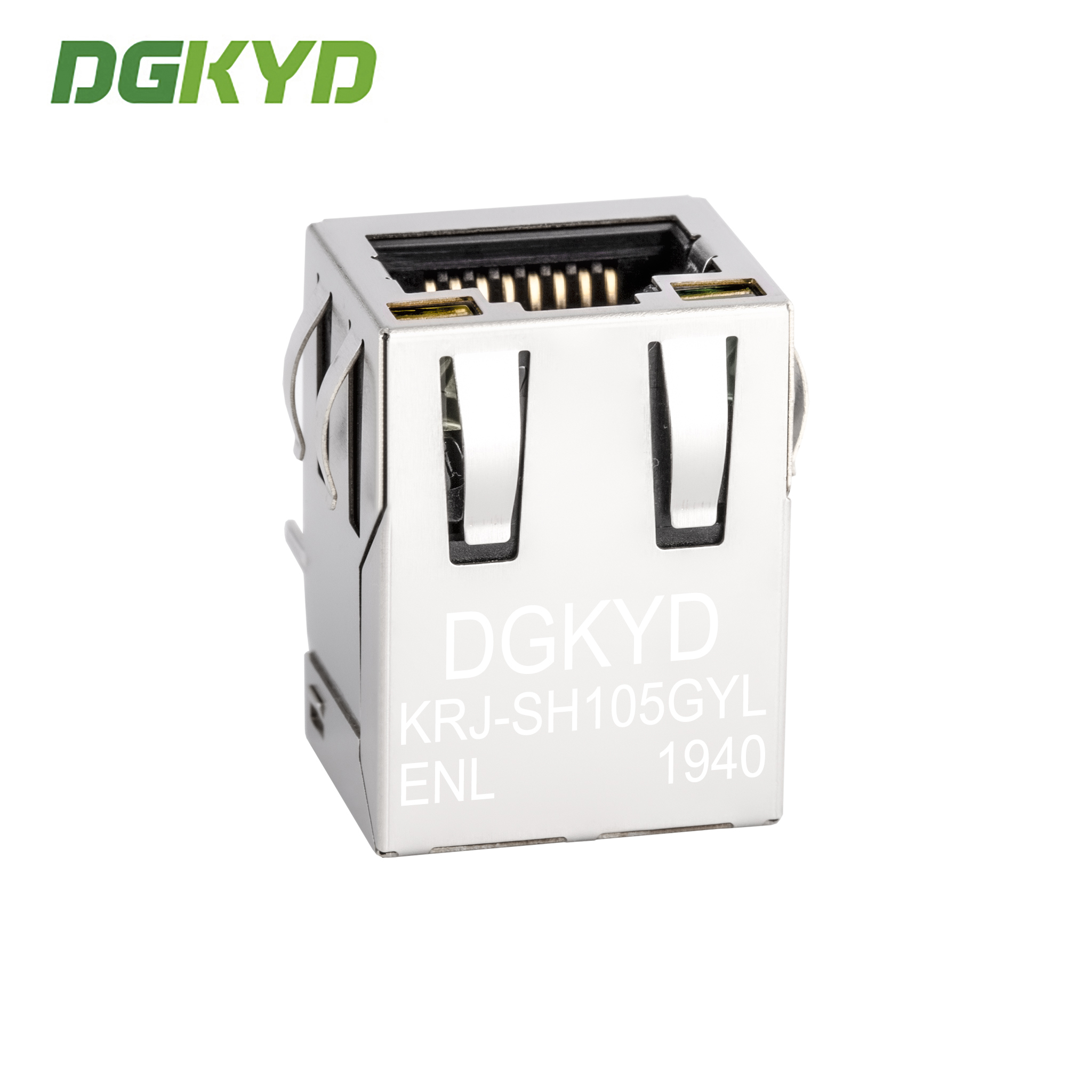

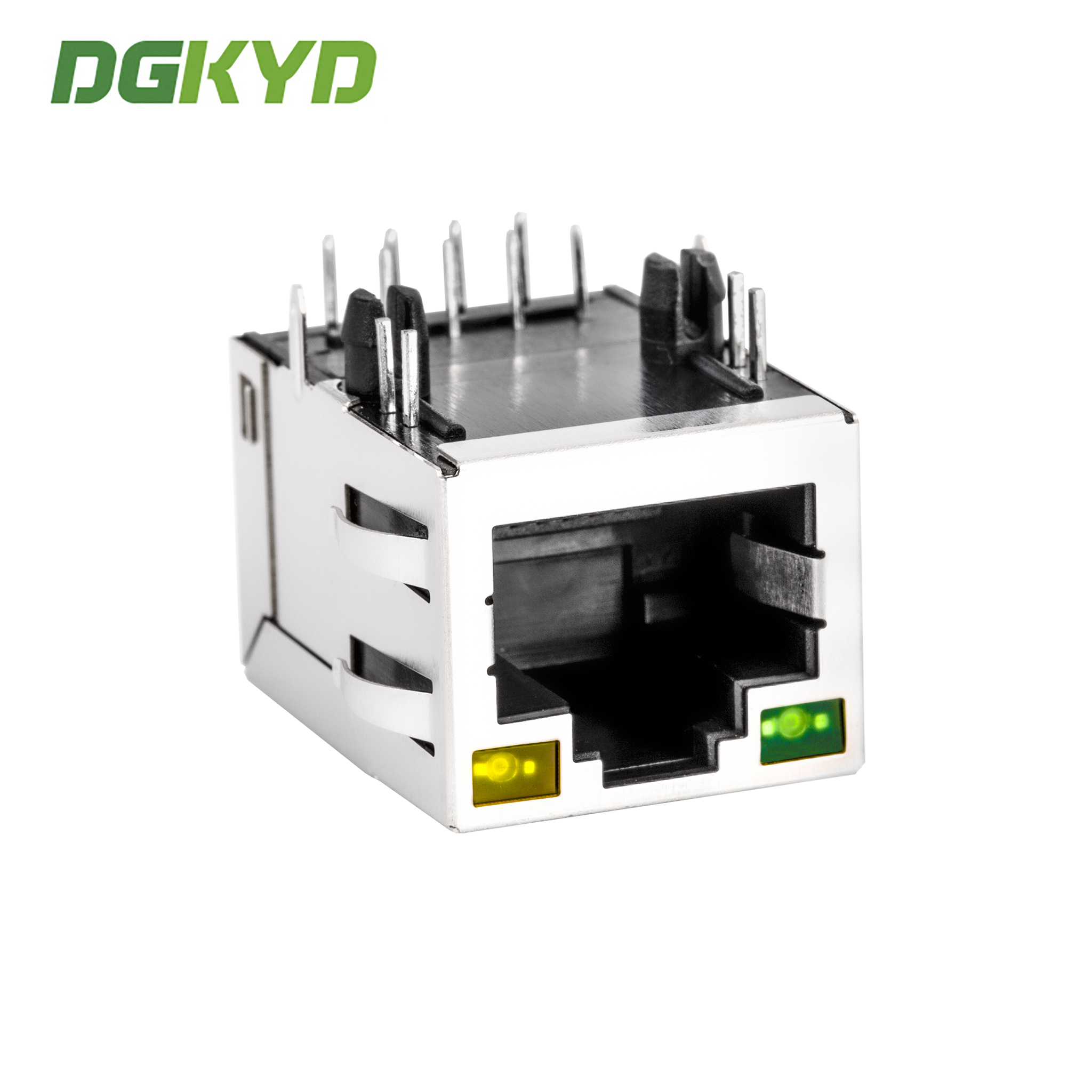

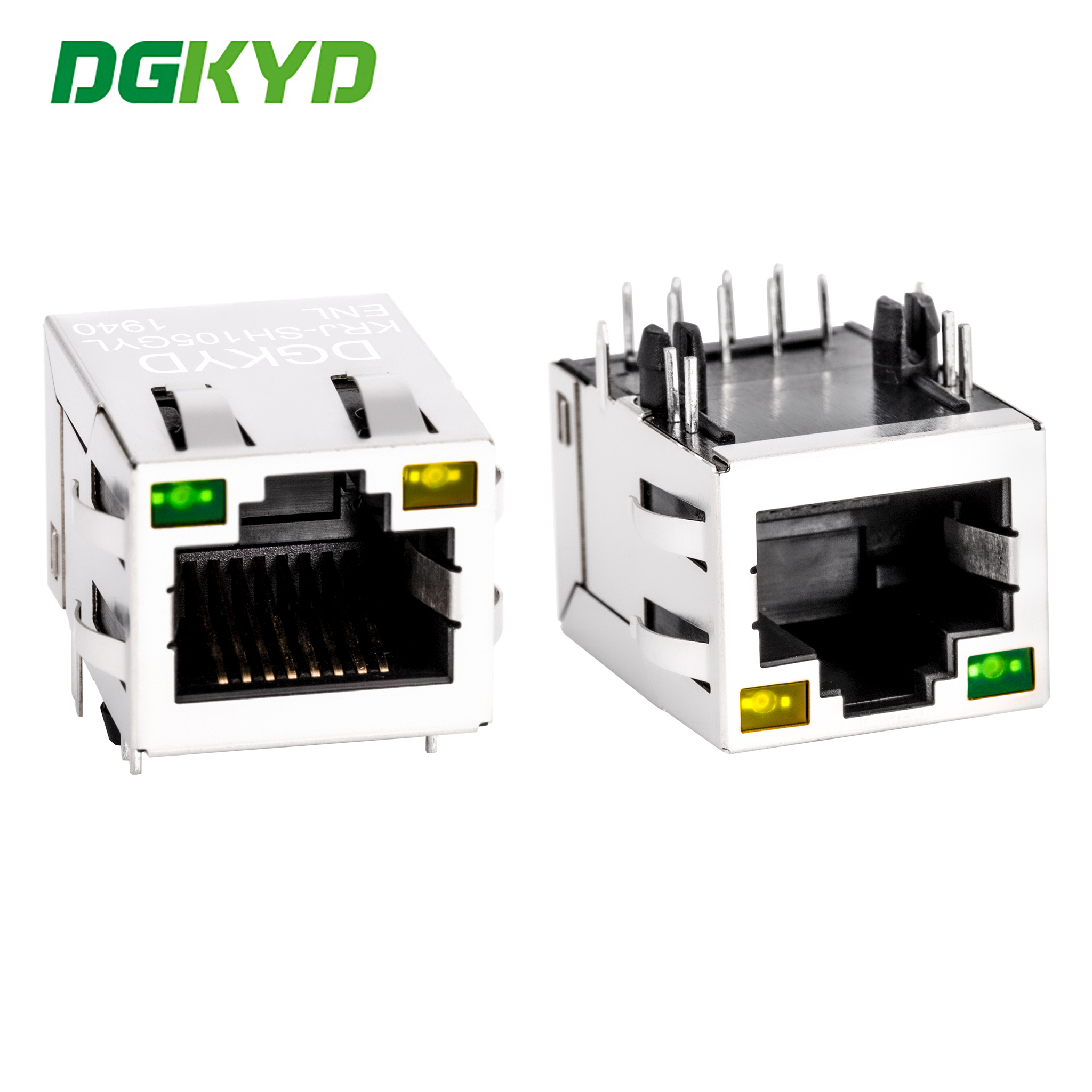

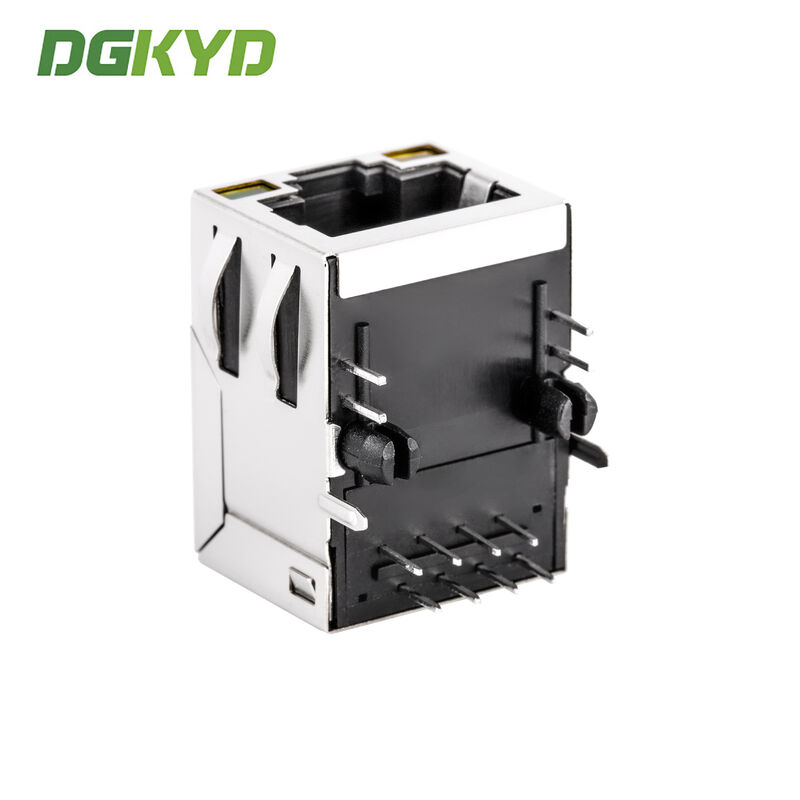

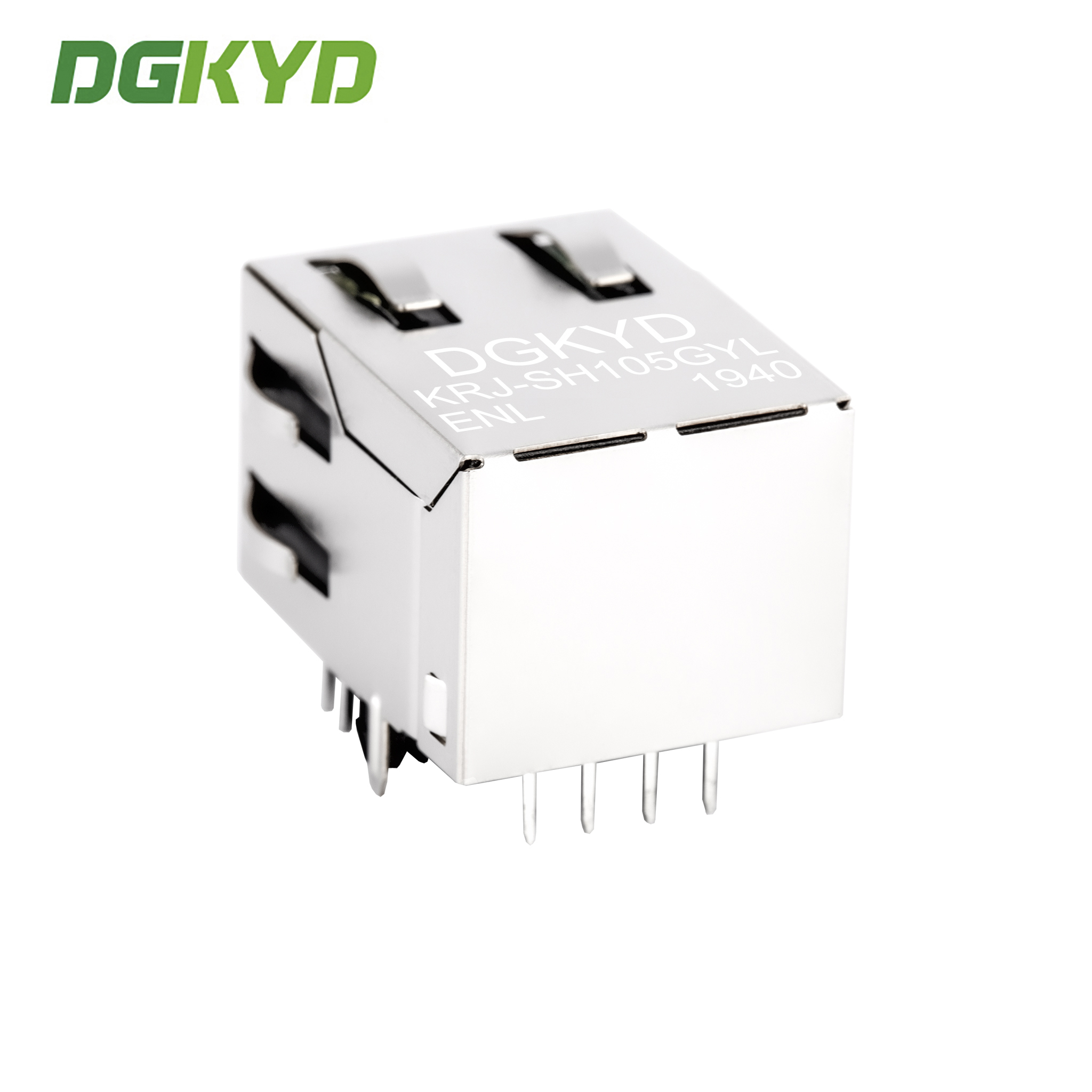

Product Images
Technical Specifications
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, manufacturer direct supply
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
Applications
Integrated RJ45 connector mainly used for:
