RJ11 crystal head 6P6C crystal head DGKYDRJ111166F1A1WW041 (short body)

最小注文数量 :	1個	価格 :	Please contact us to get the latest price.
パッケージの詳細 :	カートンのトレイ	受渡し時間 :	10日間
支払条件 :	T/T、D/P、D/A、L/C、ウェスタンユニオン、マネーグラム	供給の能力 :	10万個/日

起源の場所:	中国の東guan	ブランド名:	DGKYD
証明:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	モデル番号:	DGKYDRJ111166F1A1WW041
書類:	DGKYDRJ111166F1A1WW041.pdf

詳細情報
ハウジング:	P C について	電流定格:	1.5 AMP
接触抵抗:	最大5千万時間だ	ターミナル:	1U"ゴールドプラテッド
動作温度抵抗:	-40°C+80°C	レーティングボルト:	125 VAC RMS でした
絶縁抵抗:	1000 MEGOHMS MIN @ 500 VDC	絶縁耐力:	1000 VAC RMS 50HZ 1分間
シェル:	C2680R-H,T=0.20MM,20~50U" MIN	タイプ:	水晶頭部
ハイライト:	RJ11 crystal head connector , 6P6C short body connector , RJ11 wire harness connector

製品の説明

RJ11 Crystal Head 6P6C Modular Connector

Part Number: DGKYDRJ111166F1A1WW041 (Short Body)

Professional-grade RJ11 6P6C modular connector designed for printed circuit board applications with side entry mounting.

Product Documentation

Download Product Specification Document (PDF)

Technical Specifications

Parameter	Specification
Part Number	DGKYDRJ111166F1A1WW041
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong, China
Certification	CE / UL / FCC / Reach / RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ11
Connector Type	Modular Jack
Latch Style	Standard
Filter	Without internal filter
LED Option	Without LED
Panel Stops	Without Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	Standard
Grounding Options	Panel Ground and PCB Ground
Port Configuration	1 port
Number of Positions	6
Jack Configuration	1 x 1
Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 1u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PC Polyester
Housing Color	White
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

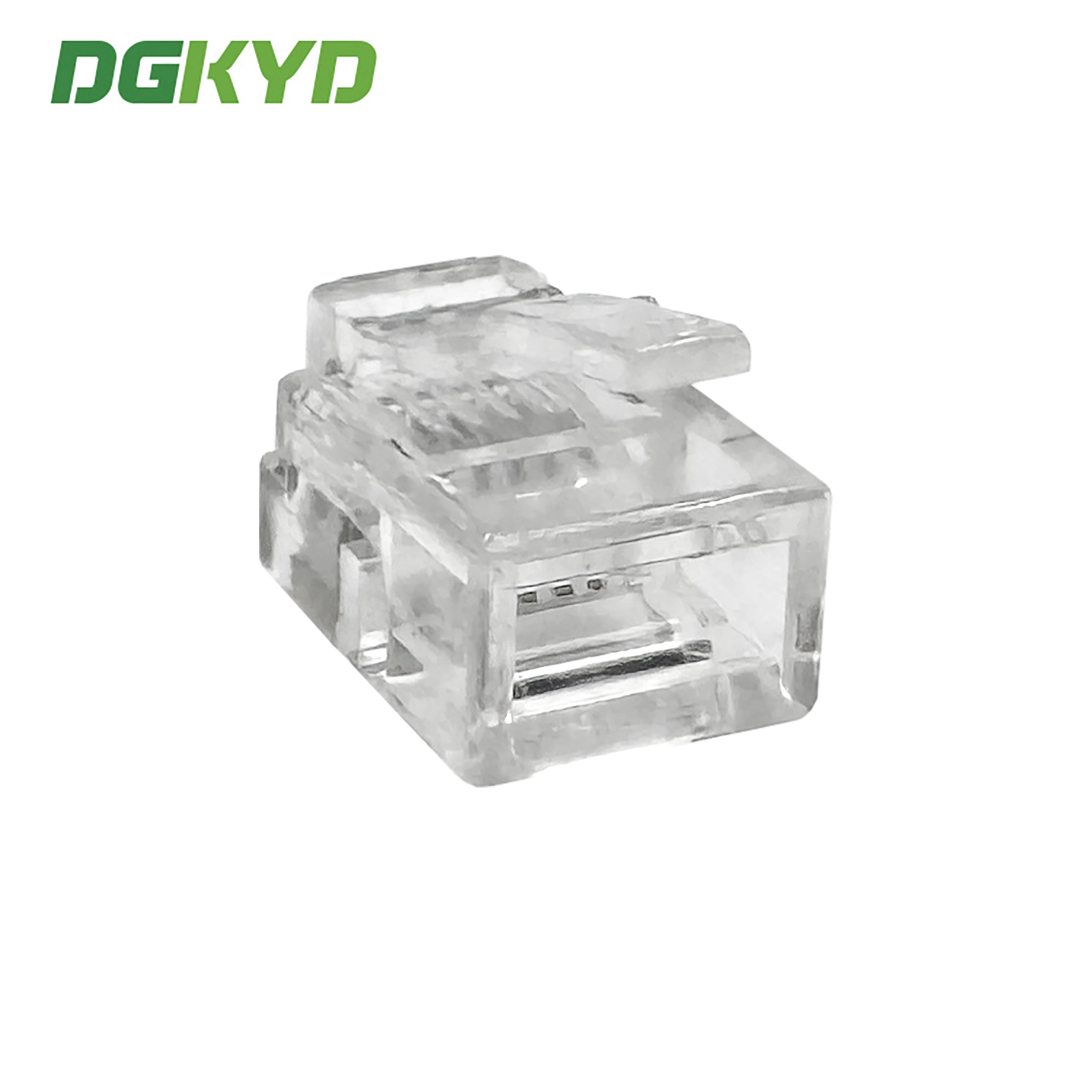

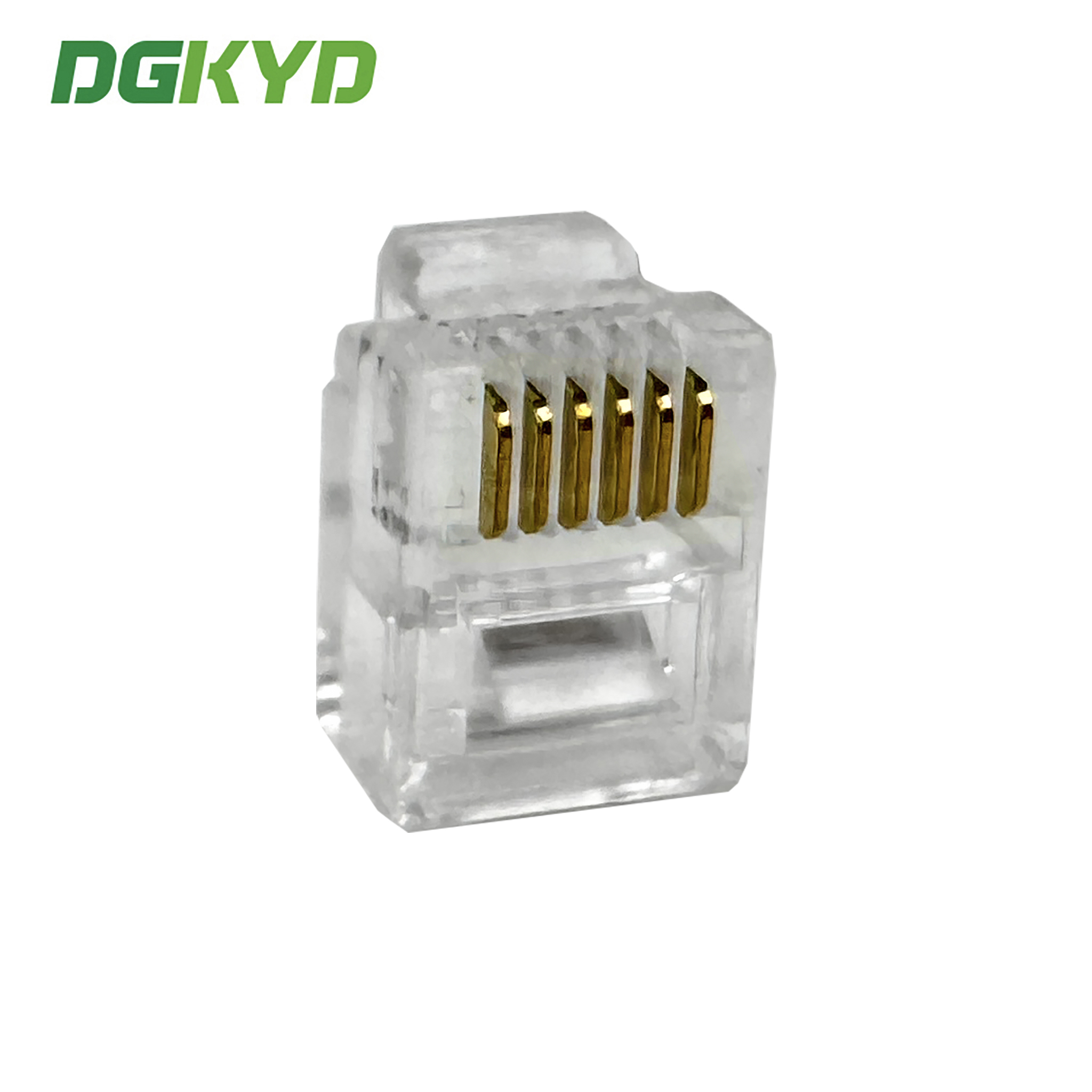

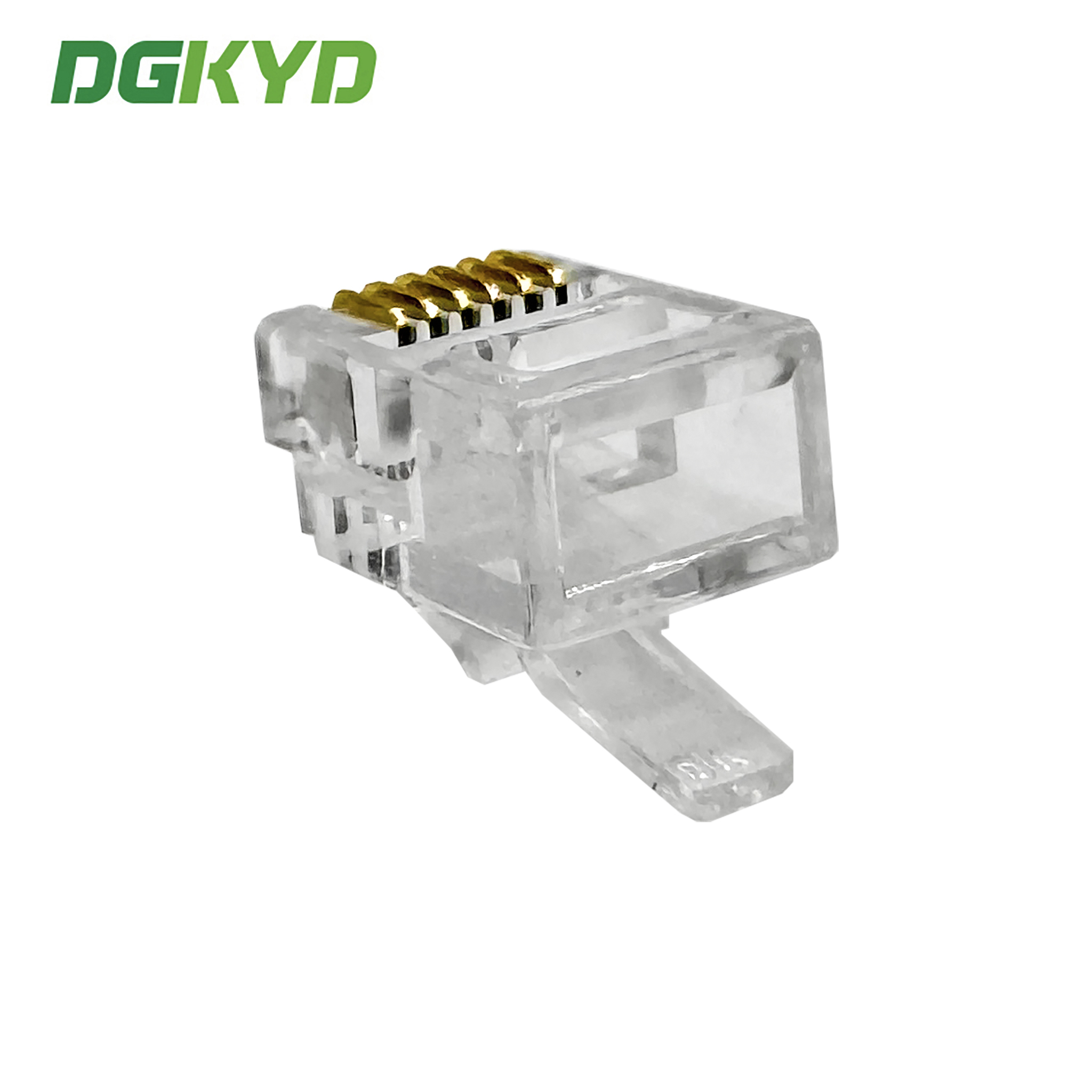

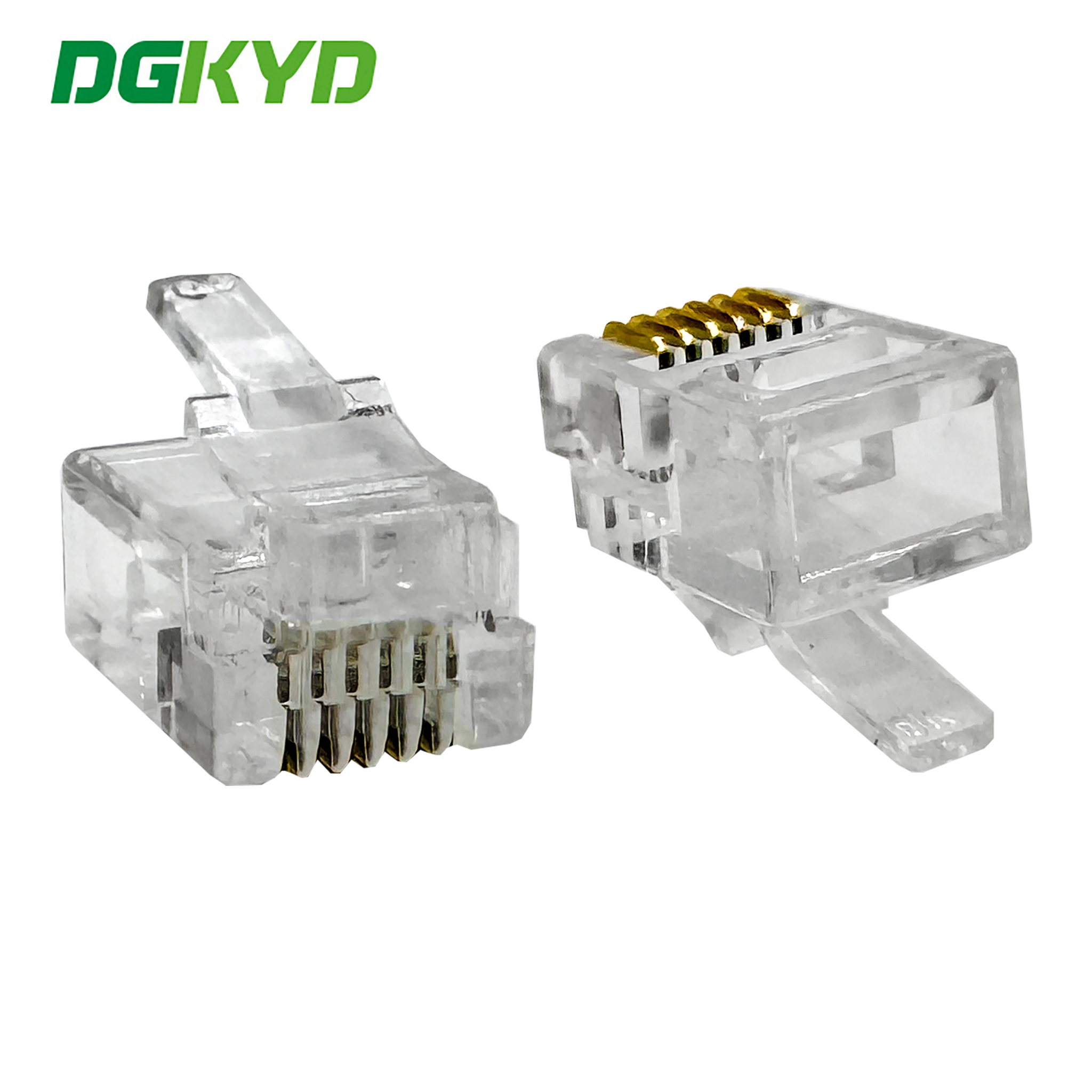

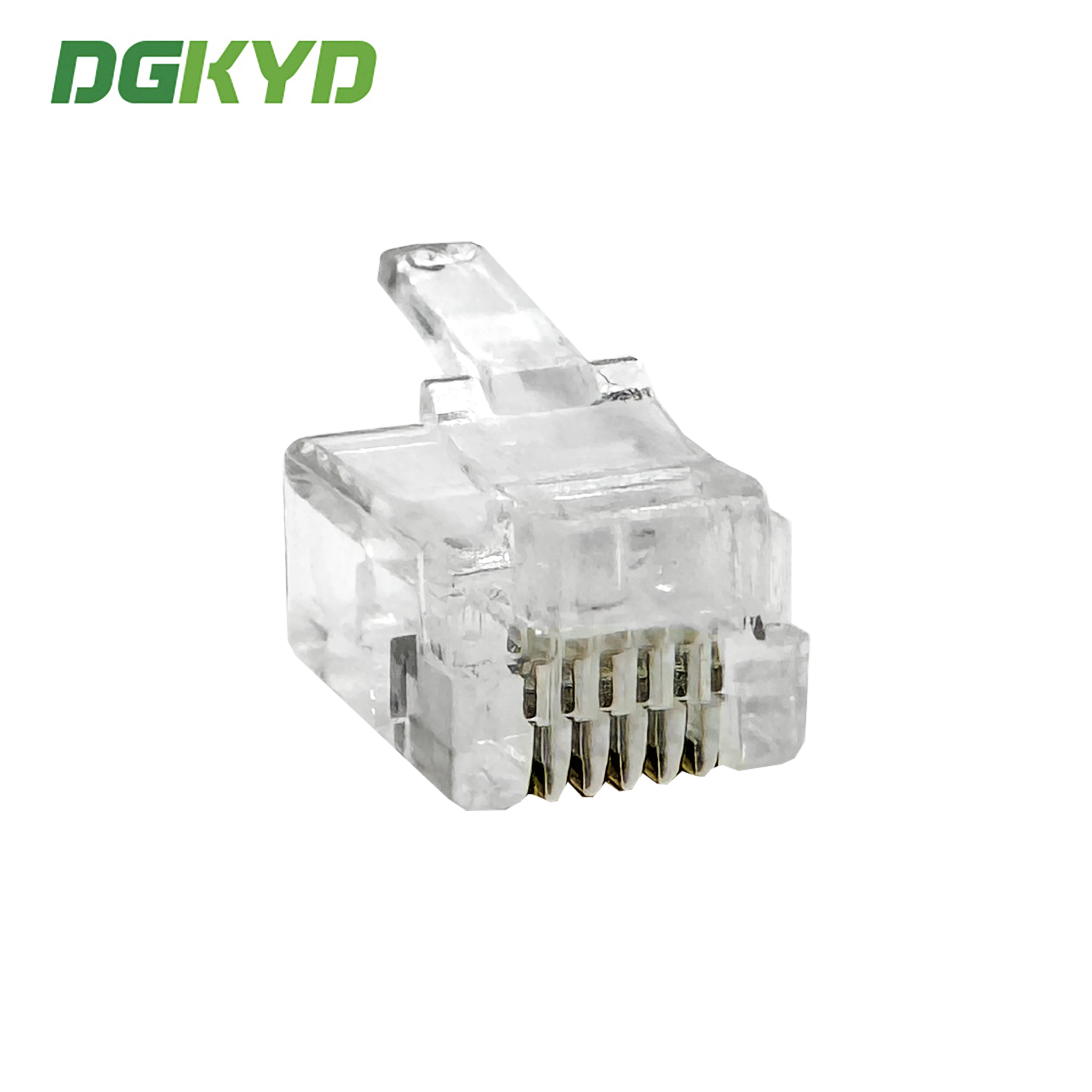

Product Images

Frequently Asked Questions

Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
