180 degree vertical RJ45 connector Gigabit network interface with shielded DGKYD511Q010AB2A8D

接触

180 degree vertical RJ45 connector Gigabit network interface with shielded DGKYD511Q010AB2A8D

最小注文数量 :	1個	価格 :	Please contact us to get the latest price.
パッケージの詳細 :	カートンのトレイ	受渡し時間 :	10日間
支払条件 :	T/T、D/P、D/A、L/C、Western Union、MoneyGram	供給の能力 :	10万個/日

起源の場所:	中国の東guan	ブランド名:	DGKYD
証明:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	モデル番号:	DGKYD511Q010AB2A8D

詳細情報
製品名:	トランス付きRJ45	タイプ:	RJ45
ハウジング:	フェノリック,PBTブラック (UL94V-0)	プラスチックコア:	ガラスファイバーフィラー PBT 黒 ((UL94V-0),ROHS
シールド RJ45:	はい	番号港:	単一ポート
ステータスインジケーター:	緑/黄色	ラッチオリエンテーション:	トップエントリ
位置/連絡先の数:	8P10C（RJ45、イーサネット）	接触ピンの金メッキ:	6U
保管温度:	-40℃～+85℃	動作温度:	-40℃～+85℃
ハイライト:	180 degree RJ45 Ethernet connector , shielded Gigabit network interface , vertical RJ45 connector with warranty

製品の説明

180 Degree Vertical RJ45 Connector Gigabit Network Interface

Part Number: DGKYD511Q010AB2A8D

Product Overview

180-degree vertical RJ45 transformer with PoE+ capability, designed for reliable Gigabit network connectivity in industrial applications.

Technical Specifications

Specification	Details
Part Number	DGKYD511Q010AB2A8D
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard TAB-UP
Filter	With Filter
LED Option	With LED (Green/Yellow)
Shielded	With metal shield
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Plating	Gold 6μ
Housing Material	PBT Polyester (Black)
UL Flammability Rating	UL 94V-0
Working Temperature	-40℃ to 85℃

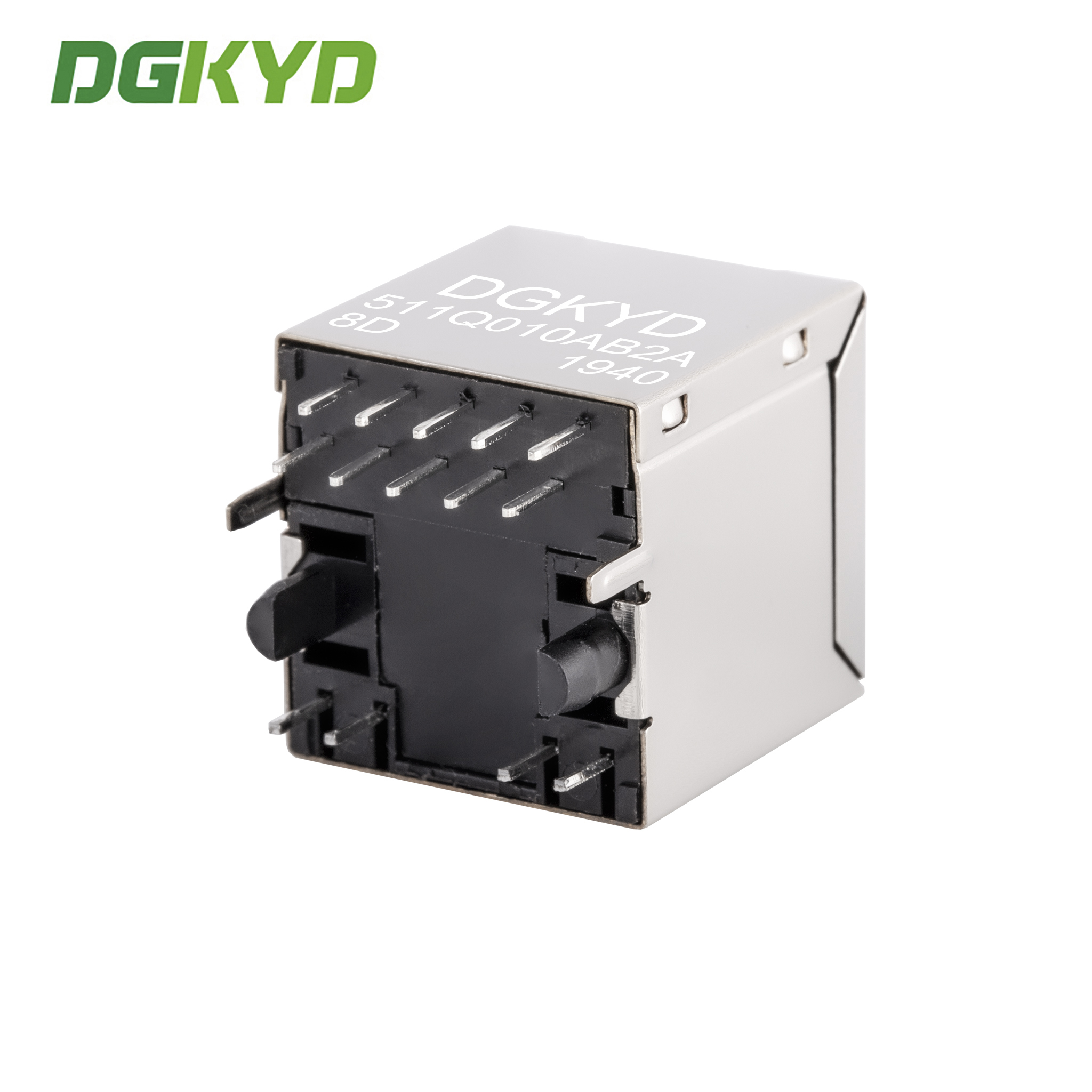

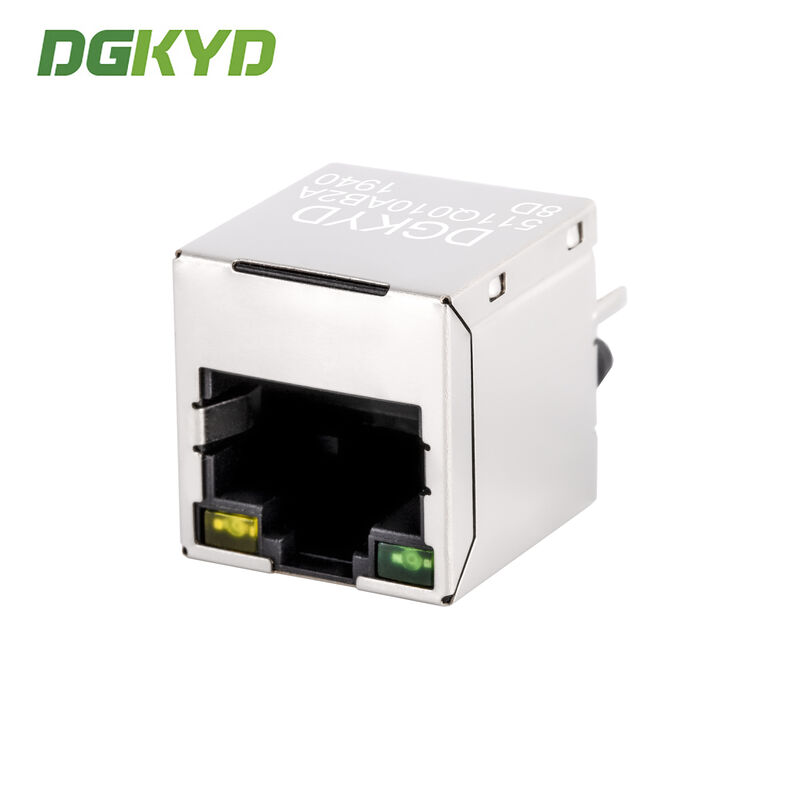

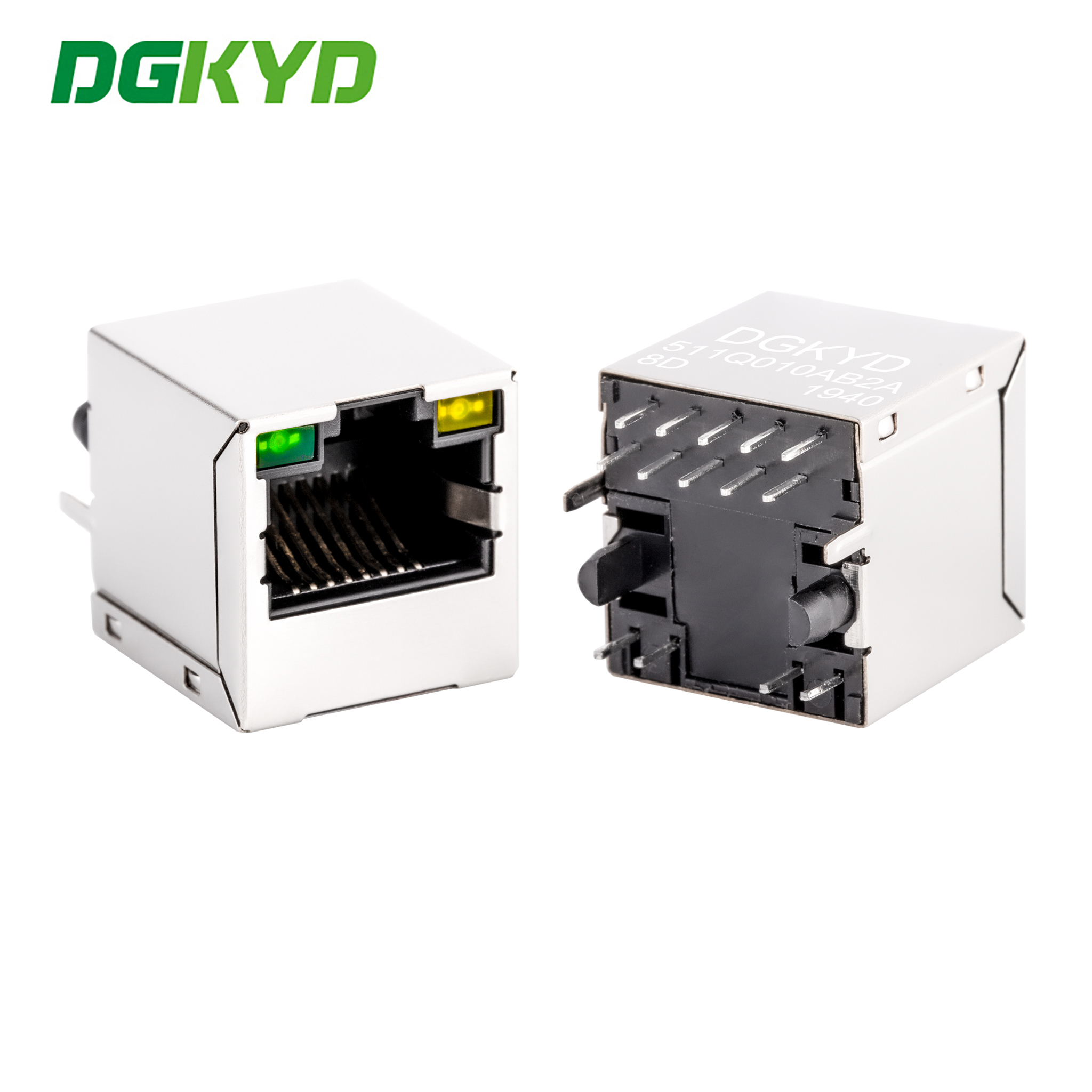

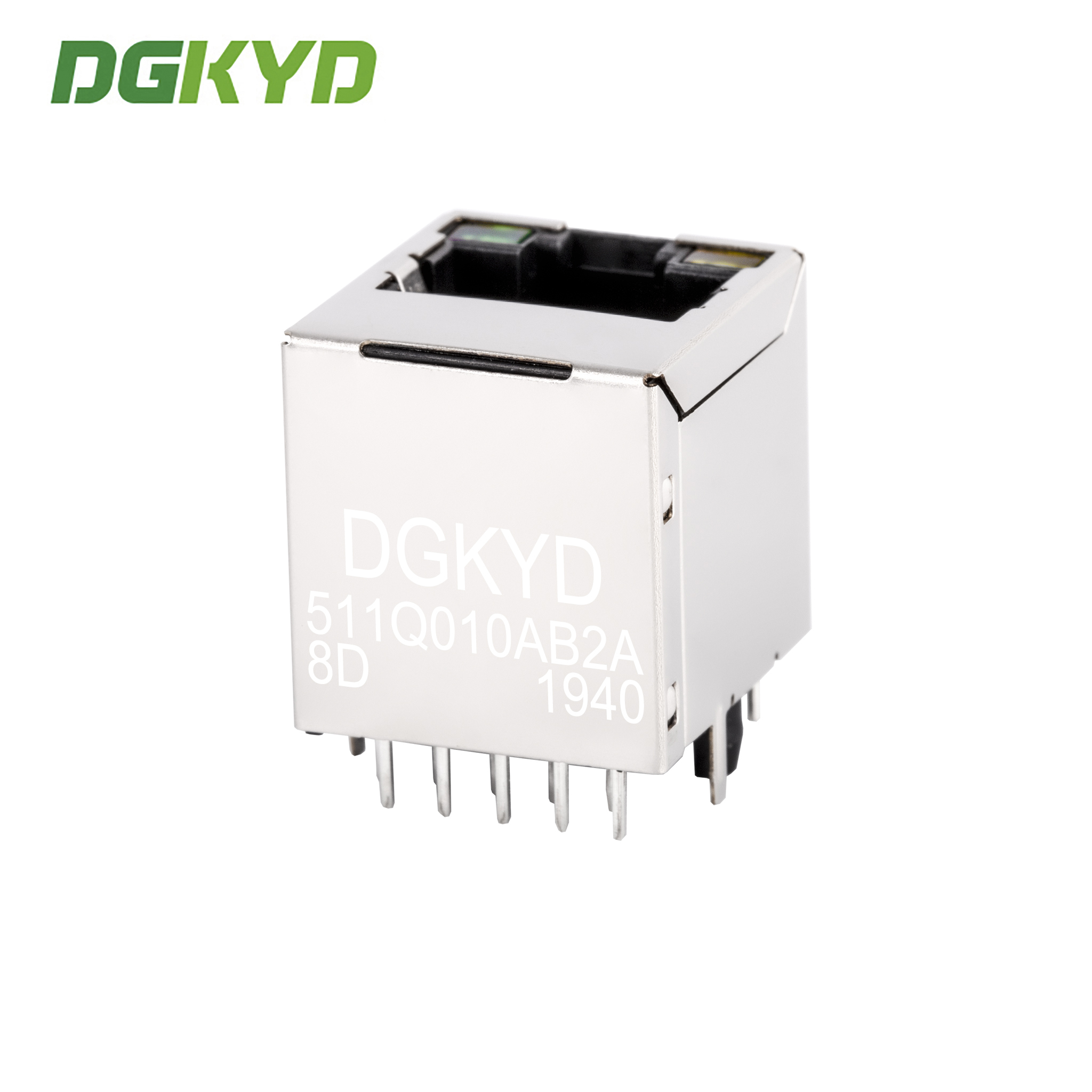

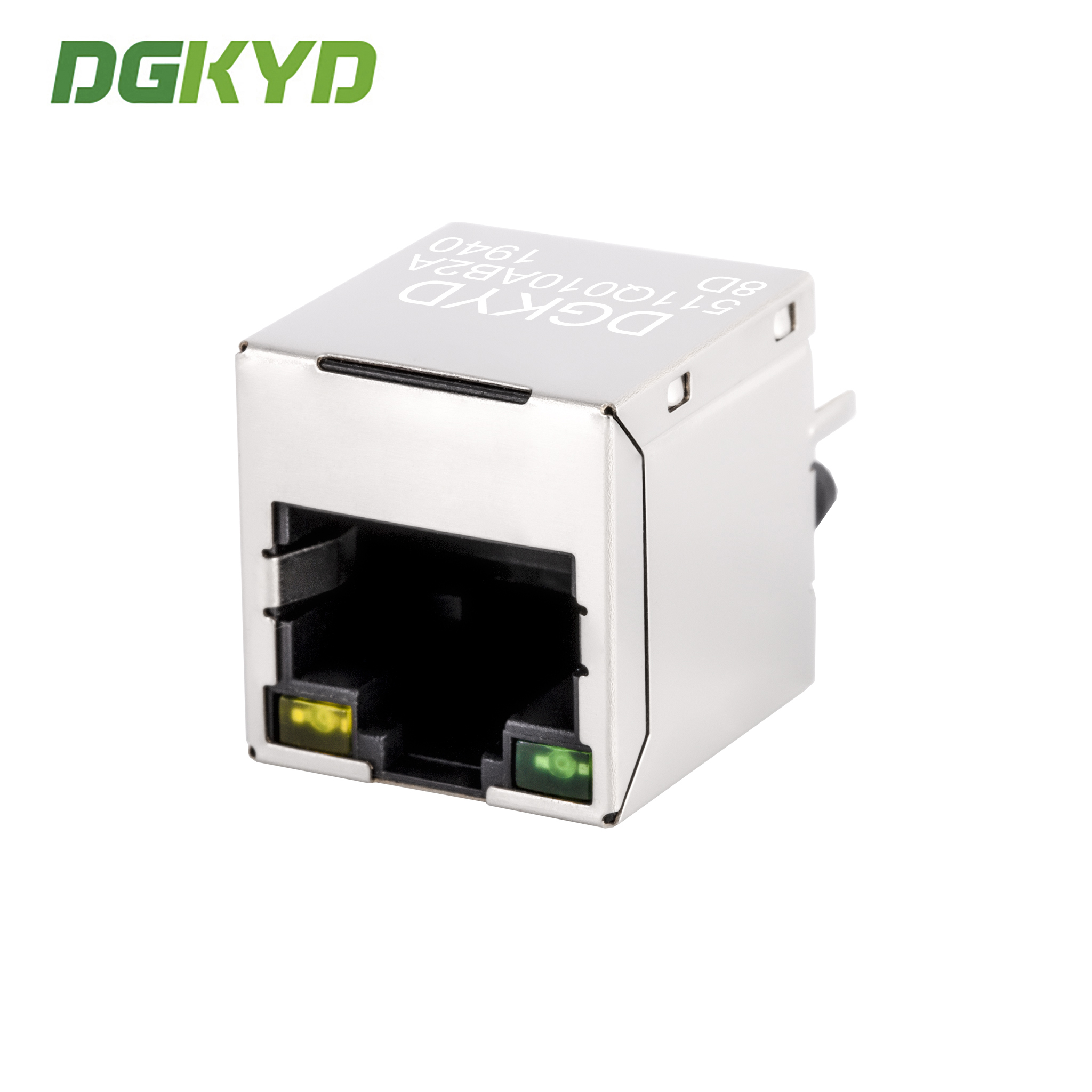

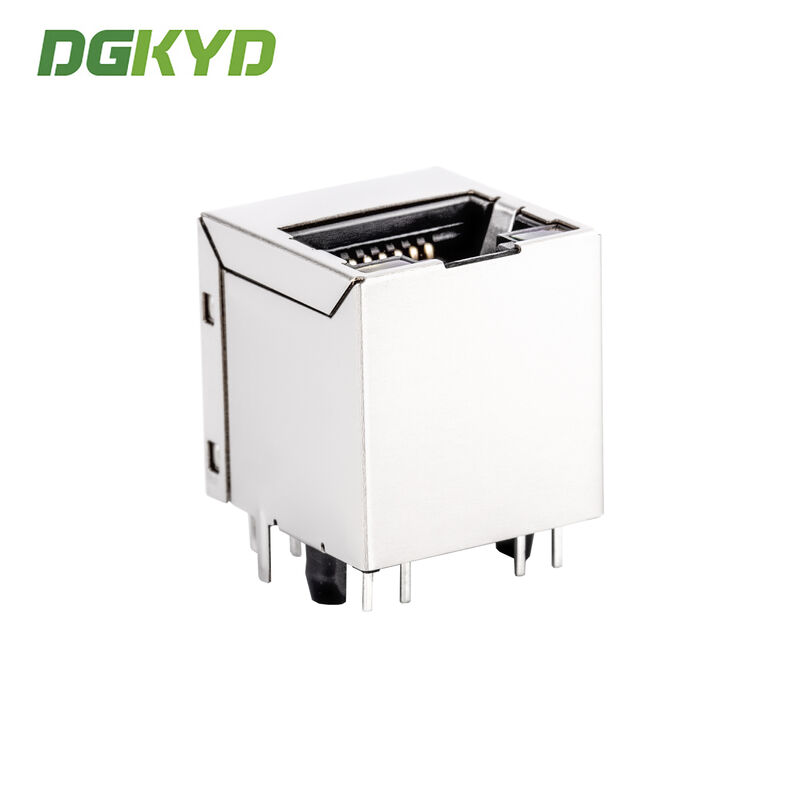

Product Images

Manufacturer Information

Product Features

Interface type: Crystal head application for 10/100/1000BASE-T Ethernet
Built-in magnetics for enhanced signal integrity
High frequency characteristics: Filtering and anti-interference capabilities
Operating temperature range: -40℃ to 85℃
Lead-free soldering compatible up to 265℃
Complete RJ45 integrated circuit accessories series
Multiple LED indicator options (green, yellow, red, orange, blue, bi-color)
EMI shielding options available
Customizable magnetic core coil ratios
Multiple contact gold plating thickness options (3U, 6U, 15U, 30U, 50U)
Various plastic housing materials (PBT, PA46, PA9T, LCP)

All electrical properties meet industry standards, with mechanical specifications conforming to manufacturing standards and environmental compliance requirements.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What about your lead time?

In-stock products ship within 5-7 working days after payment. Customized and out-of-stock items have delivery times confirmed based on order quantity.

Can you provide samples? Are they free?

Yes, we typically provide 2-3 samples of standard products free for testing purposes.

Can I put my own logo on it?

Yes, as a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
