| 最小注文数量 : | 1個 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | カートンのトレイ | 受渡し時間 : | 10日間 |
| 支払条件 : | T/T、D/P、D/A、L/C、Western Union、MoneyGram | 供給の能力 : | 10万個/日 |
| 起源の場所: | 中国の東guan | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD52T1188IWA1DY1008 |
|
詳細情報 |
|||
| コンポーネントタイプ: | PCBジャック | パフォーマンスカテゴリ: | 3/5 |
|---|---|---|---|
| 性別: | 女性 | 製品名: | RJ45コネクタ |
| タイプ: | RJ45 | 特徴: | 極めて薄い |
| コアの数: | 8 | 接触ピンの金メッキ: | FU |
| 動作温度: | -40℃～+85℃ | 保管温度: | -40℃～+85℃ |
| ハイライト: | RJ45 vertical network socket,8P8C all plastic LAN jack,RJ45 network interface with warranty |
||
製品の説明

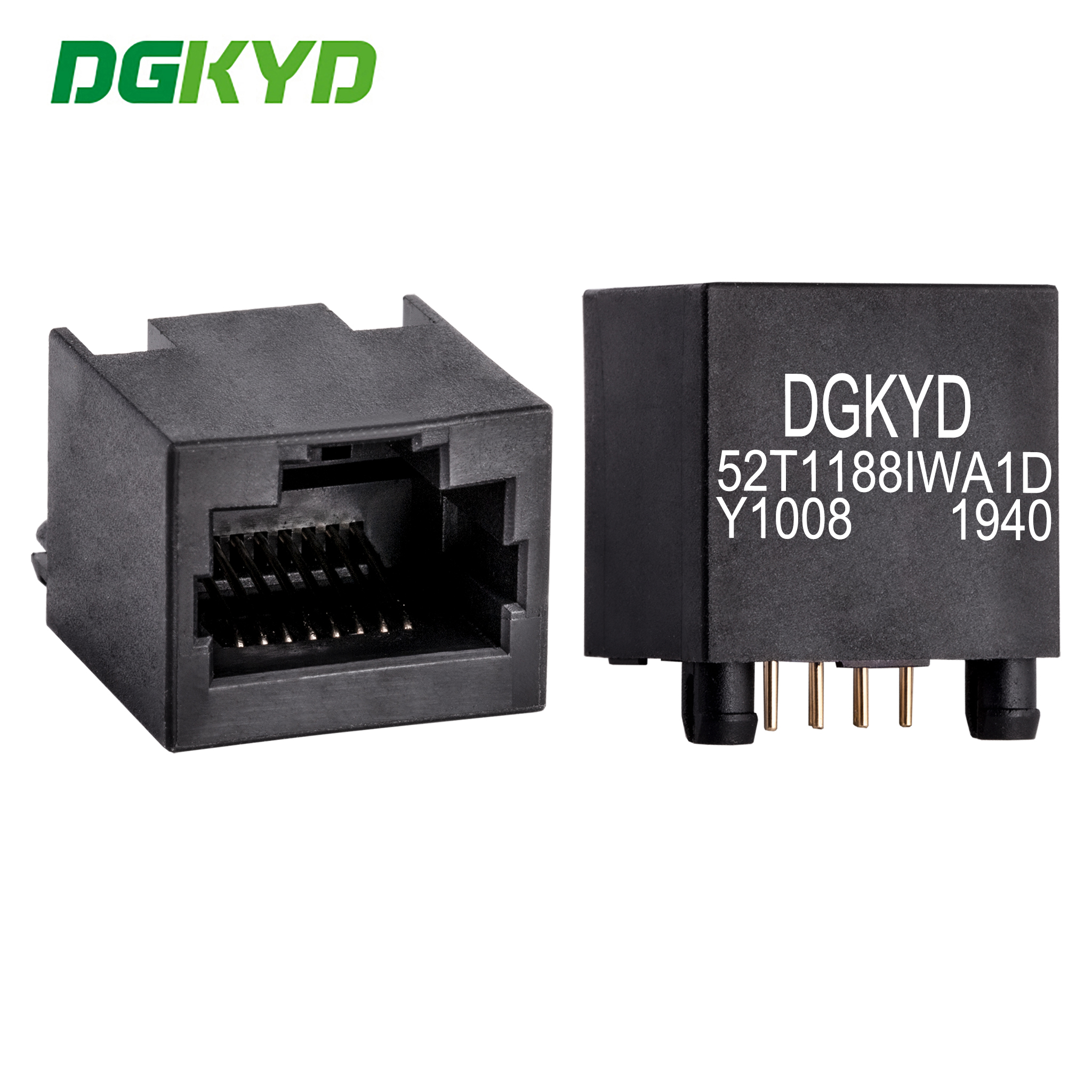

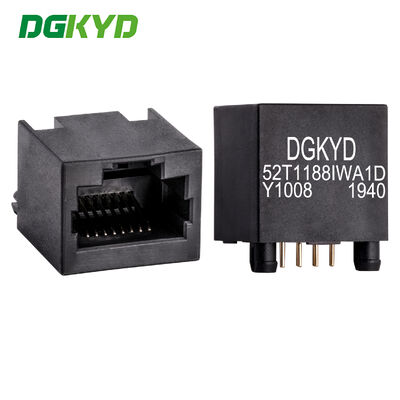

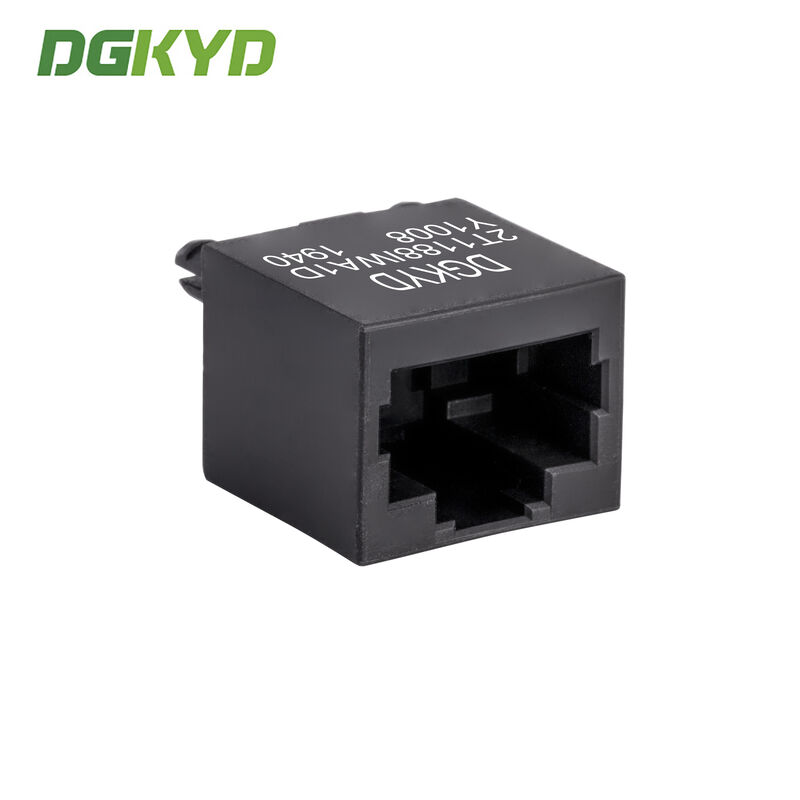

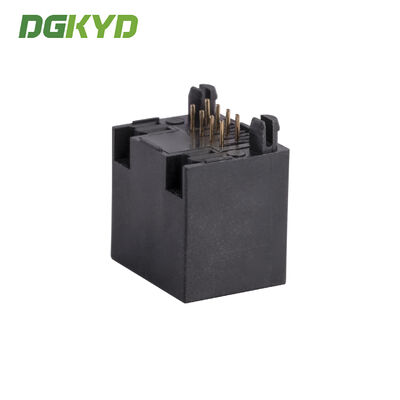

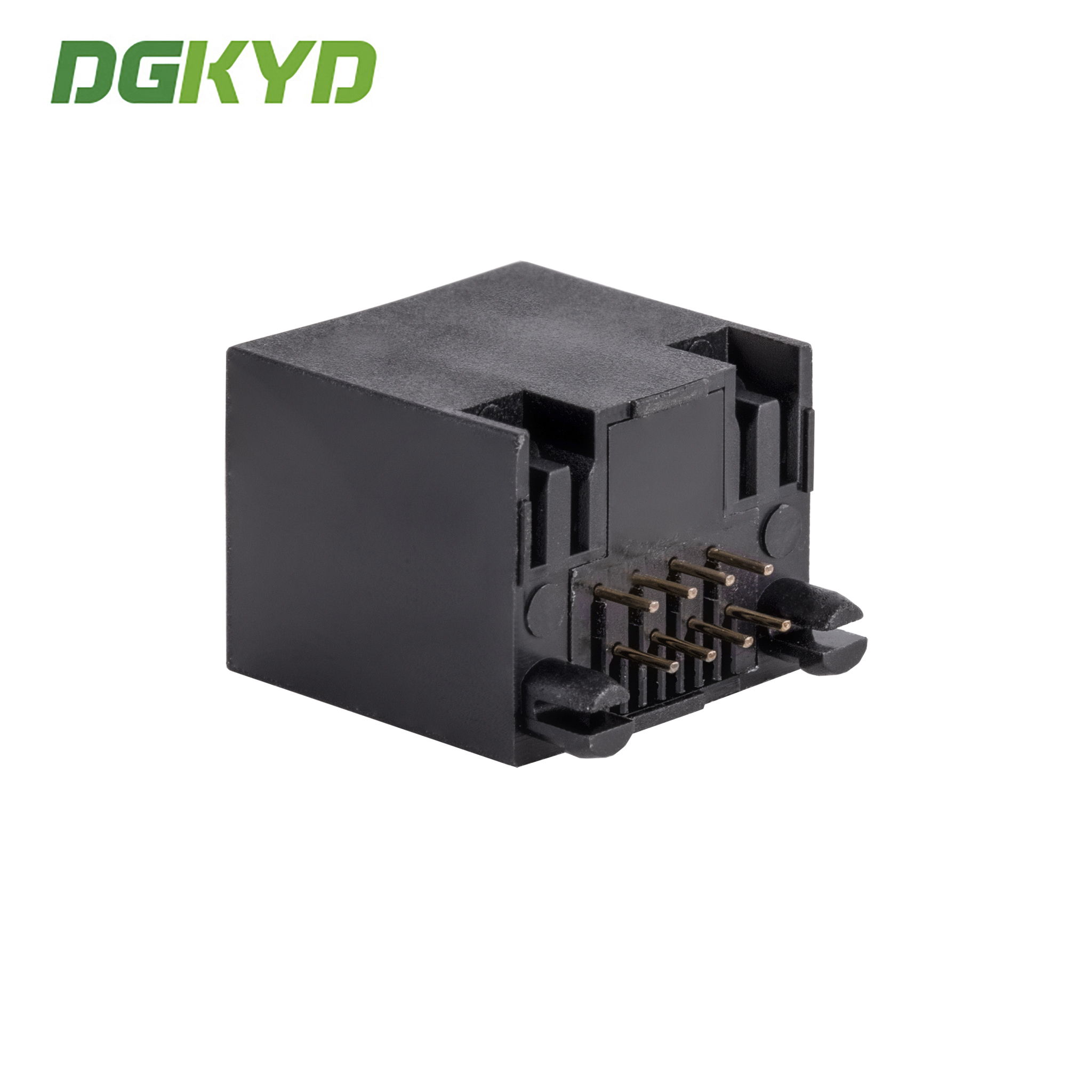

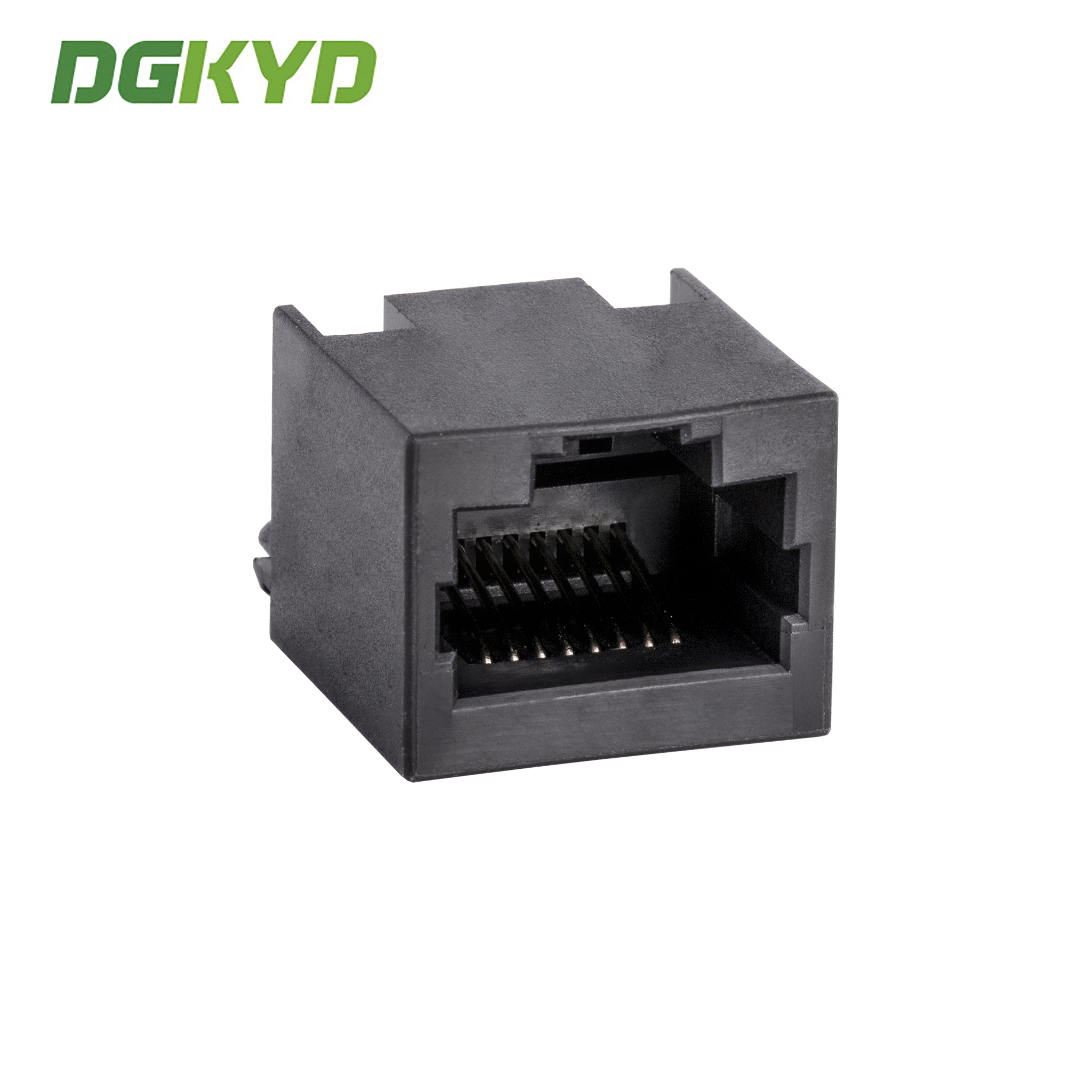

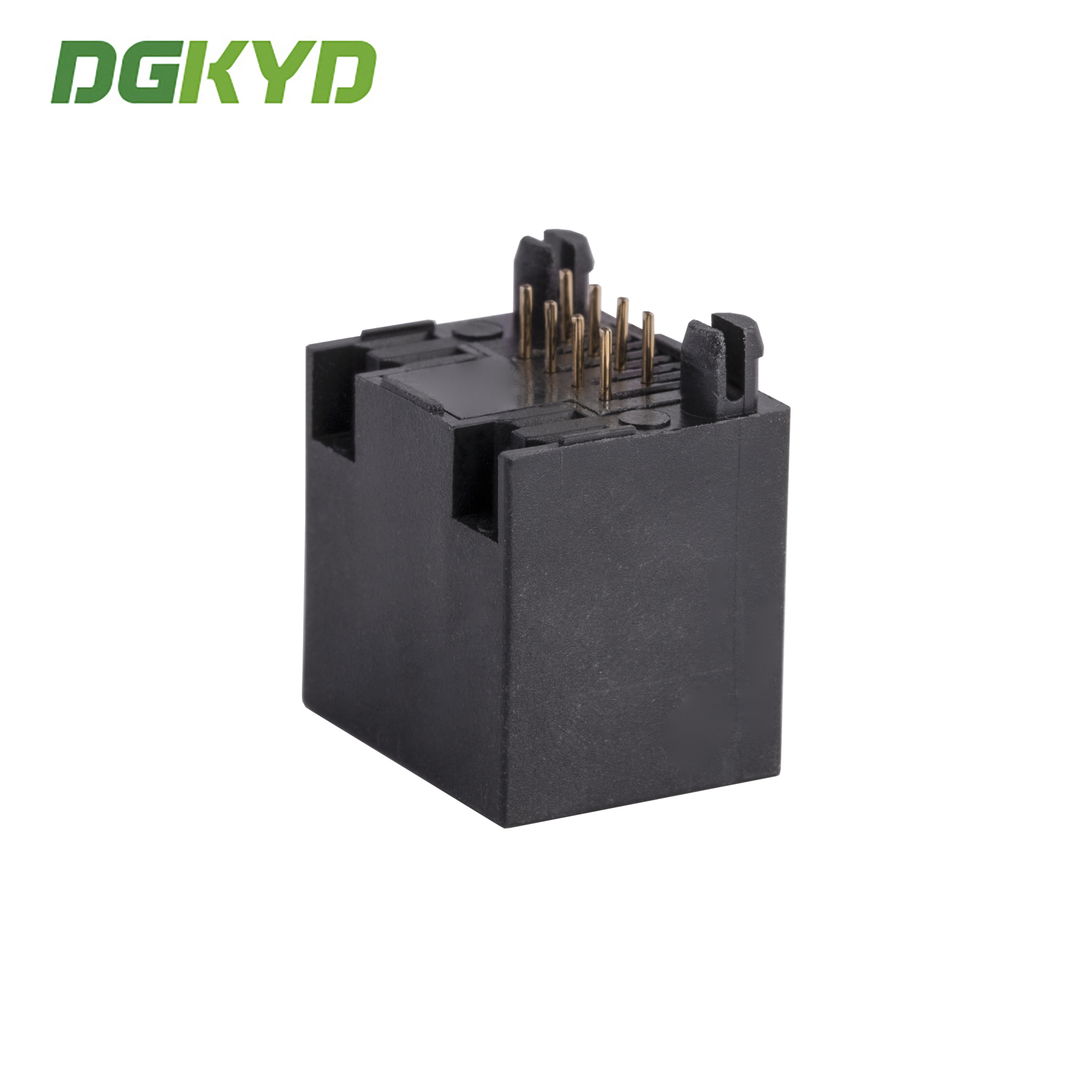

RJ45 vertical network interface 8P8C all plastic network socket DGKYD52T1188IWA1DY1008
Download Product Datasheet (PDF)| Part Number | DGKYD52T1188IWA1DY1008 |
|---|---|
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | Without Filter |
| LED Option | Without LED |
| LED Color | No |
| Panel Stops | With Panel Stops |
| Shielded | Without metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 8 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold Fu |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
