RJ45 Ethernet port connector without transformer, no light, shielded, no shrapnel, industrial Ethernet port DGKYD211B035GWA4D

接触

RJ45 Ethernet port connector without transformer, no light, shielded, no shrapnel, industrial Ethernet port DGKYD211B035GWA4D

最小注文数量 :	1個	価格 :	Please contact us to get the latest price.
パッケージの詳細 :	カートンのトレイ	受渡し時間 :	10日間
支払条件 :	T/T、D/P、D/A、L/C、Western Union、MoneyGram	供給の能力 :	100k PCS/日

起源の場所:	中国の東guan	ブランド名:	DGKYD
証明:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	モデル番号:	DGKYD211B035GWA4D

詳細情報
LEDの色:	なし	メッキ:	グロードメッキ6U/15U/30U/50U
主要顧客:	JABIL/パナソニック/FOXCONN/Coampal/HUAWEI/ZTE	ハウジング材質:	PBTポリエステル
フィルター:	フィルターを使って	ラッチ:	タブアップ
シールド:	金属の盾	ピン:	8ピン
OEM/ODM:	はい	位置/連絡先の数:	8P8c （RJ45のイーサネット）
接触ピンの金メッキ:	6U	保管温度:	-40°C〜+85°C
動作温度:	-40°C〜+85°C
ハイライト:	shielded RJ45 Ethernet port connector , industrial RJ45 port without transformer , RJ45 connector no shrapnel shielded

製品の説明

RJ45 Ethernet Port Connector DGKYD211B035GWA4D

Industrial-grade RJ45 Ethernet port connector without transformer, no LED indicators, shielded design, no shrapnel configuration.

Product Overview

This industrial Ethernet port connector features a shielded design with filter, standard latch style, and through-hole PCB mounting for reliable network connectivity in demanding environments.

Technical Specifications

Part Number	DGKYD211B035GWA4D
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard (TAB-UP)
Filter	With Filter
LED Option	Without LED
Shielded	With metal shield
PCB Mounting	Side Entry (Right Angle), Through Hole
Contact Plating	Gold 6u
Housing Material	PBT Polyester (Black, UL 94V-0)
Port Configuration	Single Port, 8 Positions

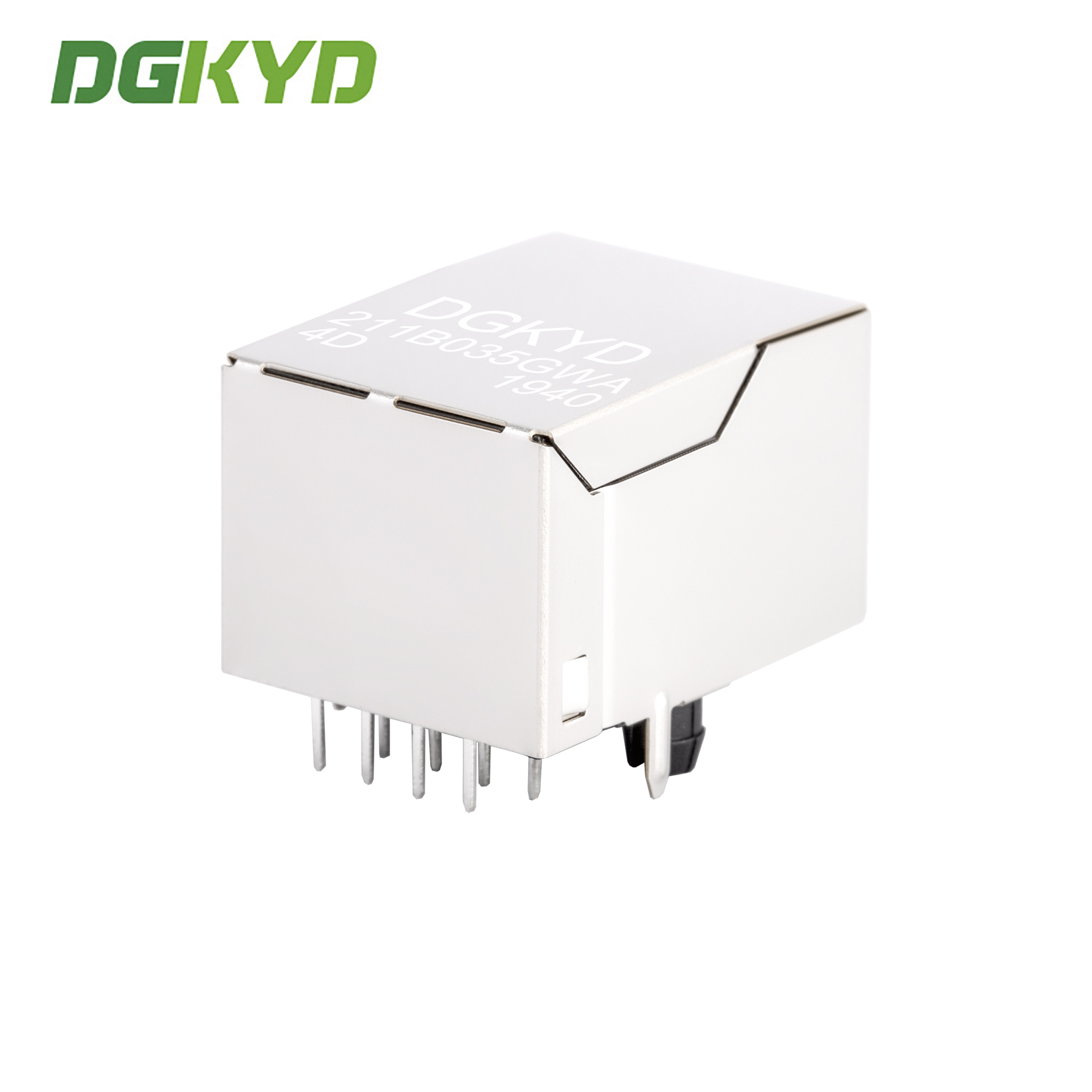

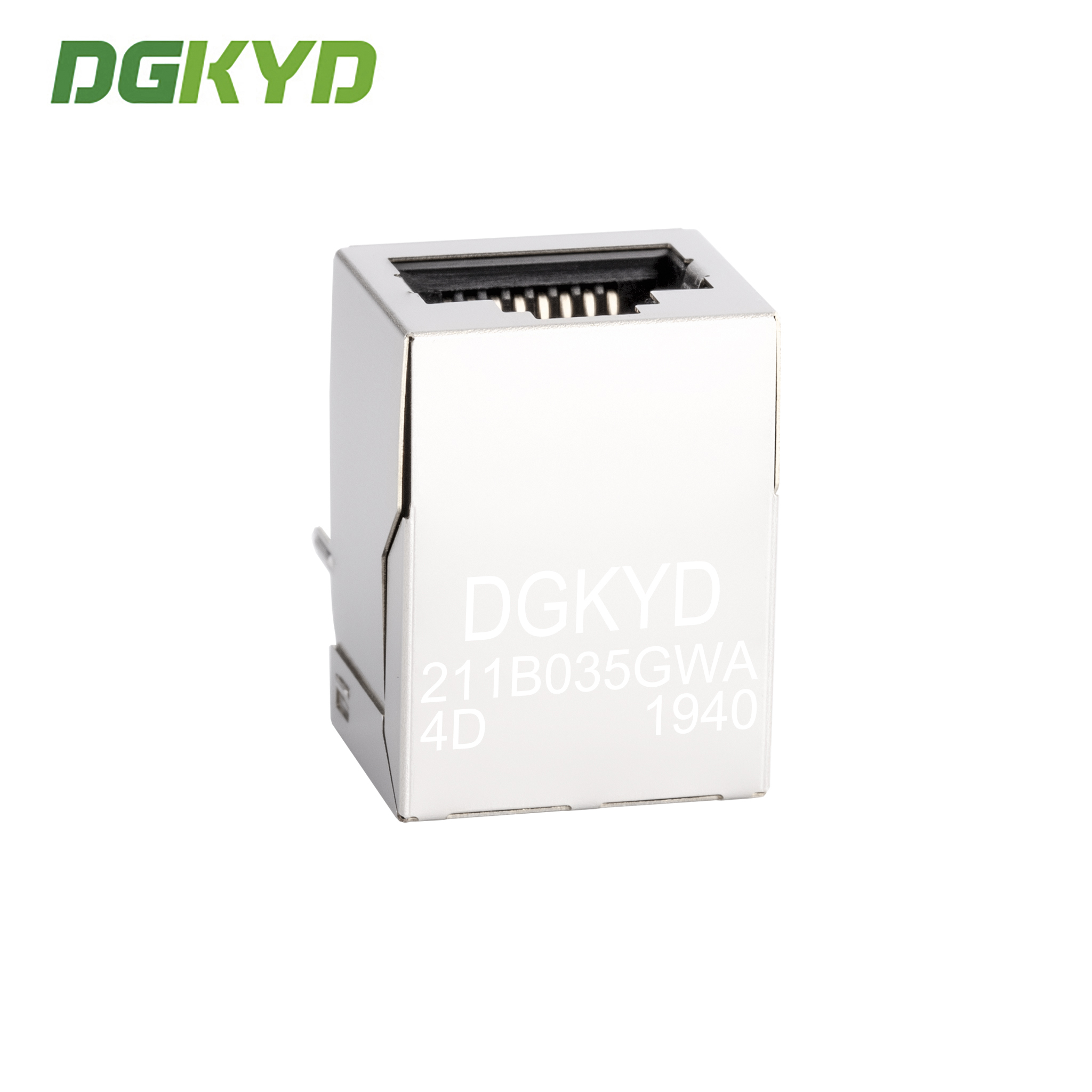

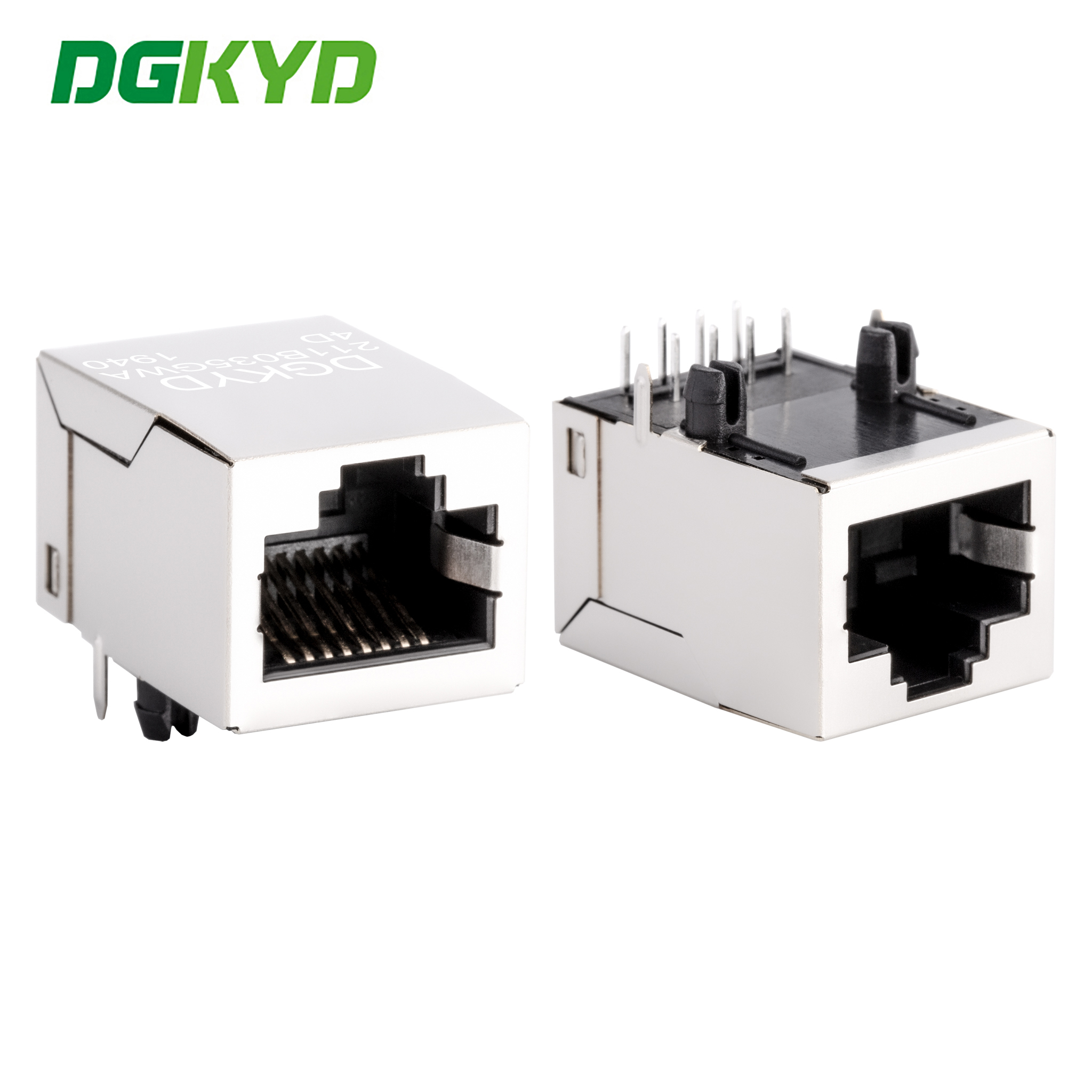

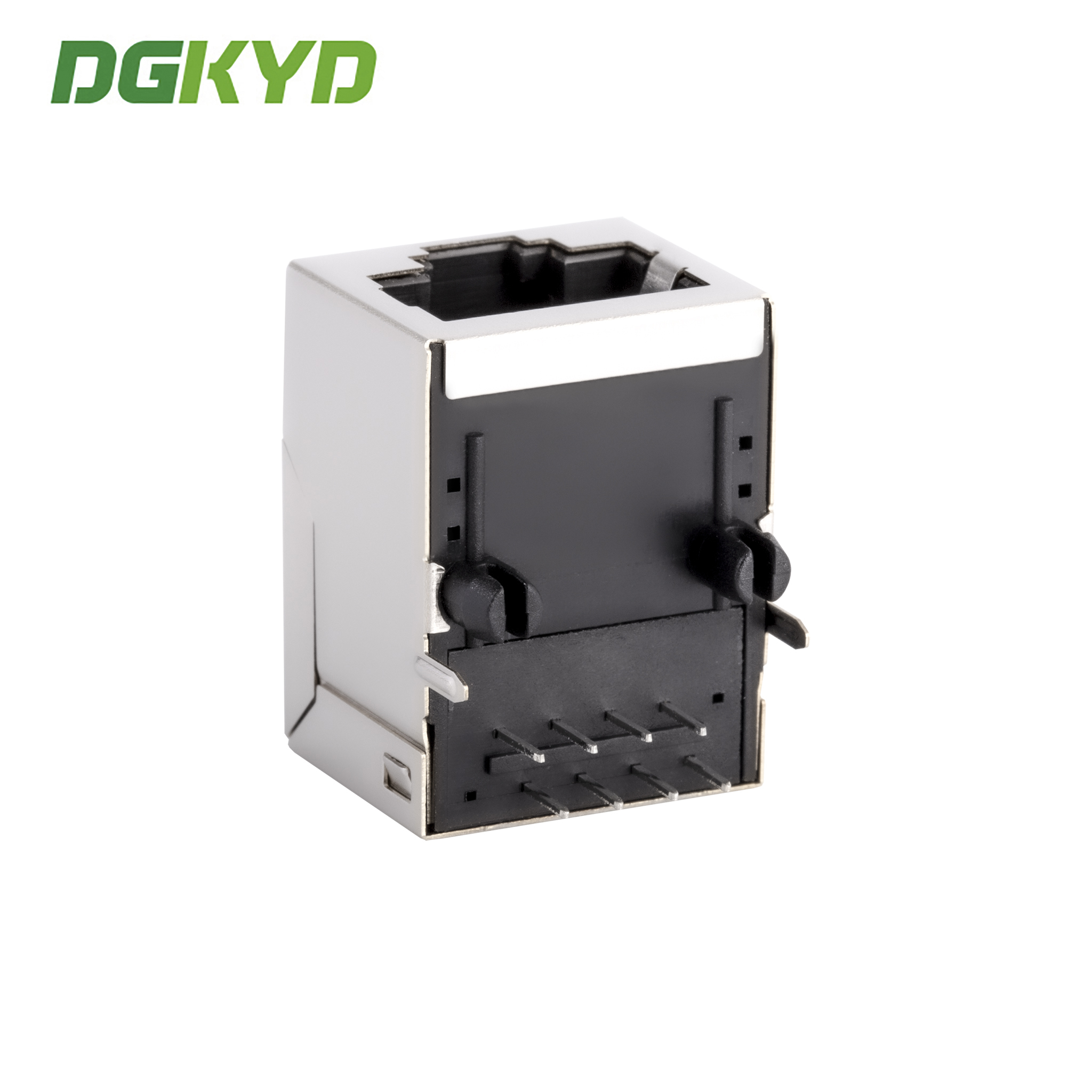

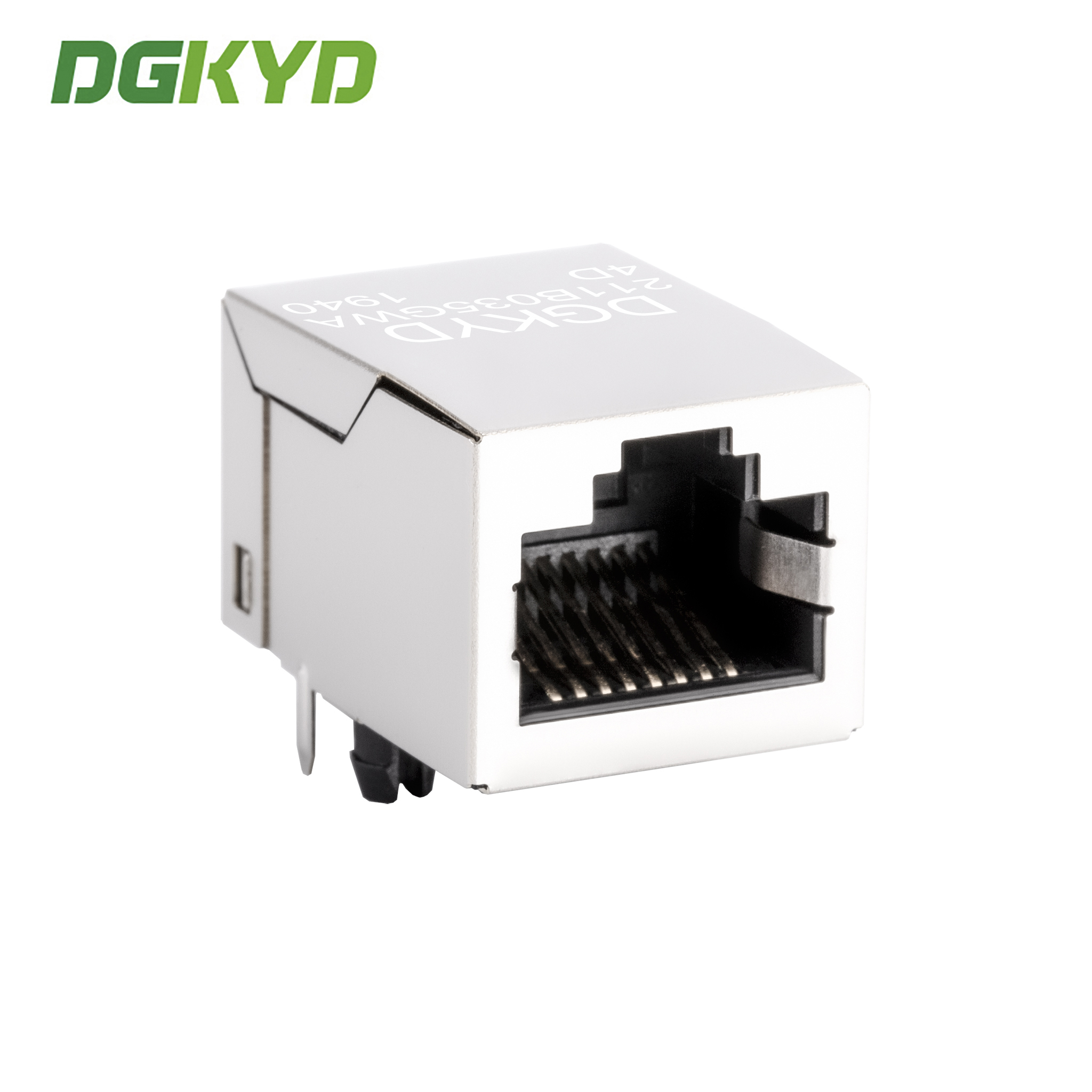

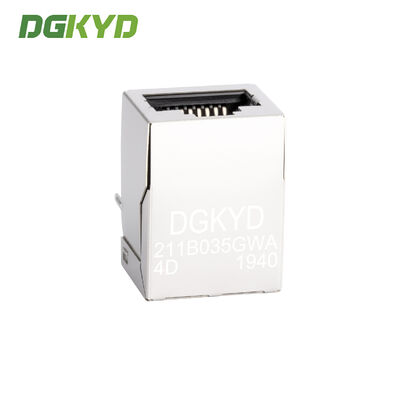

Product Images

Manufacturer Information

Company Profile RJ45 Ethernet port connector without transformer, no light, shielded, no shrapnel, industrial Ethernet port DGKYD211B035GWA4D 3

Factory Show RJ45 Ethernet port connector without transformer, no light, shielded, no shrapnel, industrial Ethernet port DGKYD211B035GWA4D 4

Factory Interior RJ45 Ethernet port connector without transformer, no light, shielded, no shrapnel, industrial Ethernet port DGKYD211B035GWA4D 5

Factory Equipment RJ45 Ethernet port connector without transformer, no light, shielded, no shrapnel, industrial Ethernet port DGKYD211B035GWA4D 6

Product Showcase RJ45 Ethernet port connector without transformer, no light, shielded, no shrapnel, industrial Ethernet port DGKYD211B035GWA4D 7

Product Features

Interface type: crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 built-in magnetics
Working frequency: high frequency with filtering and anti-interference characteristics
Operating temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering compatible with wave soldering up to 265℃
Full RJ45 integrated circuit accessories series
Manufacturer direct supply
On-time delivery, typically around two weeks
Customizable options: LED indicators, EMI shielding, magnetic core ratios, contact plating, and housing materials

The electrical properties meet industry standards, mechanical properties comply with manufacturing standards, and environmental protection standards are maintained. Your satisfaction is our service purpose!

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer. Welcome to visit our factory.

What is your lead time?

For products in stock, delivery within 5-7 working days after payment. For customized or out-of-stock products, delivery time is confirmed based on order quantity.

Can you provide samples? Are they free?

Yes. We typically provide 2-3 samples of standard products free for testing.

Can I put my own logo on the product?

Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products for you.
