| 最小注文数量 : | 1ピース | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | カートンのトレイ | 受渡し時間 : | 10日 |
| 支払条件 : | T/T、D/P、D/A、L/C、Western Union、MoneyGram | 供給の能力 : | 100k PCS/日 |
| 起源の場所: | 中国の東guan | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD59212688HWA1DY1A022 |
|
詳細情報 |
|||
| 側面のはんだの尾: | n/a | フランジ: | いいえ |
|---|---|---|---|
| ポートの数: | 2x6 | Rohs: | はい |
| パフォーマンス: | カット3 | オリエンテーション: | スタック |
| 台紙様式: | 浸漬 | OEM/ODM: | はい |
| 位置/連絡先の数: | 8P8c （RJ45のイーサネット） | 接触ピンの金メッキ: | G/Fu |
| 保管温度: | -40°C〜+85°C | 動作温度: | -40°C〜+85°C |
| ハイライト: | RJ45 multi port female connector,2X6 network interface socket,RJ45 socket without transformer |
||
製品の説明

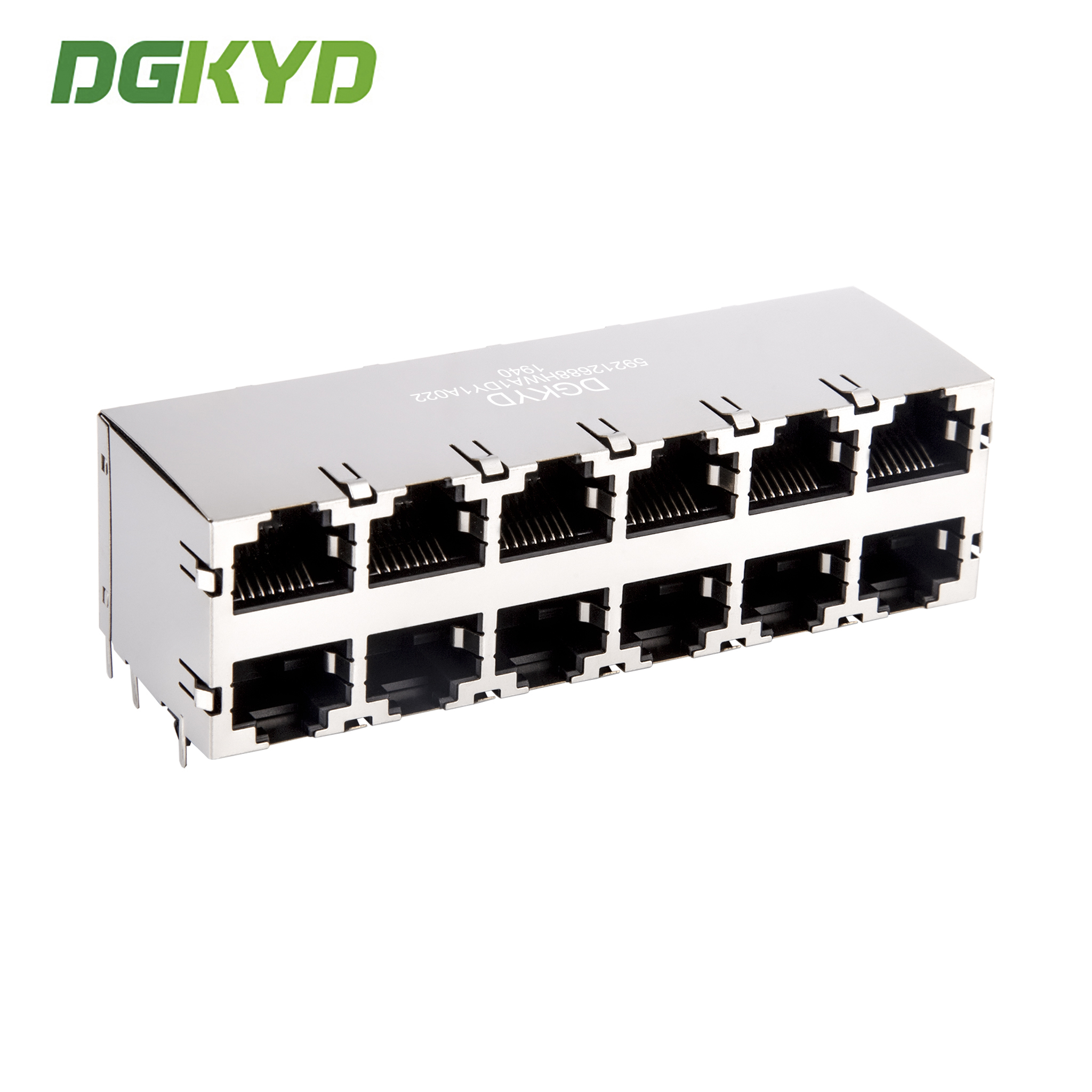

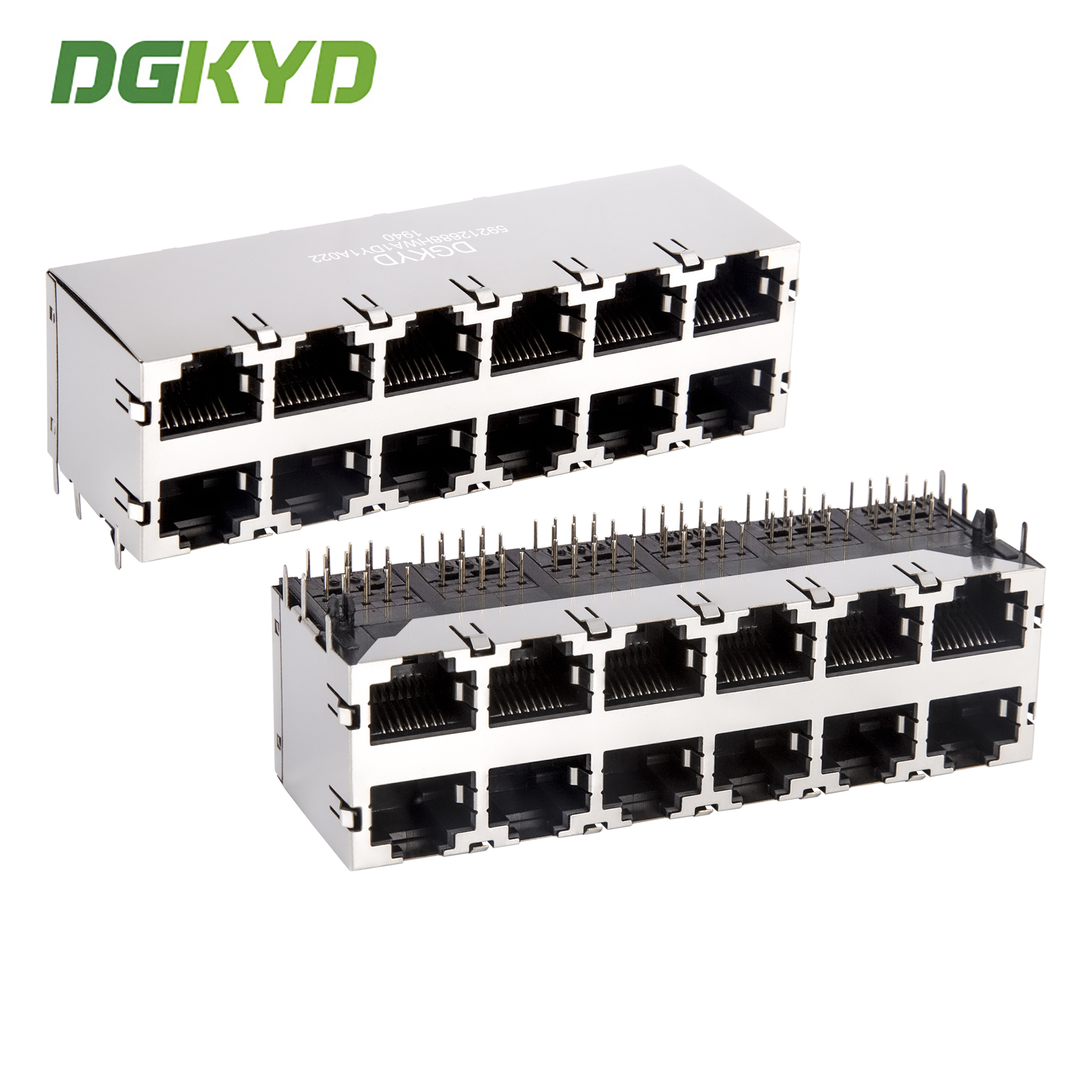

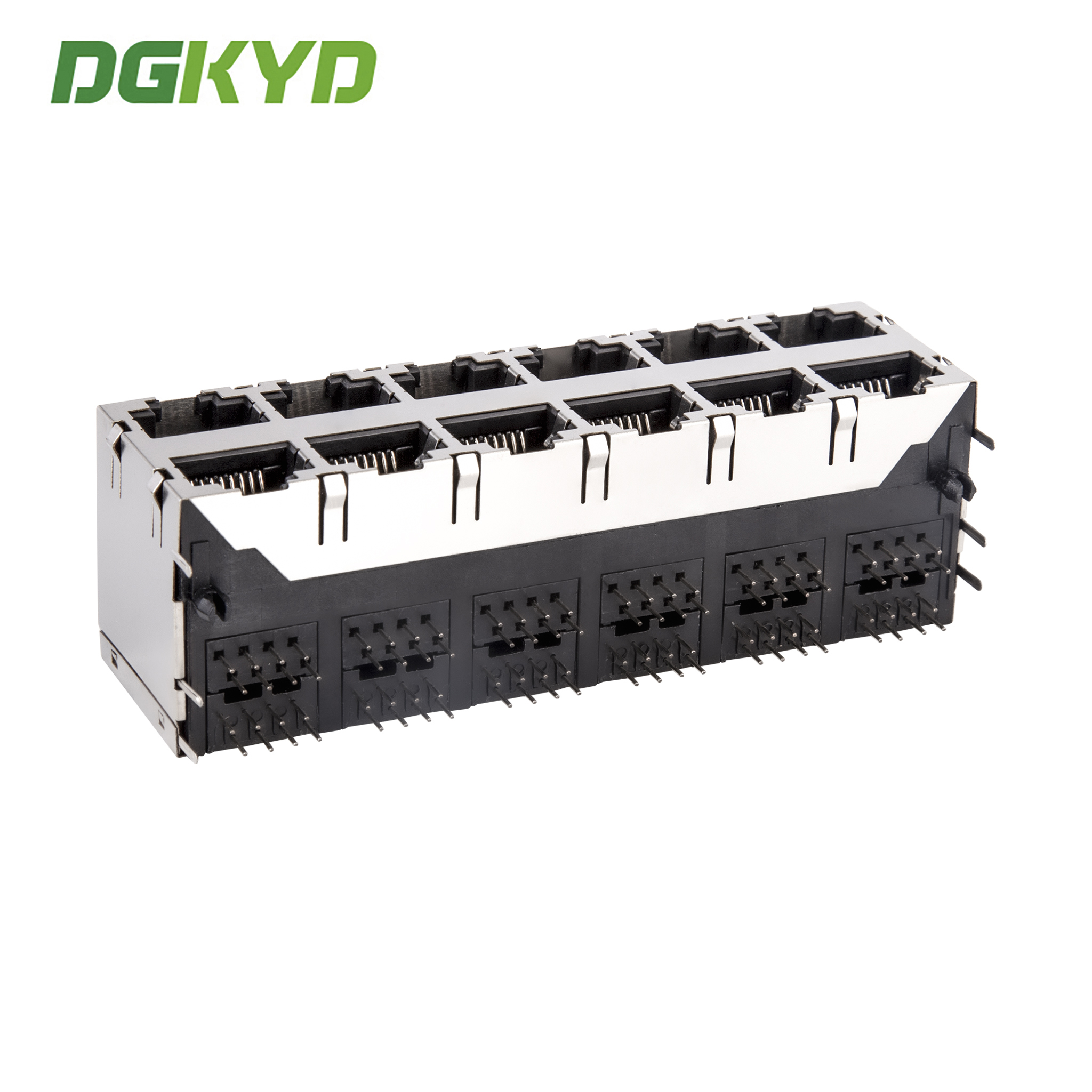

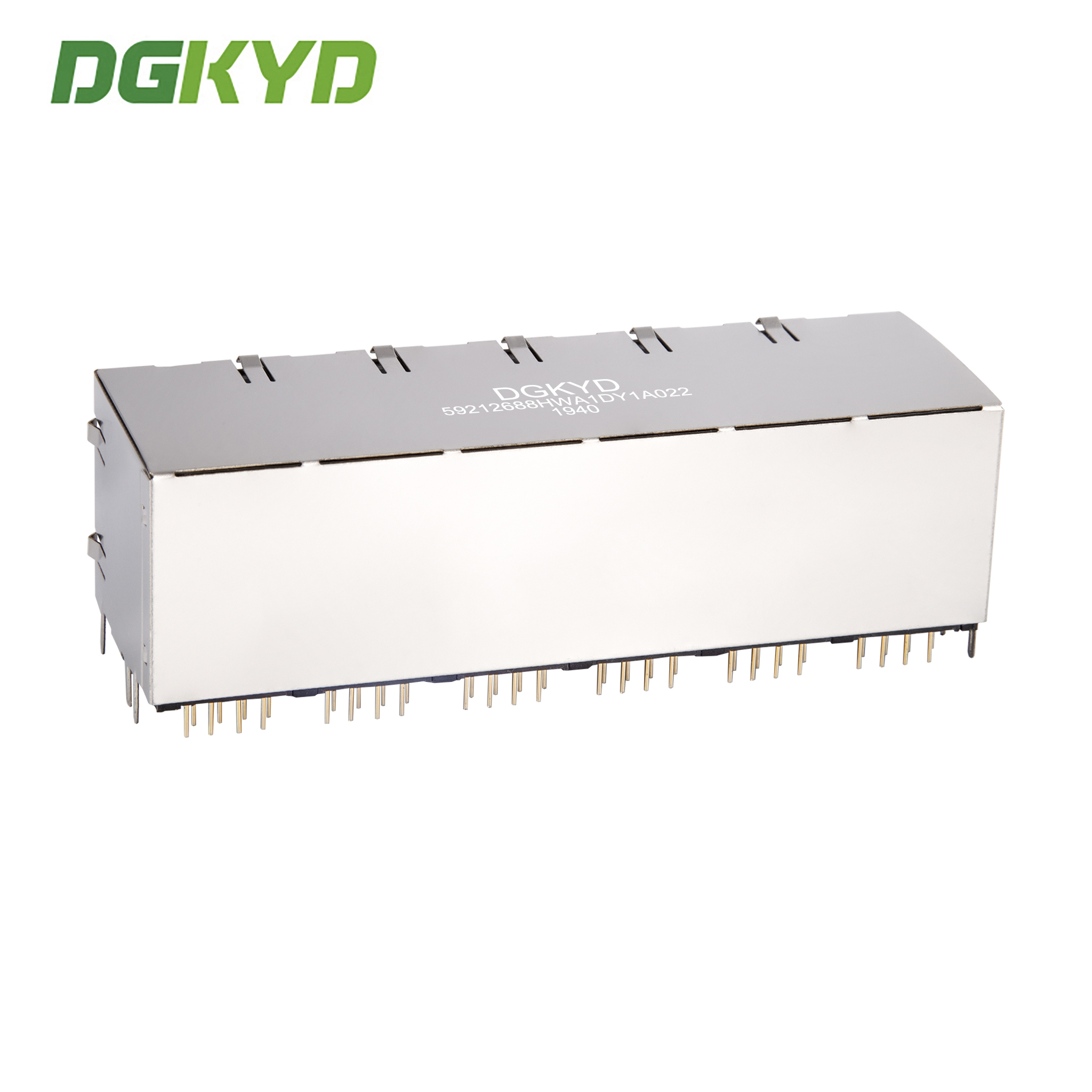

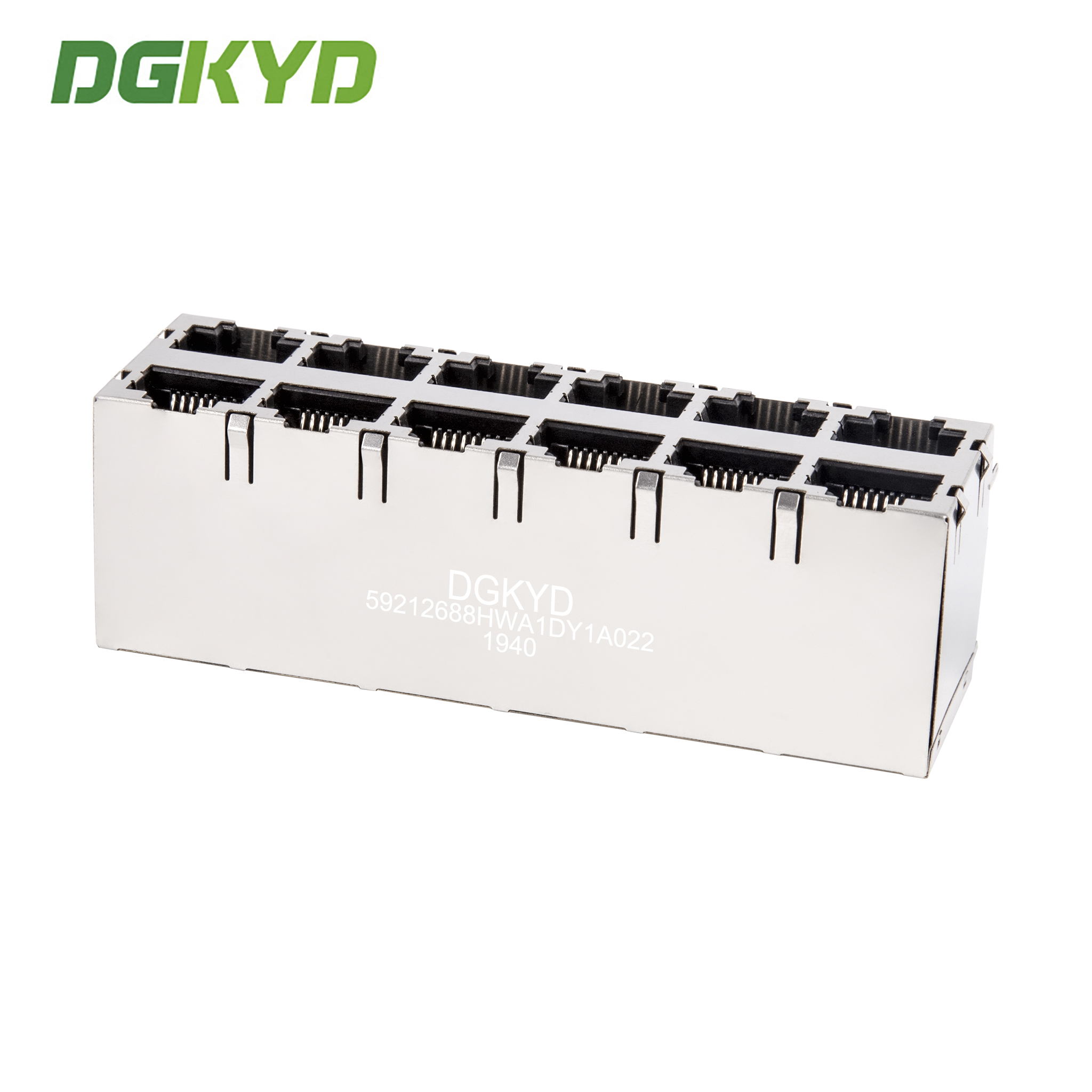

RJ45 multi port female connector 2X6 network interface socket DGKYD59212688HWA1DY1A022
Product Specification Document: DGKYD59212688HWA1DY1A022.pdf
| Part Number | DGKYD59212688HWA1DY1A022 | Brand | DGKYD/OEM/ODM |
|---|---|---|---|
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP/DOWN |
| Filter | Without Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printed Circuit Board |
| Port Configuration | 2X6 Ports | Number of Positions | 8 |
| Jack Configuration | 2X6 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold G/Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
A: We are manufacture. Welcome to our factory.
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
