Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

最小注文数量 :	1	価格 :	$0.51-0.85

起源の場所:	中国広州	ブランド名:	DGKYD
モデル番号:	KRJ-406CNL

詳細情報
タイプ:	RJ45	性別:	女性
住宅資料:	PBTの黒	めっきに連絡してください:	ゴールド6U ''
シールド材:	ニッケルとpreplated銅合金	LED オプション:	LED付き
LED色:	緑及び黄色	連絡先数:	8
変圧器の選択:	変圧器を使って	性能の速度:	10/100 ベース-T
ポート構成:	シングル	終了方法:	スルーホールプレスフィット
取り付けスタイル:	穴を通して	取り付け方向:	サイドエントリ（直角）
ULの燃焼性の評価:	UL 94V-0
ハイライト:	Industrial RJ45 female connector with LED , 8P8C RJ45 connector 10/100 Base-T , Single port RJ45 connector with warranty

製品の説明

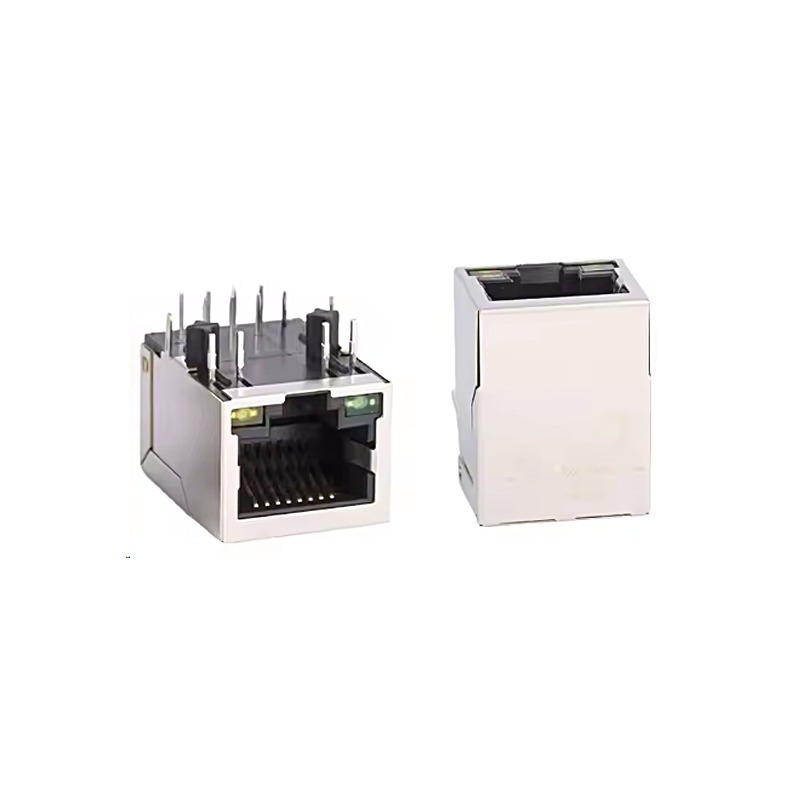

Industrial Grade 10/100 Base T Ethernet Connectors

Surface Mount CAT5E RJ45 Female Connector with LEDs and Integrated Magnetics PCB

High-performance industrial-grade RJ45 connector designed for 10/100 BASE-T Ethernet applications. Features integrated magnetics, LED indicators, and robust construction for reliable operation in demanding environments.

Product Specifications

Part Number	KRJ-406CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Down
Filter	With Filter
LED Option	With LED
LED Color	Green & Yellow
Shielded	Yes
Performance Speed	10/100 BASE-T
Port Configuration	Single
Number of Positions	8
Shield Material	Copper Alloy preplated with Nickel

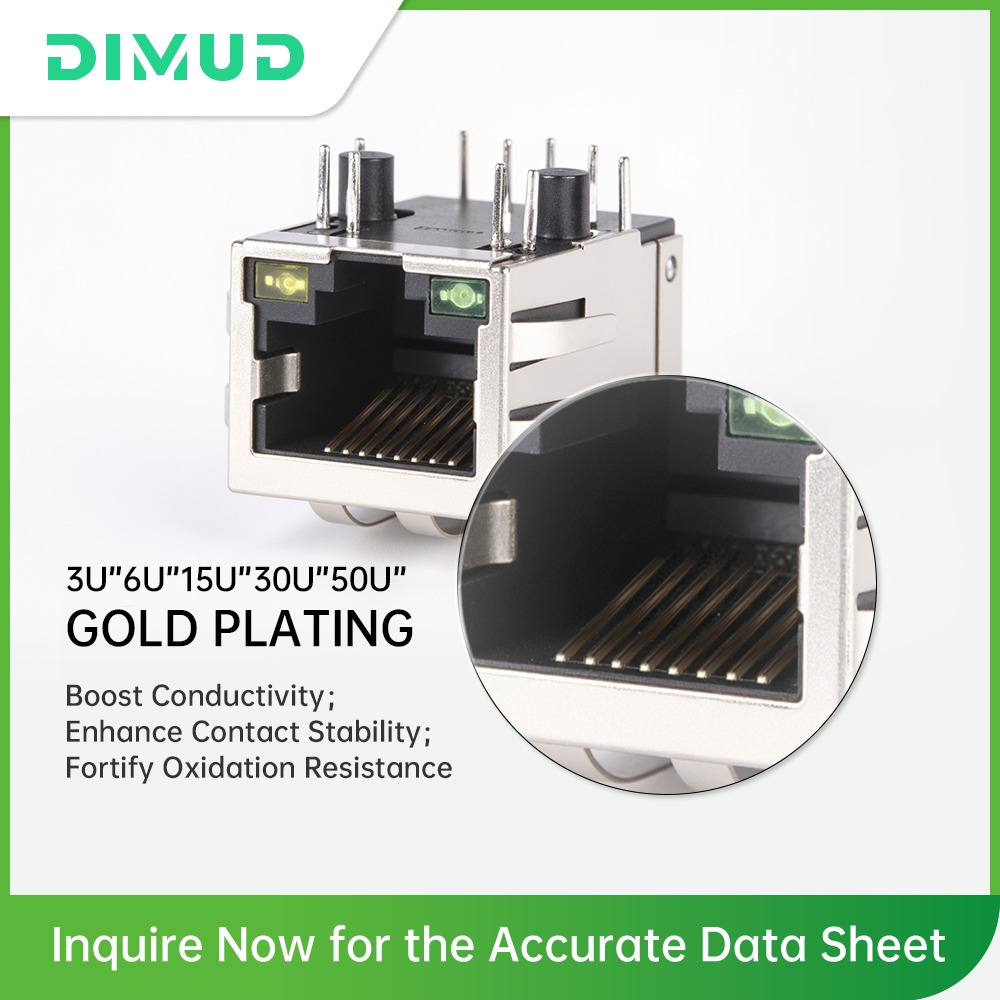

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u for optional
Contact Base Material	Phosphor Bronze
Housing Material	PBT Polyester
UL Flammability Rating	UL 94V-0

Product Images
