| 最小注文数量 : | 1 | 価格 : | $0.20-0.30 |
|---|
| 起源の場所: | 中国広州 | ブランド名: | DGKYD |
|---|---|---|---|
| モデル番号: | DGKYD52241188AC2A3DY1027、ジャックコネクタ |
|
詳細情報 |
|||
| タイプ: | RJ45,ヘッダーとPCB容器 | LED色: | 緑/黄色 |
|---|---|---|---|
| メッキ: | ゴールドメッキg/fu | 住宅資料: | PA46 ポリエステル |
| 掛け金様式: | スタンダード | ラッチ: | タブアップ |
| フィルター: | フィルターなし | LED オプション: | LED付き |
| 性能の速度: | 10/100/1000/10Gベース-T | ポジション数: | 8 |
| 港ごとのターミナル: | 8 | シールド材: | ニッケルとpreplated銅合金 |
| 交尾めっきに連絡してください: | ゴールドG/FU | 接触基材: | リン青銅 |
| 動作温度: | -40°C ~ 85°C | ||
| ハイライト: | RJ45 connector with LED,PCB mount RJ45 connector,8P8C RJ45 connector green yellow |
||
製品の説明

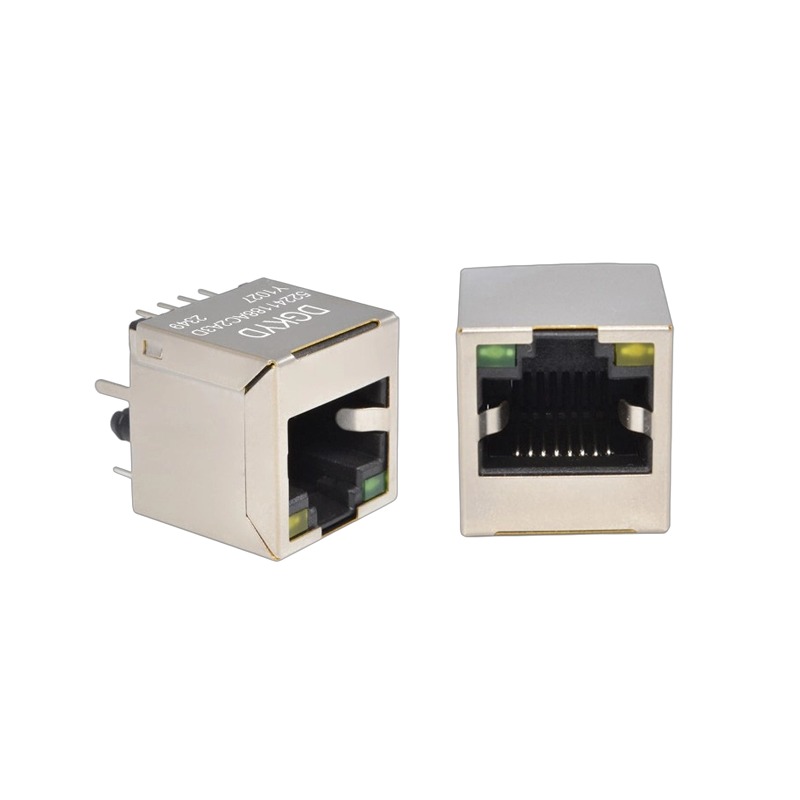

This 180 degree direct insertion RJ45 connector (8P8C) features LED lights and is designed for network interface applications. The part number is DGKYD52241188AC2A3DY1027.
| Part Number | DGKYD52241188AC2A3DY1027 |
|---|---|
| Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China |
| Certification | IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | Without Filter |
| LED Option | With LED |
| LED Color | Green/Yellow |
| Panel Stops | With Panel Stops |
| Shielded | Yes |
| Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000/10G BASE-T |
| Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single ports |
| Number of Positions | 8 |
| Jack Configuration | 1 x 1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |

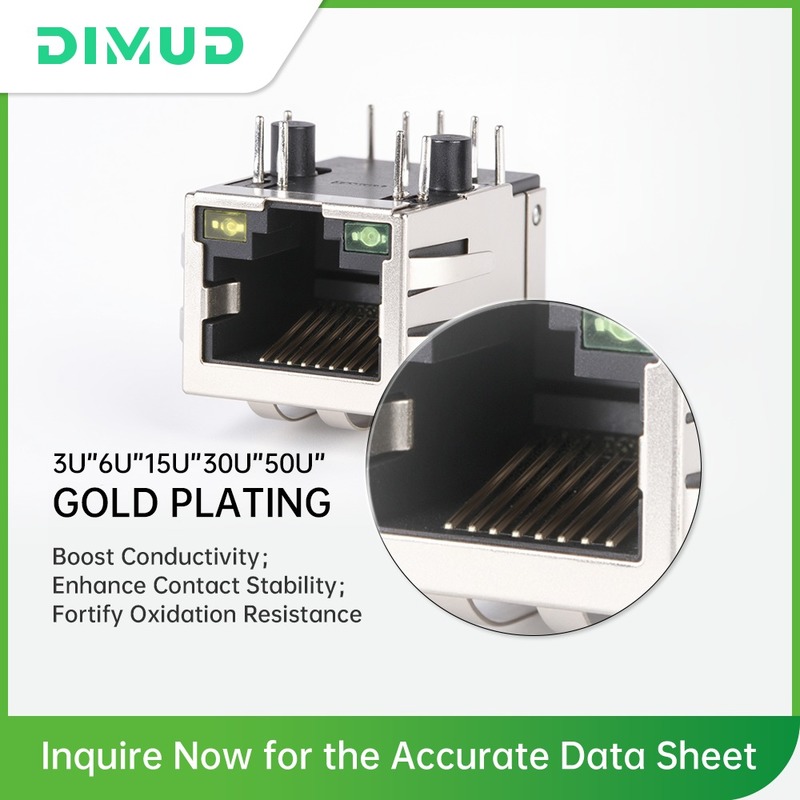

| Contact Mating Area Plating Material | Gold G/Fu |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PA46 Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
