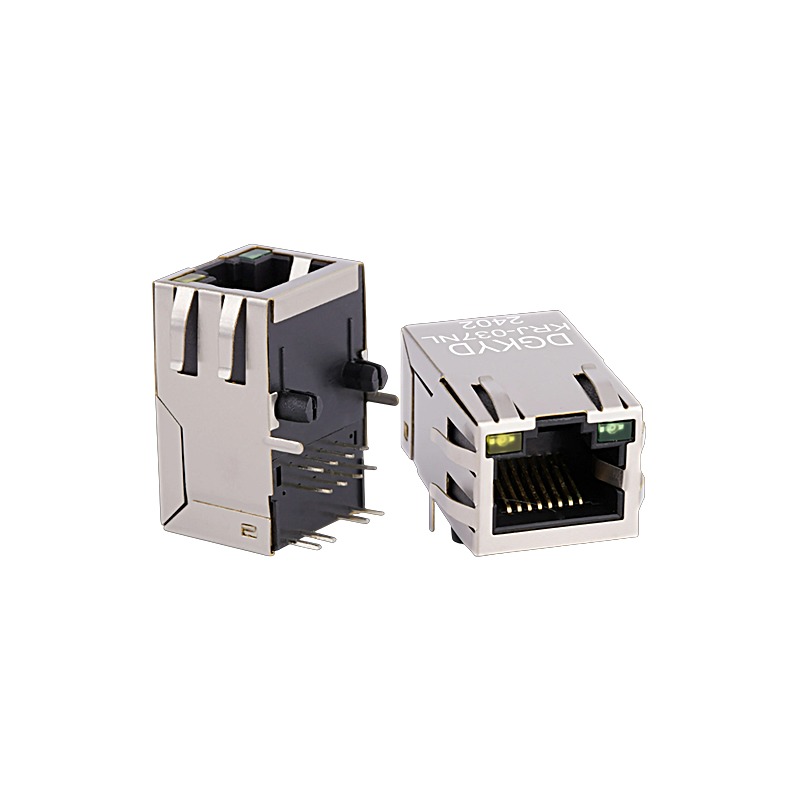

RJ45 Single Port Connector 100Mbps with LED Yellow Green for PCB

最小注文数量 :	1	価格 :	$0.54-0.70

起源の場所:	中国広州	モデル番号:	KRJ-037NL

詳細情報
タイプ:	RJ45	パッケージング:	浸漬
性別:	女性	住宅資料:	PBTの黒
LED オプション:	Yellow&Green	ラッチ:	上
ポートの数:	1	連絡先数:	8
PCBの台紙の角度:	側面の記入項目	台紙様式:	穴を通して
性能の速度:	10/100/1000/10Gベース-T	ポート構成:	シングル
ジャック構成:	1 x 1	港ごとのターミナル:	8
シールド材:	ニッケルとpreplated銅合金
ハイライト:	RJ45 single port connector 100Mbps , RJ45 PCB connector with LED , yellow green LED RJ45 connector

製品の説明

Factory Direct Supply: Single Port, 100Mbps, LED - Equipped & Shielded RJ45 Transformer for Computer Connectors

Product Specifications

Part Number	KRJ-037NL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Up
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With/Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)

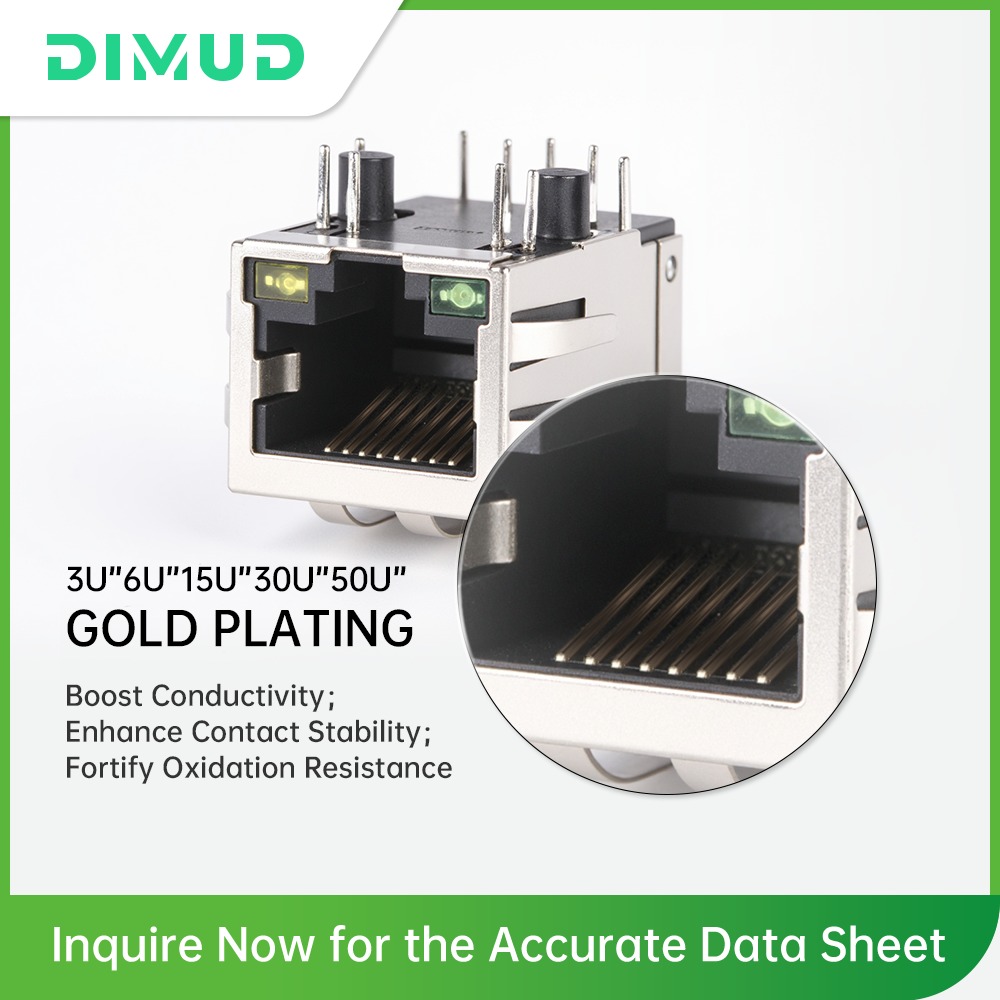

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0
