| 最小注文数量 : | 1 | 価格 : | $0.90-1.50 |
|---|
| 起源の場所: | 中国広州 | ブランド名: | DGKYD |
|---|---|---|---|
| モデル番号: | DGKYD811B198FF5A10DQ057 |
|
詳細情報 |
|||
| タイプ: | RJ45 | パッケージング: | 浸漬 |
|---|---|---|---|
| 性別: | 女性 | 住宅資料: | LCPの黒 |
| LED オプション: | 緑オレンジ/黄色 | ラッチ: | 上 |
| ポートの数: | 1 | 連絡先数: | 8 |
| PCBの台紙の角度: | 側面の記入項目 | 台紙様式: | 穴を通して |
| 性能の速度: | 10/100Base-T | ポート構成: | シングル |
| ポジション数: | 6 | 港ごとのターミナル: | 8 |
| シールド材: | ニッケルとpreplated銅合金 | ||
| ハイライト: | RJ45 single port connector 100Mbps,RJ45 connector with dual-color LED,single port RJ45 with warranty |
||
製品の説明
Dual-Color LED with pins 1, 2, 3, 7, 8, 9 excluded for specialized network applications.

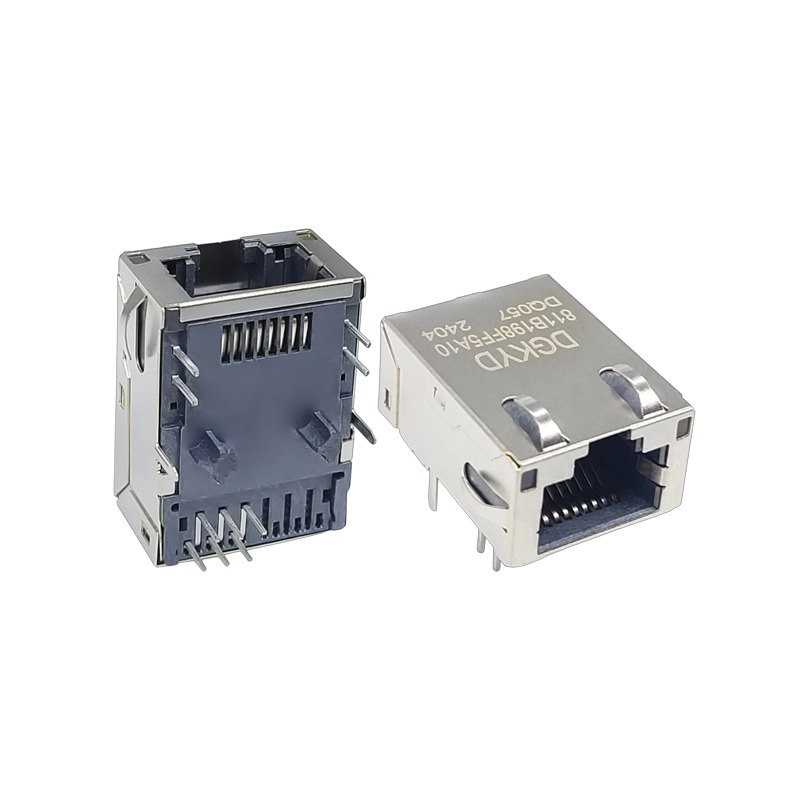

| Part Number | DGKYD811B198FF5A10DQ057 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Up |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green-Orange/Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100BASE-T | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single | Number of Positions | 6 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |

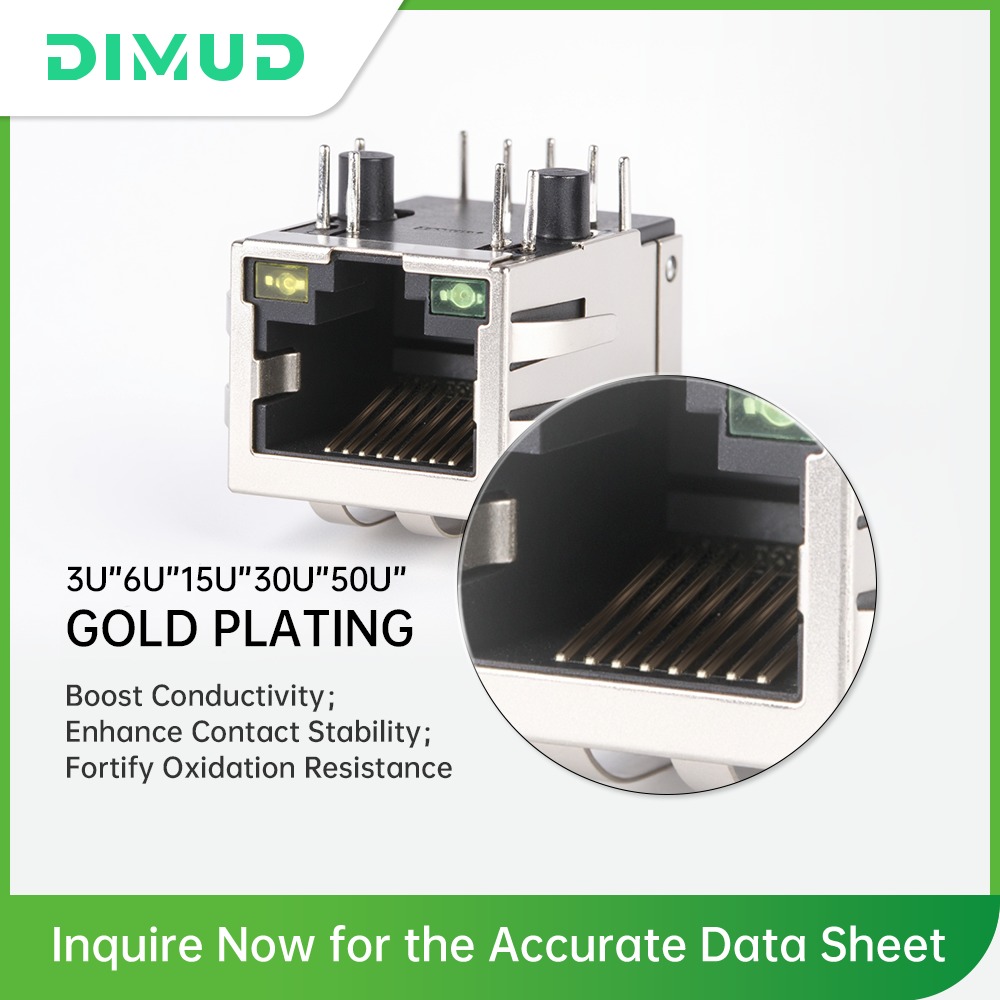

| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
