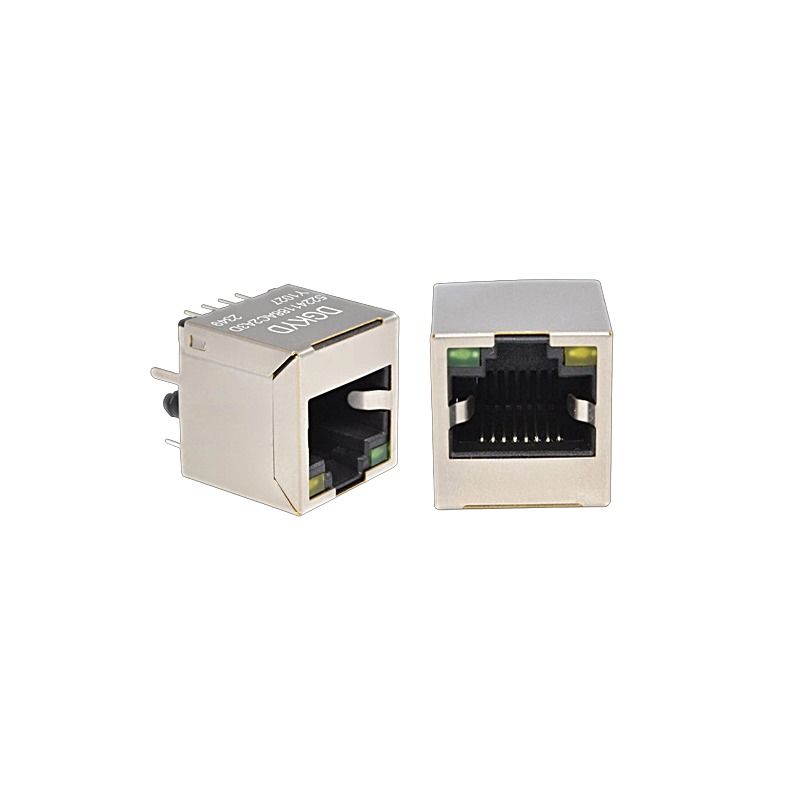

DGKYD RJ45 Connector 8P8C with LED Green/Yellow -40℃ to 85℃

最小注文数量 :	1	価格 :	$0.20-0.30

起源の場所:	中国広州	ブランド名:	DGKYD
モデル番号:	DGKYD52241188AC2A3DY1027、ジャックコネクタ

詳細情報
タイプ:	RJ45,ヘッダーとPCB容器	LED色:	緑/黄色
メッキ:	ゴールドメッキg/fu	住宅資料:	PA46 ポリエステル
掛け金様式:	スタンダード	フィルター:	フィルターなし
LED オプション:	LED付き	シールド:	はい
性能の速度:	10/100/1000/10Gベース-T	ポジション数:	8
シールド材:	ニッケルとpreplated銅合金	めっきに連絡してください:	ゴールドG/FU
接触基材:	リン青銅	終了方法:	スルーホールプレスフィット
動作温度:	-40 ℃ \| 85 ℃
ハイライト:	RJ45 connector with LED , 8P8C RJ45 connector -40℃ to 85℃ , single port RJ45 connector green/yellow

製品の説明

High-Quality 180° Straight Insertion 8P8C Modular RJ45 Network Connector with LED Strip

This shielded RJ45 connector features a modular design with LED indicators, panel stops, and high-performance capabilities for 10/100/1000/10G BASE-T networks. The filter-free design ensures reliable data transmission in industrial applications.

Product Specifications

Part Number	DGKYD52241188AC2A3DY1027
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong, China
Certifications	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Modular Connector
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard TAB-UP
LED Options	Green/Yellow LED indicators
Shielded	Yes (Copper Alloy with Nickel plating)
Performance Speed	10/100/1000/10G BASE-T
Mounting Orientation	Side Entry (Right Angle)

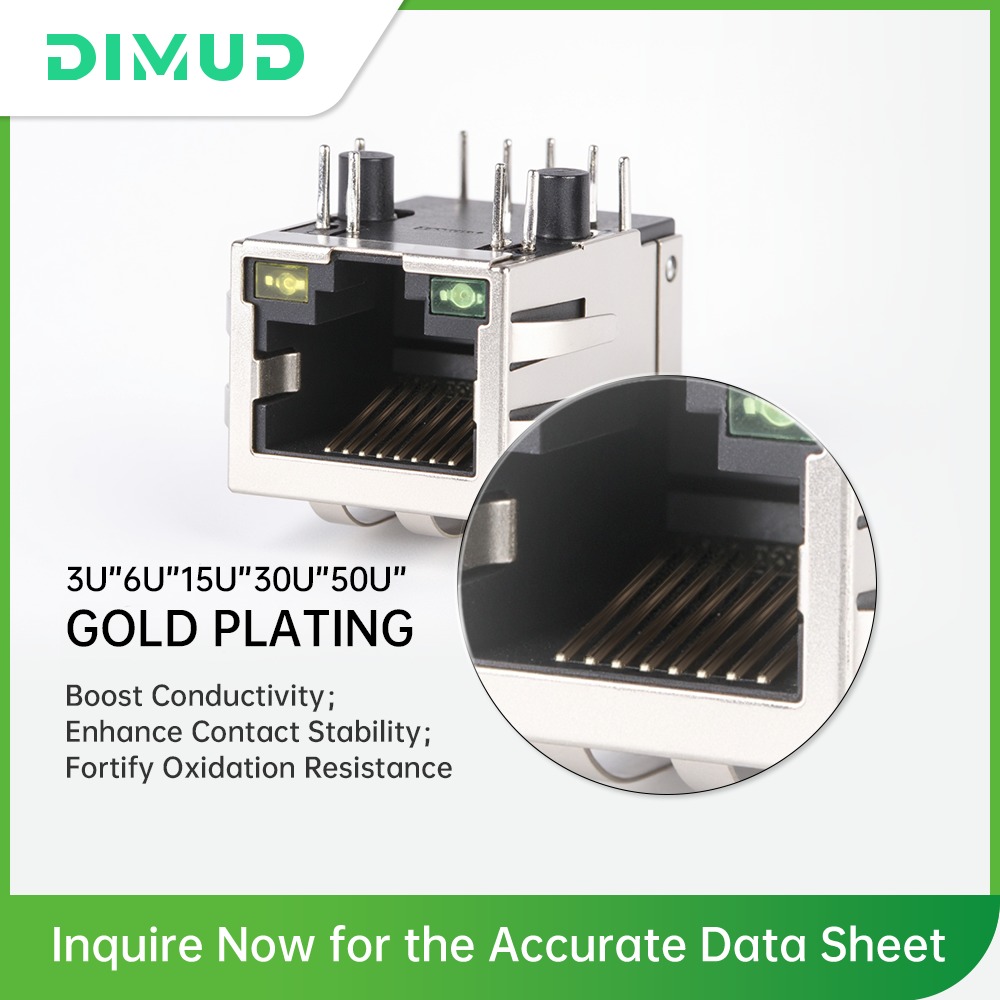

Contact Plating	Gold G/Fu (mating area), Tin-Lead over Nickel (solder tail)
Housing Material	PA46 Polyester (UL 94V-0 rated)

Key Features

180° straight insertion design for easy installation
Modular construction with panel stops for secure mounting
Dual-color LED indicators (Green/Yellow) for status monitoring
Shielded design with copper alloy for EMI protection
High-performance contacts with gold plating for reliable connections
Through-hole PCB mounting with press-fit termination
UL 94V-0 rated flame-resistant housing
Compatible with 10G BASE-T networks

Product Images

Applications

This industrial-grade RJ45 connector is ideal for network equipment, telecommunications devices, industrial automation systems, and any application requiring reliable high-speed data transmission in demanding environments.
