| 最小注文数量 : | 1 個 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | トレイ 紙箱 | 受渡し時間 : | 10日 |
| 支払条件 : | T/T,D/P,D/A,L/C,ウェスタンユニオン,マネーグラム | 供給の能力 : | 100万個/日 |
| 起源の場所: | 中国のドングアン | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | DGKYD211Q066GWA7CBST6057 について |
|
詳細情報 |
|||
| 適用:: | イーサネット | 性能速度:: | 0/100/1000BASE-T |
|---|---|---|---|
| PCBの台紙:: | 直角SMD | 規格:: | IEEE802.3ab |
| コンタクトプレート: | 6u glodのめっき | ロック: | タブアップ |
| ピン: | 10ピン | フィルター: | フィルターを使って |
| 住宅用材料: | LCPの黒 | 動作温度: | -40℃～+85℃ |
| ハイライト: | RJ45 Integrated Connector Without Light,RJ45 1000base Integrated Connector,RJ45 Patch Network Interface |
||
製品の説明

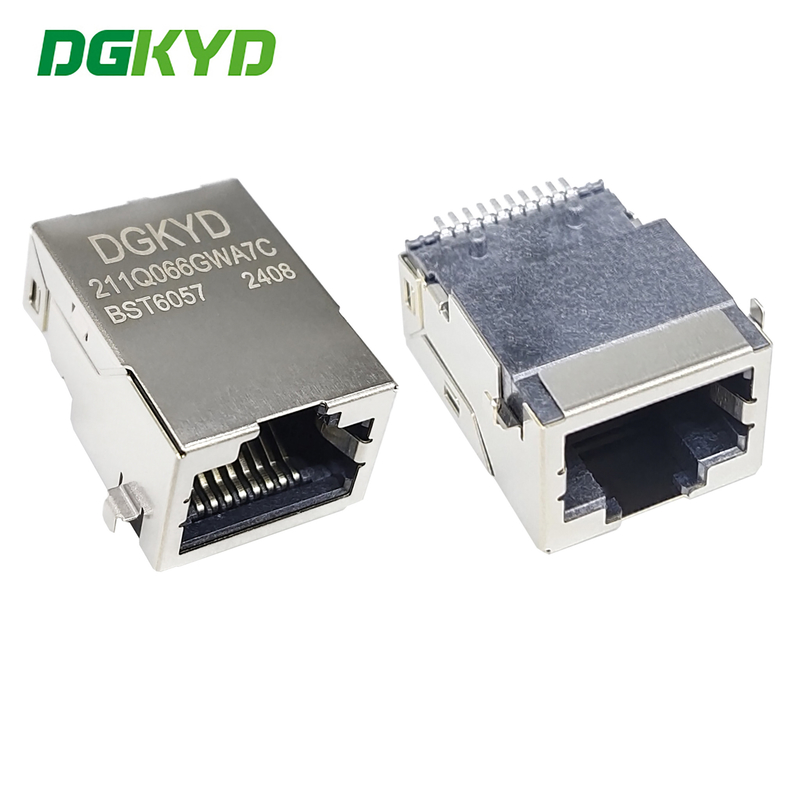

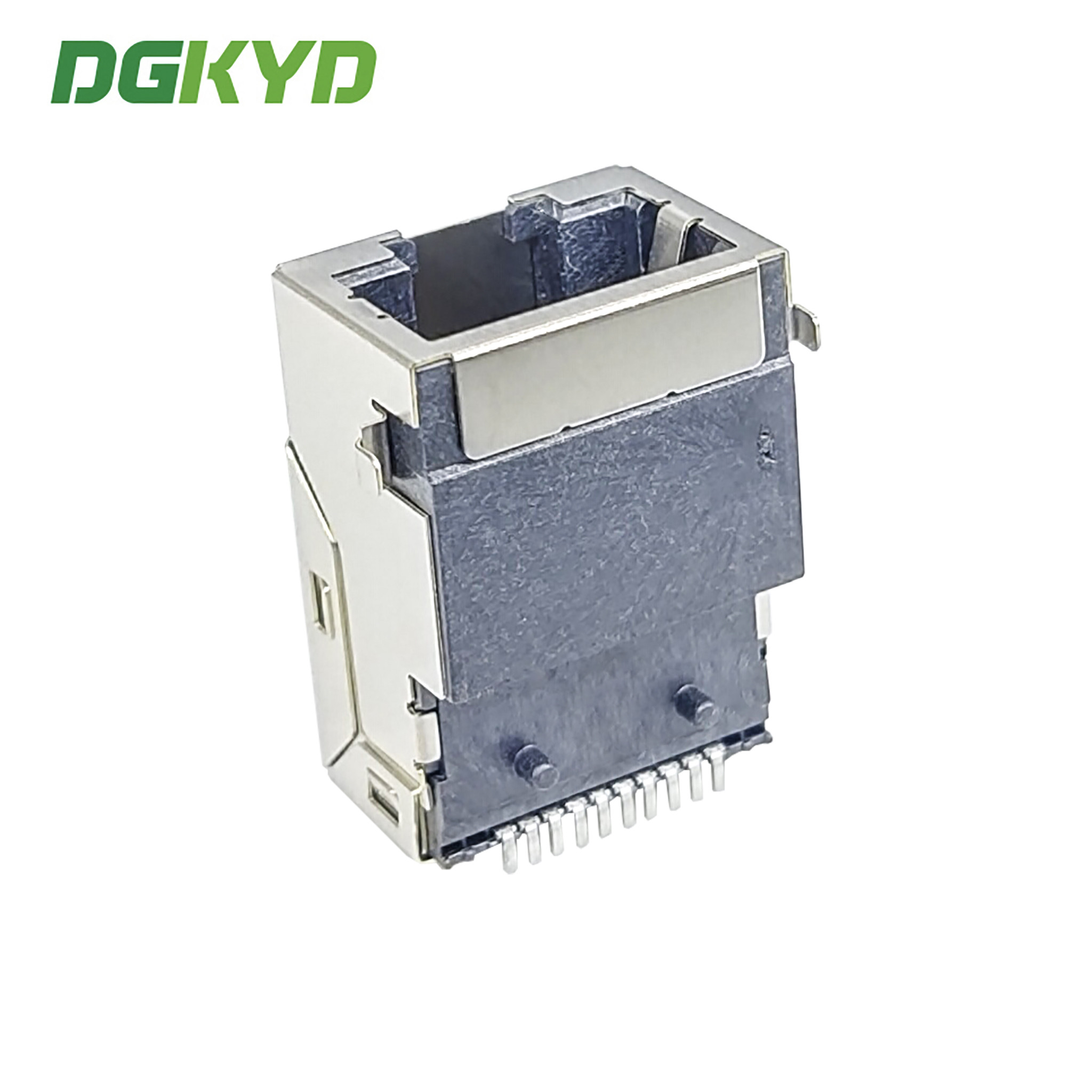

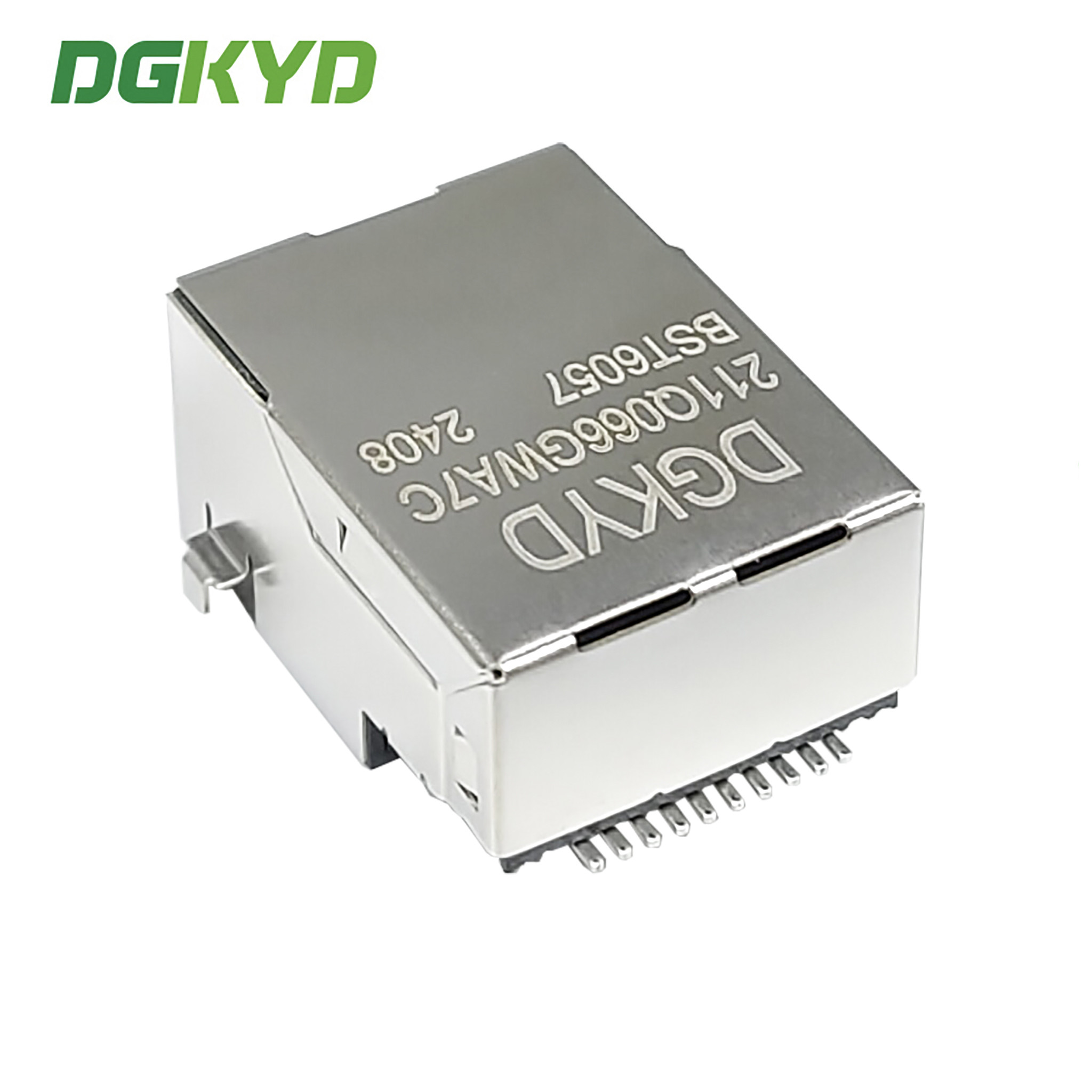

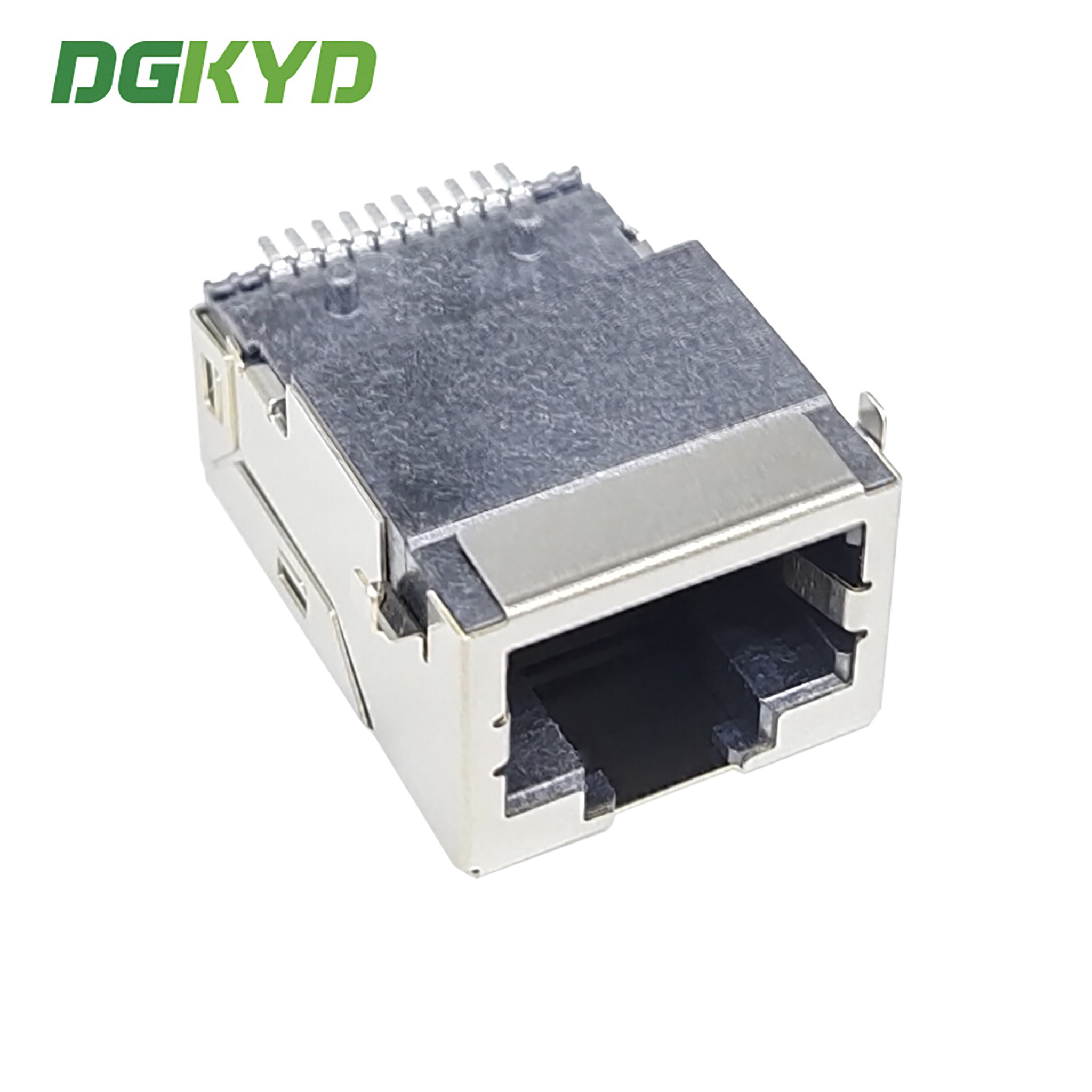

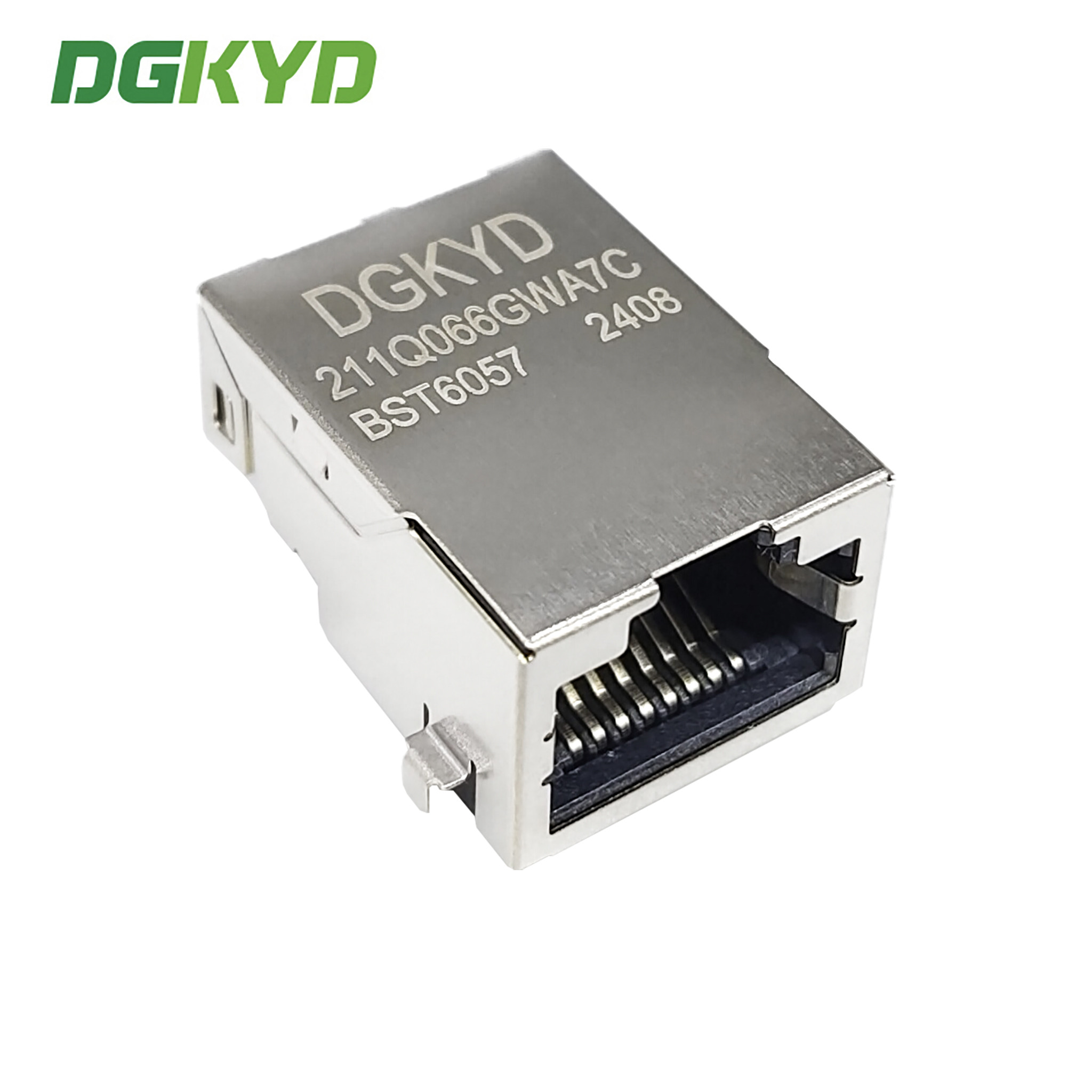

Product Specification Document
| Part Number | DGKYD211Q066GWA7CBST6057 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Down&Up |
| Filter | With Filter | LED Option |
Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | single ports | Number of Positions | 10 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
| Packaging Type | Tray |
|---|---|
| Panel Mount | Spring |
| Plating min - Mating | 0.051µm (Au), 1.016µm (PdNi) |
| Ports | 1 |
| Positions / Loaded Contacts | 10/8 |
| Surface Mount Compatible (SMC) | No |
| Temperature Range - Operating | -40°C to +85°C |
| Termination Interface: Style | SMD |
