| 最小注文数量 : | 1 個 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | トレイ 紙箱 | 受渡し時間 : | 10日 |
| 支払条件 : | T/T,D/P,D/A,L/C,ウェスタンユニオン,マネーグラム | 供給の能力 : | 100万個/日 |
| 起源の場所: | 中国のドングアン | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | KRJ-215GYZNL |
|
詳細情報 |
|||
| 特徴: | 磁気学およびLEDとの高性能 | RJ45 適切: | CAT5&6 イーサネット ケーブルまたは UTP 用 |
|---|---|---|---|
| アプリケーション: | LAN、橋、PC、ルーター、usbのハブ ネットワークrj45およびすべてのイーサネット装置 | 製品名: | rj45イーサネット ポート |
| ピン数: | 8 | 中心の数: | 8 |
| 接触ピンの金張り: | 6U | 動作温度: | -40℃～+85℃ |
| トランスフォーマー: | 変圧器を使って | Housing Material: | PBTの黒 |
| ハイライト: | Metal Shielded Rj45 Network Connectors,KRJ-215GYZNL,Dual Port Rj45 Network Connectors |
||
製品の説明
Drawing

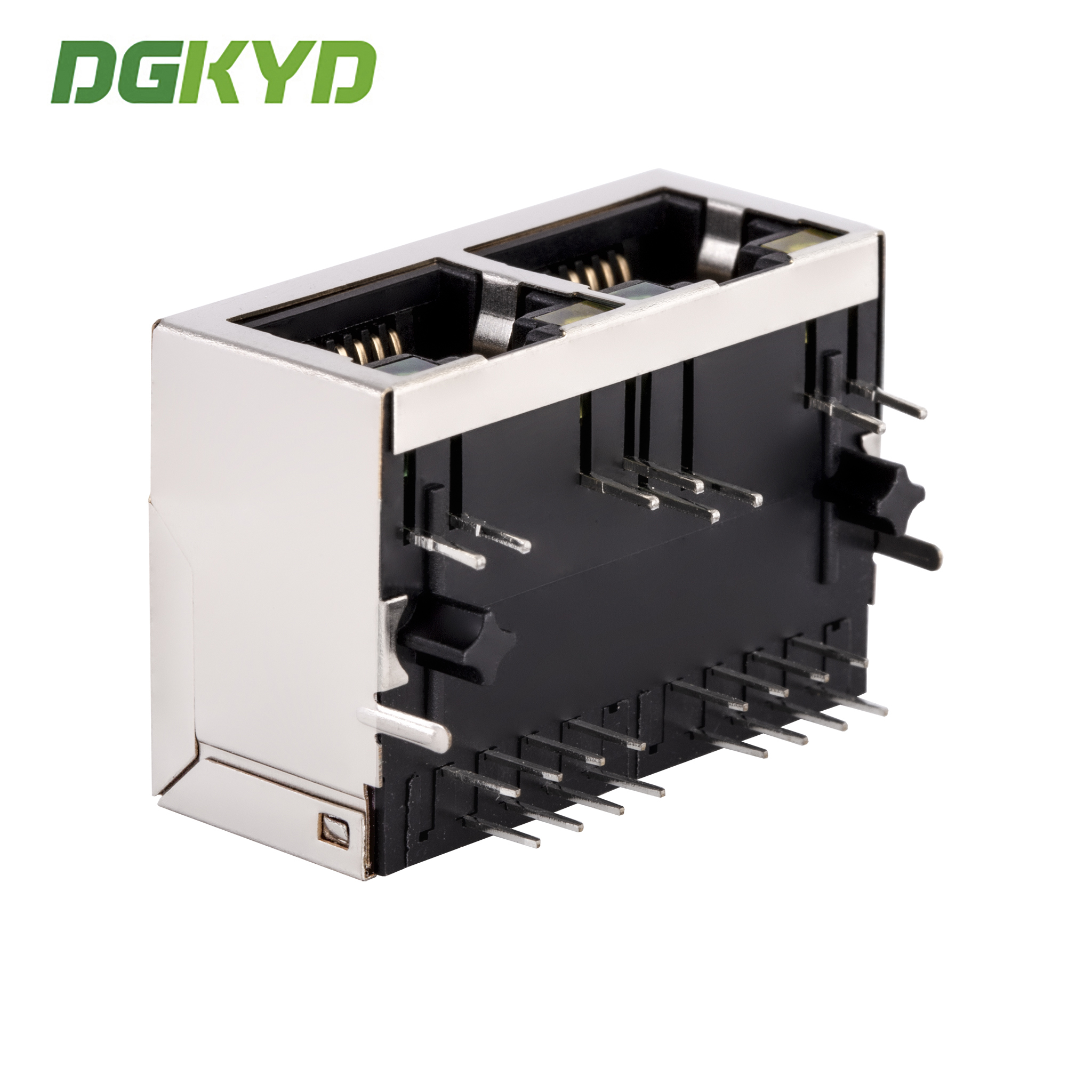

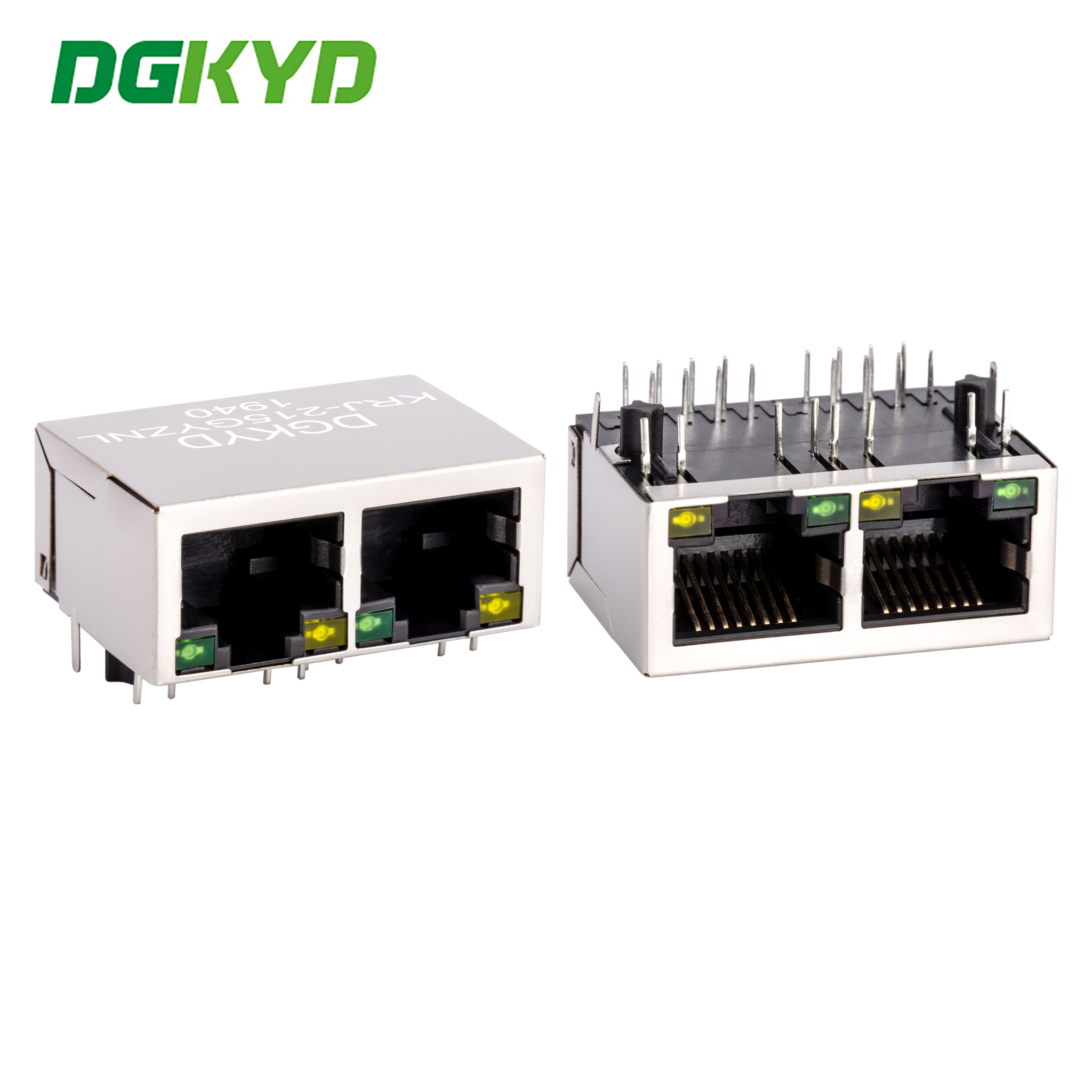

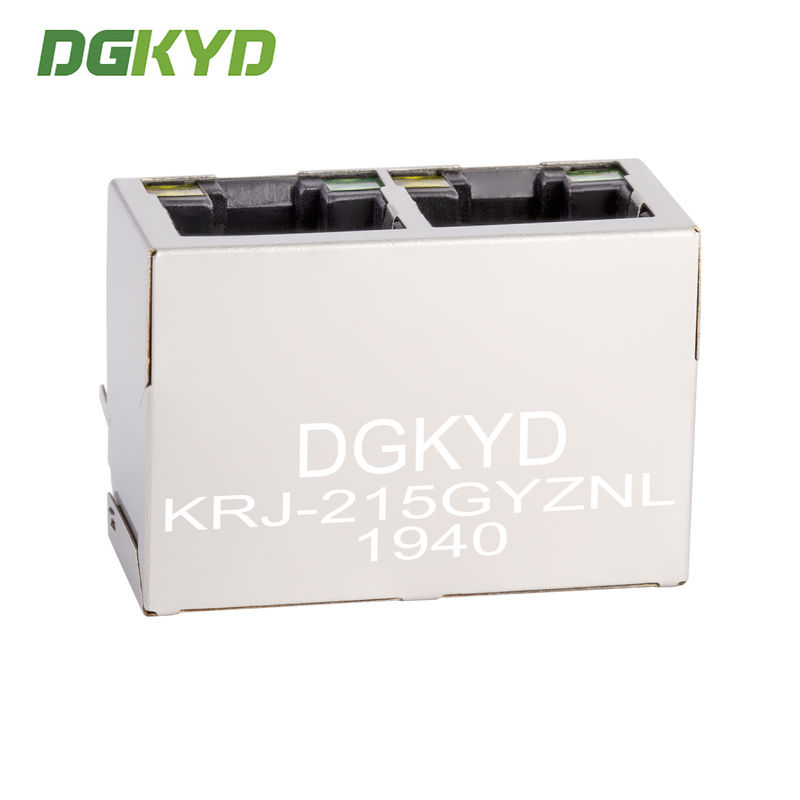

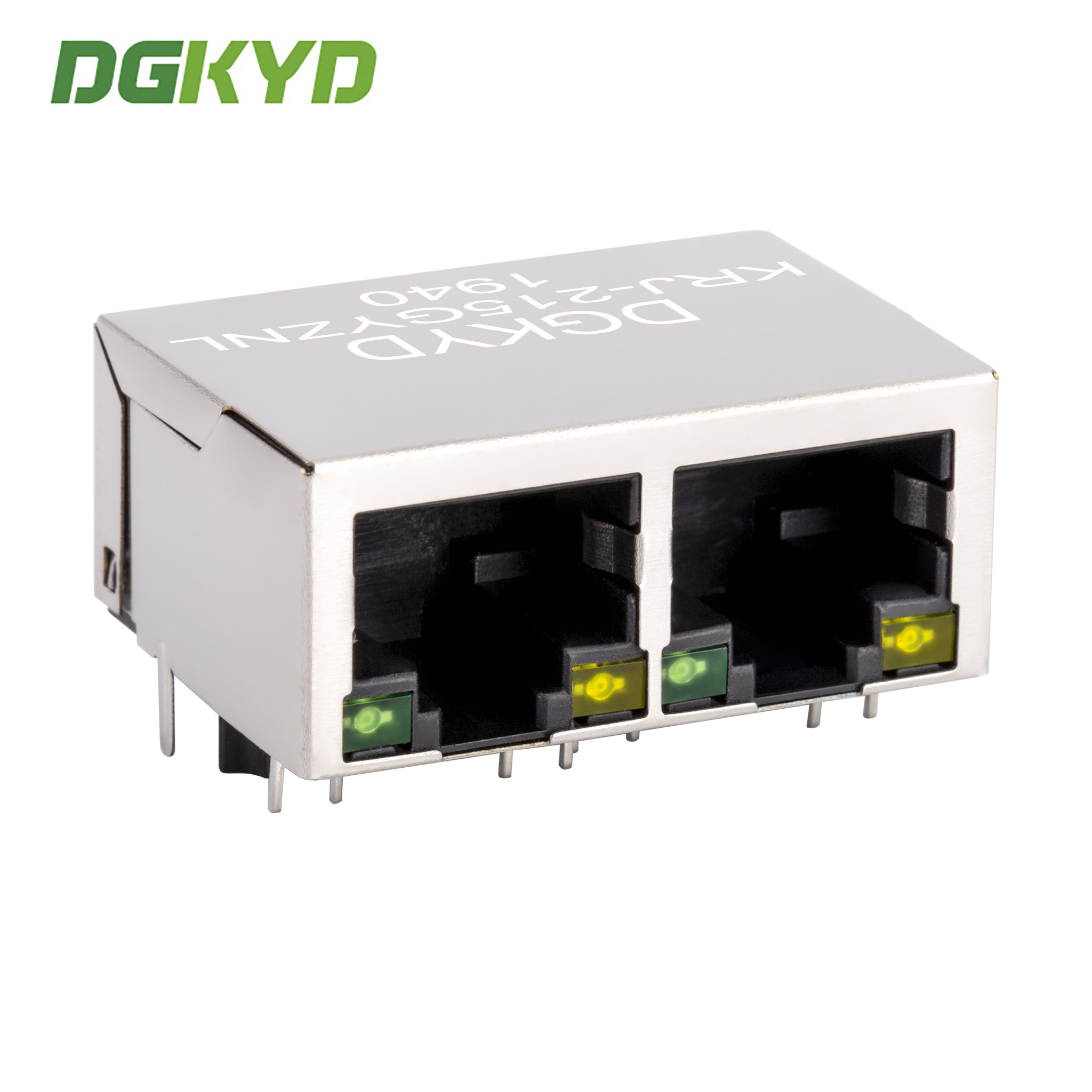

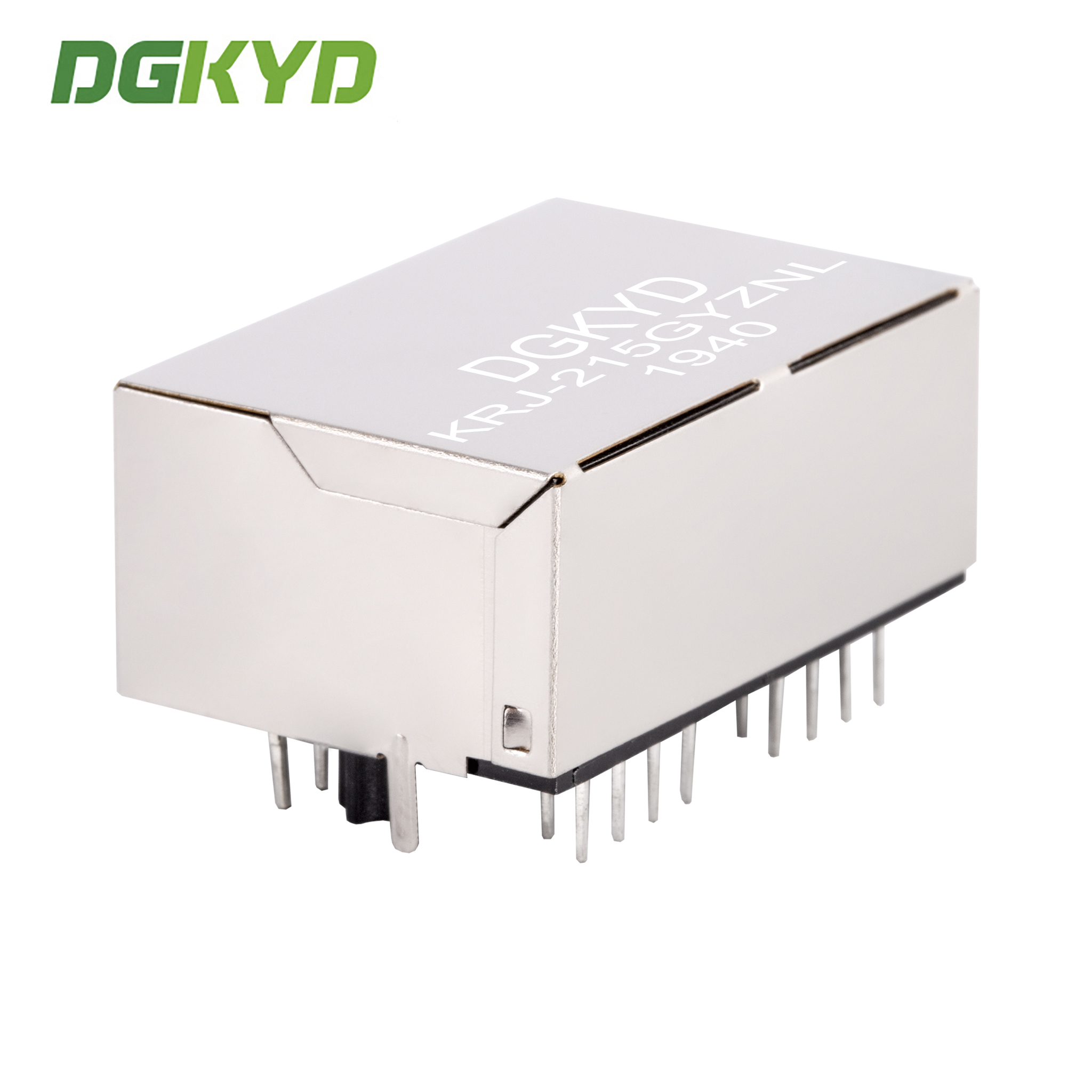

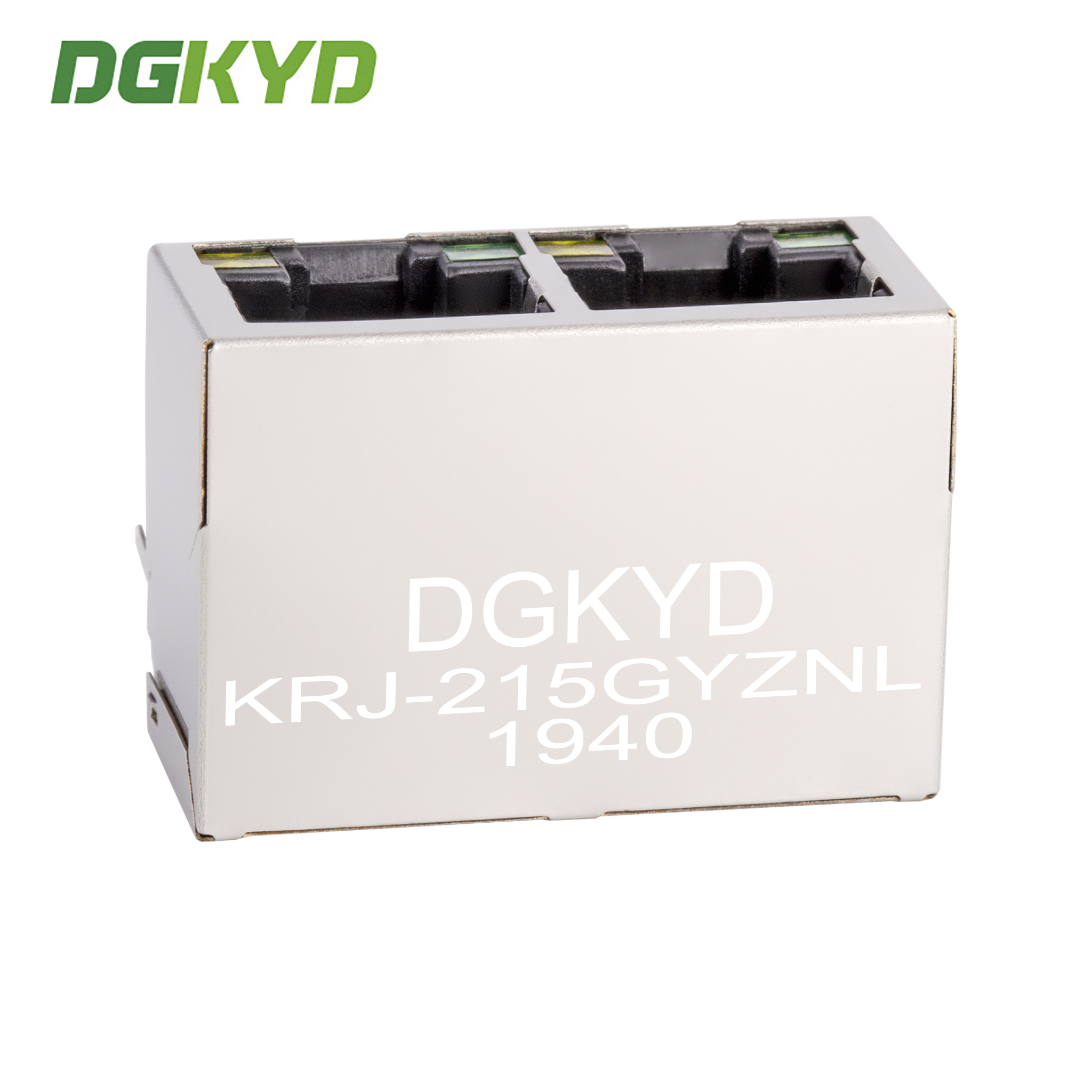

Network Connectors Rj45 Metal Shielded CAT 5 Dual Port Rj45 Ethernet Port G/Y Led KRJ-215GYZNL
Product Specification Document
KRJ-215GYZNL.pdf
Paramters
| Part Number | KRJ-215GYZNL | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | 1X2 Ports | Number of Positions | 8 |
| Jack Configuration | 1X2 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature:- 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
