| 最小注文数量 : | 1 |
|---|
| 起源の場所: | 中国広州 | モデル番号: | DGKYD511Q030AC1A8D057 |
|---|
|
詳細情報 |
|||
| タイプ: | RJ45 | 性別: | 女性 |
|---|---|---|---|
| LED色: | 黄色及び緑 | メッキ: | 金メッキ6U/15U/30U/50U |
| 住宅資料: | PBTポリエステル | フィルター: | フィルターを使って |
| ラッチ: | 上 | ポートの数: | 1ポート |
| 台紙様式: | 穴を通して | 性能の速度: | 10/100/1000ベース-T |
| 固定オプション: | パネルの地面およびPCBの地面 | 港ごとのターミナル: | 8 |
| シールド材: | ニッケルとpreplated銅合金 | 交尾めっきに連絡してください: | ゴールド6Uメッキ |
| 接触基材: | リン青銅 | ||
| ハイライト: | Industrial Gigabit RJ45 connector,RJ45 vertical plug with LED,Single port RJ45 connector |
||

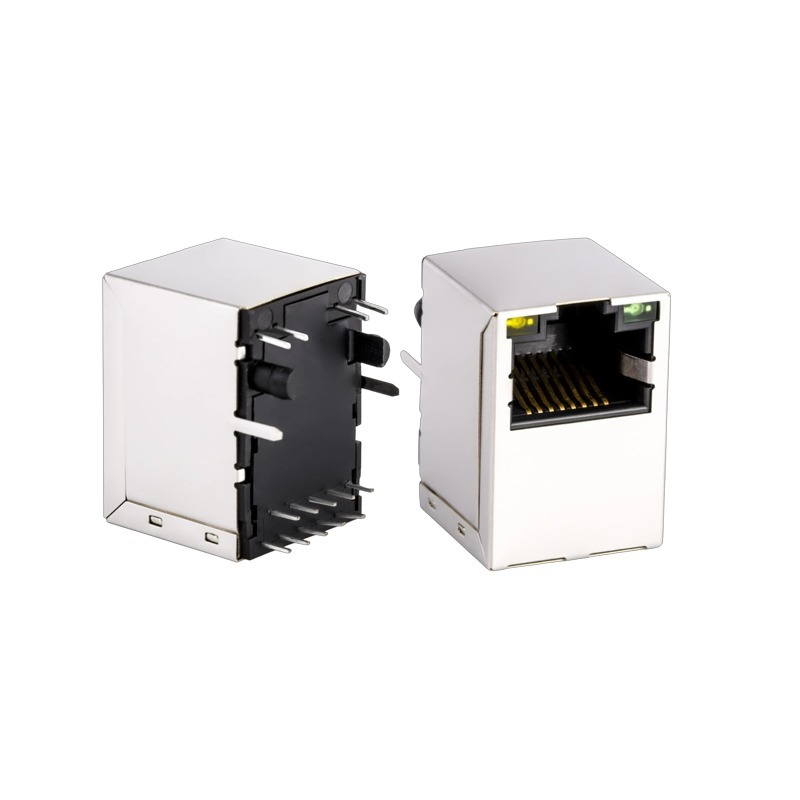

製品の説明
| Specification | Details |
|---|---|
| Part Number | DGKYD511Q030AC1A8D057 |
| Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China |
| Certification | IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Connector Assembly |
| Latch Style | Standard |
| Latch | Up |
| Filter | With Filter |
| LED Option | With LED |
| LED Color | Yellow & Green |
| Panel Stops | With Panel Stops |
| Shielded | YES |
| Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T |
| Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single ports |
| Number of Positions | 10 |
| Jack Configuration | 1*1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |

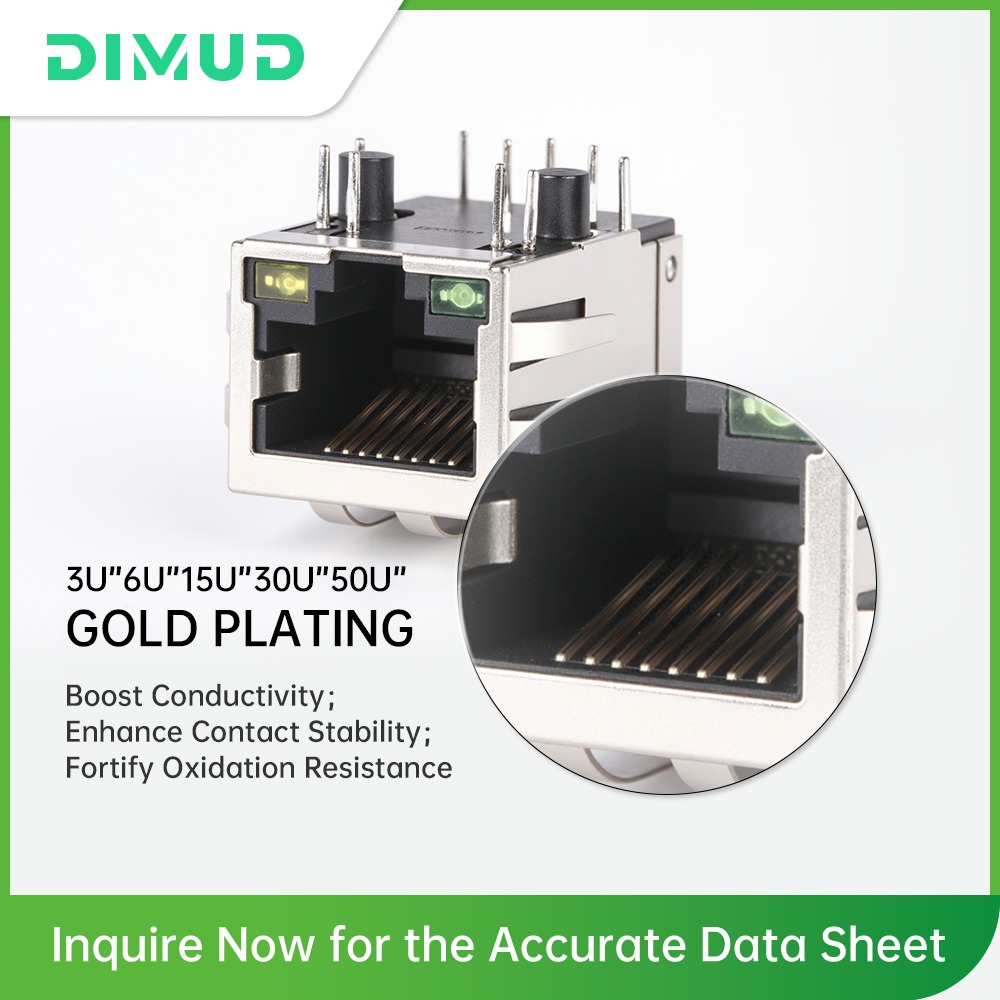

| Contact Mating Area Plating Material | Gold 6u plating |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
