| 最小注文数量 : | 1 | 価格 : | $0.19-0.32 |
|---|
| 起源の場所: | 中国広州 | モデル番号: | KRJ-56S8P8C1X1YGENL |
|---|
|
詳細情報 |
|||
| コネクタタイプ: | RJ45 | 性別: | 女性 |
|---|---|---|---|
| 住宅資料: | PA46 | めっきに連絡してください: | 金 6u/15u/30u/50u |
| シールド材: | ニッケルとpreplated銅合金 | LED色: | 緑及び黄色 |
| 掛け金様式: | 上 | 連絡先数: | 8 |
| PCBの台紙の角度: | 側面の記入項目 | 台紙様式: | 穴を通して |
| 性能の速度: | 10/100/1000ベース-T | ポート構成: | シングル |
| ジャック構成: | 1 x 1 | 港ごとのターミナル: | 8 |
| 接触基材: | リン青銅 | ||
| ハイライト: | RJ45 Ethernet Connector 8P8C single port,RJ45 connector with LED indicator,gold plated RJ45 single port |
||
製品の説明

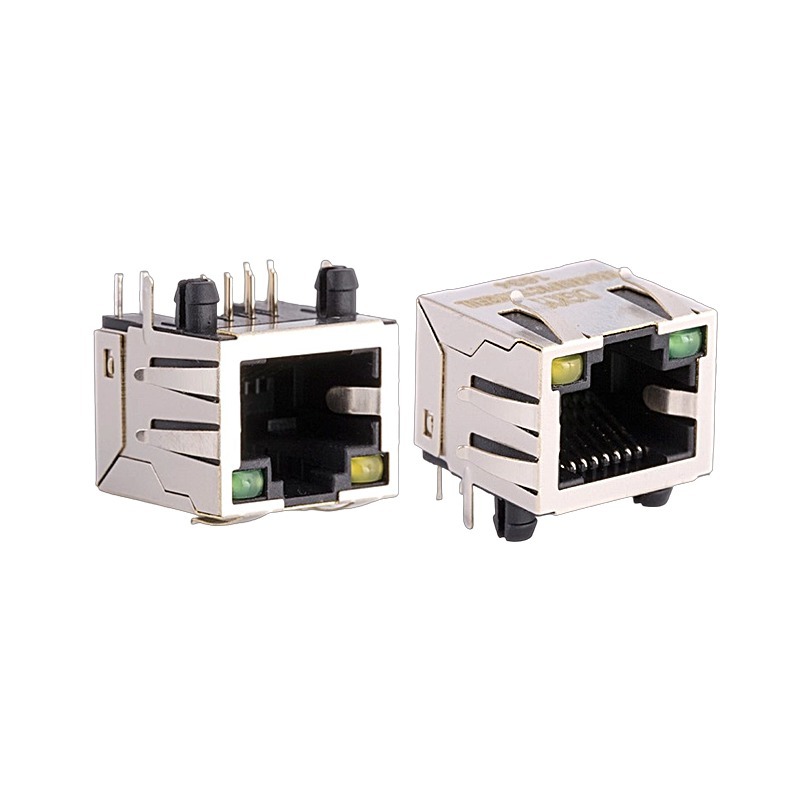

| Part Number | KRJ-56S8P8C1X1YGENL |
|---|---|
| Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China |
| Certification | IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | Up |
| Filter | Without Filter |
| LED Option | With LED |
| LED Color | Green & Yellow |
| Panel Stops | With Panel Stops |
| Shielded | Yes |
| Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T |
| Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single |
| Number of Positions | 8 |
| Jack Configuration | 1 x 1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |

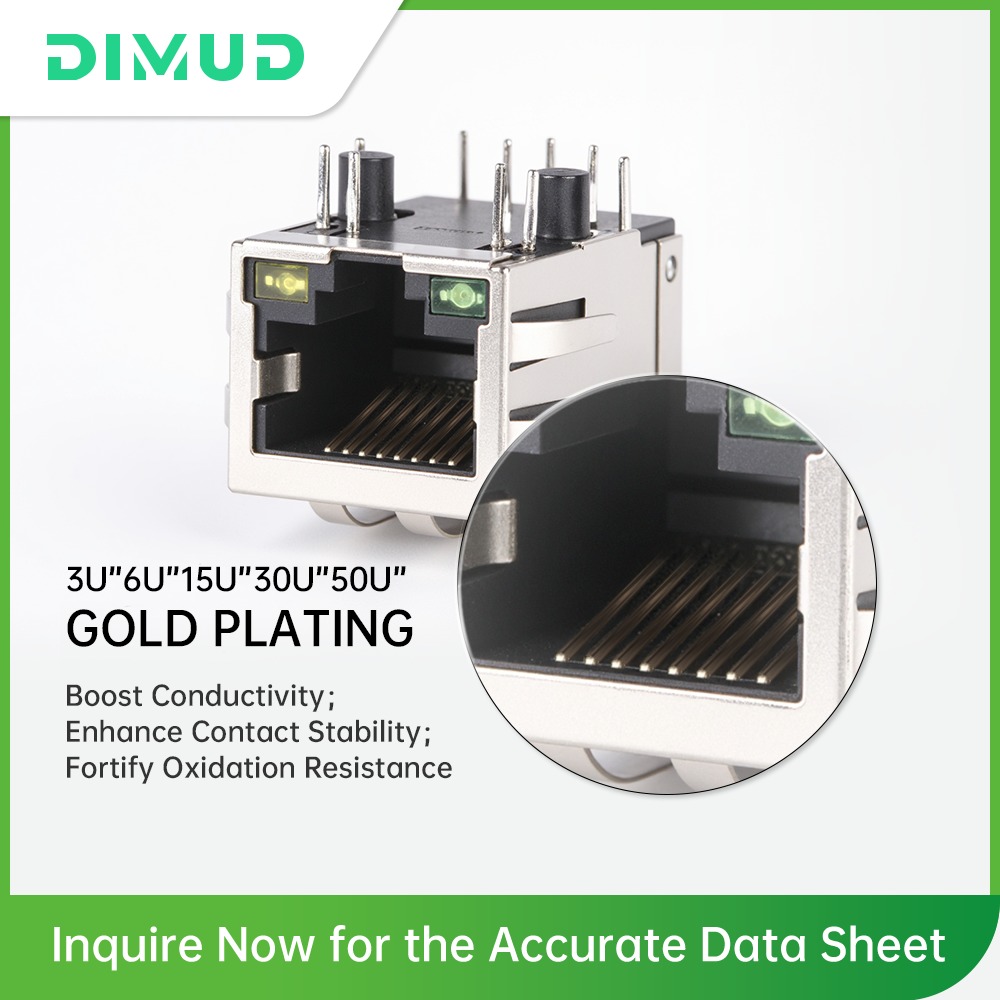

| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PA46 |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
