| 最小注文数量 : | 交渉 | 価格 : | Please contact us to get the latest price. |
|---|---|---|---|
| パッケージの詳細 : | カートンの皿 | 受渡し時間 : | 10 日 |
| 支払条件 : | T/T,D/P,D/A,L/C,ウェスタンユニオン,マネーグラム | 供給の能力 : | 10万個/日 |
| 起源の場所: | 中国のトンコワン | ブランド名: | DGKYD |
|---|---|---|---|
| 証明: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | モデル番号: | KHX1626SR |
|
詳細情報 |
|||
| 製品タイプ: | イーサネット変圧器 | カプセル封入方法: | ロール テープ包装 |
|---|---|---|---|
| PCBの台紙様式: | SMD | 形状: | 直角形 |
| PINの量: | 16のピン | LAN変圧器の速度: | 100 BASE-TX |
| 動作温度: | 任意-40~+85°C | 中心の量: | 2セット |
| ハイライト: | SMD イーサネット トランスフォーマー,イーサネット隔離フィルターネットワークトランスフォーマー,KHX1626SR ネットワーク トランスフォーマー |
||
製品の説明

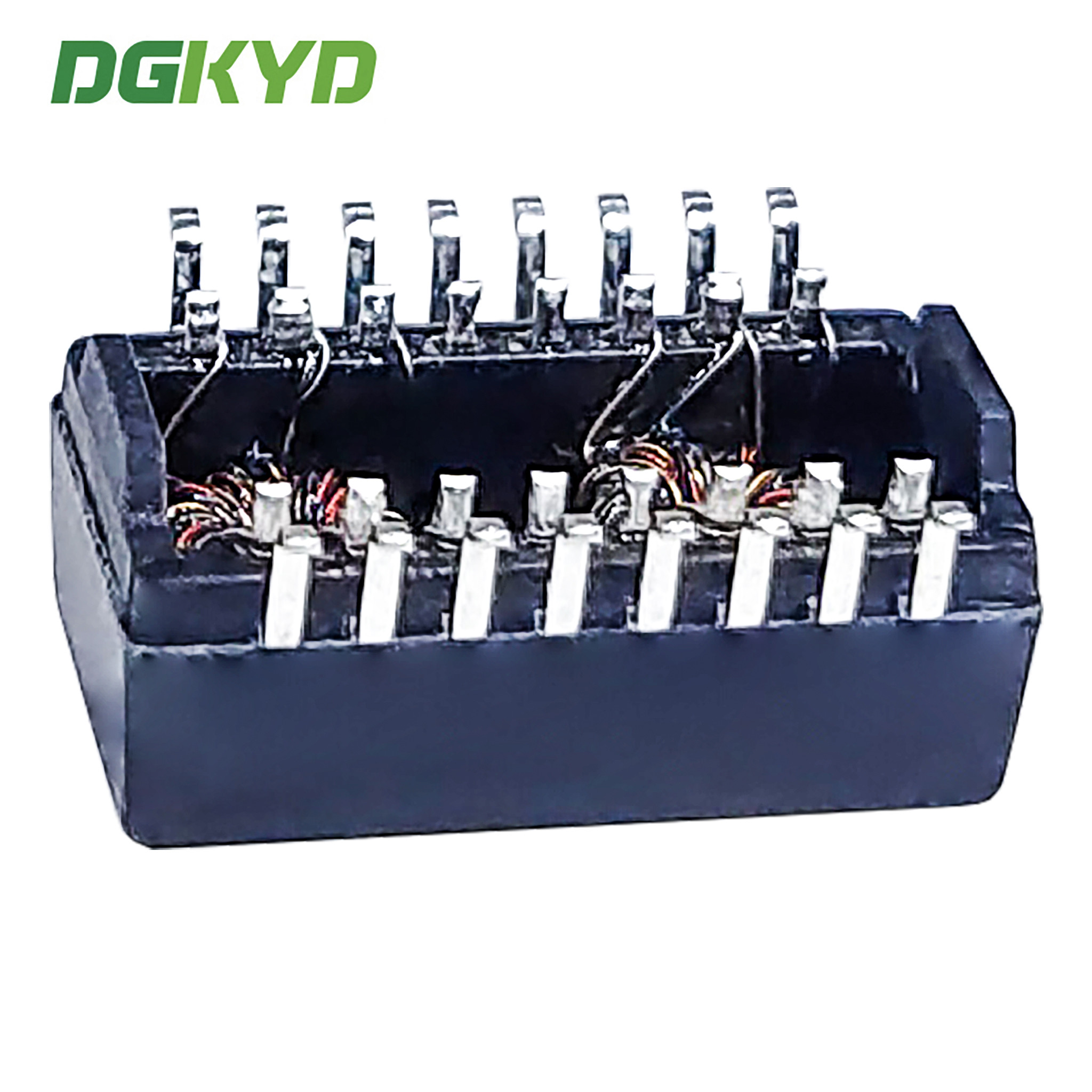

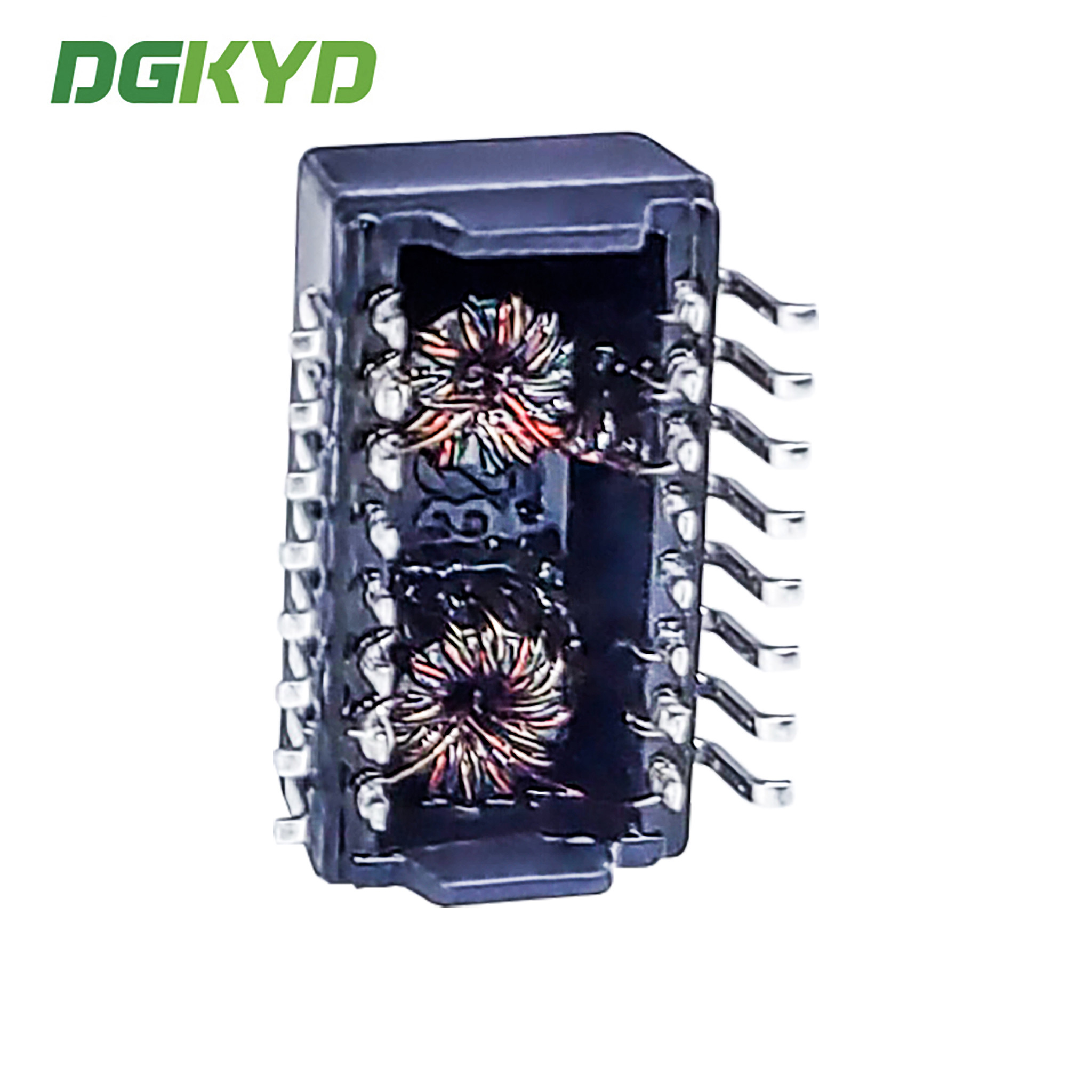

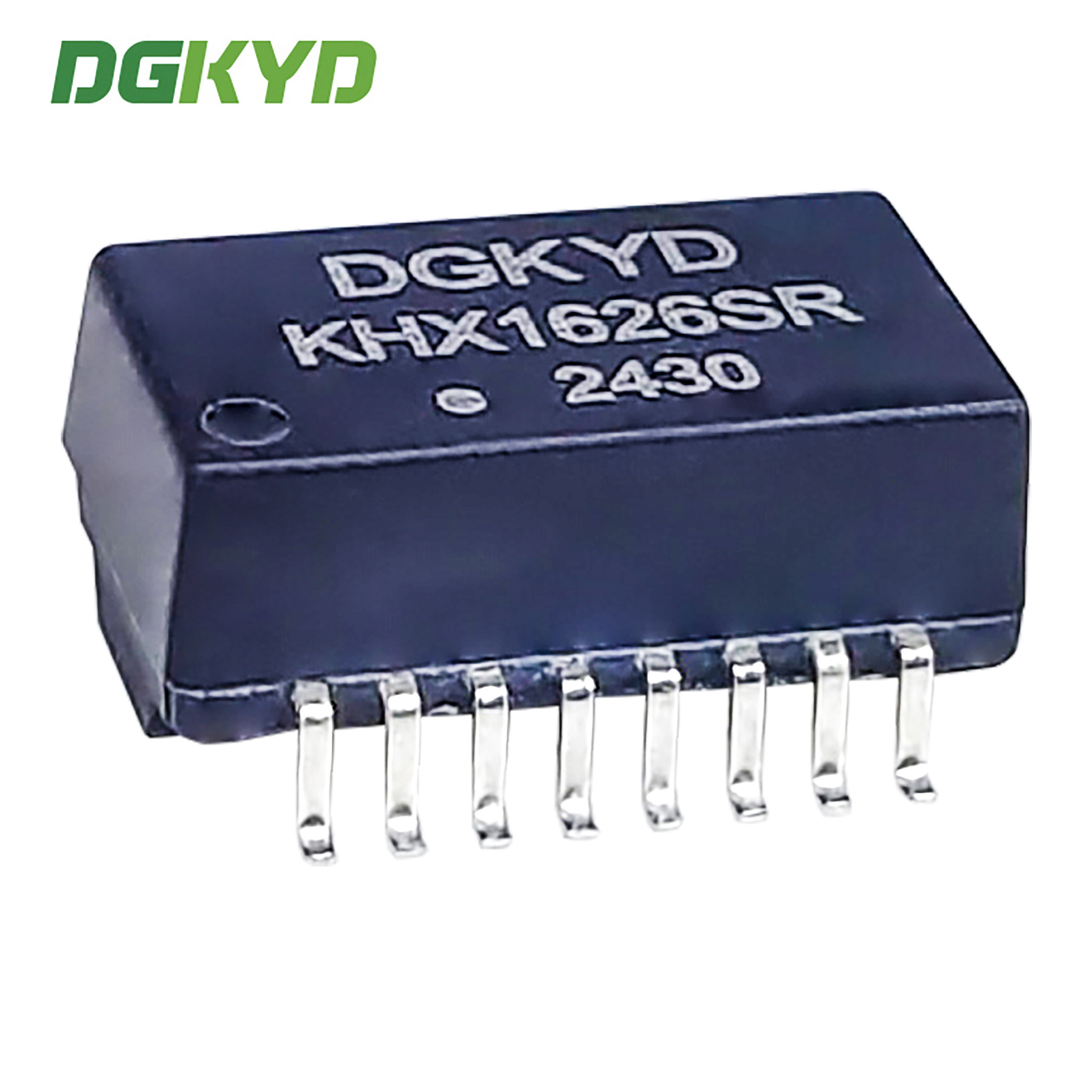

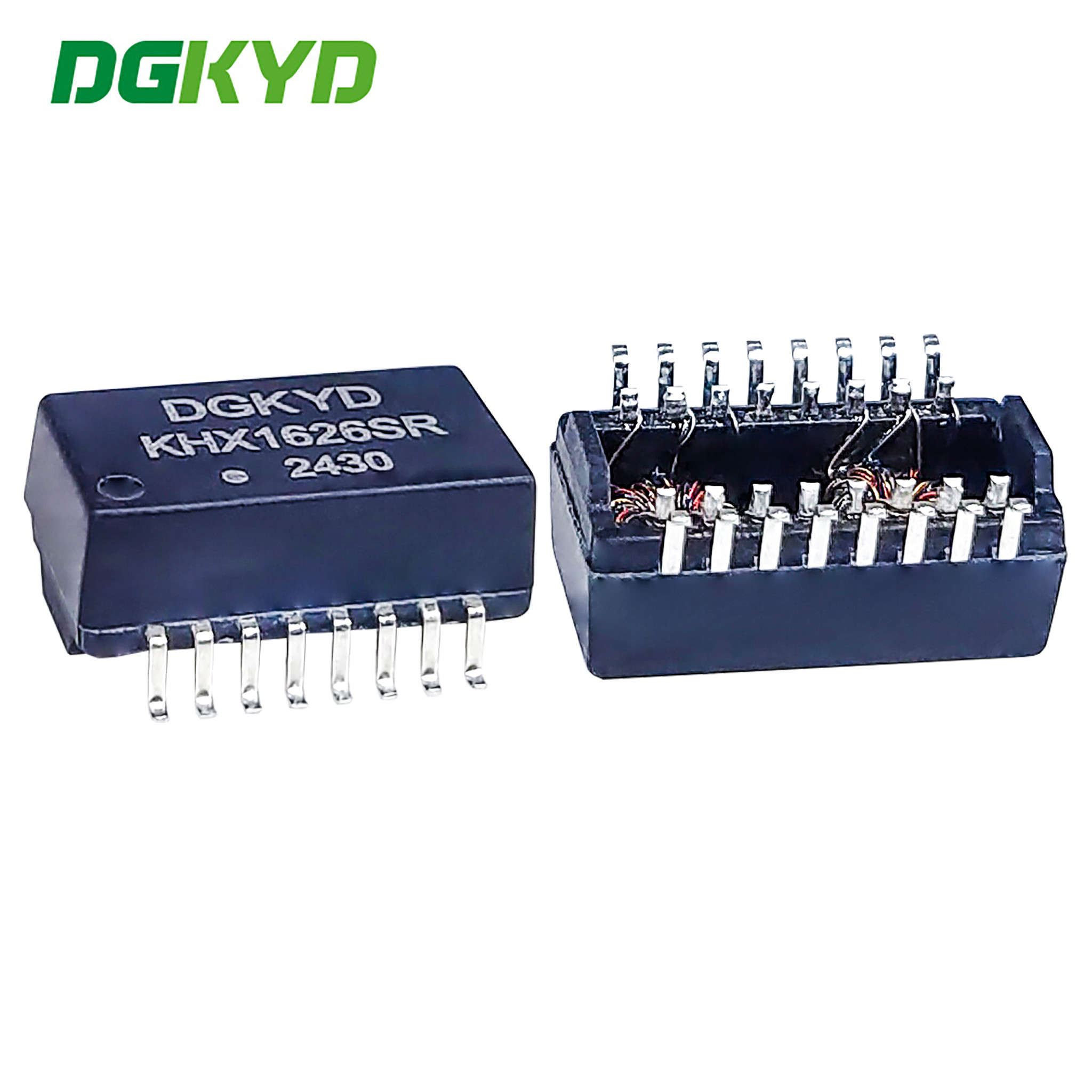

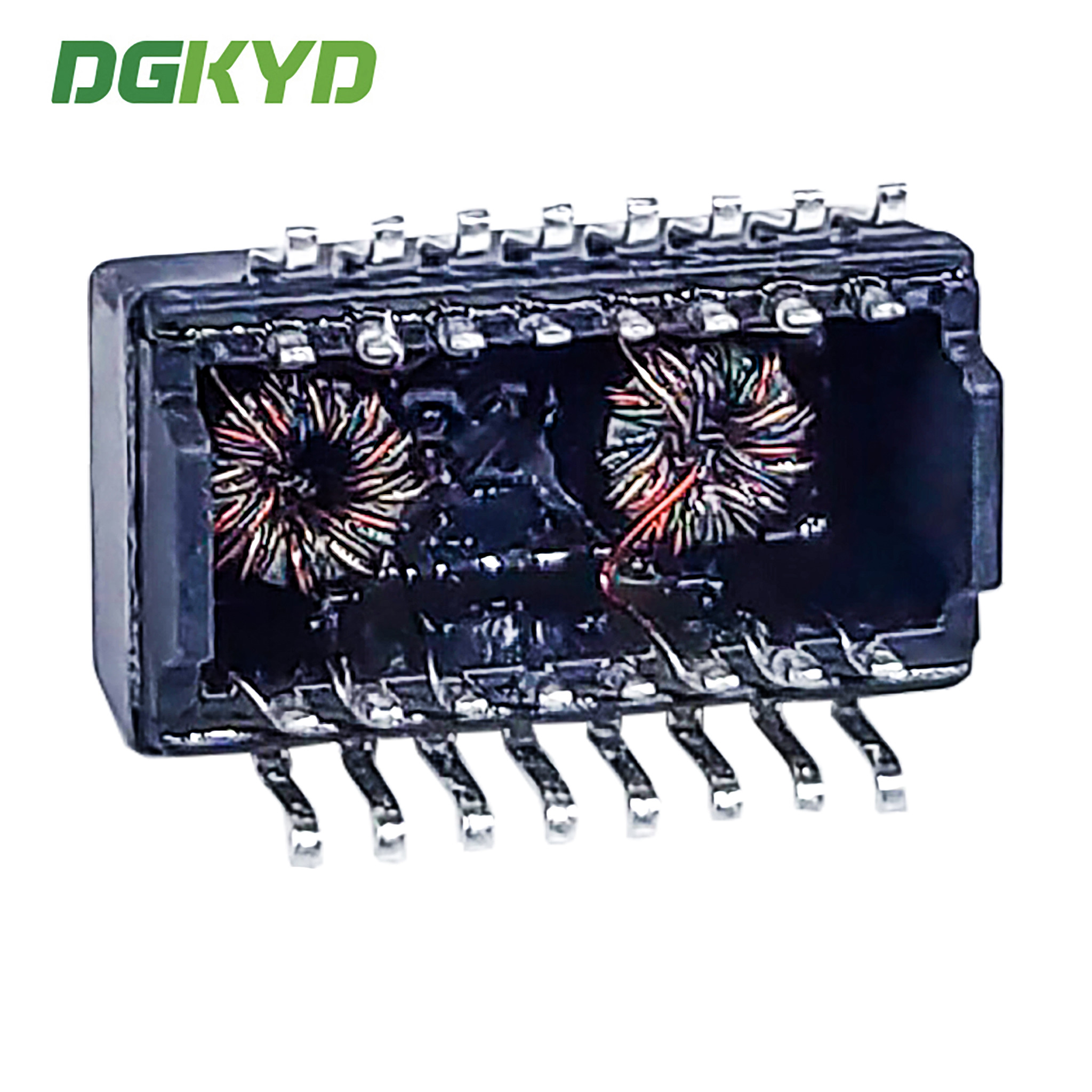

KHX1626SR100M Base-T Network Transformer Ethernet Isolation Filter Ethernet Transformer SMD
Product Specification Document
Parameters
| Part Number | KHX1626SR | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS |
| Product Type | Transformer Modular | Transformer Style | Discrete Transformer |
| Core Quantity | 2 pairs | PIN quantity | 16 |
| Lan Transformer Speed | 10/100 BASE-TX | Mounting Type | SMD |
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: - 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Performance parameters:
1. Applied to Ethernet, coil ratio: 1CT: 1CT
2. Meet IEEE 802.3 & ANSI X 3.263 standard
3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard
5. Withstand voltage: 2250VDC 1mA max, 60s
6.Impedance: 100 ohms
7. RJ45 interface meets FCC 68.5 standard
8. DC resistance: 1.5 Ω
